High performance 38mm external wastegate with advanced features for optimal control.

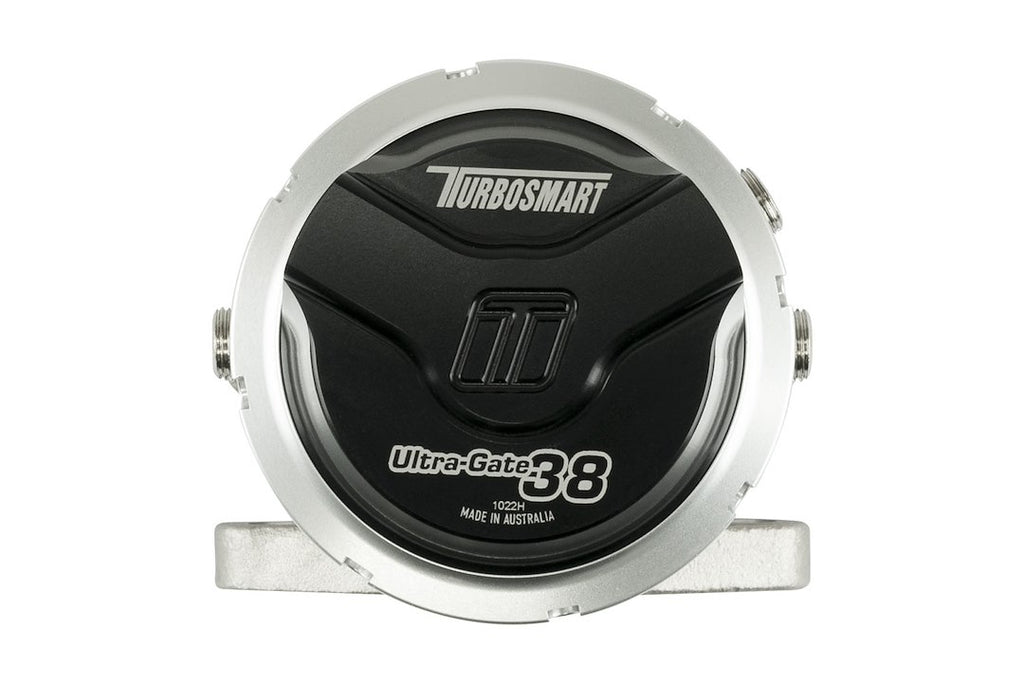

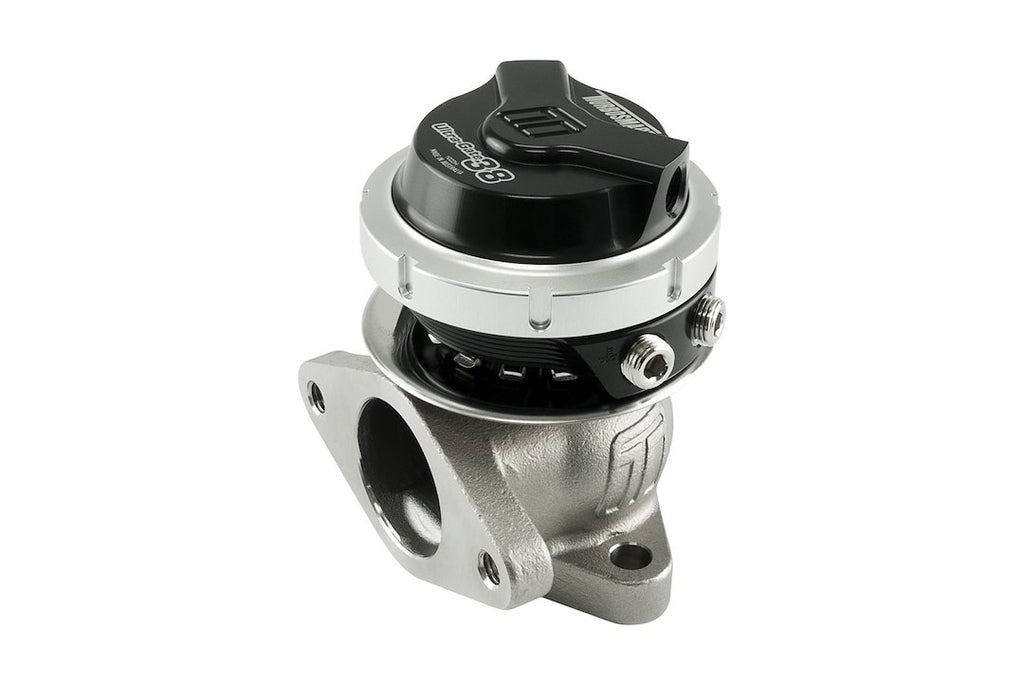

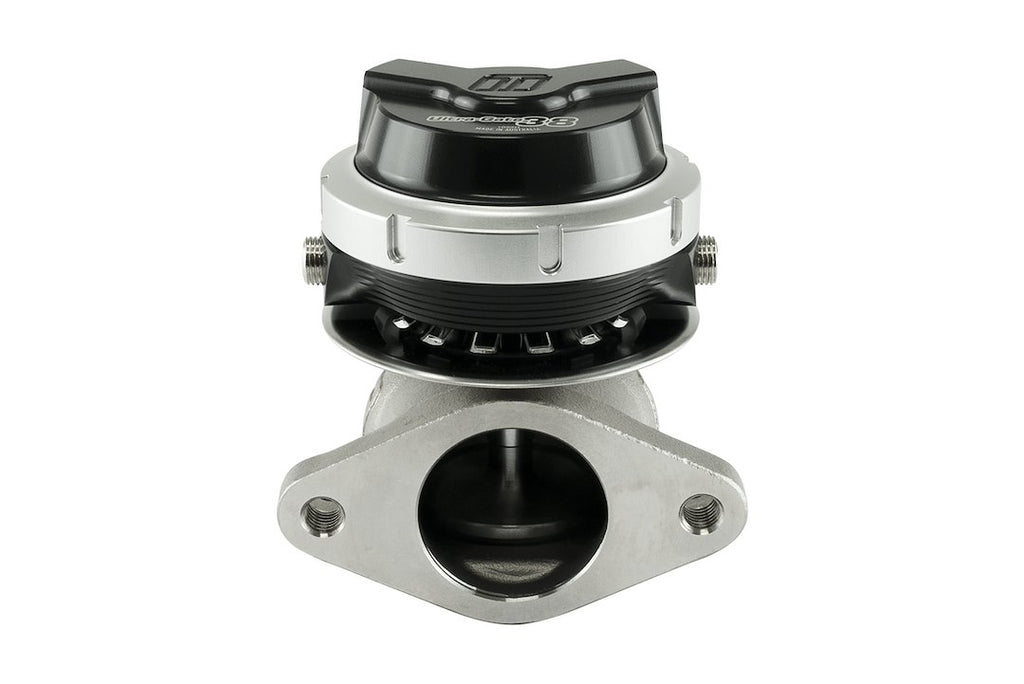

The Turbo Smart Gen-V Ultra-Gate38 is a high-performance external wastegate designed for applications utilizing a 2-bolt flange. With a diameter of 38 millimeters and a pressure rating of 14 PSI, this wastegate offers extensive configurability and superior thermal performance. It is engineered for durability, featuring a cast stainless steel body and a Nitronic 60 valve guide, ensuring longevity and resistance to fatigue under demanding conditions.
This wastegate incorporates a unique collar-locking system and a variable actuator cap, allowing for easy adjustments and optimal routing of reference hoses. The design includes 1/8 inch NPT reference ports and is compatible with a full range of springs, providing flexibility for various tuning needs. Additionally, the liquid actuator cooling option enhances thermal management, making it suitable for high-performance applications.
The Gen-V Ultra-Gate38 has been optimized using computational fluid dynamics (CFD) to ensure maximum flow and efficiency. Its classic 2-bolt flange design allows for straightforward installation, making it a direct fit upgrade for all 4th-generation Turbo Smart wastegates. This wastegate is an excellent choice for those seeking reliable performance and control in their turbocharged systems.
Features
- CFD Optimized And Validated In-House For Maximum Flow And Thermal Management
- Unique Collar-Locking System, Variable Actuator Cap And Base For Easy
- 360 Degree Optional Routing Of Reference Hoses
- 1/8 Inch NPT Reference Ports And Are Provided With The Full Range Of Available Springs
- Liquid Actuator Cooling Option
- Nitronic 60 Valve Guide And High Temp 347 Stainless Steel Body
Specifications
- Manufacturer: Turbo Smart
- Manufacturer Part Number: TS-0551-1012
- Control: Mechanical
- Type: External
- Diameter: 38 Millimeter
- PSI Range: 14 Pounds Per Square Inch
- Adjustable: Yes
- Wastegate Base Material: Cast Stainless Steel
