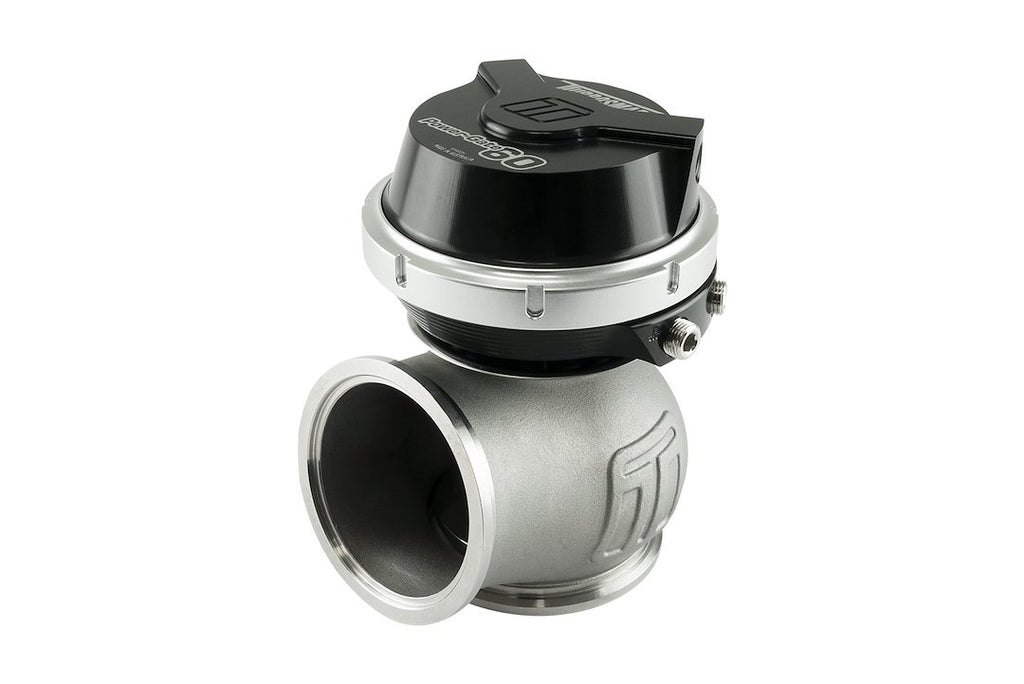

Turbo Smart Gen-V Power-Gate60 Wastegate (MPN: TS-0555-1002)

High performance 60 mm external wastegate with advanced features

The Turbo Smart Gen-V Power-Gate60 is a high-performance external wastegate designed for optimal control and longevity. With a diameter of 60 millimeters and a pressure range of 7 PSI, this wastegate is engineered to provide superior flow performance and thermal management. Its modular design allows for easy actuator interchangeability, making it a versatile choice for various applications.

This wastegate features a unique collar-locking system and variable actuator cap, ensuring secure and reliable operation. The strap-type V-band clamps facilitate straightforward installation, while the liquid actuator cooling option enhances thermal performance. Constructed from high-temperature 347 stainless steel and featuring a Nitronic 60 valve guide, the Gen-V Power-Gate60 is built to withstand demanding conditions and provide long-lasting performance.

Designed as a direct fit upgrade for all 4th-generation Turbo Smart wastegates, the Gen-V Power-Gate60 combines user configurability with best-in-class engineering. It includes 1/8 inch NPT ports for vacuum fittings, allowing for precise control and adjustment. This wastegate is an essential component for those seeking to enhance their turbocharged systems.

Features

• Liquid Actuator Cooling Option
• Strap Type V-Band Clamps
• User Adjustable Actuator Position
• Modular Design For Actuator Interchangeability
• Nitronic 60 Valve Guide And High Temp 347 Stainless Steel Body
• Unique Collar-Locking System, Variable Actuator Cap And Base For Easy

Specifications

• Manufacturer: Turbo Smart
• Manufacturer Part Number: TS-0555-1002
• Control: Mechanical
• Type: External
• Diameter: 60 Millimeter
• PSI Range: 7 Pounds Per Square Inch
• Adjustable: Yes
• Wastegate Base Material: Cast Stainless Steel

Technical Documents

• Gen-V_Standard_Spring_Chart.pdf
