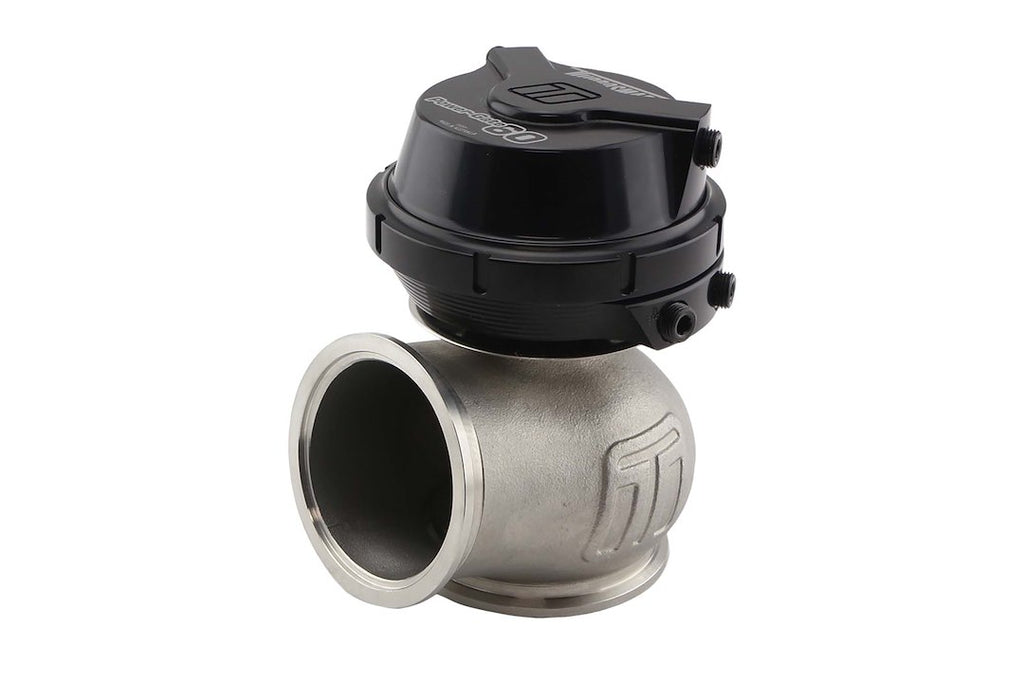

Turbo Smart Gen-V Power-Gate60 External Wastegate (MPN: TS-0555-1015)

High-performance 60mm wastegate with advanced thermal and flow capabilities.

The Turbo Smart Gen-V Power-Gate60 External Wastegate is engineered for high-performance applications, featuring a 60 millimeter diameter and a pressure rating of 14 PSI. This wastegate is recognized as the largest in the Turbosmart GenV range and is designed to deliver the highest flow performance among poppet style wastegates available. Its construction emphasizes durability and efficiency, with a focus on extended thermal performance and fatigue resistance, making it suitable for demanding motorsport environments.

The GenV Power-Gate60 incorporates a unique collar-locking system and a modular actuator design, allowing for user configurability and easy adjustments. It supports a variety of configurations, including liquid cooling provisions and adjustable actuator positions, ensuring optimal performance under various conditions. The wastegate is CFD optimized and validated in-house, ensuring maximum flow and effective thermal management.

This external wastegate is a direct fit upgrade for all Gen4 Turbosmart wastegates, providing enhanced features and performance. It includes strap-type V-band clamps and 1/8 inch NPT reference ports, making installation straightforward. The GenV Power-Gate60 is designed for those seeking reliable and efficient wastegate solutions in high-performance applications.

Features

• Class Leading Thermal Performance
• Class Leading Flow Performance
• Liquid Cooling Provision
• Strap Type V-Band Clamps
• User Adjustable Actuator Position
• Modular Actuator Design
• Compressed Gas Configuration Available

Specifications

• Manufacturer: Turbo Smart
• Manufacturer Part Number: TS-0555-1015
• Control: Electronic
• Type: External
• Diameter: 2.36 Inch
• PSI Range: 14 Pounds Per Square Inch
• Adjustable: Yes
• Wastegate Base Material: Stainless Steel

Technical Documents

• Data_Sheet_GenV_PowerGate60.pdf
