High-performance external wastegate with advanced thermal management features.

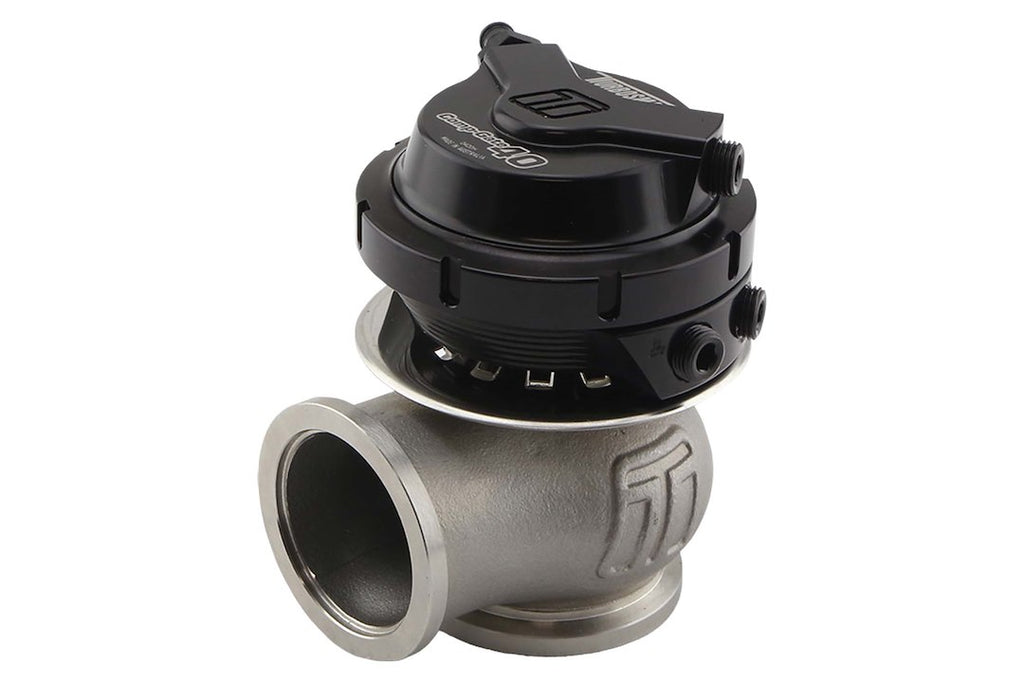

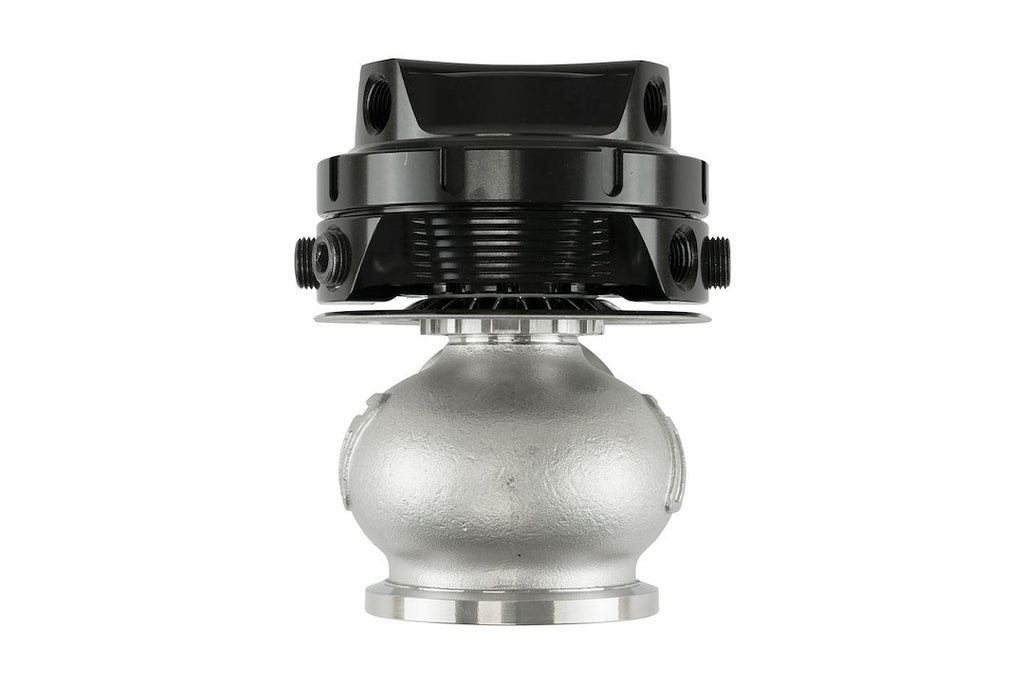

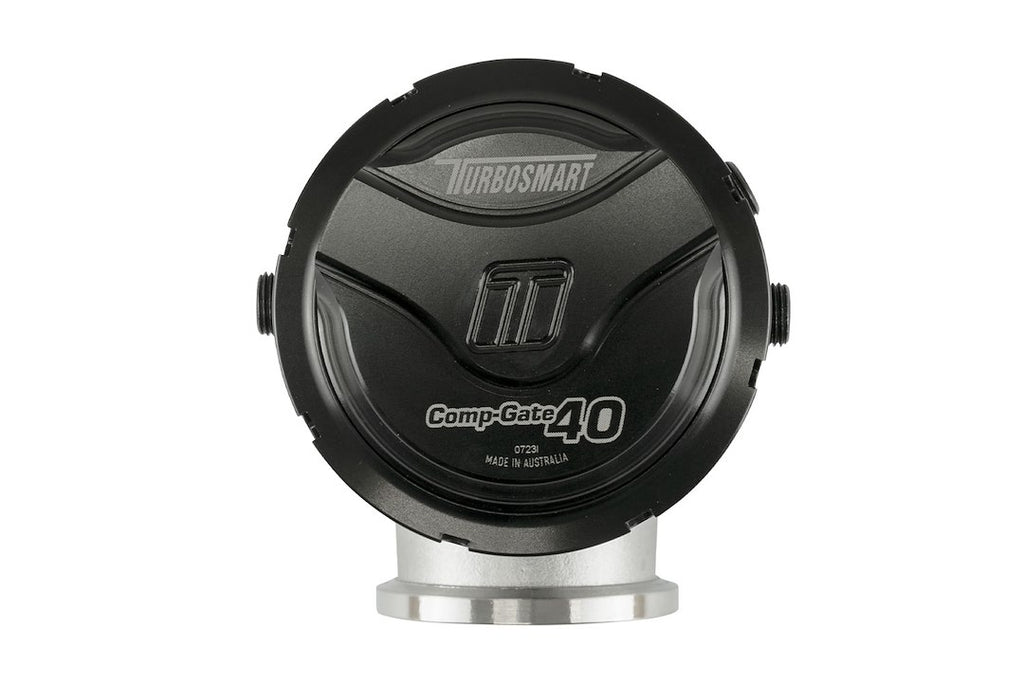

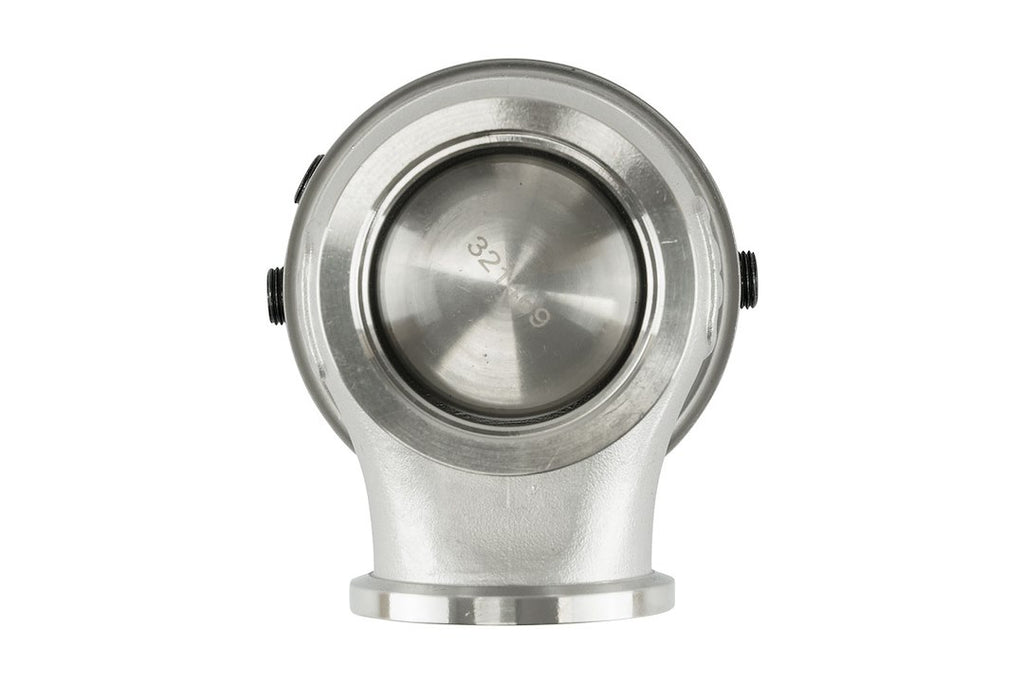

The Turbo Smart Gen-V Comp-Gate40 External Wastegate is engineered for high-performance applications, offering superior flow and thermal management. This wastegate is designed to provide extensive user configuration options, ensuring optimal control and longevity in demanding motorsport environments. With a focus on fatigue resistance and best-in-class flow performance, the Gen-V Comp-Gate40 stands out as the highest flowing wastegate of its kind.
Constructed with a Nitronic 60 valve guide and a high-temperature 347 stainless steel body, this wastegate is built to withstand extreme conditions. The modular actuator design allows for user-adjustable actuator positioning, enhancing installation flexibility. Additionally, the wastegate features strap-type V-band clamps and a liquid cooling provision, making it a versatile choice for various setups.
The Gen-V Comp-Gate40 is CFD optimized and validated in-house, ensuring maximum flow efficiency and thermal performance. It is a direct fit upgrade for all Gen4 Turbo Smart wastegates, maintaining the same mounting orientation while introducing advanced features for improved performance. This wastegate is equipped with a full range of available springs, allowing for precise tuning to meet specific application requirements.
Features
- Class Leading, Thermal Performance
- Class Leading, CFD And Bench Validated Flow Performance
- Class Leading Fatigue Resistance
- Nitronic 60 Valve Guide And High Temp 347 SS Body

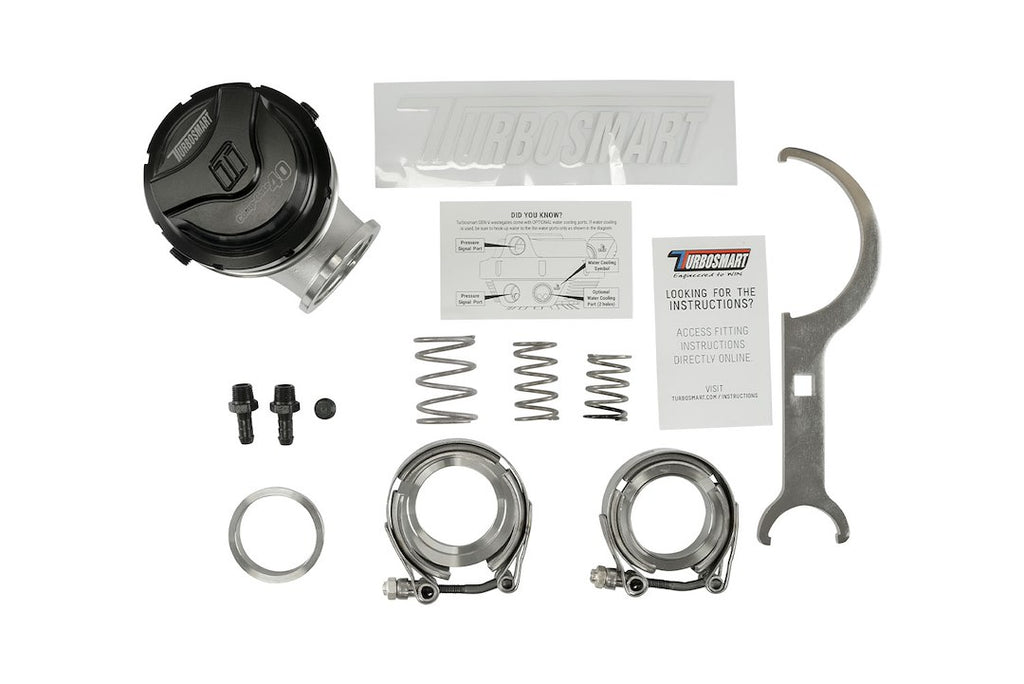

- 17/7 PH Stainless Steel Springs
- Liquid Cooling Provision
- Strap Type V-Band Clamps
- Modular Actuator Design
- User Adjustable Actuator Position
Specifications
- Manufacturer: Turbo Smart
- Manufacturer Part Number: TS-0552-1015
- Control: Electronic
- Type: External
- Diameter: 1.57 Inch
- PSI Range: 14 Pounds Per Square Inch
- Adjustable: Yes
- Wastegate Base Material: Stainless Steel
