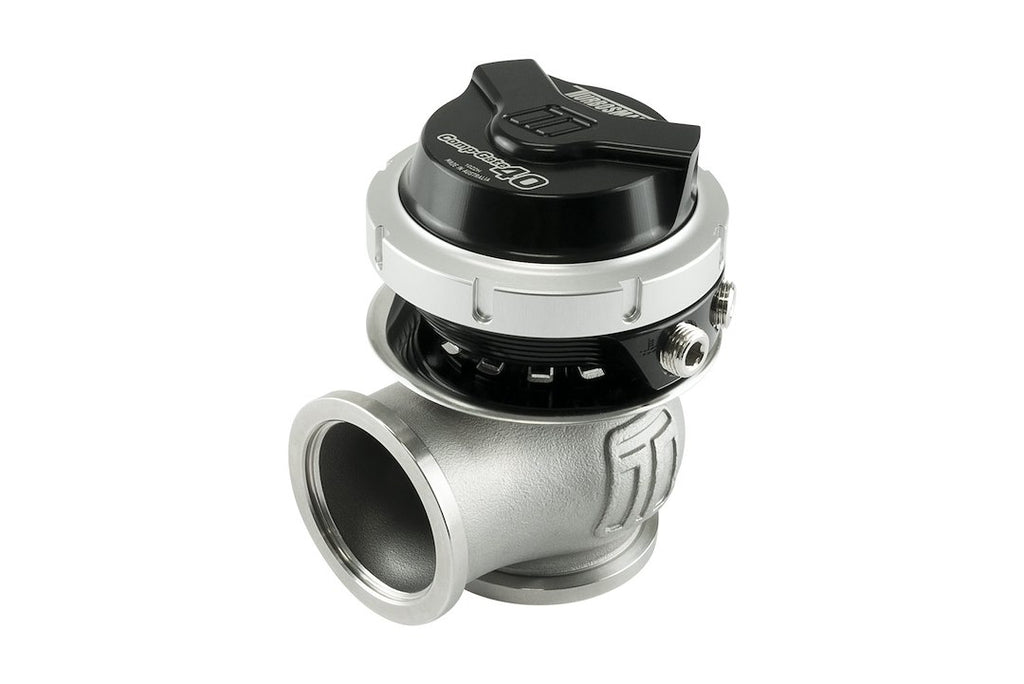

Turbo Smart Gen-V Comp-Gate40 Wastegate (MPN: TS-0552-1002)

Advanced external wastegate with superior flow and thermal management features.

The Turbo Smart Gen-V Comp-Gate40 is an advanced external wastegate designed for high-performance applications. With a diameter of 40 millimeters and a base spring pressure of up to 50 psi, this wastegate offers extensive configurability and control for optimal boost management. Engineered with CFD optimization, it ensures maximum flow and thermal performance, making it a reliable choice for motorsport enthusiasts.

Constructed from high-temperature 347 stainless steel, the Gen-V Comp-Gate40 features a unique collar-locking system and a variable actuator cap for easy adjustments. The design includes strap-type V-band clamps and allows for 60-degree routing of reference hoses, enhancing installation flexibility. This wastegate is built to withstand fatigue and provide longevity, making it a robust solution for demanding environments.

The Gen-V range from Turbo Smart represents a significant evolution from its predecessor, incorporating more features and options than any other wastegate in its class. With its mechanical control and adjustable capabilities, it is engineered to deliver best-in-class performance and reliability for serious automotive applications.

Features

• CFD Optimized And Validated In-House For Maximum Flow And Thermal Management
• The GenV Range Has More Features, Options And Performance Than Any Other Gate Like It
• Unique Collar-Locking System, Variable Actuator Cap And Base For Easy
• 60 Degree Optional Routing Of Reference Hoses, Strap-Type V-Band Clamps
• Nitronic 60 Valve Guide And High Temp 347 Stainless Steel Body

Specifications

• Manufacturer: Turbo Smart
• Manufacturer Part Number: TS-0552-1002
• Control: Mechanical
• Type: External
• Diameter: 40 Millimeter
• PSI Range: 7 Pounds Per Square Inch
• Adjustable: Yes
• Wastegate Base Material: Cast Stainless Steel

Technical Documents

• Gen-V_Standard_Spring_Chart.pdf
