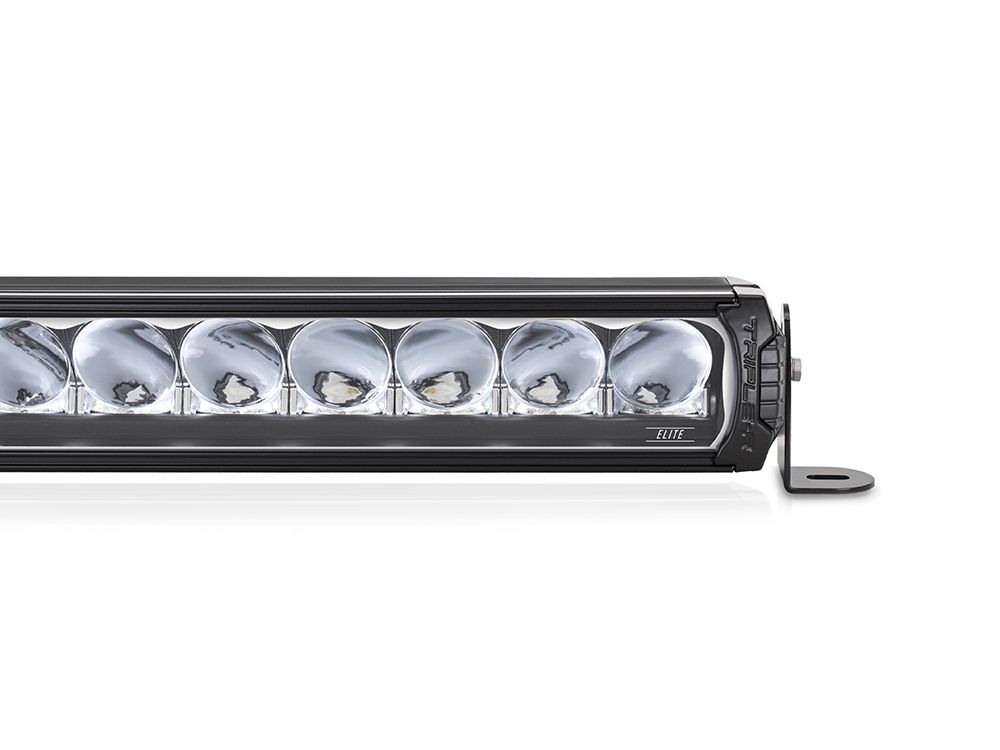

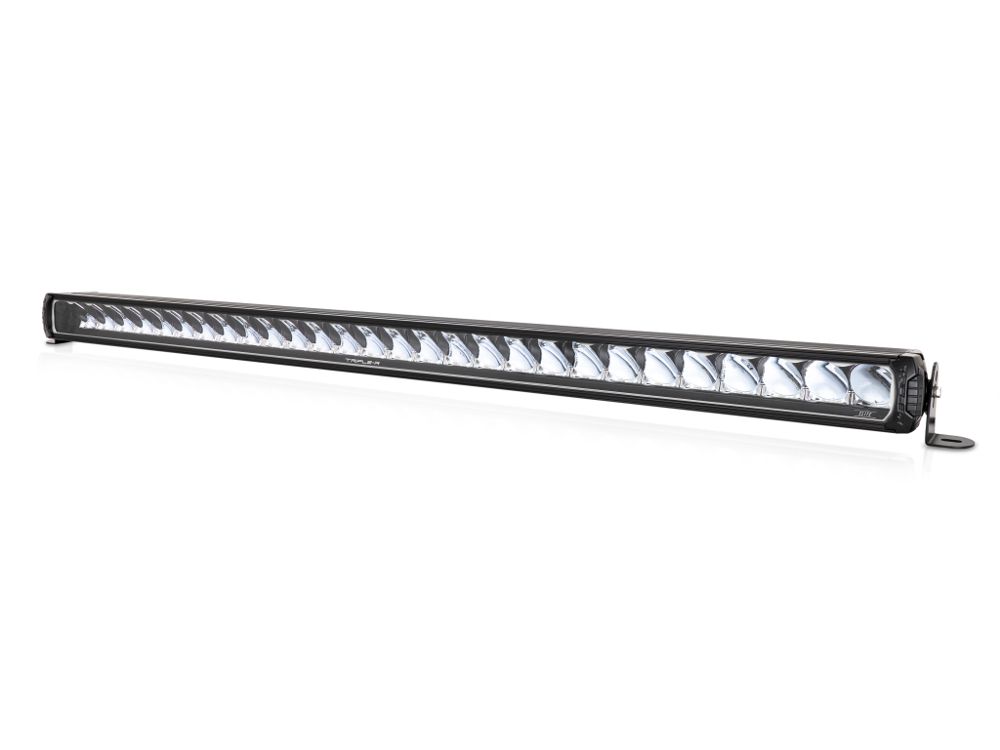

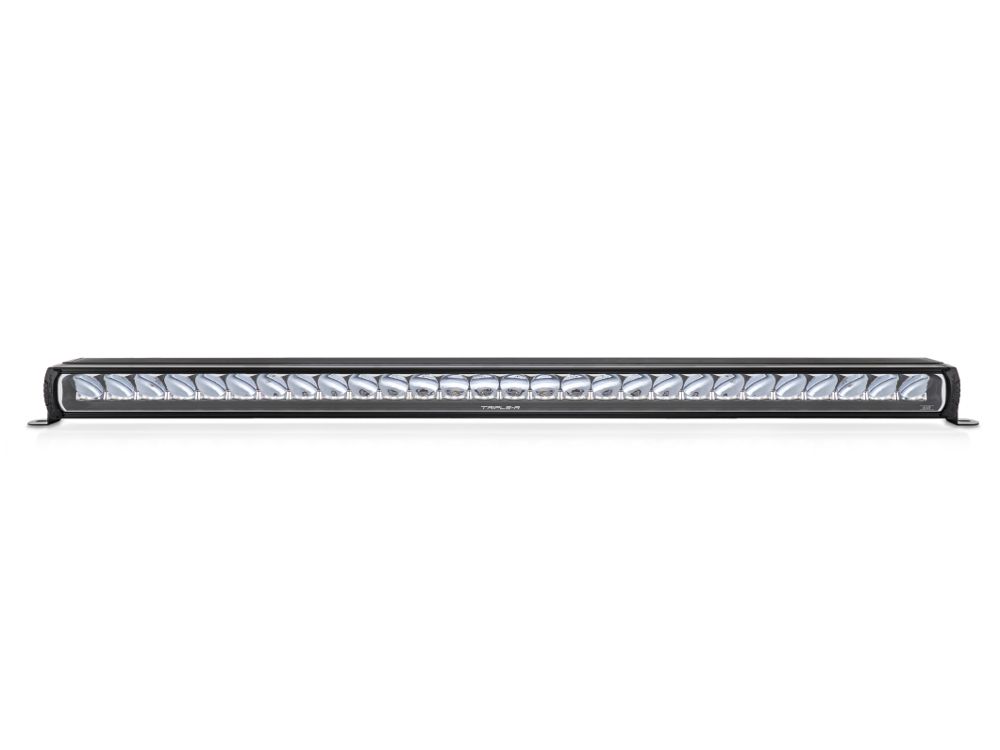

High-output LED light bar with exceptional distance illumination and durability.

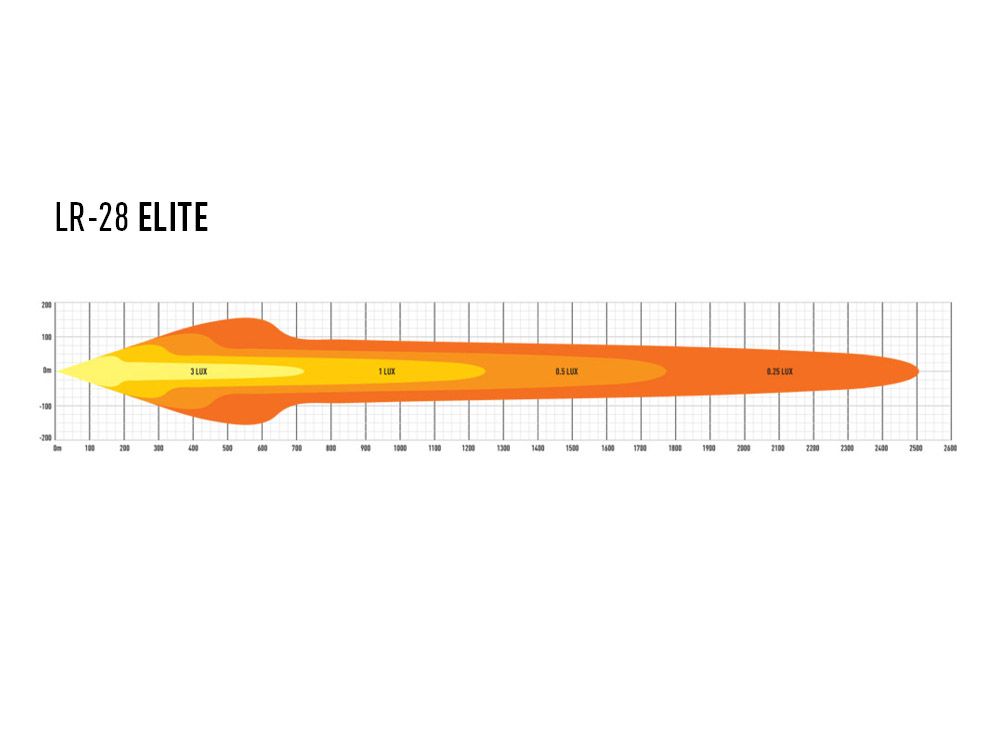

The Triple-R Light LR-28 Elite LED Light Bar is engineered to deliver outstanding performance with 28,560 raw lumens and a 30-degree beam spread, ensuring superior visibility for night driving. Designed for versatility, this light bar features a length of 51.4 inches and is equipped with high-output premium bin LEDs that provide long-range illumination and a well-defined beam pattern. The combination of central and outer LEDs enhances both distance and lateral visibility, making it suitable for various applications, including off-road and motorsport environments.
Constructed with a clear polycarbonate lens and a robust black housing, the LR-28 Elite is built to withstand harsh conditions while maintaining optimal performance. The anodized pre-treatment and automotive-grade powder top-coat offer exceptional corrosion and chemical resistance, ensuring longevity. Additionally, the light bar incorporates advanced thermal management features, including a CAE optimized heatsink and electronic thermal management, to maintain efficiency during extended use.
With its contemporary design and low wind noise performance, the LR-28 Elite not only enhances visibility but also contributes to a more comfortable driving experience. The pressure equalization technology through GoreTex breather ensures the integrity of the light bar, while the unbreakable hardcoated polycarbonate lens provides added durability. This light bar is compatible with both center and universal side mounting styles, making installation straightforward and adaptable to various vehicle configurations.

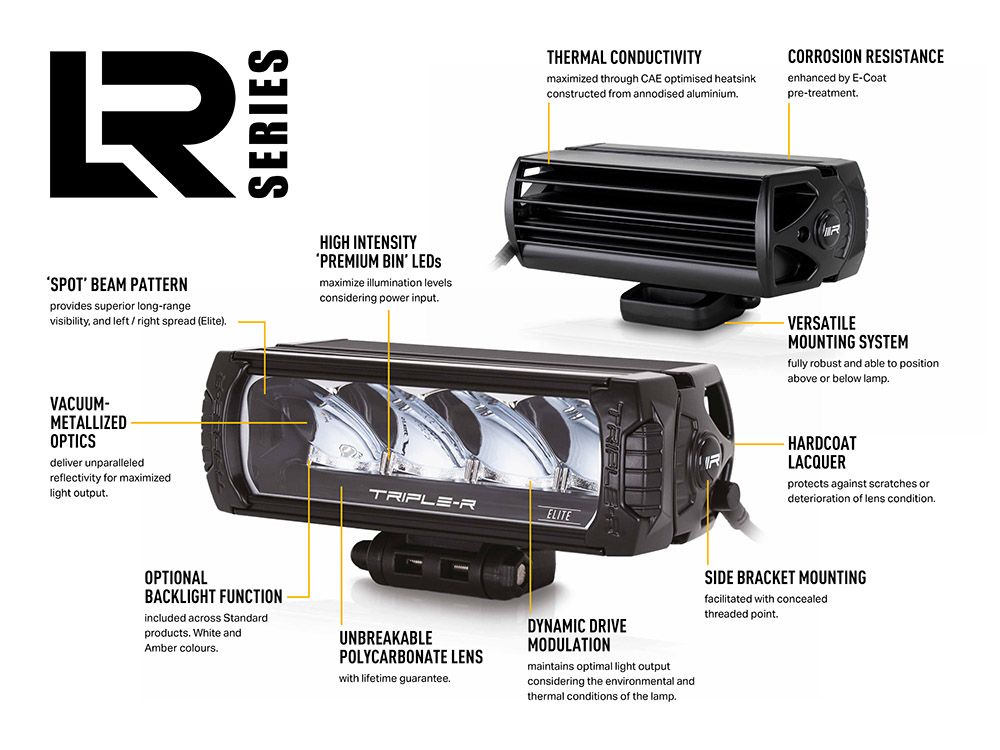

Features
- Highly Efficient LED Technologies
- Ultra-Reflective Vacuum-Metallized Optics Deliver Perfectly Tuned Beam Pattern
- Contemporary Lamp Design
- Aero Design Benefits Low Wind Noise Performance
- CAE Optimized Heatsink Offers Improved Thermal Dynamics
- Anodized Pre-Treatment And Automotive Grade Powder Top-Coat For Ultimate Corrosion And Chemical Protection
- Electronic Thermal Management
- Pressure Equalization Through GoreTex Breather Technology
- ‘Unbreakable’ And Hardcoated Polycarbonate Lens
Specifications
- Manufacturer: Triple-R Light
- Manufacturer Part Number: LR28-EL-B
- Bulb Type: LED
- Style: Straight

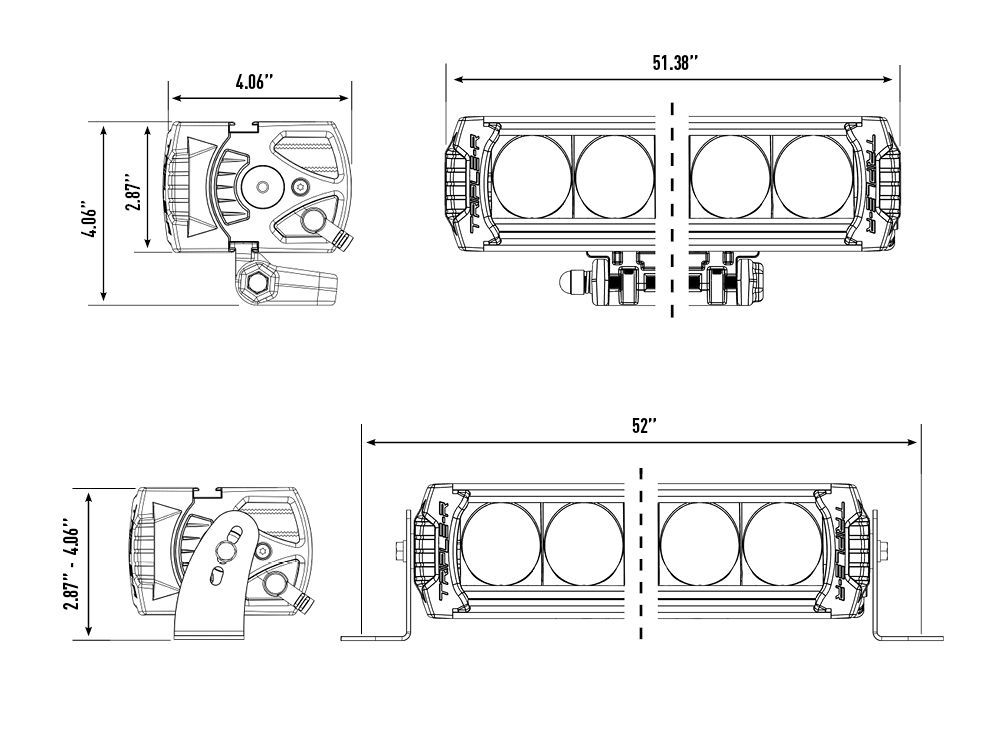

- Length: 51-7/16 Inch
- Beam Type: Spot Beam
- Number Of Rows: 1
- Light Color: White
- Housing Color: Black

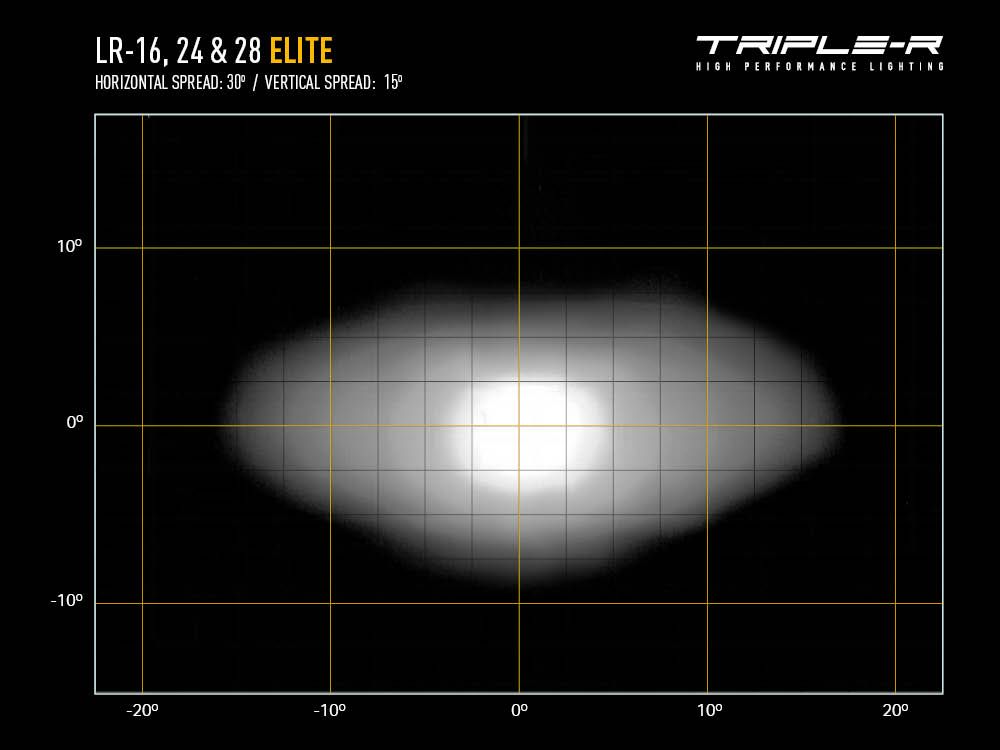

- Beam Angle (Deg): 30 Degree
- Lumens: 28560 Lumens
- Wattage: 326 Watt
- Width: 4.06 Inch
- Height: 2.87 Inch
- Voltage Rating: 10 To 32 Volt
- Ampere Rating At 12 Volts: 22.6 Amp
- Lens Material: Polycarbonate
- Housing Material: Aluminum
- Mounting Style: Center Mount Or Universal Side Mount

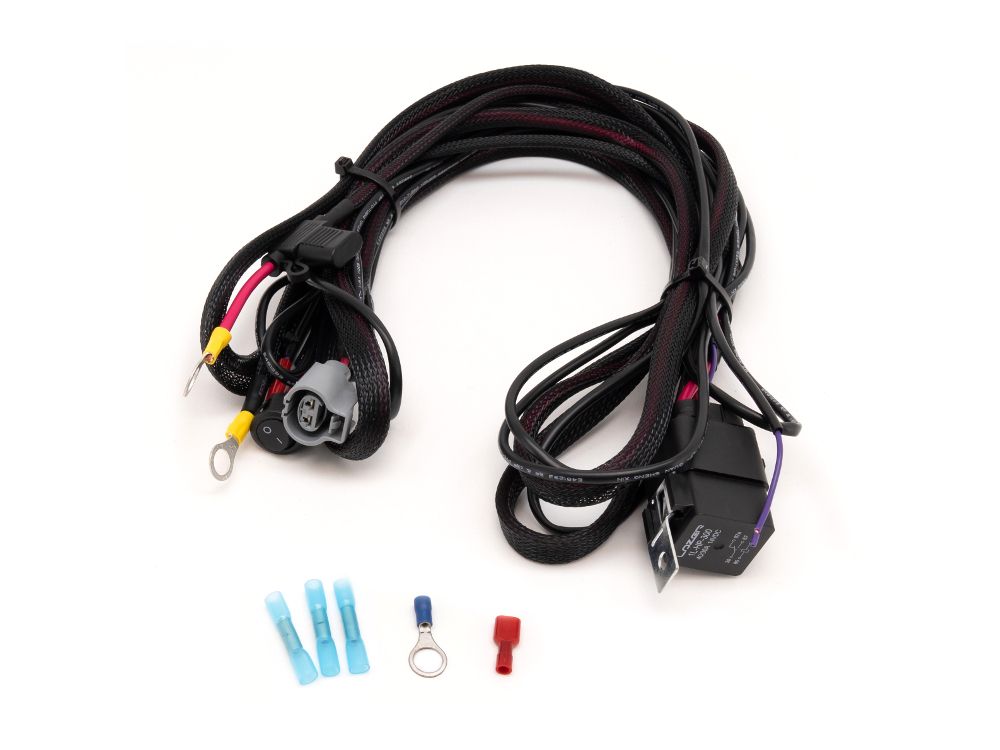

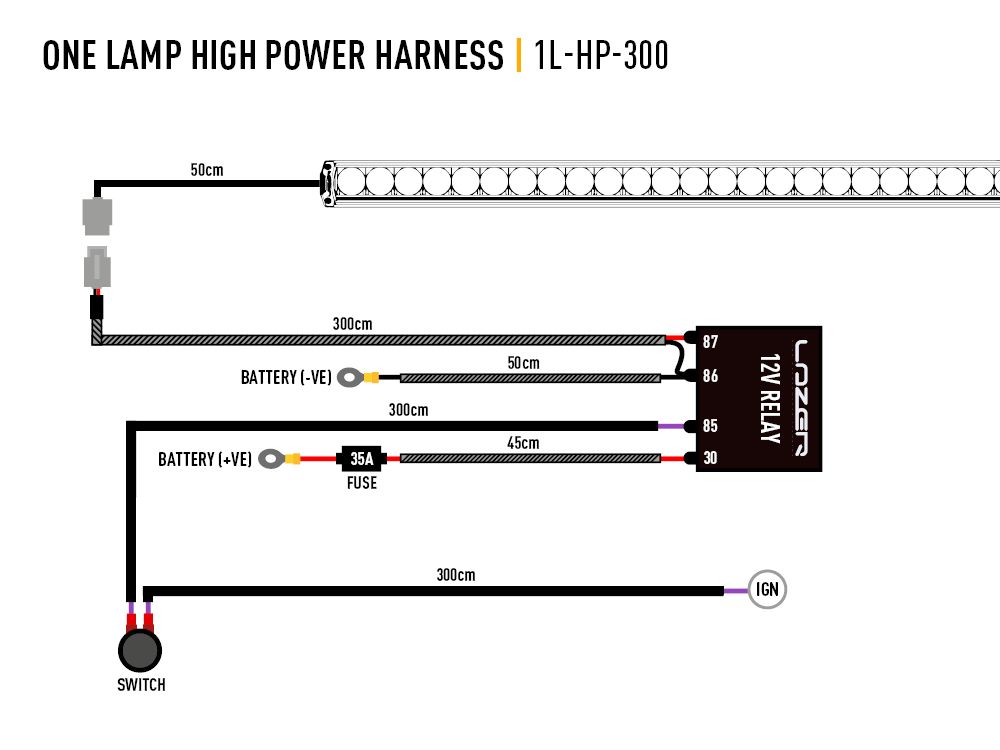

- Includes: With Side Mounting Kit/ Wiring Kit/ Two Center Mount Kit
- Estimated Install Time (Hours): 1.5
