High-output LED light bar with exceptional distance illumination and durability.

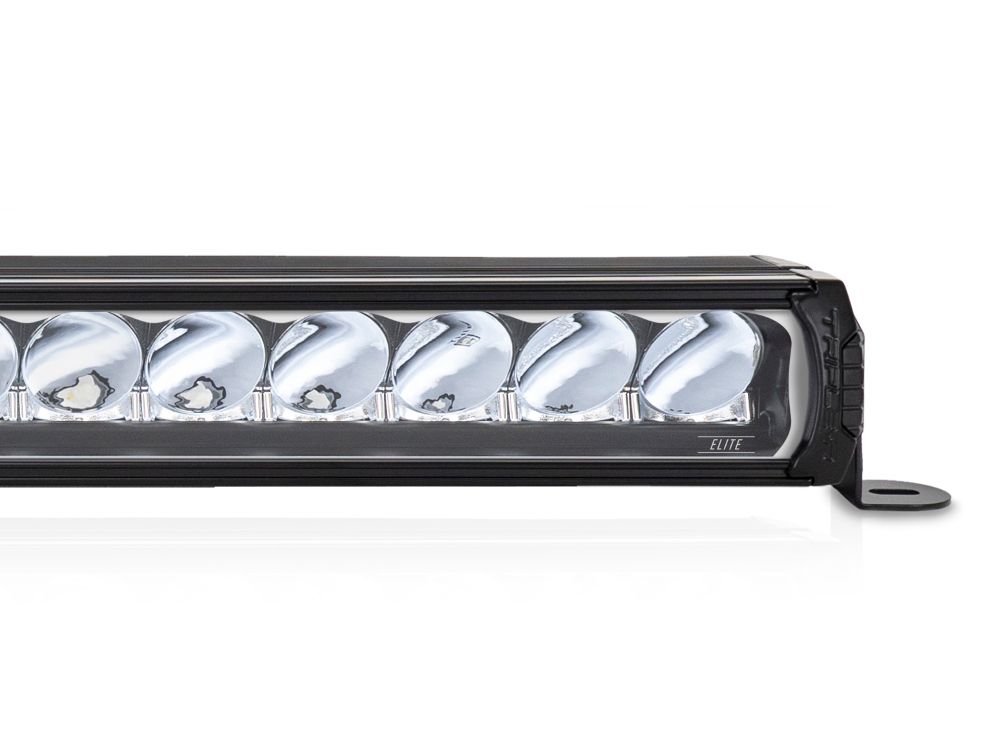

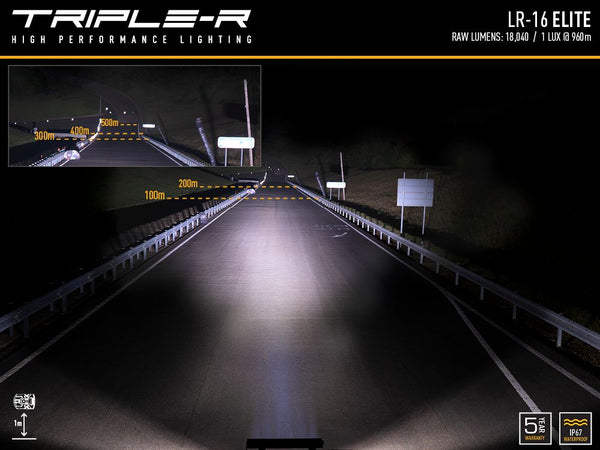

The Triple-R Light LR-16 Elite LED Light Bar is engineered to deliver outstanding performance with over 18,000 raw lumens and a 30-degree beam spread. Designed for both professional motorsport and everyday applications, this light bar ensures superior visibility at distances up to 960 meters. The combination of high-intensity premium bin LEDs and ultra-reflective optics creates a perfectly tuned beam pattern, enhancing road definition and comfort during prolonged use.
Constructed with a clear polycarbonate lens and black aluminum housing, the LR-16 Elite is built to withstand harsh conditions. Its anodized pre-treatment and automotive-grade powder top-coat provide exceptional corrosion and chemical resistance. The innovative design includes features such as electronic thermal management and pressure equalization through GoreTex breather technology, ensuring longevity and reliability in various environments.
With a universal mounting style and included side mounting kit, wiring kit, and center mount options, installation is straightforward. The light bar operates efficiently within a voltage range of 10 to 32 volts and consumes 208 watts of power, making it suitable for a wide range of vehicles. The LR-16 Elite is a robust lighting solution that combines advanced technology with practical design for optimal performance.

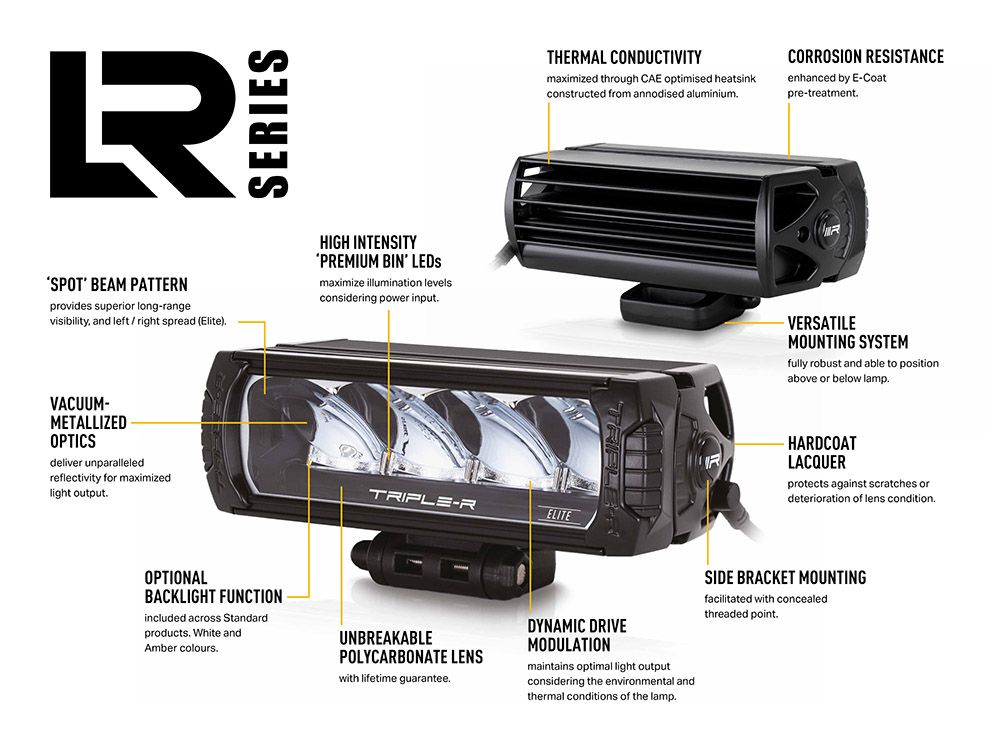

Features
- Highly Efficient LED Technologies
- Ultra-Reflective Vacuum-Metallized Optics Deliver Perfectly Tuned Beam Pattern
- Contemporary Lamp Design
- Aero Design Benefits Low Wind Noise Performance
- CAE Optimized Heatsink Offers Improved Thermal Dynamics
- Anodized Pre-Treatment And Automotive Grade Powder Top-Coat For Ultimate Corrosion And Chemical Protection
- Electronic Thermal Management
- Pressure Equalization Through GoreTex Breather Technology
- ‘Unbreakable’ And Hardcoated Polycarbonate Lens
Specifications
- Manufacturer: Triple-R Light
- Manufacturer Part Number: LR16-EL-B
- Bulb Type: LED
- Style: Straight

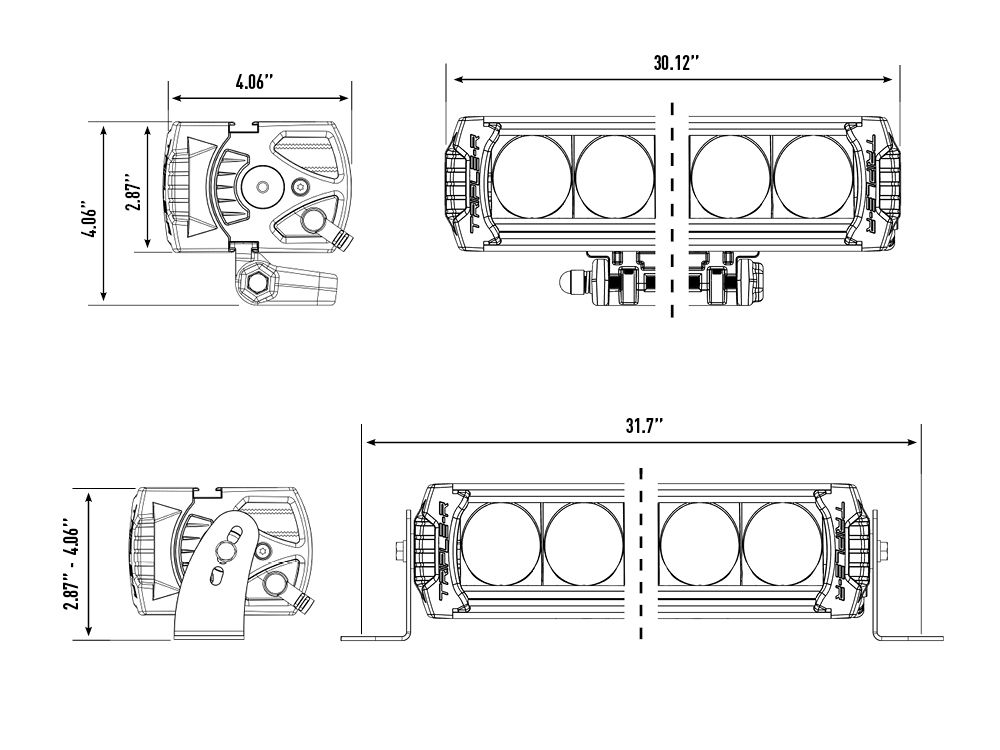

- Length: 30-1/8 Inch
- Beam Type: Spot Beam
- Number Of Rows: 1
- Light Color: White
- Housing Color: Black

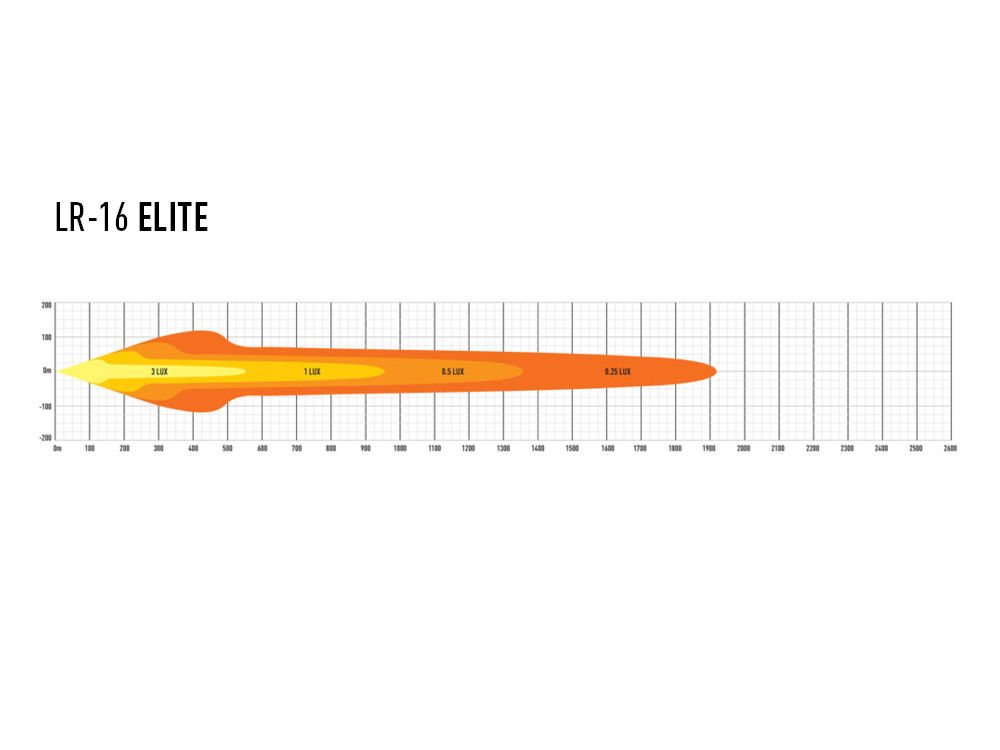

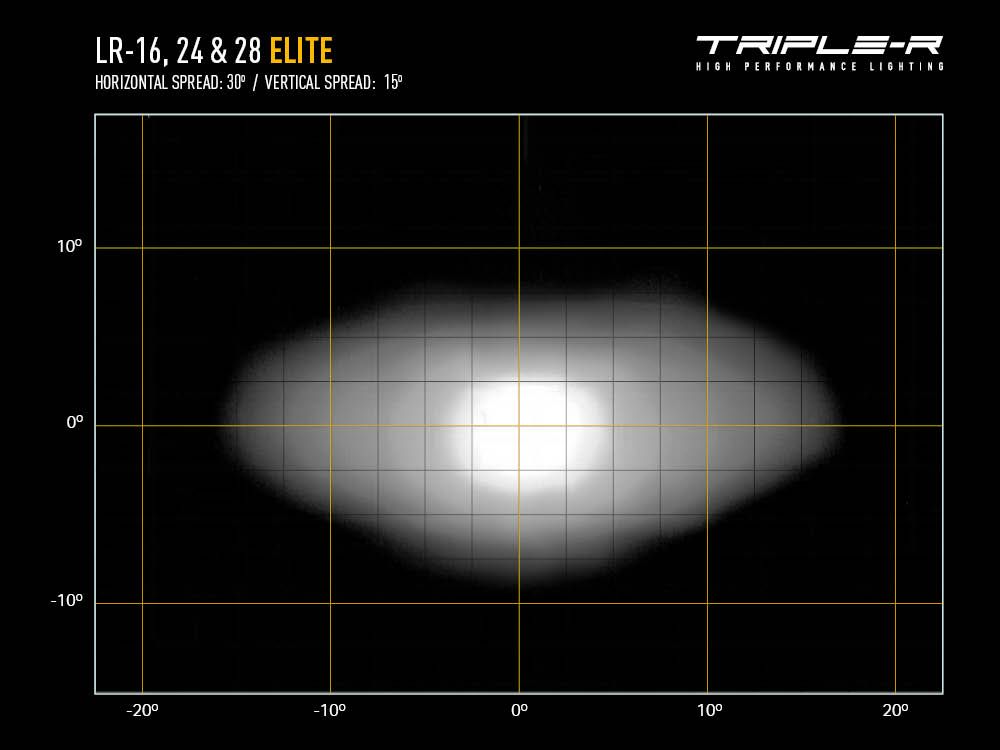

- Beam Angle (Deg): 30 Degree
- Lumens: 18040 Lumens
- Wattage: 208 Watt
- Width: 4.06 Inch
- Height: 2.87 Inch
- Voltage Rating: 10 To 32 Volt
- Ampere Rating At 12 Volts: 14.4 Amp
- Lens Material: Polycarbonate
- Housing Material: Aluminum
- Mounting Style: Center Mount Or Universal Side Mount

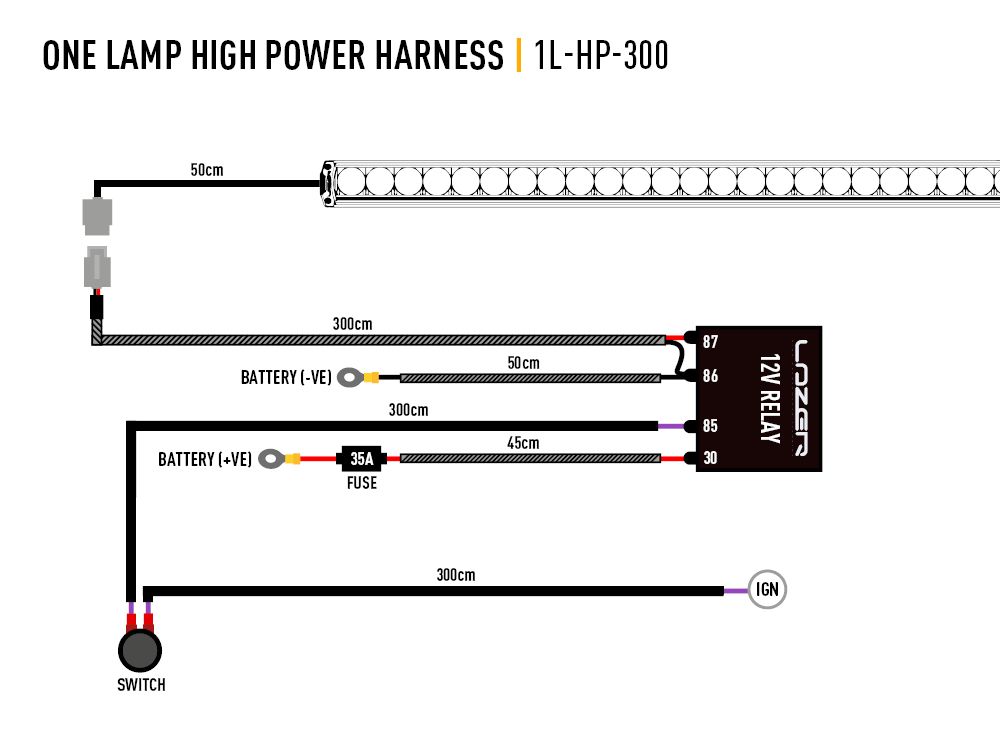

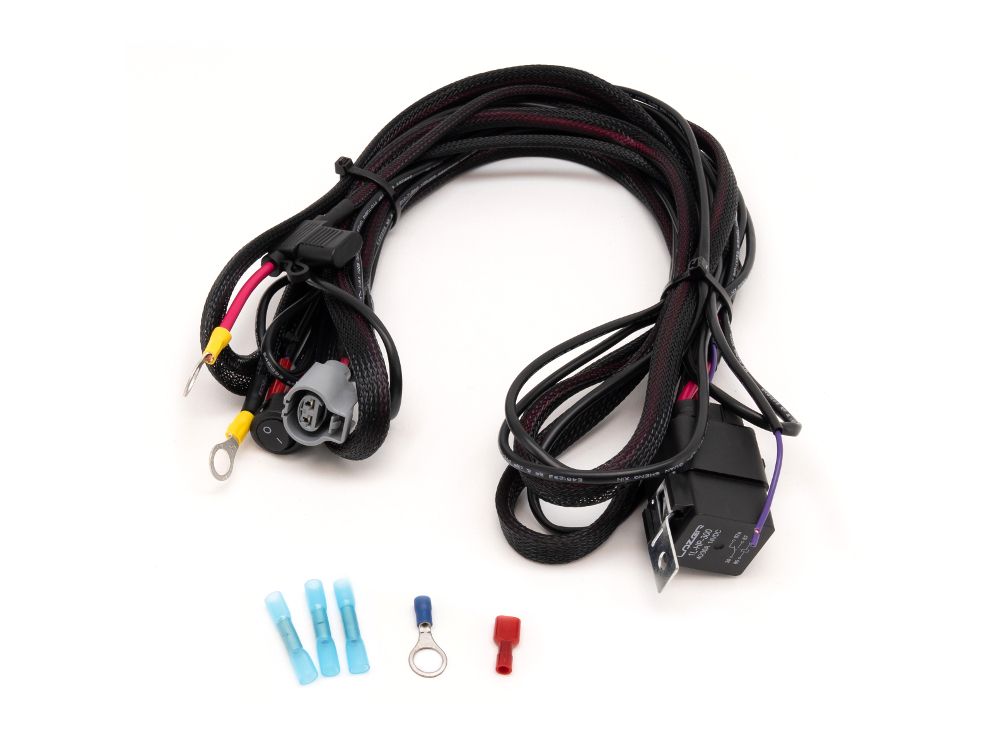

- Includes: With Side Mounting Kit/ Wiring Kit/ Two Center Mount Kit
- Estimated Install Time (Hours): 1.5
