Triple-R Light LR-1250 Elite LED Light Bar (MPN: LR12-EL-PLUS-B)

High-performance LED light bar with versatile lighting modes for enhanced visibility.

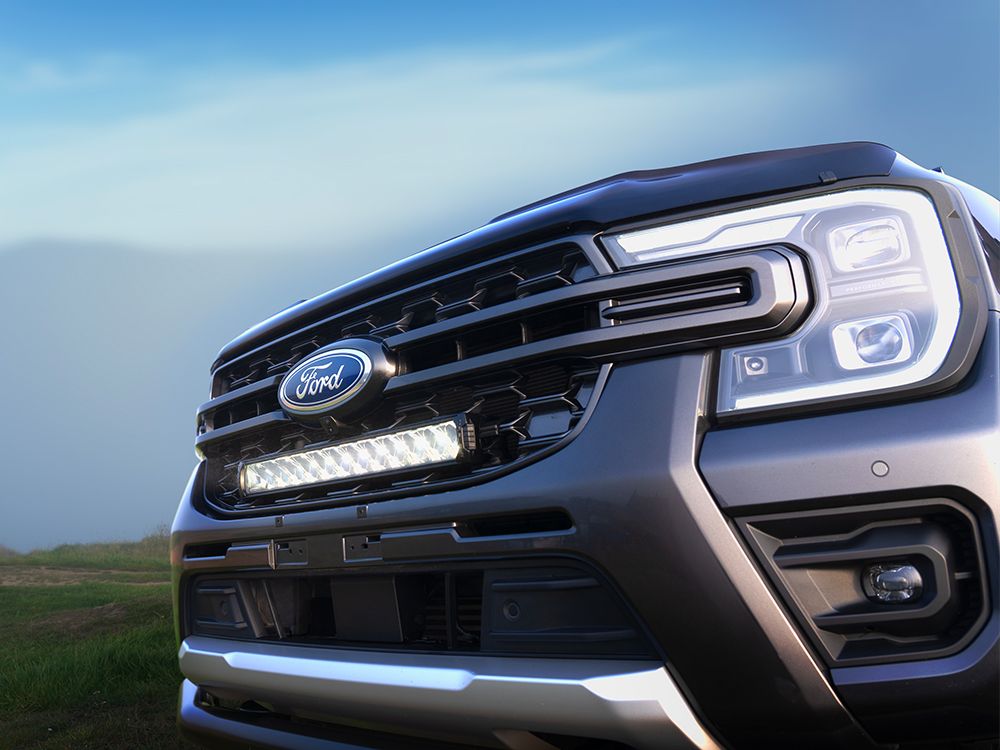

The Triple-R Light LR-1250 Elite LED Light Bar represents a significant advancement in LED lighting technology, designed for optimal performance and versatility. This 23.23 inch light bar features a combination of 24 white and 20 yellow high output premium LEDs, delivering impressive lumen outputs of 12,028 for white, 9,360 for yellow, and a combined 21,388 lumens. The light operates efficiently within a voltage range of 10 to 32 DC volts, making it suitable for various vehicles and applications.

The LR-1250 Elite is equipped with multiple lighting modes, including Boost, Combo, Snow/Fog/Dust Mode, and Low output Mode, allowing users to adapt their lighting to different driving conditions. The momentary switch facilitates easy mode switching, while the memory function recalls the last selected mode upon vehicle restart. This feature enhances user convenience and ensures optimal visibility in challenging environments such as snow, fog, or dust.

Constructed with a durable black housing and a clear polycarbonate lens, the light bar is designed to withstand harsh conditions, boasting an IP68 watertight rating. The advanced electronic thermal management system optimizes light output and prolongs the lifespan of the LEDs. Additionally, the light bar comes with a wiring harness for straightforward installation, making it a practical choice for those seeking reliable and powerful lighting solutions.

Features

• Combination Of Highly Efficient White And PC-Yellow LEDs
• Yellow LEDs Optimized For Use In Snow, Fog And Dust Conditions
• Supplied With One-Lamp Wiring Kit
• Momentary Switch Facilitates Switching Lighting Modes
• Memory Function Recalls Preferred Lighting Mode Without Needing To Re-Select Each Journey
• CAE Optimized Heatsink Offers Improved Thermal Dynamics
• ‘Unbreakable’ And Hard Coated Polycarbonate Lens
• IP68 Watertight
• Electronic Thermal Management System Optimizes Light Output To Preserve Longevity Of The LED

Specifications

• Manufacturer: Triple-R Light
• Manufacturer Part Number: LR12-EL-PLUS-B
• Bulb Type: LED
• Style: Straight
• Length: 23-1/4 Inch
• Number Of Rows: 1
• Light Color: Amber/ White
• Housing Color: Black
• Beam Angle (Deg): 54 Degree
• Lumens: 12028 Lumens White Beam/ 9360 Lumens Yellow Beam/ 21388 Lumens White And Yellow Beam
• Wattage: 131 Watt White Light/ 92 Watt Yellow Light/ 243 Watt White And Yellow Light
• Width: 4.06 Inch
• Height: 2.87 Inch
• Voltage Rating: 10 To 32 Volt
• Ampere Rating At 12 Volts: 9.1 Amp White Light/ 6.4 Amp Yellow Light/ 16.9 Amp White And Yellow Light
• Bulb Specifications: 24 White/ 20 Yellow High Output Premium BIN LED Bulbs
• Lens Material: Polycarbonate
• Housing Material: Aluminum
• Mounting Length: 24.8 Inch
• Mounting Style: Center Mount
• Includes: With Wiring Harness
• Marine: No

Technical Documents

• lr-1250_elite_-_instructions_-_triple-r_lights.pdf
• lr-1250-elite_-_product_information_card_-_triple-r_lights.pdf
