High-output LED light bar with advanced beam technology for superior visibility.

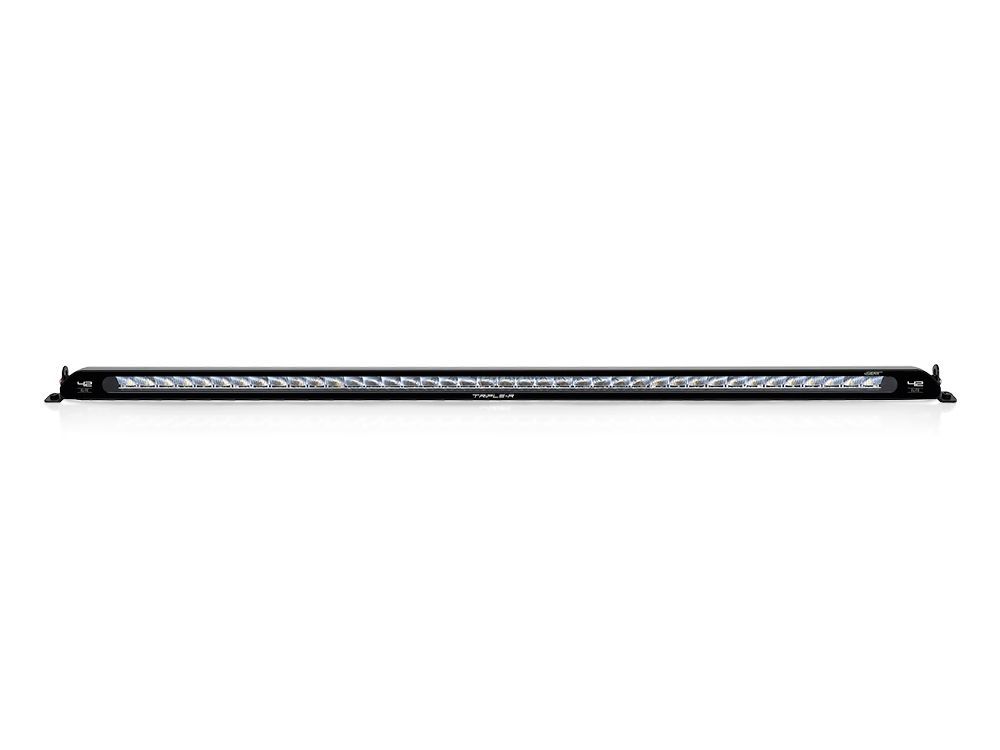

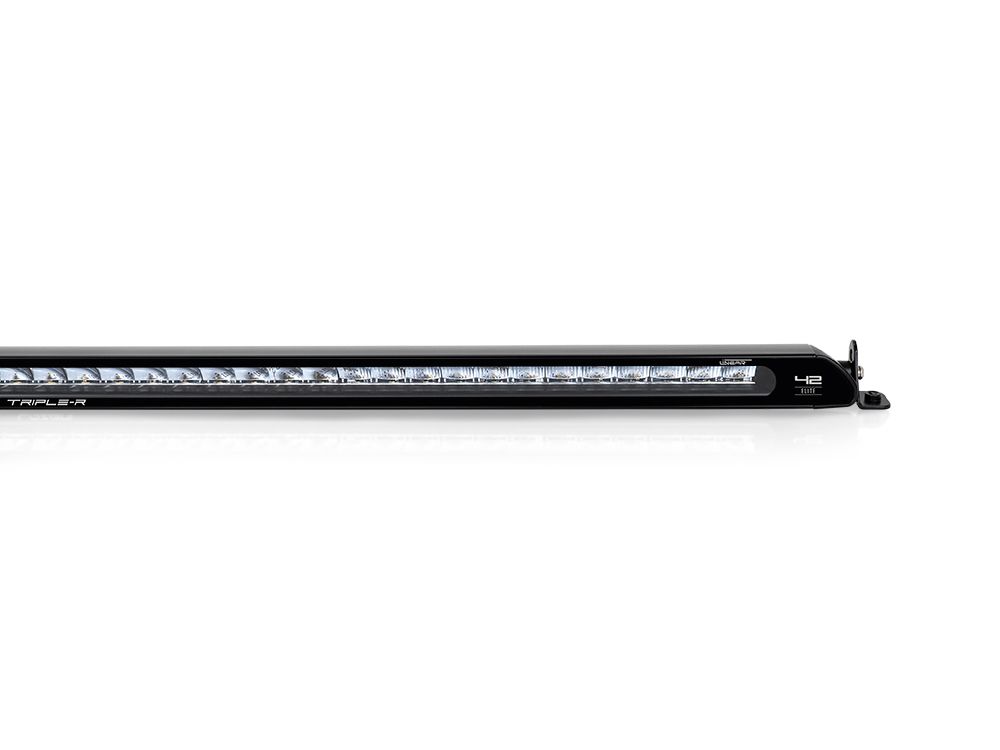

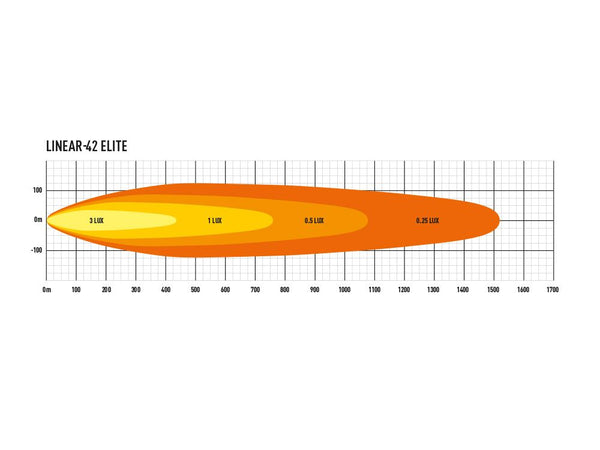

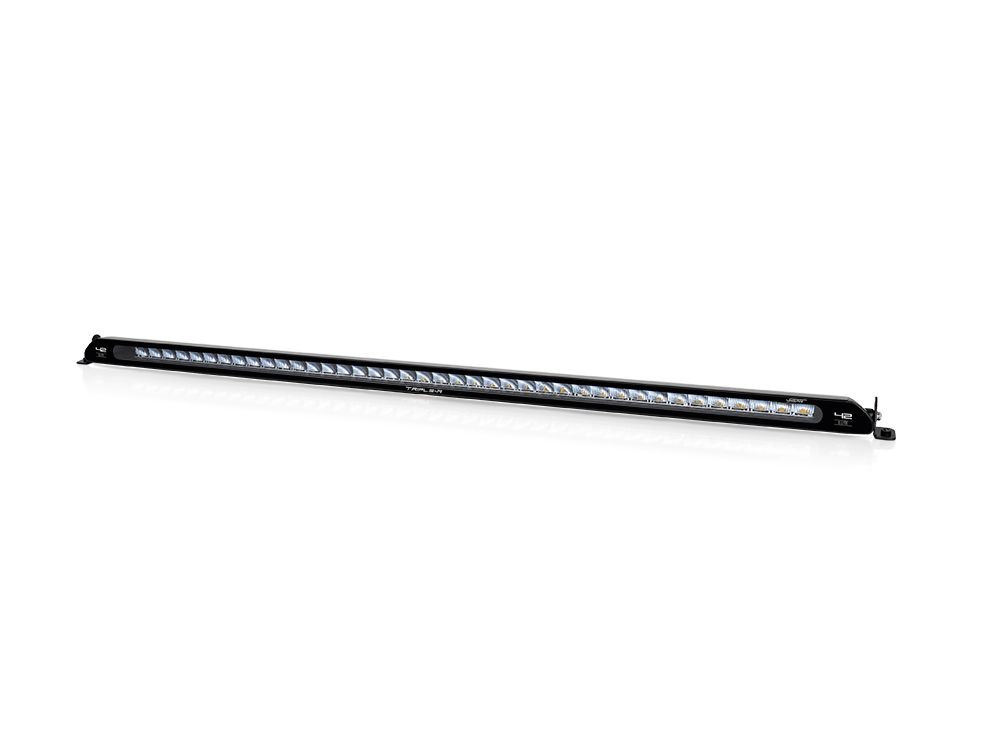

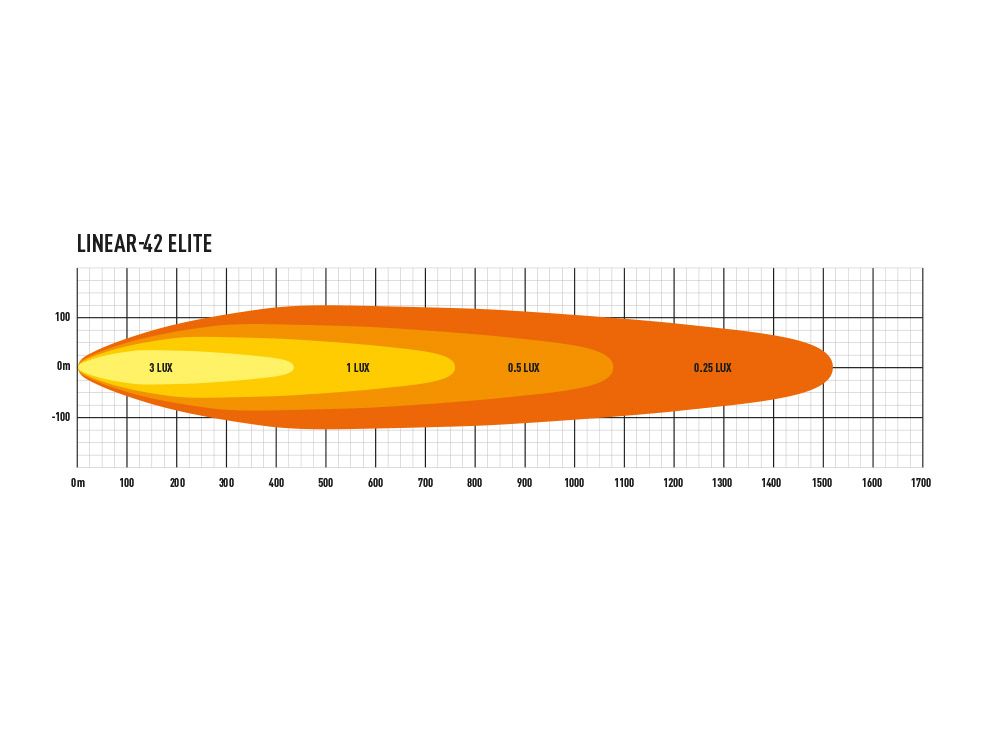

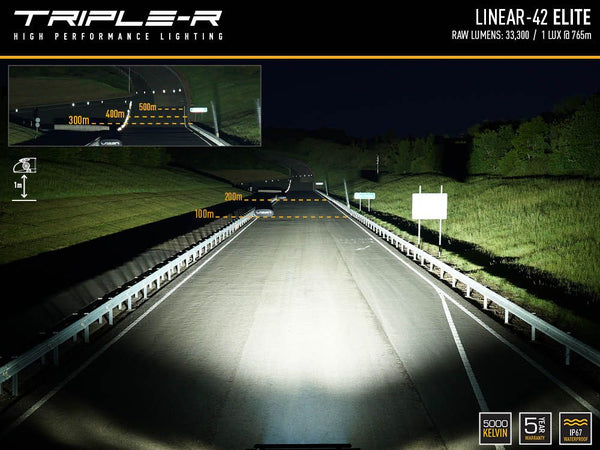

The Triple-R Light Linear-42 Elite LED Light Bar is engineered for optimal performance and functionality in auxiliary lighting. Measuring 44.6 inches in length, this light bar features 84 high-output 3-watt LEDs that produce an impressive 33,800 raw lumens, ensuring exceptional illumination for driving conditions. The light bar is designed with a spread beam pattern, providing a wide angle of visibility while maintaining a focused light output for long-distance illumination.
Incorporating advanced technology, the Linear-42 Elite utilizes photoelectric sensors that enhance the transition from high beam to low beam, maintaining visibility in areas without oncoming traffic. This feature, combined with a color temperature of 5000K, maximizes sharpness and color definition, making it suitable for various driving environments. The sleek, low-profile design allows for easy installation, and the flexible mounting options include an anti-theft side mount kit and a single lamp wiring harness.

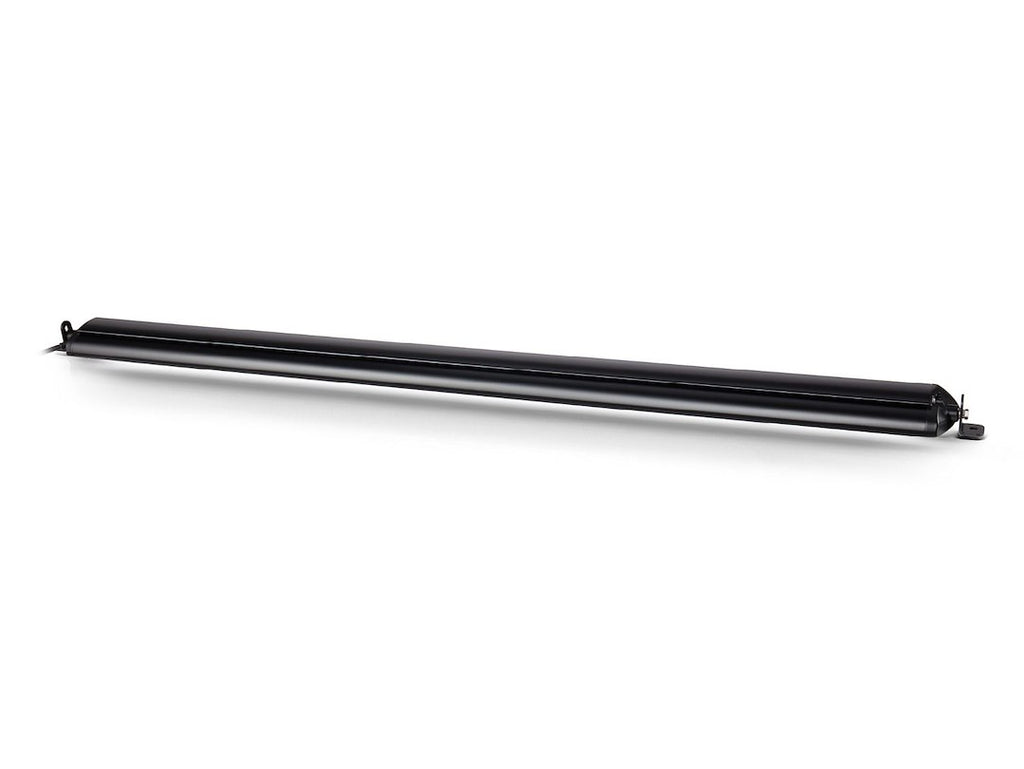

Constructed with a durable black aluminum housing and a clear polycarbonate lens, this light bar is built to withstand the rigors of outdoor use. With a power consumption of 355 watts and an ampere rating of 24.7 amps at 12 volts, the Linear-42 Elite is compatible with a voltage range of 10 to 32 volts, making it versatile for different vehicle applications. The CAE optimized heatsink ensures improved thermal dynamics, enhancing the longevity and reliability of the light bar.

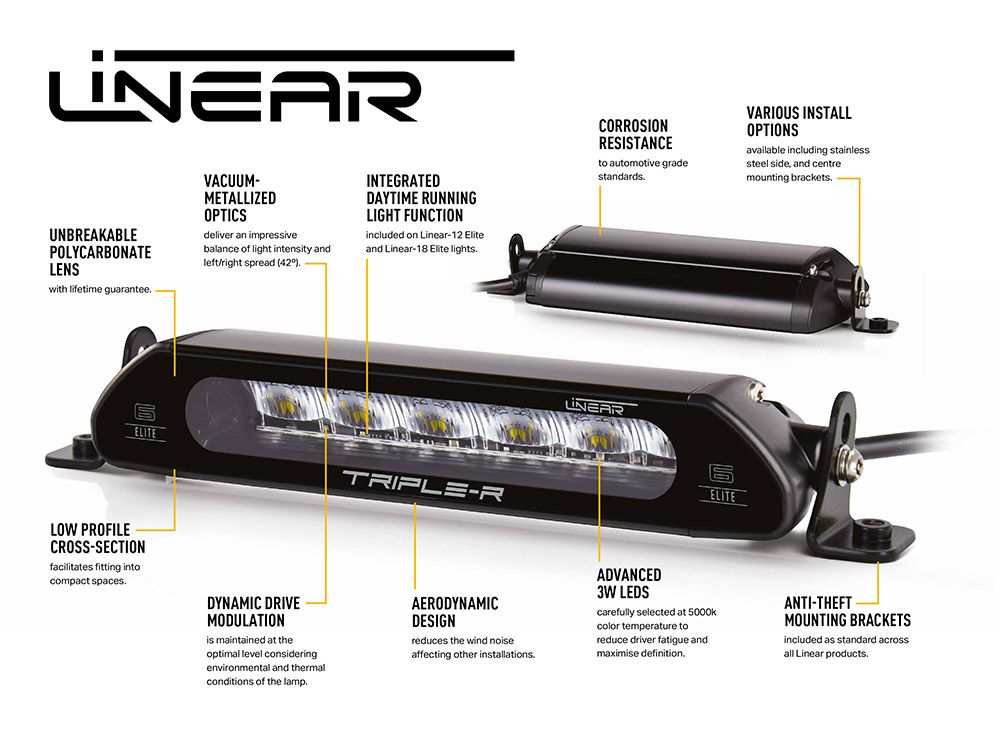

Features
- Combination Of 48 High Efficiency LEDs Deliver Exceptional Lighting Performance
- Ultra-Reflective Vacuum-Metallized Optics Deliver Perfectly Tuned Beam Pattern For Everyday Road Use
- I-LBA Mode Provides Superior Short Or Mid-Range Visibility
- Integrated Photoelectric Sensors Detect Oncoming Traffic And Obstacles So That Light Output Responds To Surroundings In Low Beam Assist Mode
- 5000K Color Temperature Maximizes Sharpness And Color Definition
- Sleek, Low Profile Design Facilitates Installation

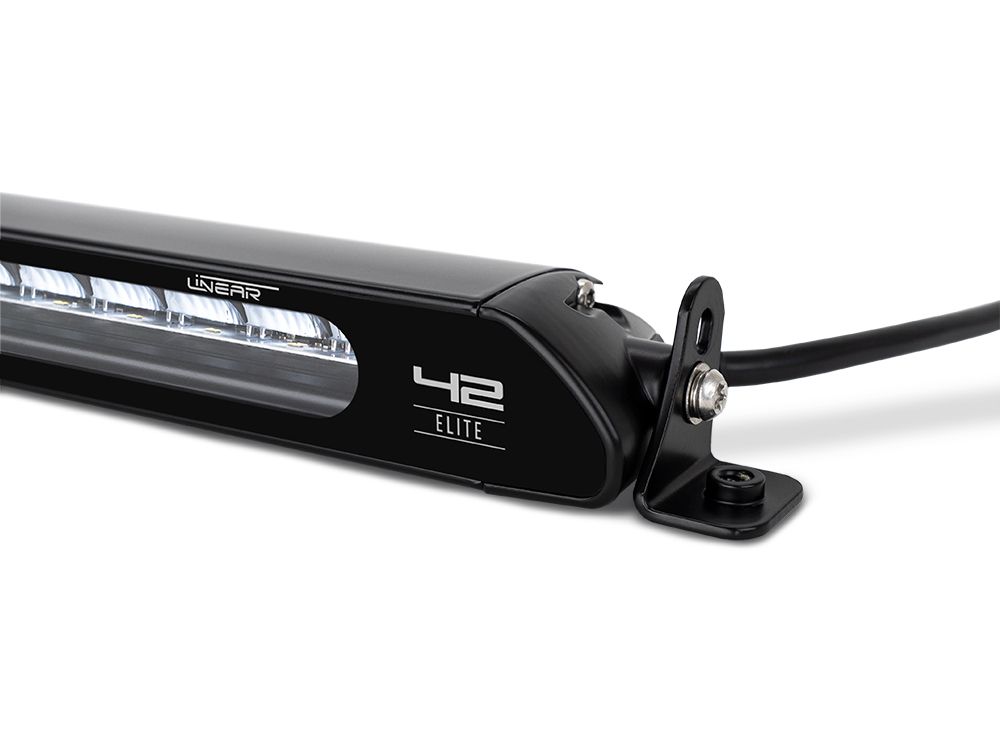

- Flexible Mounting Options: Anti-Theft Mounting Brackets

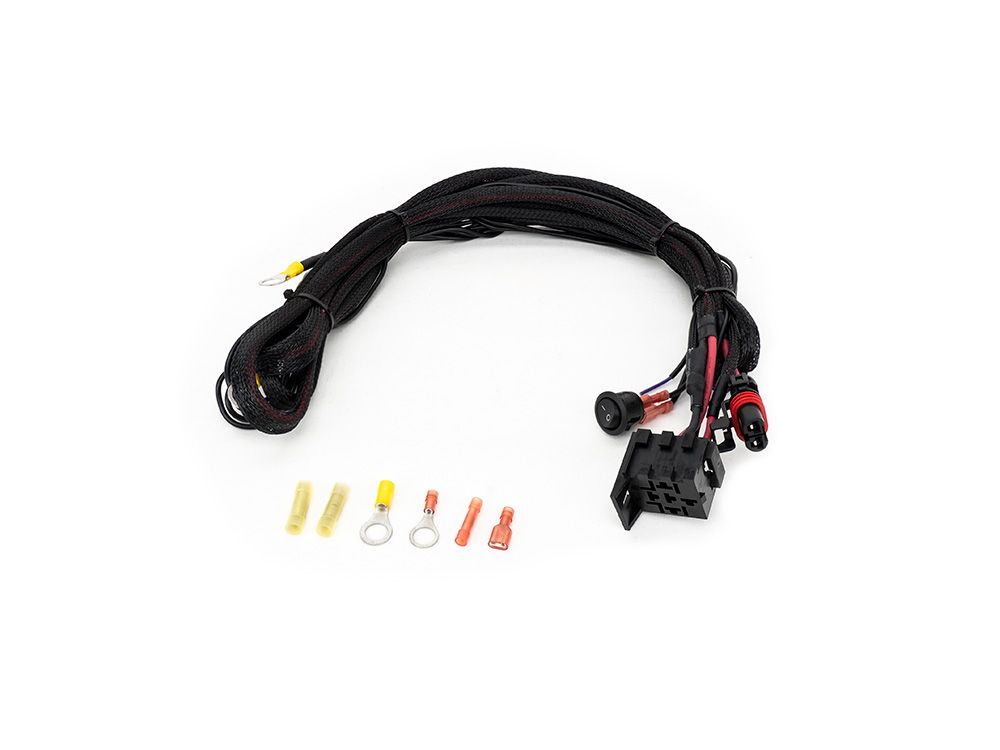

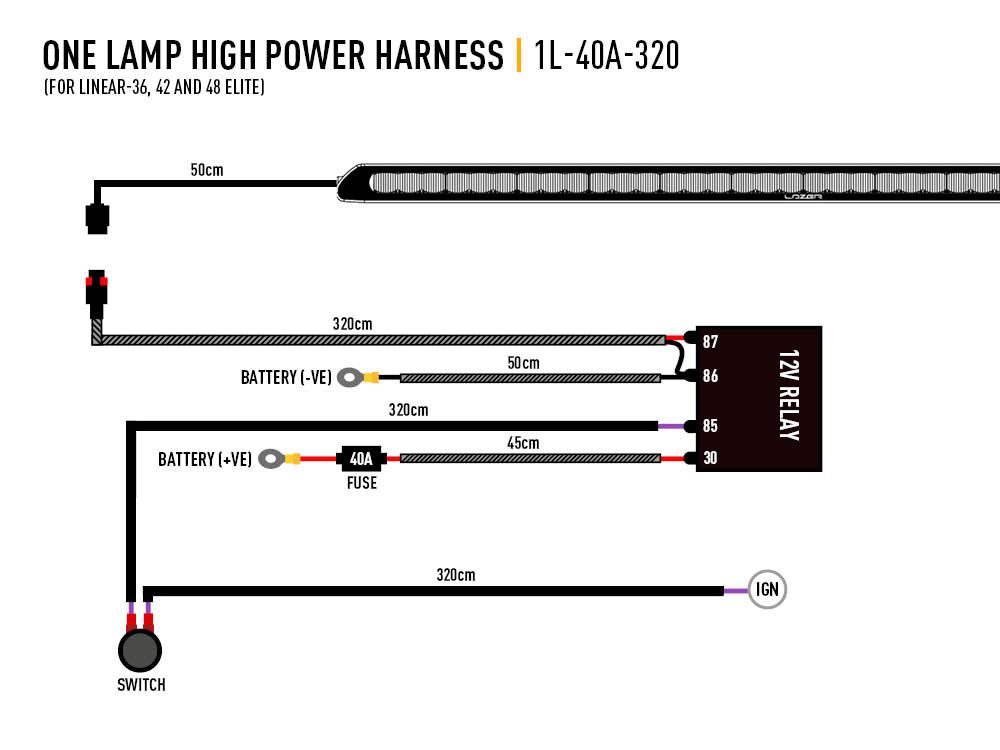

- Supplied With One-Lamp Wiring Kit
- CAE Optimized Heatsink Offers Improved Thermal Dynamics
Specifications
- Manufacturer: Triple-R Light
- Manufacturer Part Number: LNR-EL-42
- Bulb Type: LED
- Style: Straight

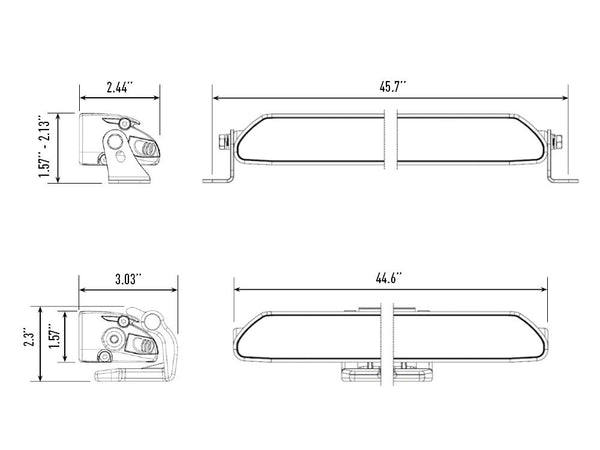

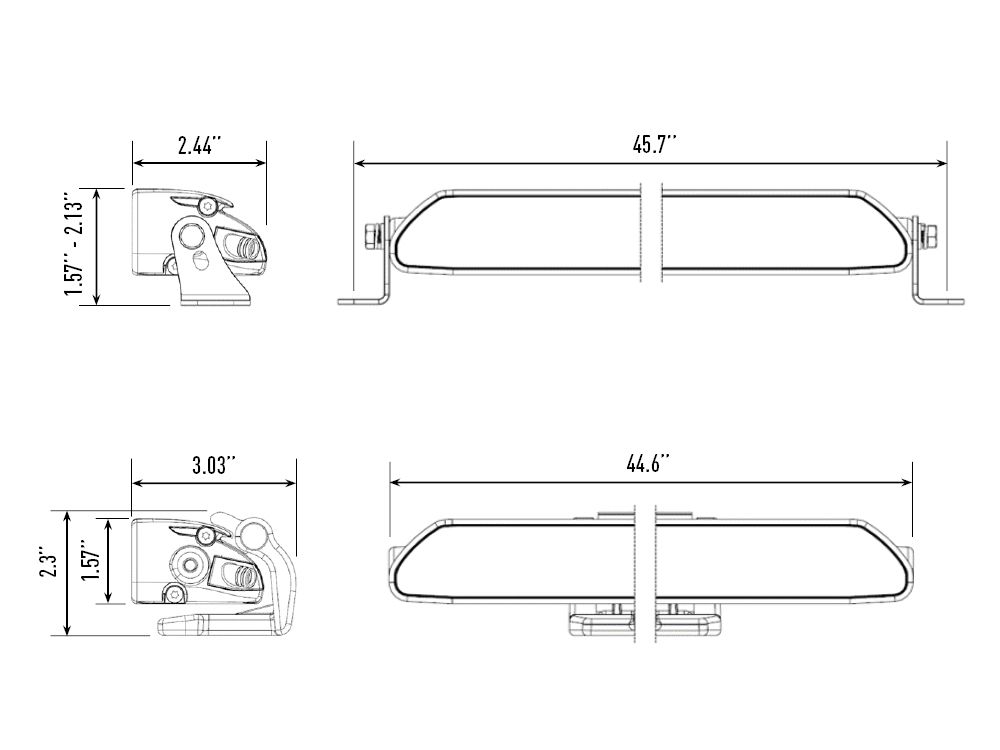

- Length: 44-5/8 Inch
- Beam Type: Driving Beam
- Number Of Rows: 1
- Light Color: White
- Housing Color: Black
- Smart Technology Compatible: Not Smart Technology Compatible

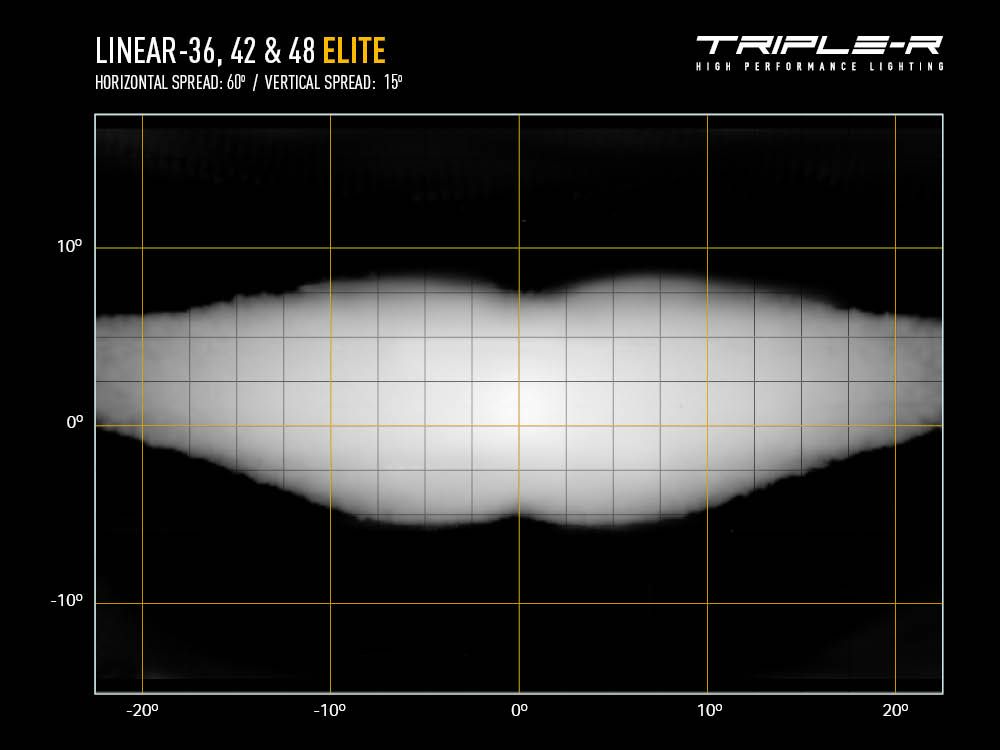

- Beam Angle (Deg): 60 Degree
- Lumens: 33800 Lumens
- Wattage: 355 Watt
- Width: 2.4 Inch
- Height: 1.57 Inch
- Voltage Rating: 10 To 32 Volt
- Ampere Rating At 12 Volts: 24.7 Amp
- Bulb Specifications: 84 High Output 3 Watt LED Bulbs
- Lens Material: Polycarbonate
- Housing Material: Aluminum
- Mounting Length: 45.7 Inch
- Mounting Style: Center Mount Or Universal Side Mount
- Connection Type: Plug And Play Wiring Harness
- Includes: With Anti-Theft Side Mount Kit And Single Lamp Wiring Kit
- Estimated Install Time (Hours): 1.5
