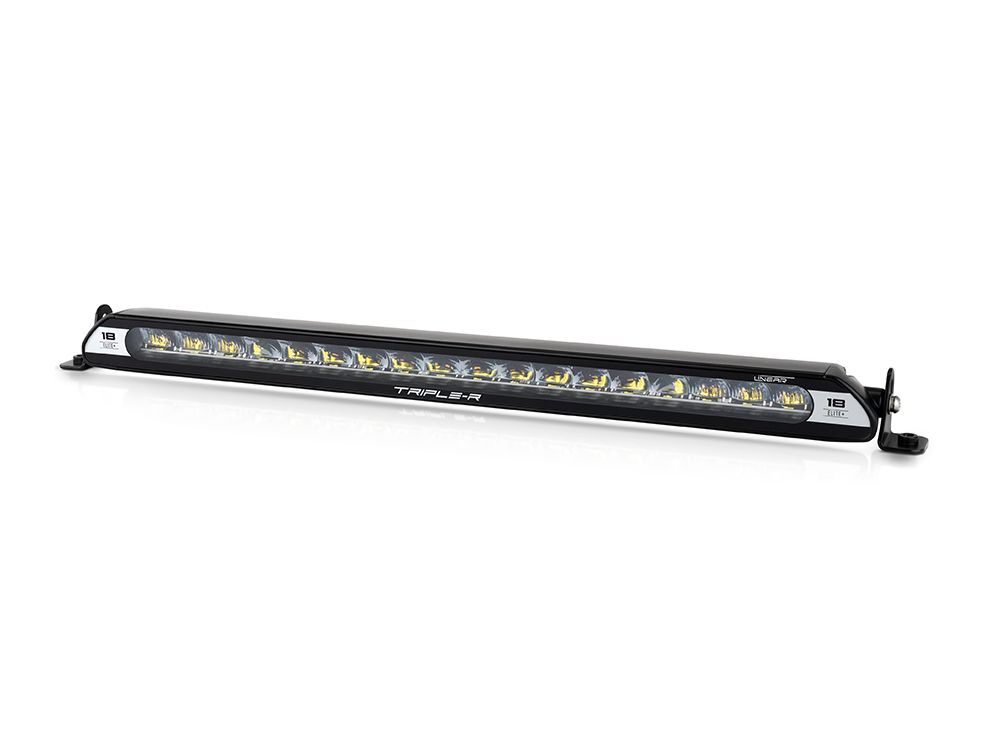

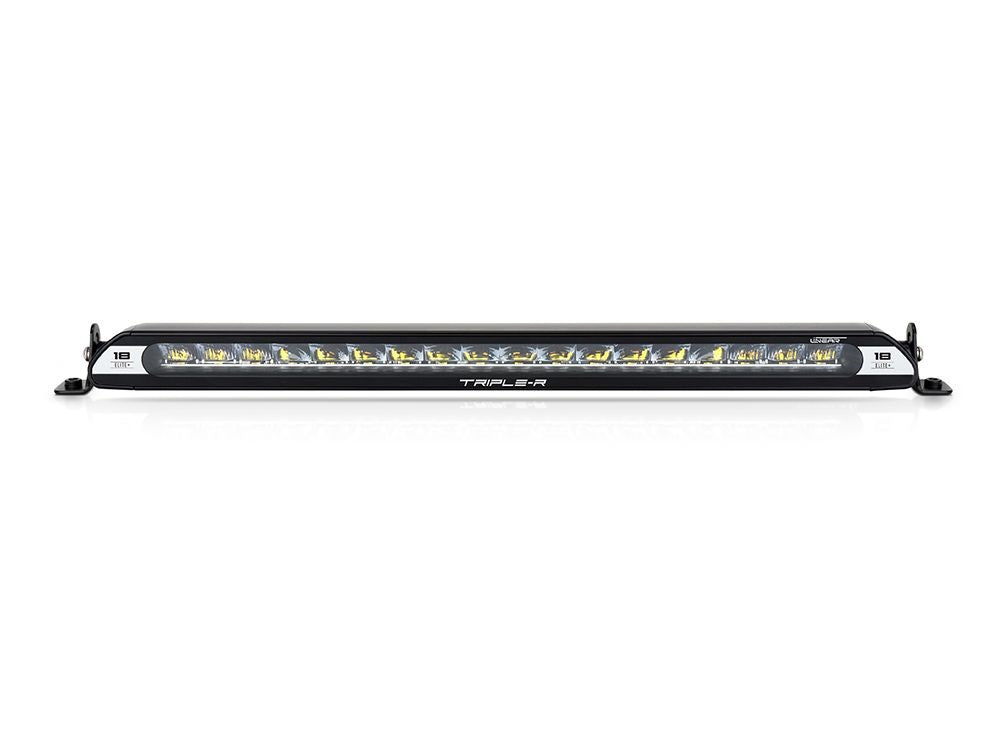

Triple-R Light Linear-18 Elite LED Light Bar (MPN: LNR-PLUS-18)

High-performance LED light bar with advanced features for superior visibility.

The Triple-R Light Linear-18 Elite LED Light Bar represents a significant advancement in LED lighting technology, designed for optimal performance and functionality. This 21-inch light bar features a combination of 36 white LEDs and 18 yellow LEDs, delivering a remarkable output of 21,000 raw lumens when both colors are utilized. The unique design allows for enhanced visibility in various conditions, particularly in snow, fog, or dust, thanks to the specialized yellow LEDs that provide a softer light temperature while maintaining high output.

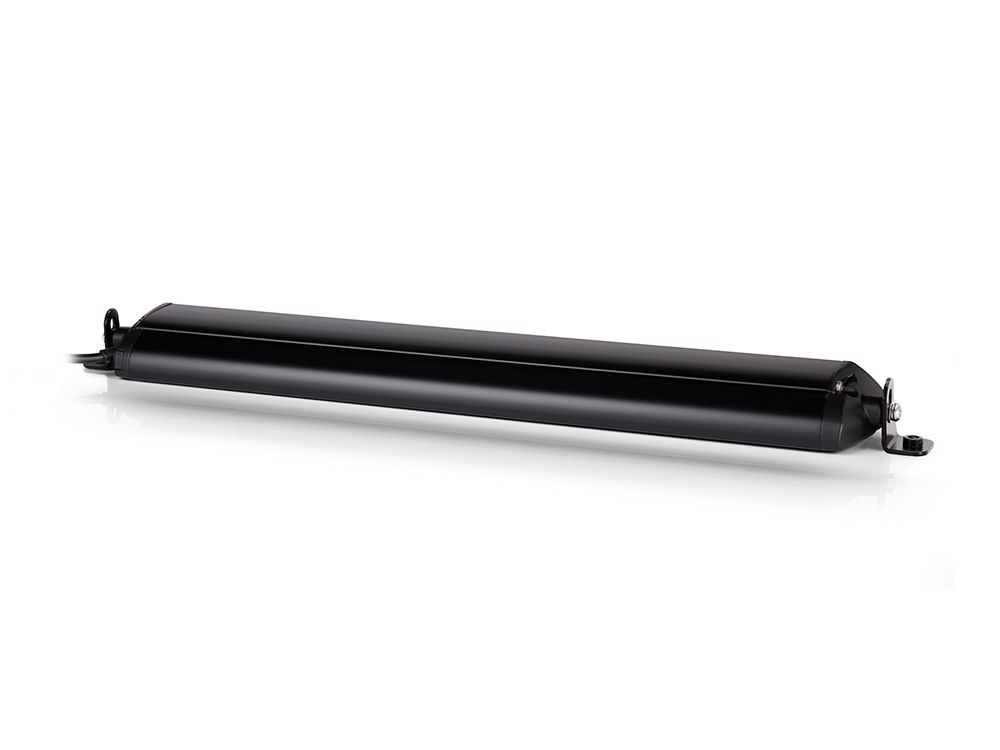

Constructed with a durable black housing and a clear polycarbonate lens, the Linear-18 Elite is built to withstand harsh environments, boasting an IP68 watertight rating. The light bar operates efficiently with a power consumption of 190 watts and a current draw of 14 amps at 14 volts, ensuring reliable performance. The included wiring kit facilitates easy installation, while the anti-theft side mount kit enhances security.

In addition to its impressive lighting capabilities, the Linear-18 Elite features a memory function that recalls the preferred lighting mode, allowing for seamless operation without the need for re-selection. The momentary switch enables quick changes between lighting modes, providing flexibility for various driving conditions. With its advanced thermal dynamics and robust construction, this light bar is engineered for longevity and reliability, making it a valuable addition to any vehicle.

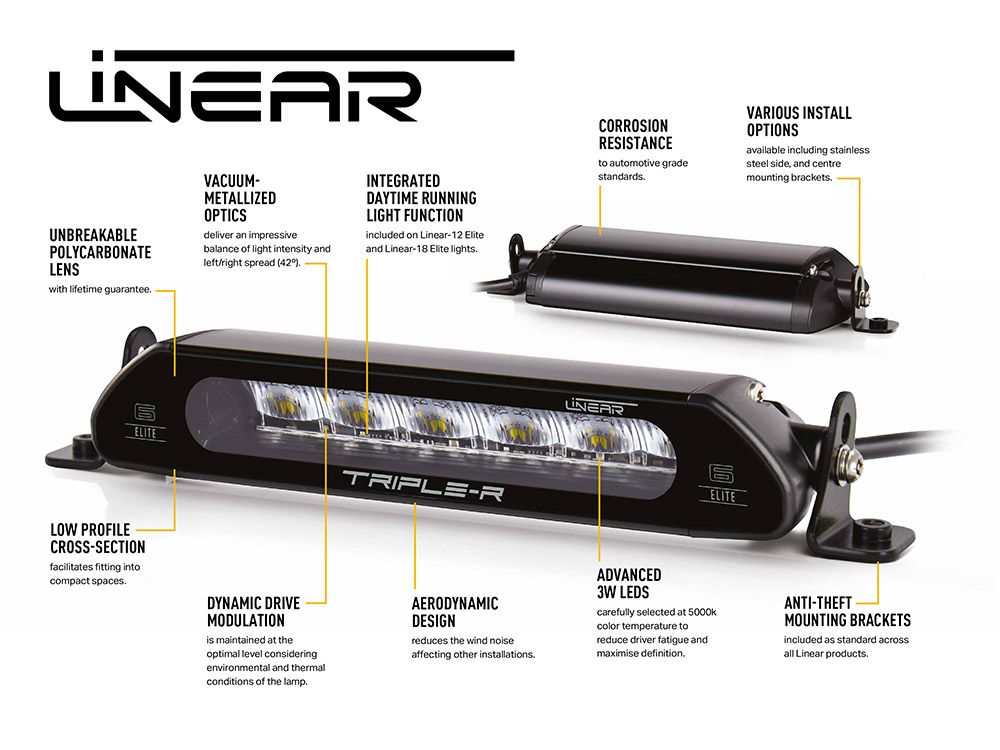

Features

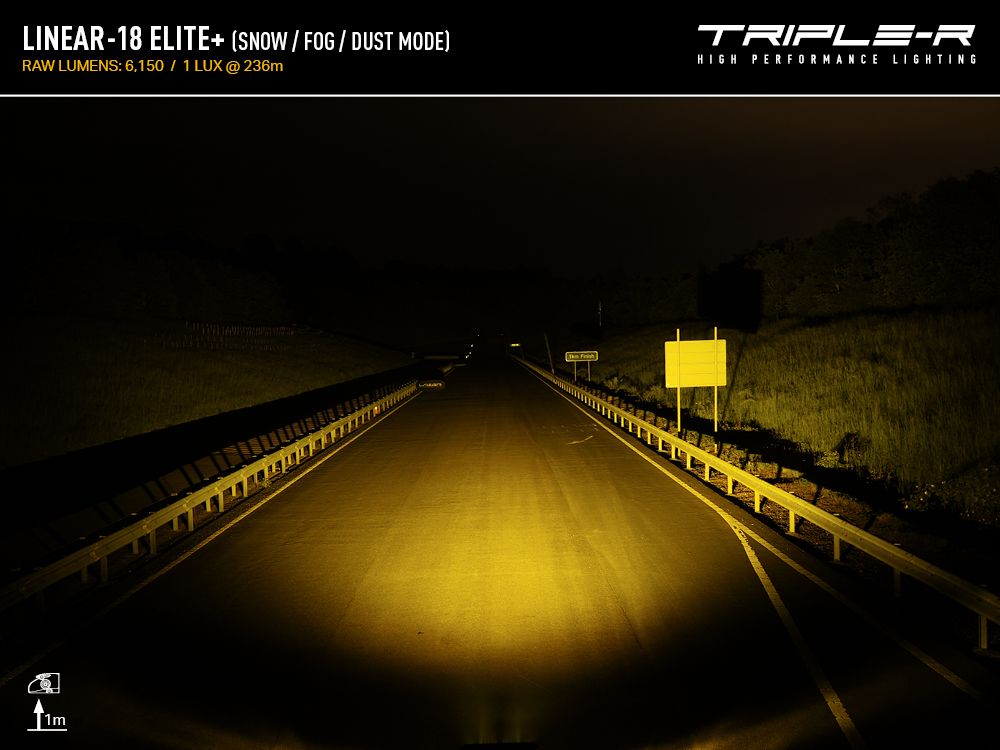

• Yellow LEDs Optimized For Use In Snow, Fog And Dust Conditions

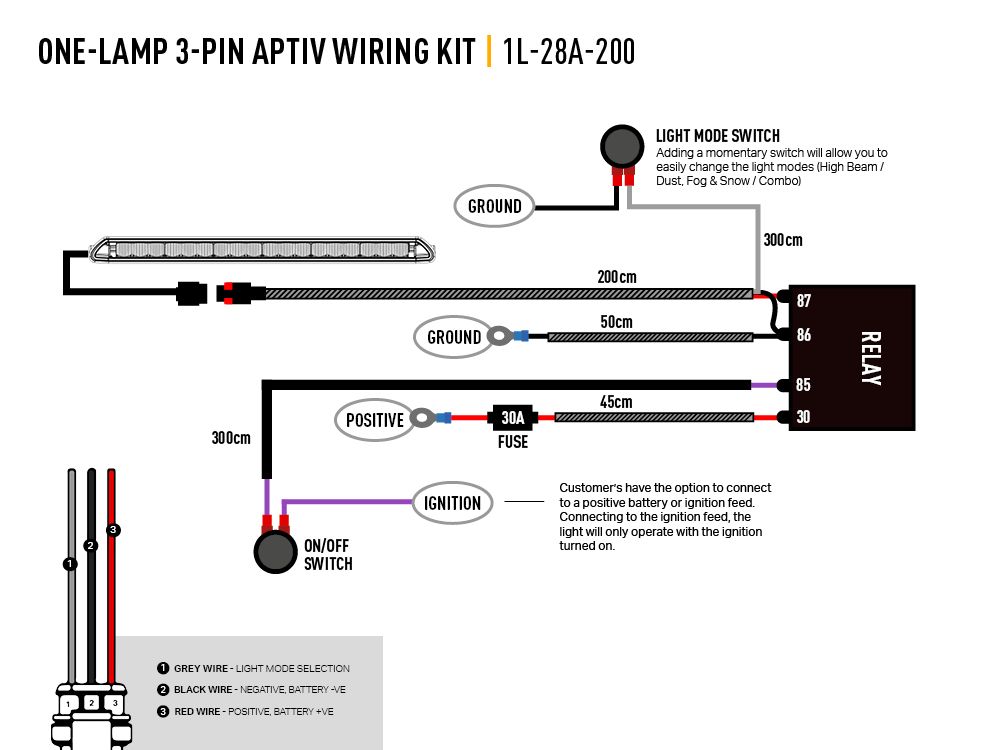

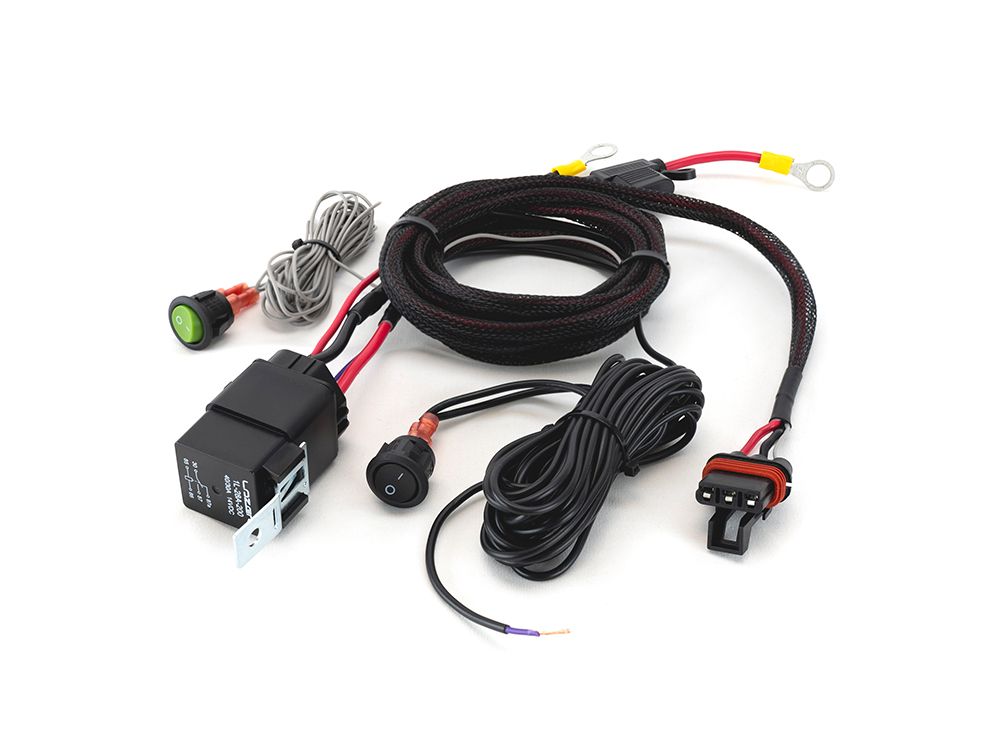

• Supplied With One-Lamp Wiring Kit
• IP68 Watertight
• Memory Function Recalls Preferred Lighting Mode Without Needing To Re-Select Each Journey

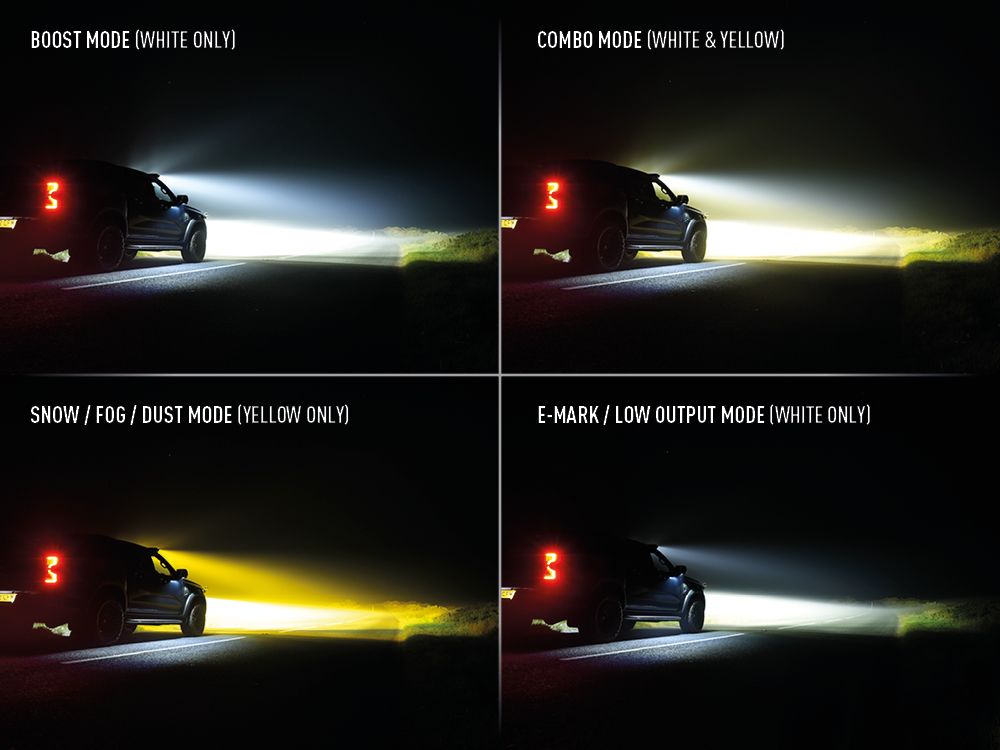

• Momentary Switch Facilitates Switching Lighting Modes
• Flexible Mounting Options And Anti-Theft Mounting Brackets Provided
• CAE Optimized Heatsink Offers Improved Thermal Dynamics
• ‘Unbreakable’ And Hard Coated Polycarbonate Lens
• Anodized Pre-Treatment And Automotive Grade Powder Top-Coat For Ultimate Corrosion And Chemical Protection

Specifications

• Manufacturer: Triple-R Light
• Manufacturer Part Number: LNR-PLUS-18
• Bulb Type: LED
• Style: Straight

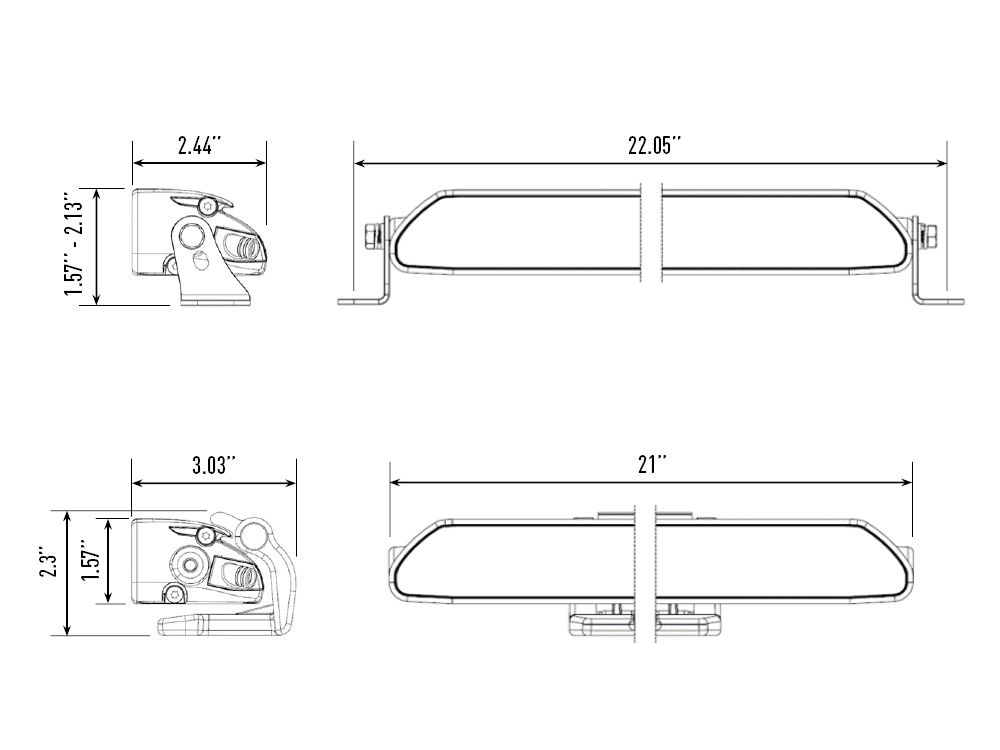

• Length: 21 Inch
• Number Of Rows: 1
• Light Color: Amber/ White
• Housing Color: Black

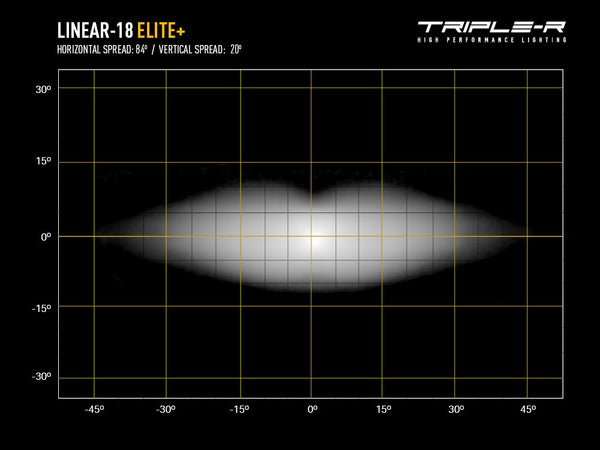

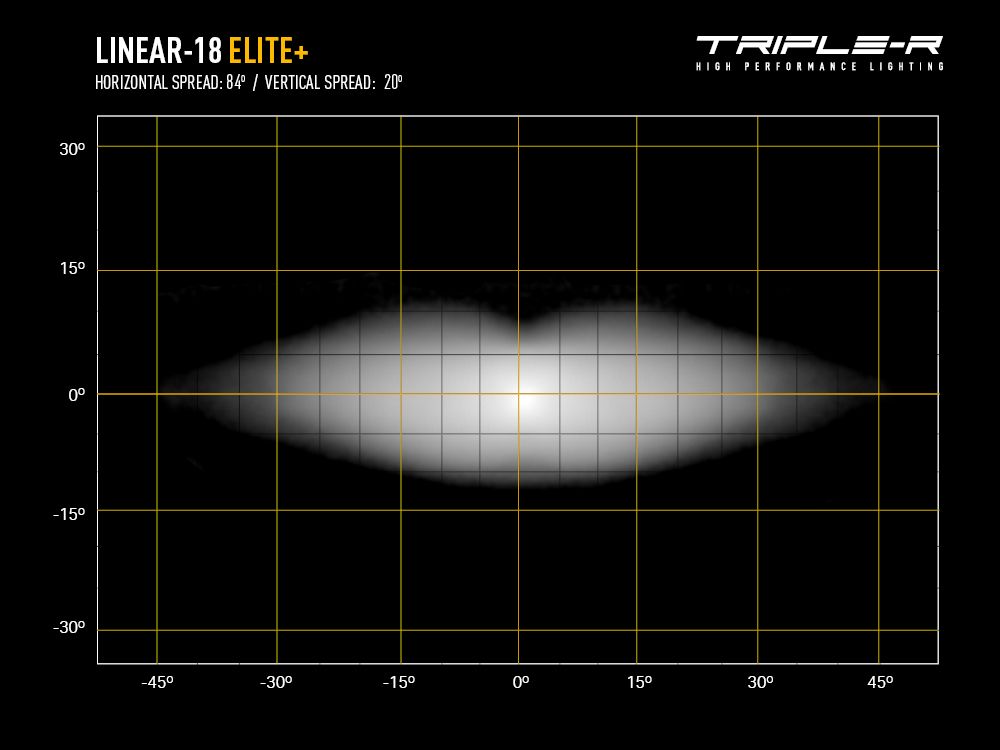

• Beam Angle (Deg): 84 Degree

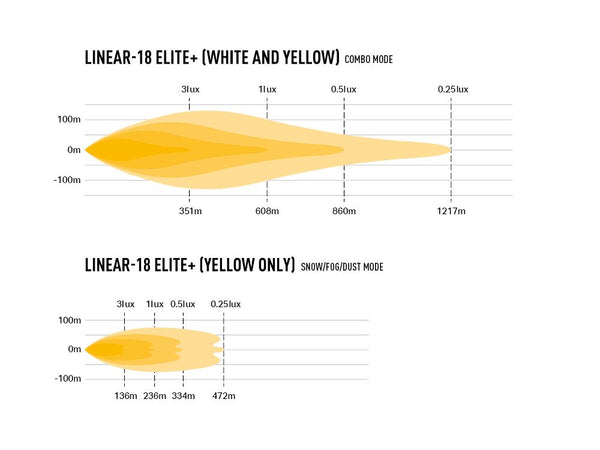

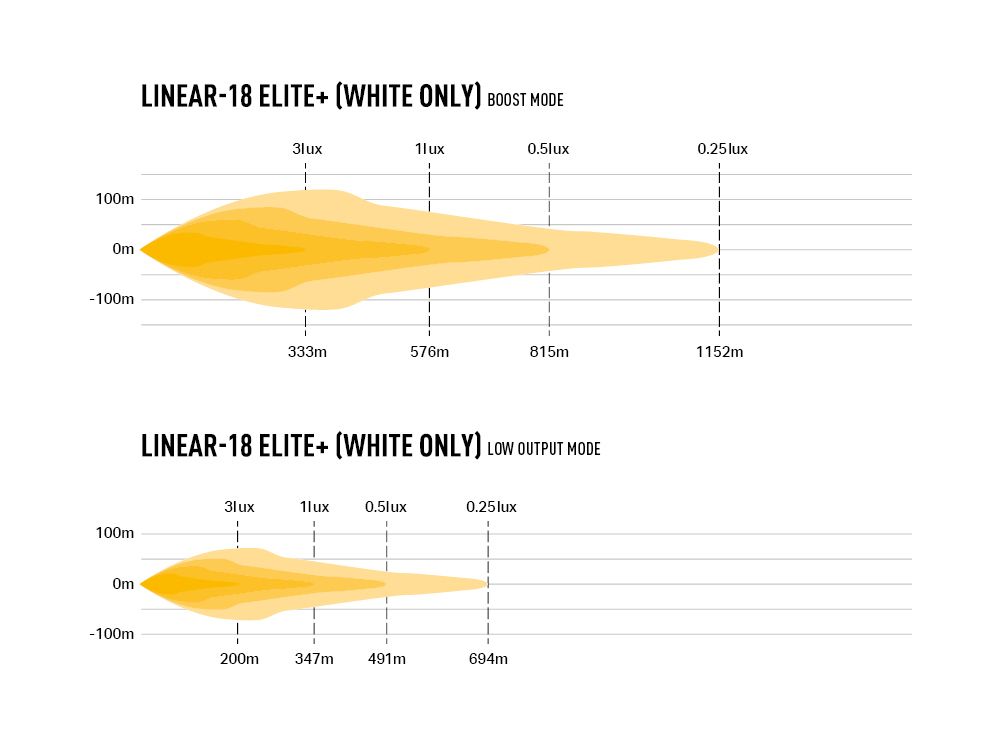

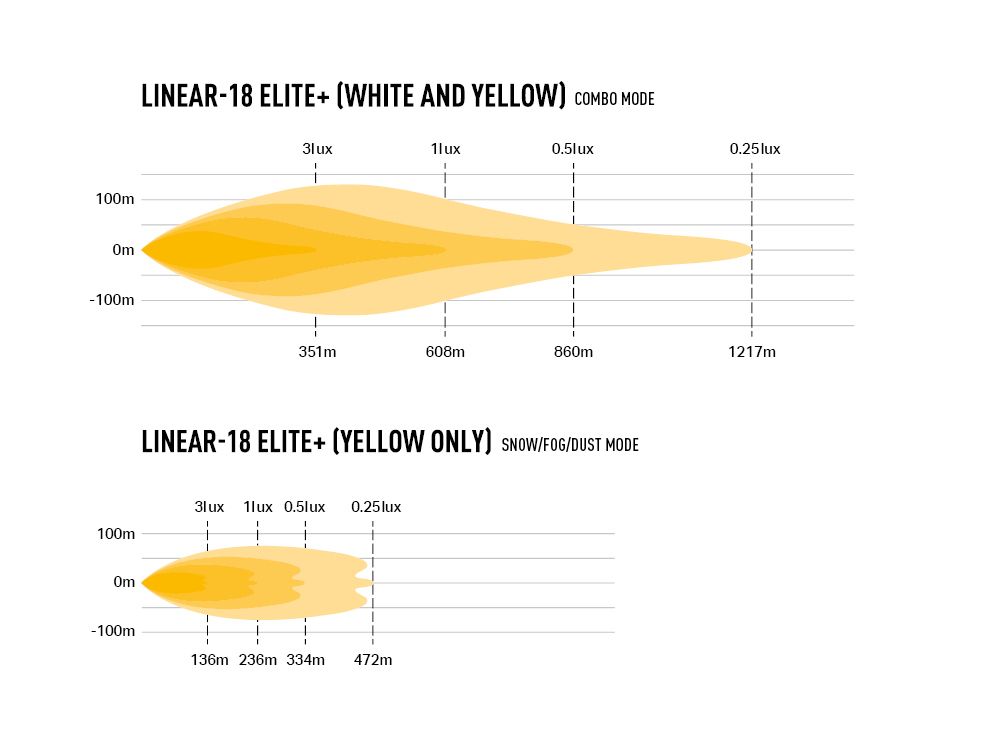

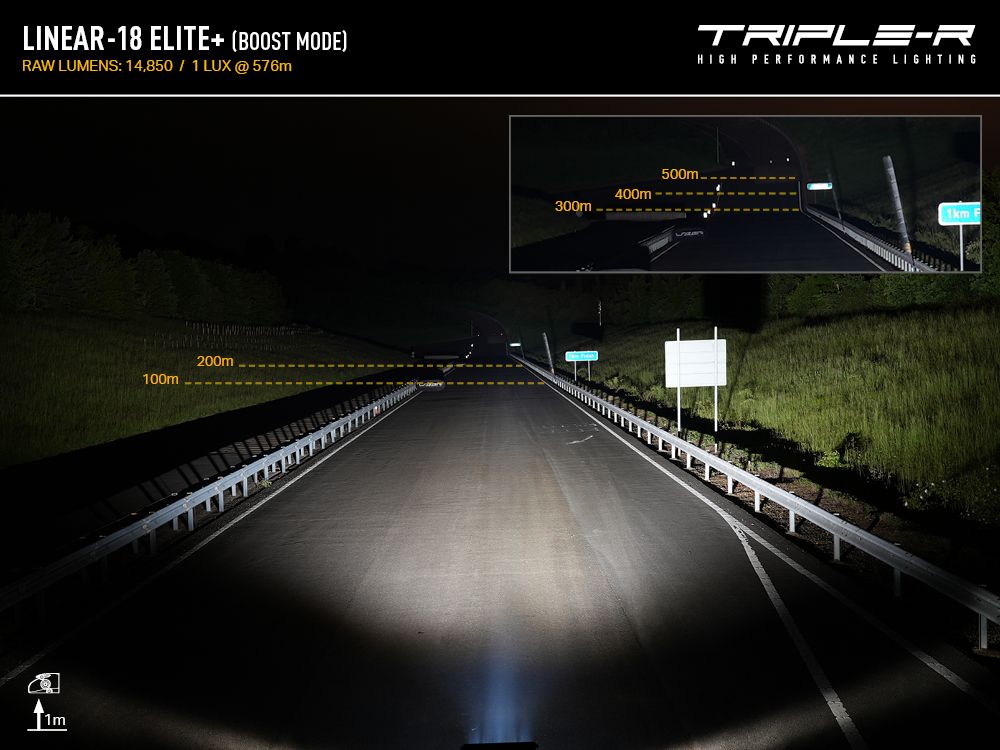

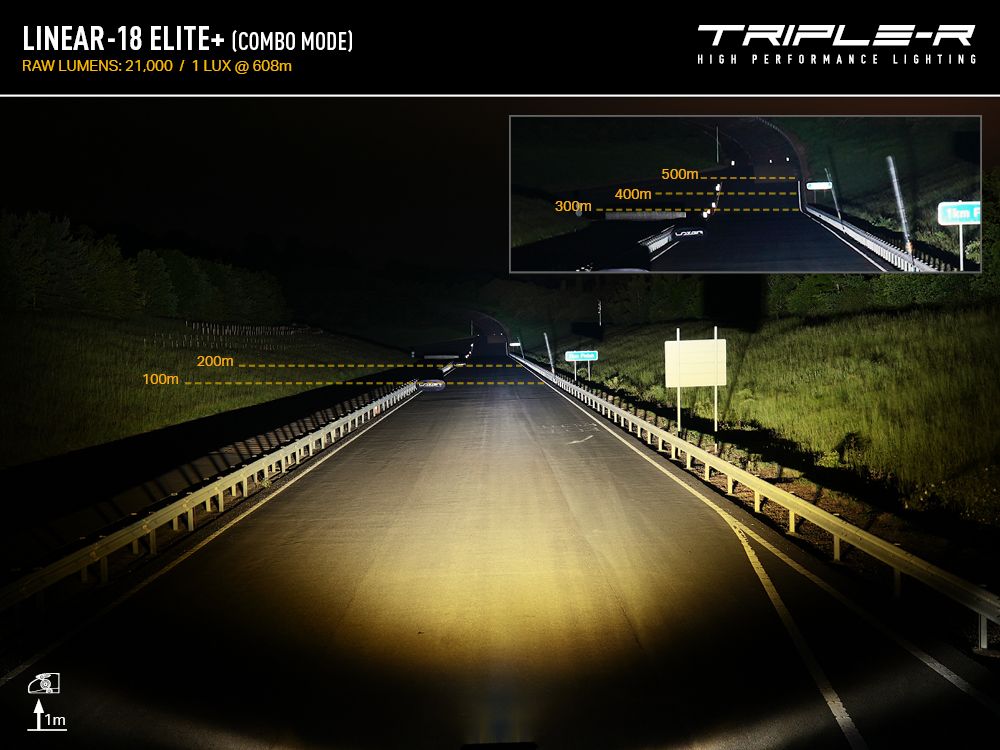

• Lumens: 14850 Lumens White Beam/ 6150 Lumens Yellow Beam/ 21000 Lumens White And Yellow Beam
• Wattage: 134 Watt White Light/ 56 Watt Yellow Light/ 190 Watt White And Yellow Light
• Width: 2.4 Inch
• Height: 1.57 Inch
• Voltage Rating: 10 To 32 Volt
• Ampere Rating At 12 Volts: 9.9 Amp White Light/ 4.1 Amp Yellow Light/ 14.1 Amp White And Yellow Light
• Bulb Specifications: 36 White/ 18 Yellow High Output 3 Watt LED Bulbs
• Lens Material: Polycarbonate
• Mounting Length: 22.05 Inch
• Mounting Style: Side Mount
• Includes: With Anti-Theft Side Mount Kit And Single Lamp Wiring Kit
• Marine: No

Technical Documents

• linear-18_elite_-_instructions_-_triple-r_lights.pdf
• linear-18-elite_-_product_information_card_-_triple-r_lights.pdf
