High-performance electric winch for ATV and UTV applications.

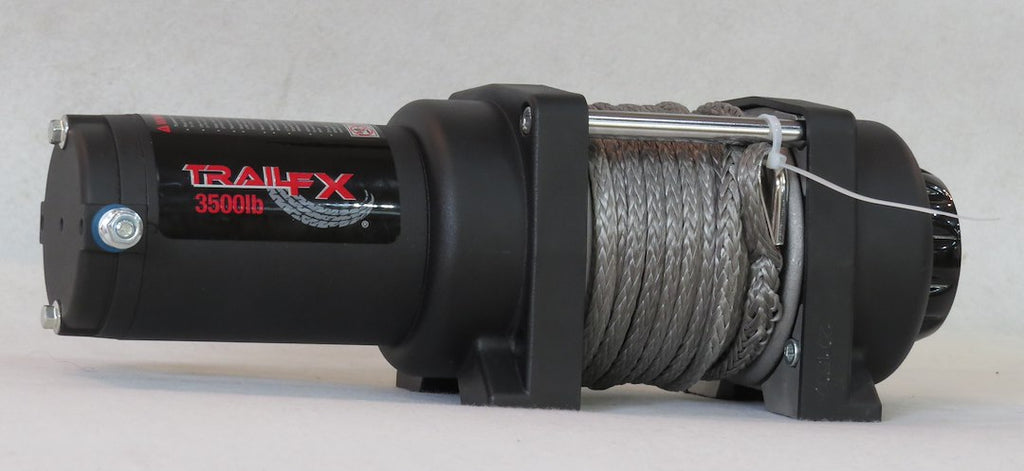

The TrailFX Winch is designed for robust performance in ATV and UTV applications, featuring a 3500 pound line pull capacity. This electric winch operates on a 12-volt system and includes a 50-foot synthetic rope with a 3/16 inch diameter, ensuring durability and strength during recovery operations. The integrated solenoid housing and 3-stage planetary drive gear provide reliable operation and efficiency, making it suitable for various recovery tasks.
Equipped with a handlebar mounted rocker switch and a wired remote control, the winch offers ease of use and accessibility. The mechanical braking action and cam activated clutch type enhance control during operation, while the water resistant motor, gear box, and solenoid ensure longevity in challenging environments. The winch is fully universal, allowing for a straightforward installation with included mounting hardware.
With a gear reduction ratio of 136:1 and a line speed of 7 feet per minute at maximum pull, the TrailFX Winch is engineered for effective performance. The automatic drum brake type and permanent magnet motor contribute to its reliability, making it a valuable addition to any off-road vehicle.
Features
- Mechanical Braking Action
- Cam Activated Clutch Type
- Mini Rocker Switch And Handheld Remote Control
- Wireless Remote Option Available As An Add On Accessory
- Water Resistant Motor, Gear Box And Solenoid
Specifications
- Manufacturer: TrailFX
- Manufacturer Part Number: WS35B
- Winch Rating: 3500 Pound
- Recommended Use: ATV/ UTV
- Operation Type: Electric
- Mount Type: Fixed Mount
- Voltage: 12 Volt
- Free Spooling: Yes
- Line Length (FT): 50 Feet
- Line Material: Synthetic
- Remote Type: Wired
- Universality: Fully Universal
- Mounting Pattern Size: 4.9 Inch Length X 3 Inch Width
- Brake Type: Automatic Drum
- Max Amp Draw: 225 Amp Draw At 3500 Pound
- Gear Reduction Ratio: 136:1

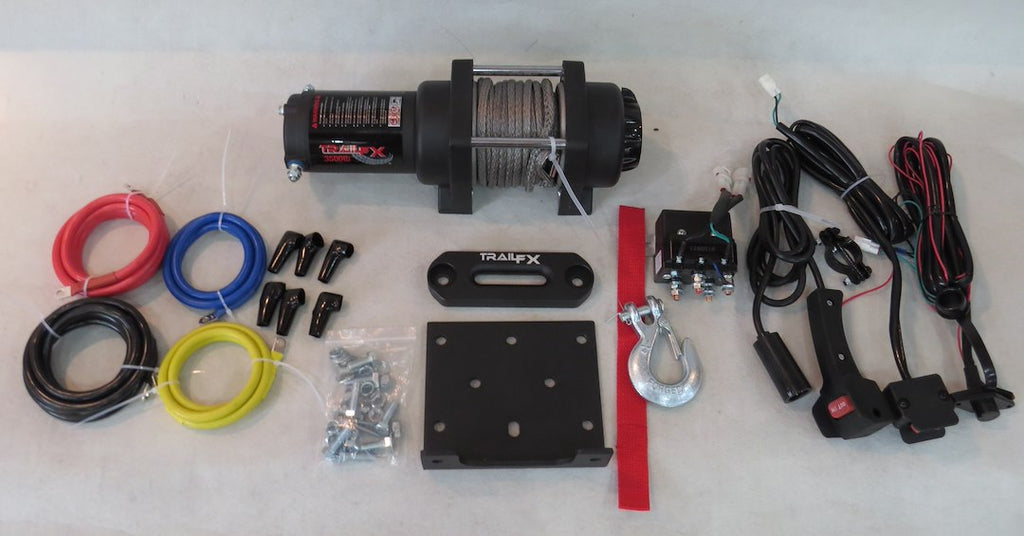

- Includes Mounting Hardware: Yes
- Thermal Shutoff: No
- Color: Black
- Motor Horsepower: 3.8 Horsepower
- Fairlead Type: Hawse
- Line Speed At Max Pull: 7 Feet Per Minute At 3500 Pound
- Electrical Control Type: Solenoid
- Motor Type: Permanent Magnet
- Drive Gear Type: Planetary
- Line Diameter (IN): 3/16 Inch
- Mounting Hole Quantity: 3
- Drum Material: Steel
- Estimated Install Time (Hours): 1.5
- Gross Weight Of Total Packaging: 18.0%
- % of Packaging Weight - Cardboard: 90%
- % of Packaging Weight - Other Plastic: 5%
- % Of Packaging Weight - Paper: 5%
