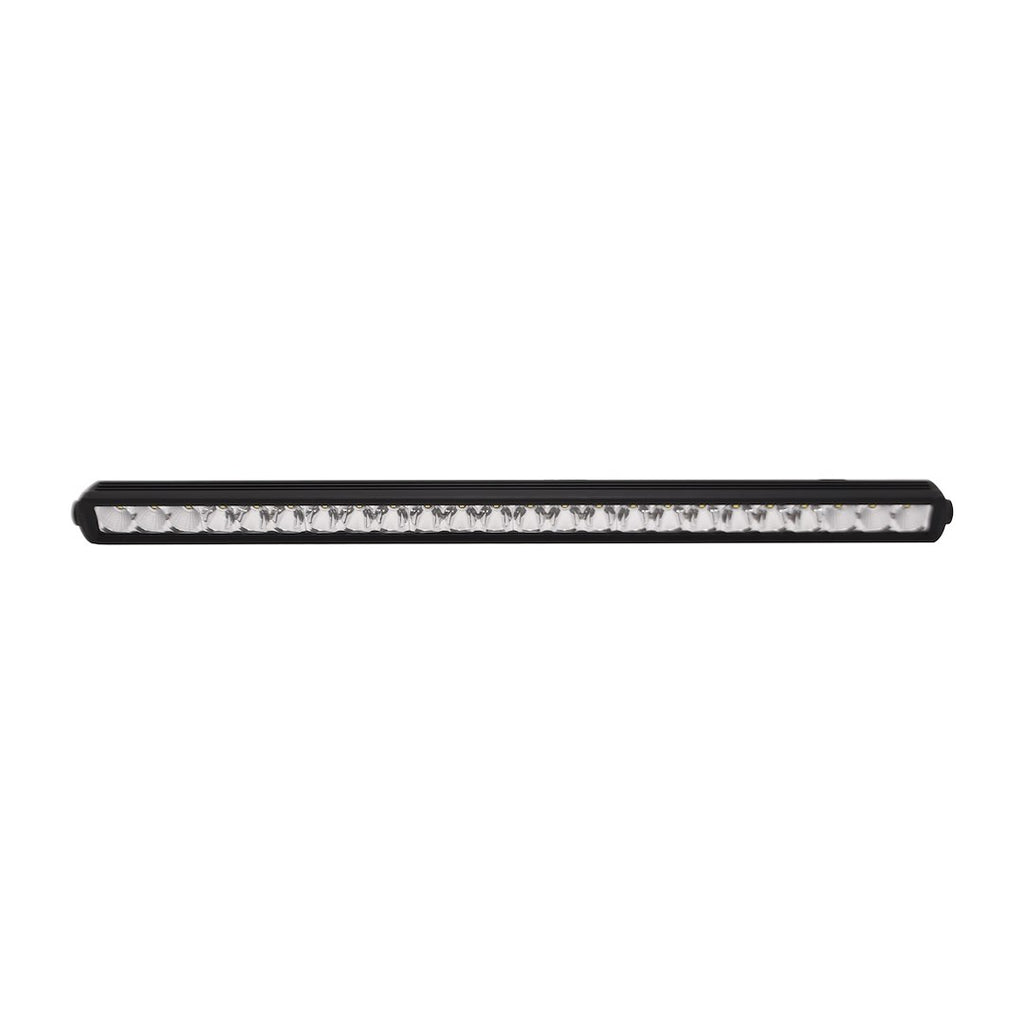

TrailFX LED Light Bar (MPN: 30SRSCM)

High-performance 30-inch LED light bar with versatile beam options.

The TrailFX LED Light Bar is engineered to provide superior illumination for various applications, including work and recreational use. With a length of 30 inches and featuring 24 clear OSRAM 5 Watt bulbs, this light bar delivers an impressive 14400 raw lumens and 10507 effective lumens, ensuring optimal visibility in low-light conditions. The combination of an 8-degree spot beam and a 90-degree flood beam allows users to see both far down the path and the surrounding area, enhancing safety and awareness.

Constructed with a durable die-cast aluminum housing and a polycarbonate lens, the TrailFX LED Light Bar is designed to withstand harsh environments. It boasts an IP67 rating, providing protection against dust, sand, and water, ensuring reliable performance regardless of weather conditions. With a lifespan of over 30,000 hours, this light bar is built for longevity and consistent operation.

The light bar operates efficiently with a power consumption of 120 watts, allowing for additional accessories to be powered without overloading the system. It includes a wiring harness and mounting brackets for easy installation, making it a practical choice for those seeking a robust lighting solution.

Features

• Higher Effective Lumens Fully Illuminates The Night Sky

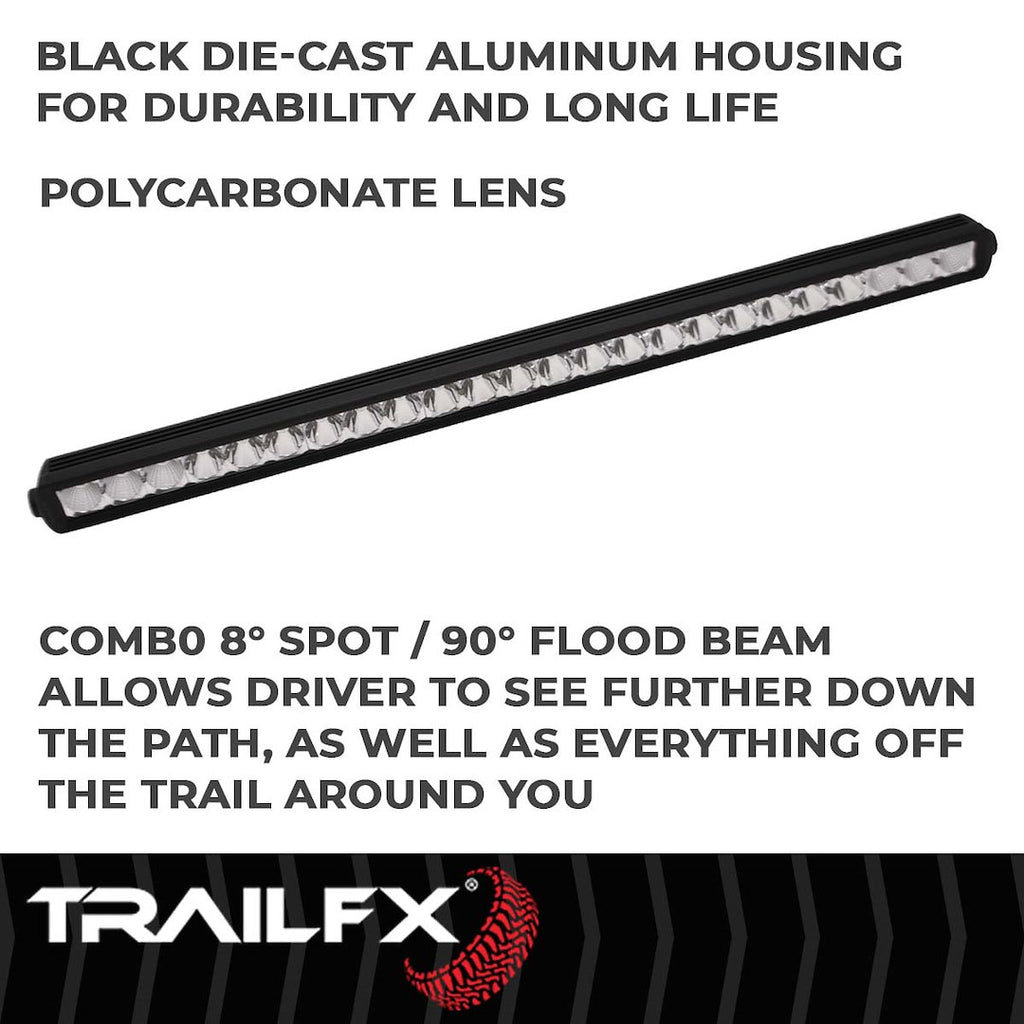

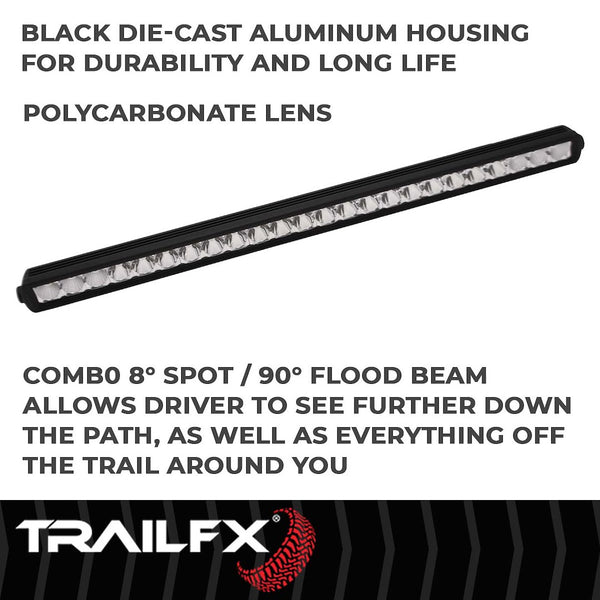

• Die-Cast Aluminum Housing For Durabilty And Long Life
• A Combination 8 Degree Spot Beam And 90 Degree Flood Beam Allows Driver To See Further Down The Path, As Well As Everything Off The Trail Around You
• IP67 Rating For Dust, Sand, And Dirt Protection, Along With A High Water Resistance To Keep The Lights At 100 Percent Functional Capacity Regardless Of The Outside Elements
• 30,000+ Hours Of Working Life Assures The Light Will Operate For Work, Play, And Everyday Life
• Lower Power Consumption Allows Extra System Wattage For Additional Accessories

Specifications

• Manufacturer: TrailFX
• Manufacturer Part Number: 30SRSCM
• Bulb Type: LED
• Style: Straight
• Length: 30 Inch
• Beam Type: Combo Beam Flood And Spot
• Number Of Rows: 1
• Light Color: White
• Housing Color: Black
• Smart Technology Compatible: Not Smart Technology Compatible
• Beam Angle (Deg): 90 Degree Flood/ 8 Degree Spot
• Lumens: 14400 Raw/ 10507 Effective Lumens
• Wattage: 120 Watt
• Width: 2.3 Inch
• Height: 2 Inch
• Voltage Rating: 10 To 30 Volt
• Ampere Rating At 12 Volts: 1.15 Amp
• Ampere Rating At 24 Volts: 0.61 Amp
• Bulb Specifications: 24 Clear OSRAM 5 Watt LED Bulbs
• Lens Material: Polycarbonate
• Housing Material: Aluminum
• Mounting Length: 34-1/2 Inch
• Mounting Style: Side And Bottom Mount
• Connection Type: Deutsch Connector

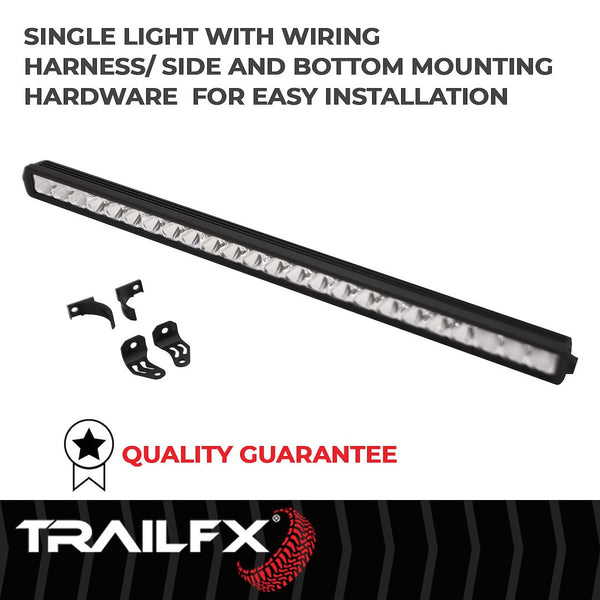

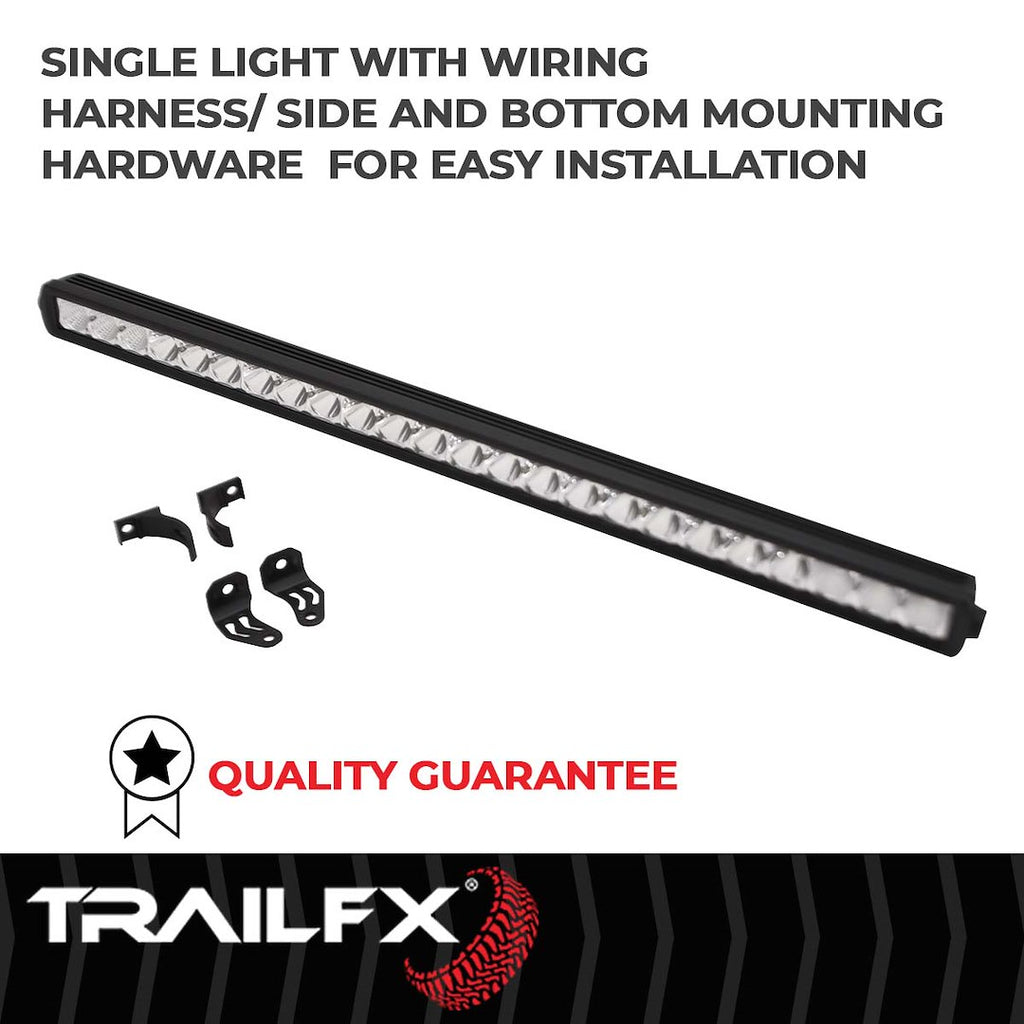

• Includes: With Wiring Harness/ Side And Bottom Mounting Brackets/ Hardware
• Estimated Install Time (Hours): 1.5

Technical Documents

• 30SRSCM_USER_INSTRUCTIONS.pdf
