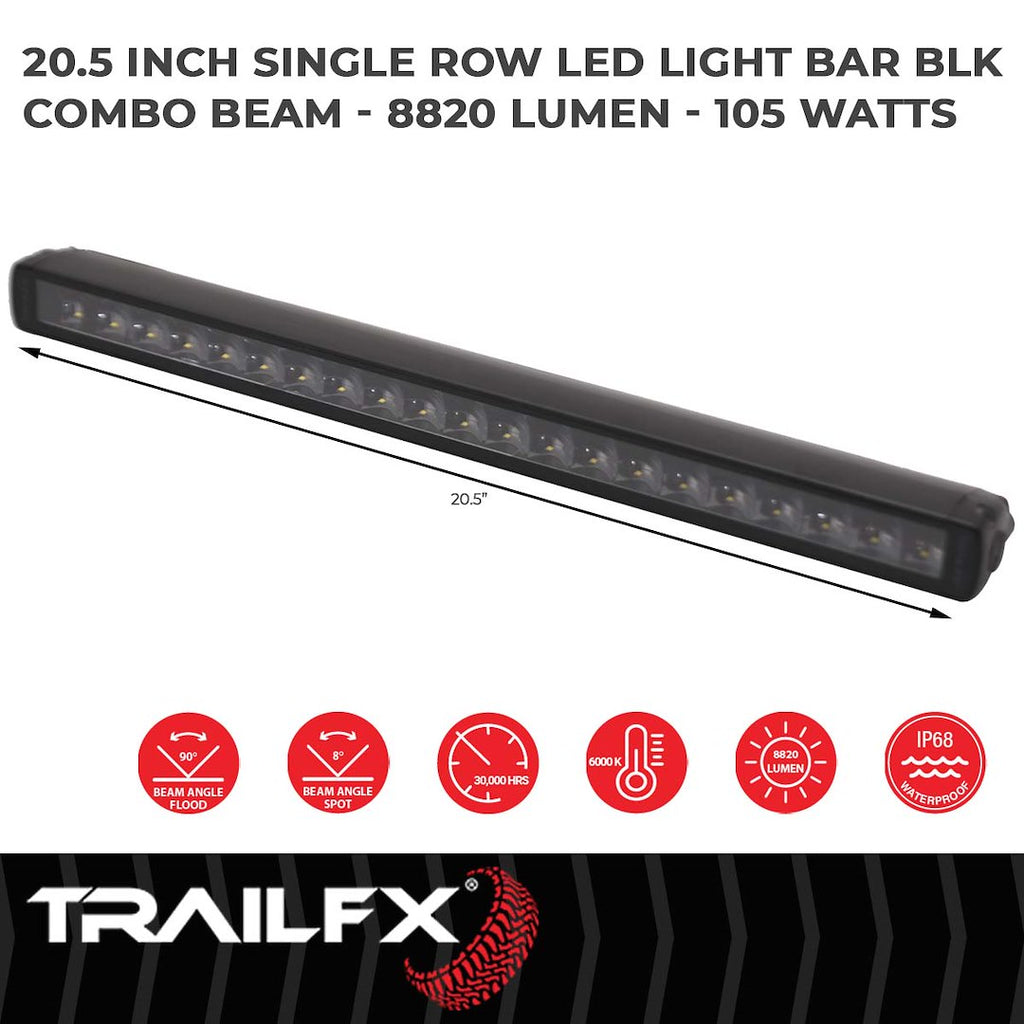

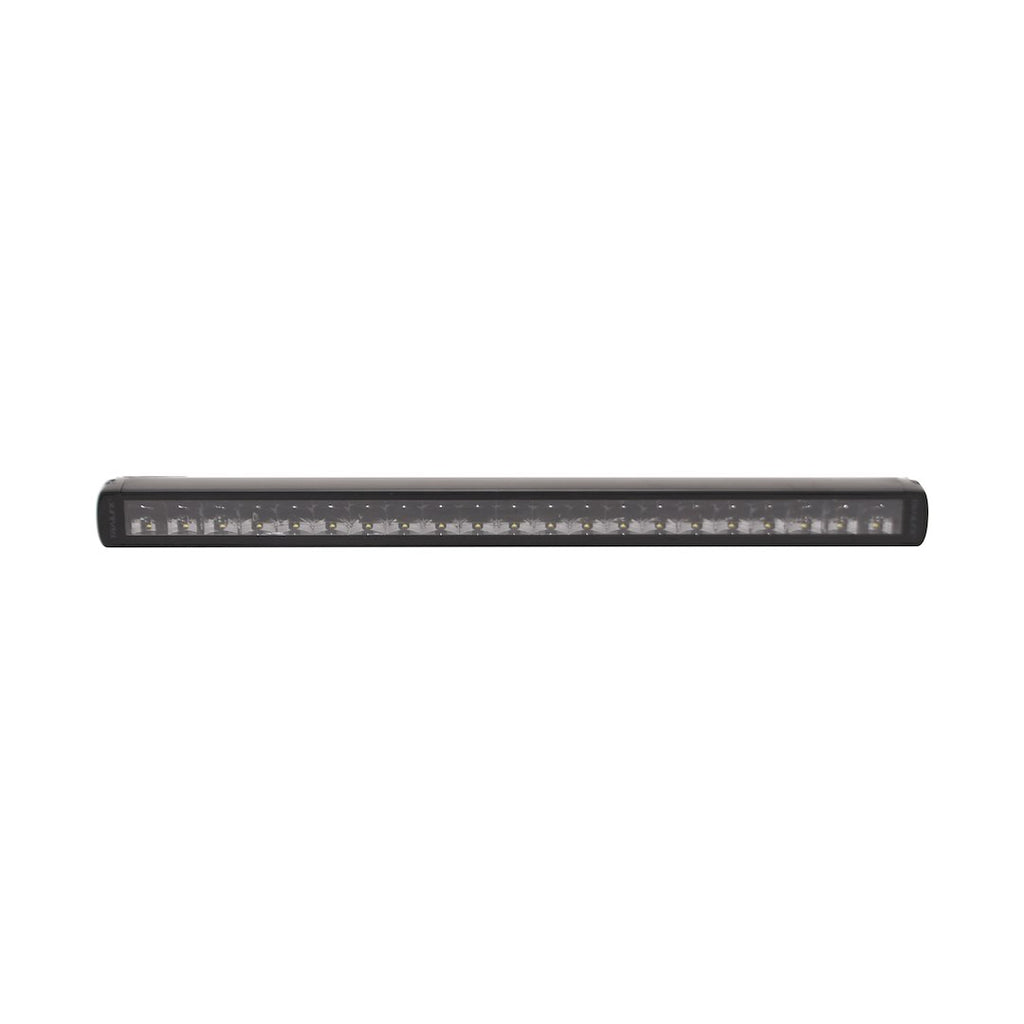

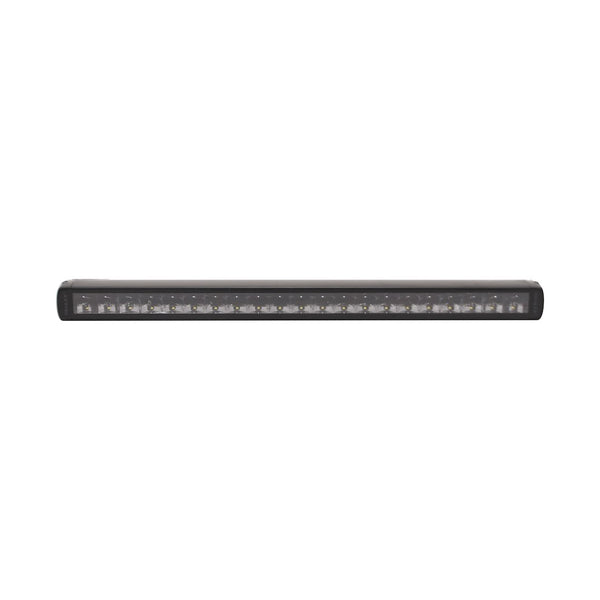

TrailFX LED Light Bar (MPN: 20SRSCMB)

High-performance 20 inch LED light bar with versatile beam options.

The TrailFX LED Light Bar is engineered for durability and high performance, featuring a 20 inch length and a combination of 21 OSRAM 5 Watt LED bulbs. With a total output of 8820 raw lumens and 5800 effective lumens, this light bar provides exceptional illumination for various applications, ensuring visibility in both on-road and off-road conditions. The die-cast aluminum housing is designed to withstand harsh environments, while the polycarbonate lens offers protection against dust and water, achieving an IP68 rating for reliable operation in challenging weather.

This light bar utilizes a unique beam pattern that combines an 8 degree spot beam and a 90 degree flood beam, allowing users to see further down the path while also illuminating the surrounding area. The lower power consumption of 105 watts enables additional accessories to be powered without compromising performance. With a lifespan exceeding 30,000 hours, the TrailFX LED Light Bar is built to last, making it a practical choice for work, play, and everyday use.

Included with the light bar are a wiring harness, side and bottom mounting brackets, and necessary hardware for installation. The light operates within a voltage range of 10 to 30 volts and is compatible with various vehicles. The combination of high-quality materials and advanced technology ensures that this light bar meets the demands of users seeking reliable and efficient lighting solutions.

Features

• Higher Effective Lumens Fully Illuminates The Night Sky
• Die-Cast Aluminum Housing For Durabilty And Long Life
• A Combination 8 Degree Spot Beam And 90 Degree Flood Beam Allows Driver To See Further Down The Path, As Well As Everything Off The Trail Around You
• IP68 Rating For Dust, Sand, And Dirt Protection, Along With A Very High Water Resistance To Keep The Lights At 100 Percent Functional Capacity Regardless Of The Outside Elements
• 30,000+ Hours Of Working Life Assures The Light Will Operate For Work, Play, And Everyday Life
• Lower Power Consumption Allows Extra System Wattage For Additional Accessories
• Beam Distance At 1 Lux Equals 2093 Feet

Specifications

• Manufacturer: TrailFX
• Manufacturer Part Number: 20SRSCMB
• Bulb Type: LED
• Style: Straight
• Length: 20 Inch
• Beam Type: Combo Beam Flood And Spot
• Number Of Rows: 1
• Light Color: White
• Housing Color: Black
• Smart Technology Compatible: Not Smart Technology Compatible
• Beam Angle (Deg): 90 Degree Flood/ 8 Degree Spot
• Lumens: 8820 Raw/ 5800 Effective Lumens
• Wattage: 105 Watt
• Width: 2.1 Inch
• Height: 1.57 Inch
• Voltage Rating: 10 To 30 Volt
• Ampere Rating At 12 Volts: 1.15 Amp
• Ampere Rating At 24 Volts: 0.61 Amp
• Bulb Specifications: 21 Clear OSRAM 5 Watt LED Bulbs
• Lens Material: Polycarbonate
• Housing Material: Aluminum
• Mounting Length: 23.05 Inch
• Mounting Style: Side And Bottom Mount
• Connection Type: Deutsch Connector

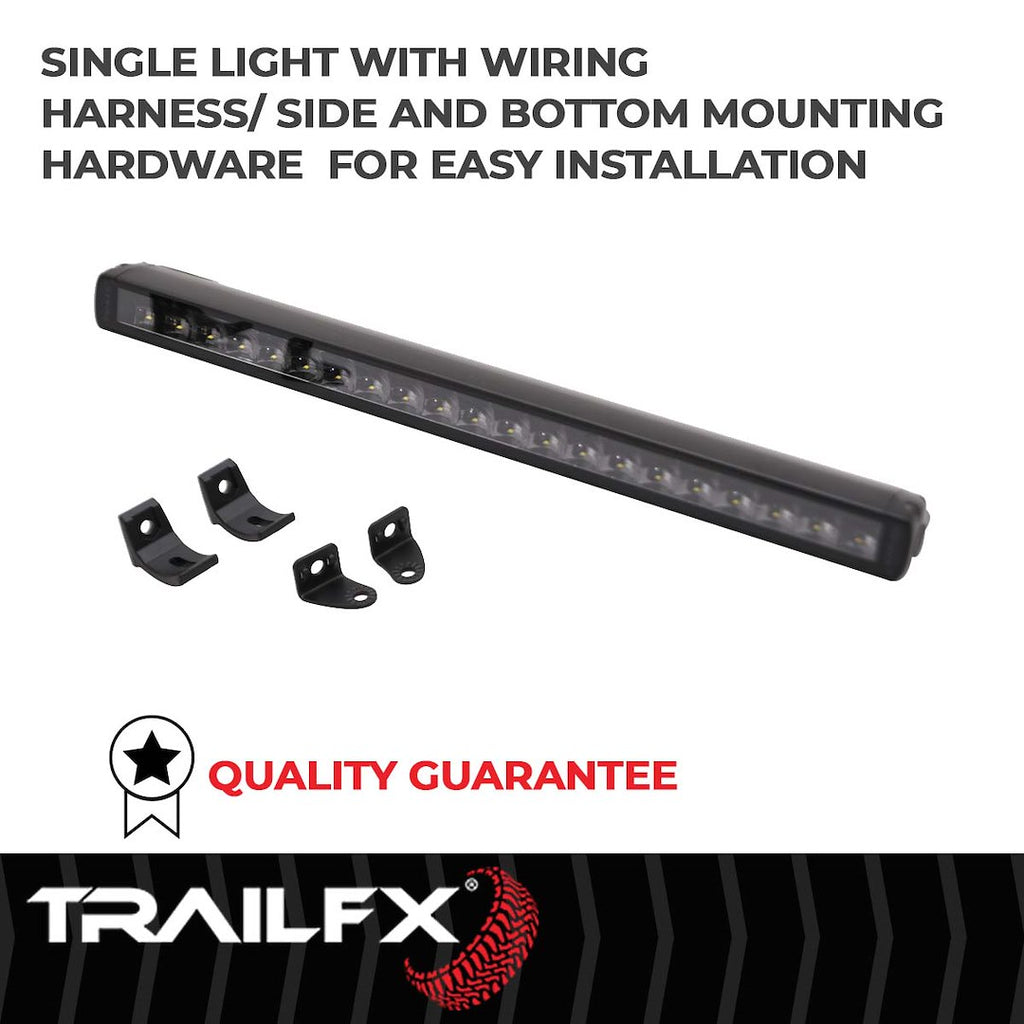

• Includes: With Wiring Harness/ Side And Bottom Mounting Brackets/ Hardware
• Estimated Install Time (Hours): 1.5
• % of Packaging Weight - Cardboard: 90%
• % of Packaging Weight - Other Plastic: 5%
• % Of Packaging Weight - Paper: 5%

Technical Documents

• 20SRSCMB_USER_INSTRUCTIONS.pdf
