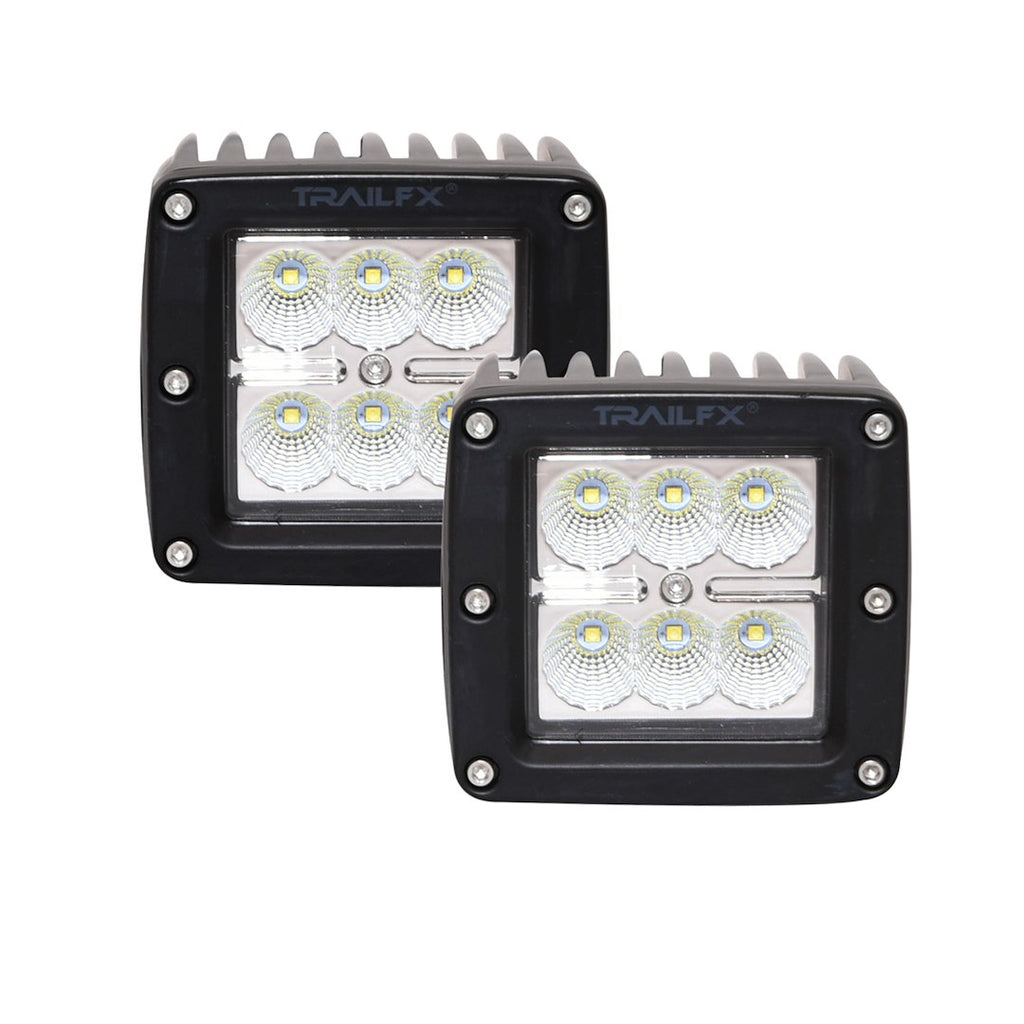

TrailFX LED Driving Fog Lights (MPN: 3X2CFPR)

High-performance LED lights with durable construction and long lifespan.

TrailFX LED Driving Fog Lights are designed to provide superior illumination for various applications, ensuring visibility in challenging conditions. Featuring six clear CREE LED bulbs, these lights deliver an impressive 1620 raw lumens and 940 effective lumens, making them suitable for both work and recreational use. The 90-degree flood beam pattern enhances visibility by illuminating a wider area, allowing users to see objects both up close and to the side of the trail.

Constructed with a robust die-cast aluminum housing, these lights are built to withstand harsh environments. The IP67 rating ensures protection against dust and water, allowing the lights to function effectively even in wet conditions. With an average rated life of over 30,000 working hours, TrailFX LED Driving Fog Lights offer longevity and reliability, reducing the need for frequent replacements.

Included with the lights are a wiring harness and mounting hardware, facilitating easy installation. The compact 3-inch cube design makes them versatile for various mounting options. With lower power consumption, these lights allow for additional accessories to be powered without overloading the system.

Features

• Higher Effective Lumens Fully Illuminates The Night Sky
• Die-Cast Aluminum Housing For Durability And Long Life
• 90 Degree Flood Beam Creates A Wider Angle Of Light To See Objects Both Up Close And To The Side Of The Trail
• IP67 Rating For Dust, Sand, And Dirt Protection, Along With A High Water Resistance To Keep The Lights At 100 Percent Functional Capacity Regardless Of The Outside Elements
• 30,000+ Hours Of Working Life Assures The Light Will Operate For Work, Play, And Everyday Life
• Lower Power Consumption Allows Extra System Wattage For Additional Accessories

Specifications

• Manufacturer: TrailFX
• Manufacturer Part Number: 3X2CFPR
• Shape: Square
• Beam Type: 90 Degree Flood Beam
• Diameter: Not Applicable

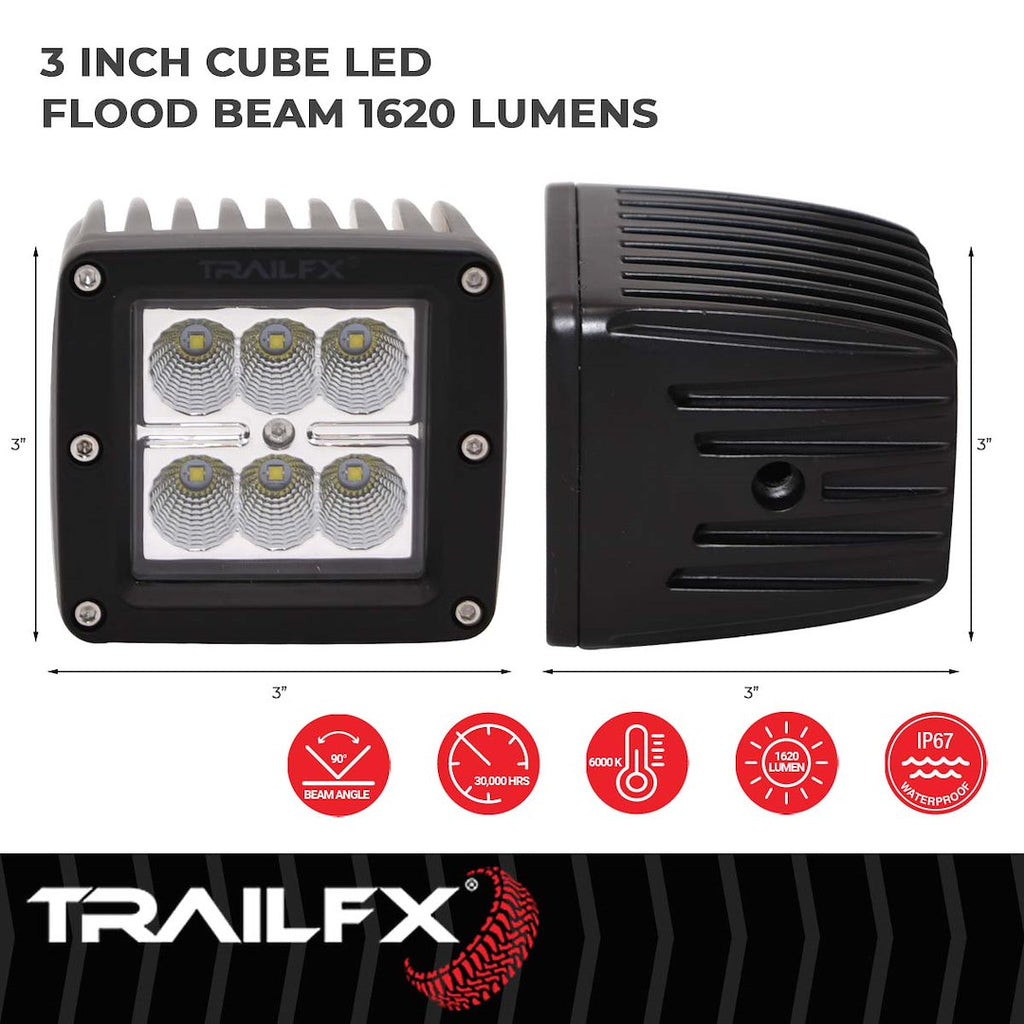

• Height/ Width: 3 Inch Height X 3 Inch Width
• Bulb Type: LED
• Light Color: White
• Quantity: Set Of 2
• Universality: Fully Universal
• Depth: 3 Inch
• Wattage: 18 Watt
• Voltage Rating: 10 To 30 Volt
• Mounting Style: Bracket Mount
• Ampere Rating At 12 Volts: 1.15 Amp
• Ampere Rating At 24 Volts: 0.61 Amp
• Lumens: 1620 Raw/ 940 Effective Lumens
• Bulb Specifications: 6 Clear CREE 3 Watt LED Bulbs
• Lens Material: Polycarbonate
• Housing Color: Black

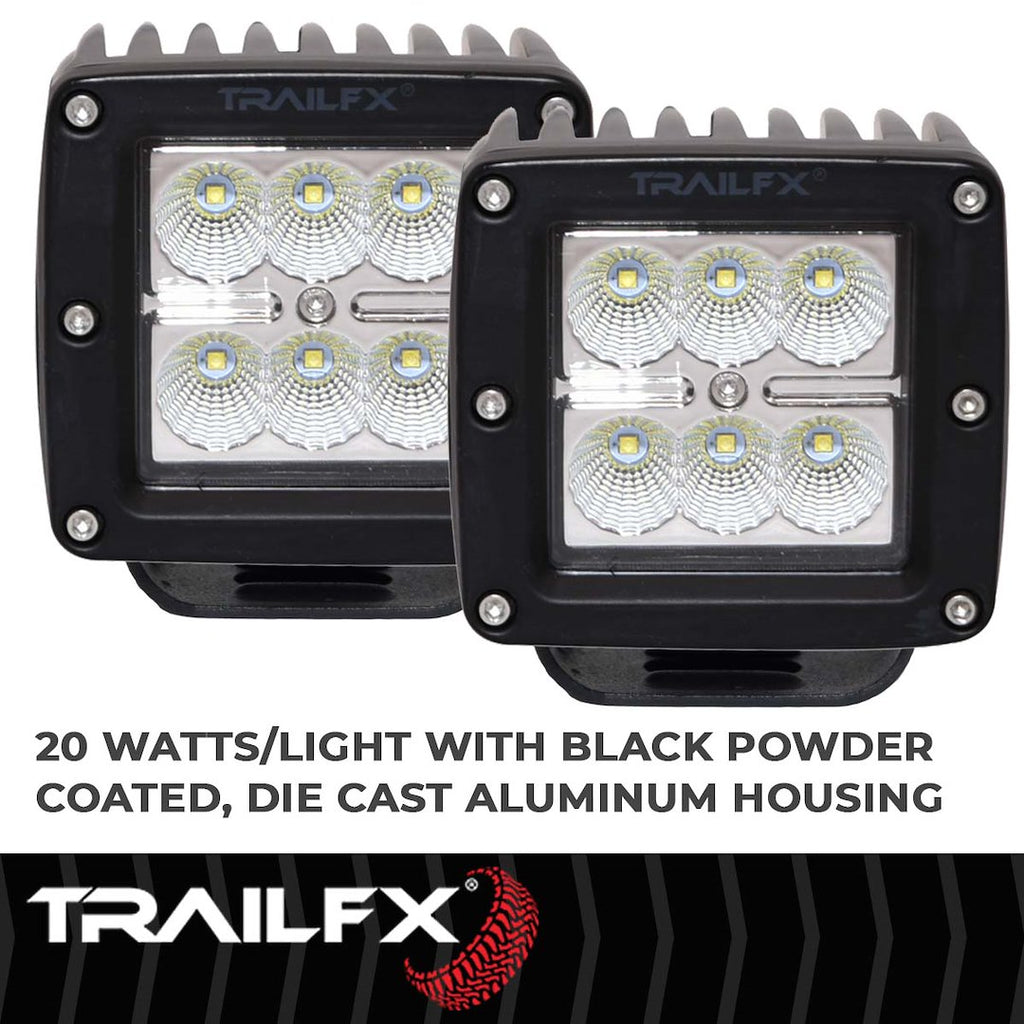

• Housing Material: Die-Cast Aluminum

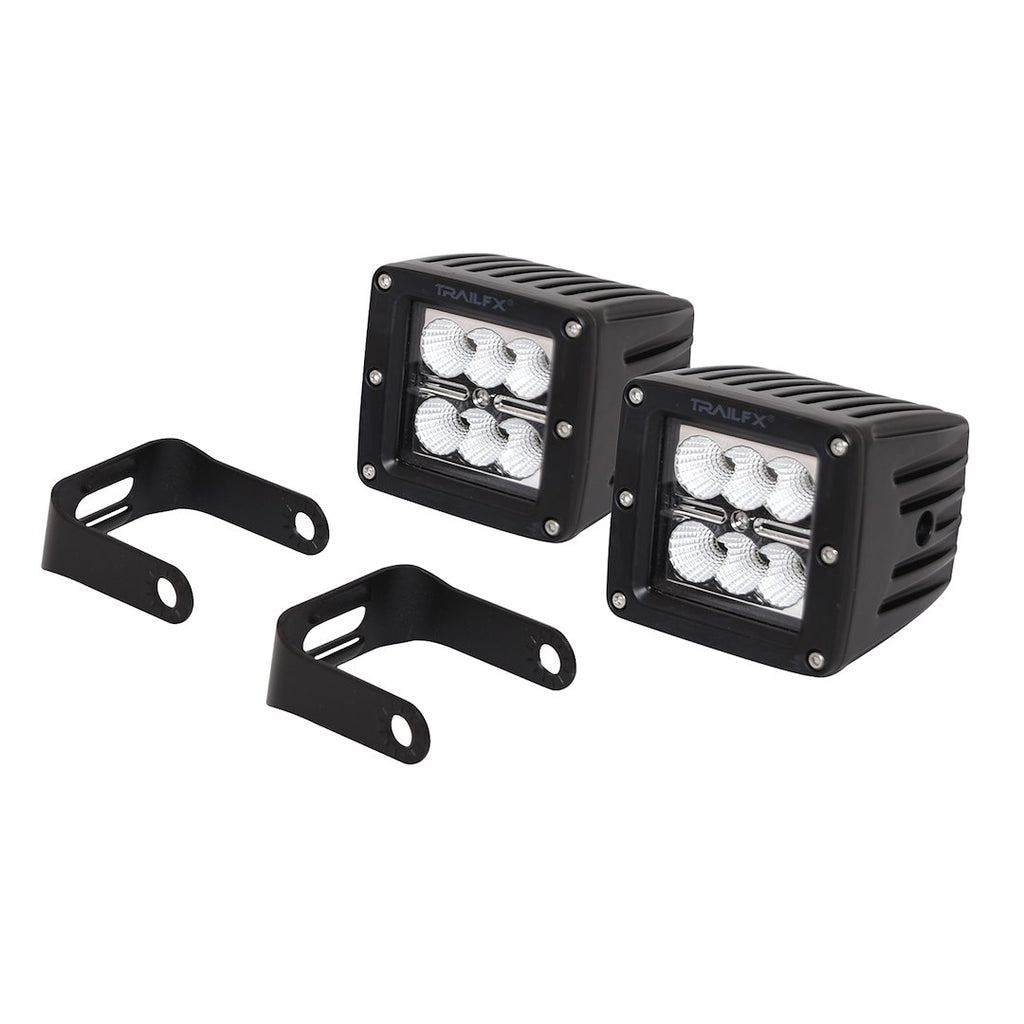

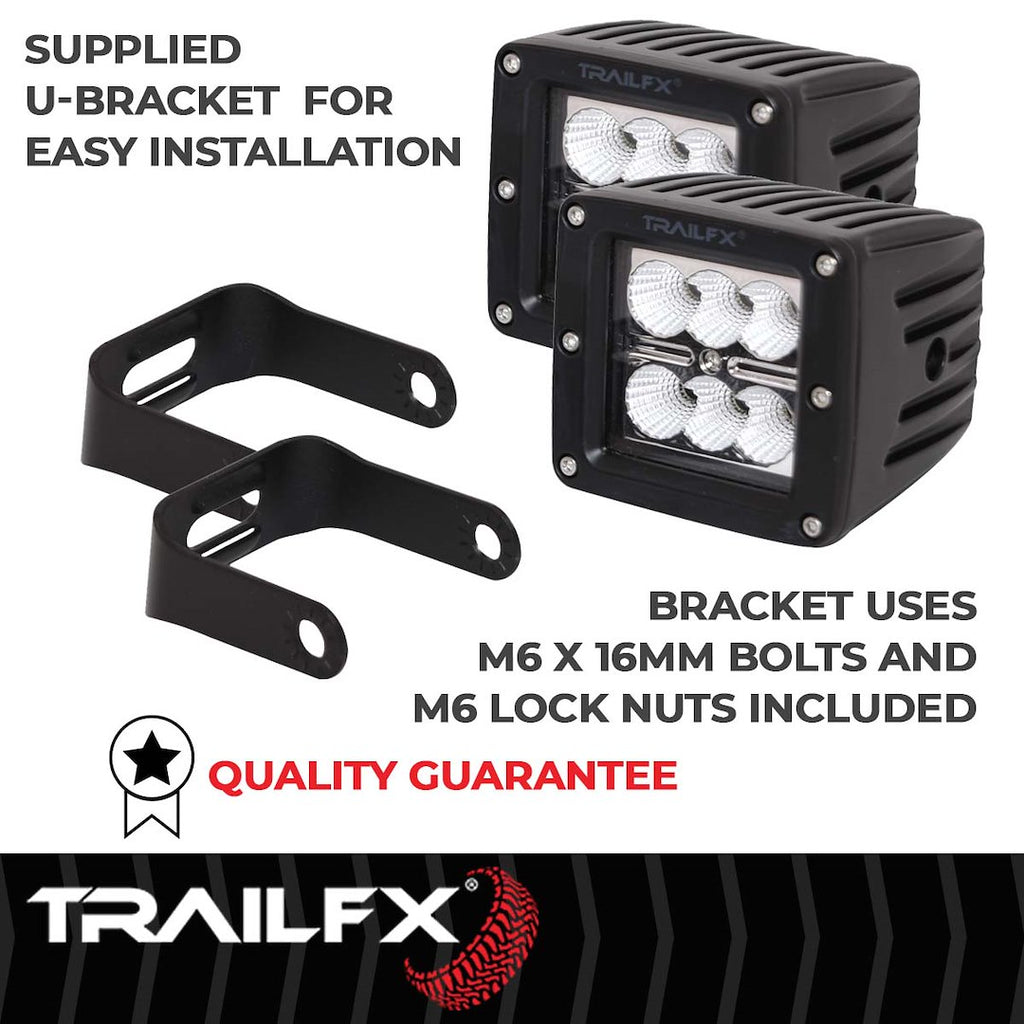

• Includes: With Mounting Hardware And Wiring Harness
• Estimated Install Time (Hours): 1.5

Technical Documents

• 3X2CFPR_USER_INSTRUCTIONS.pdf
