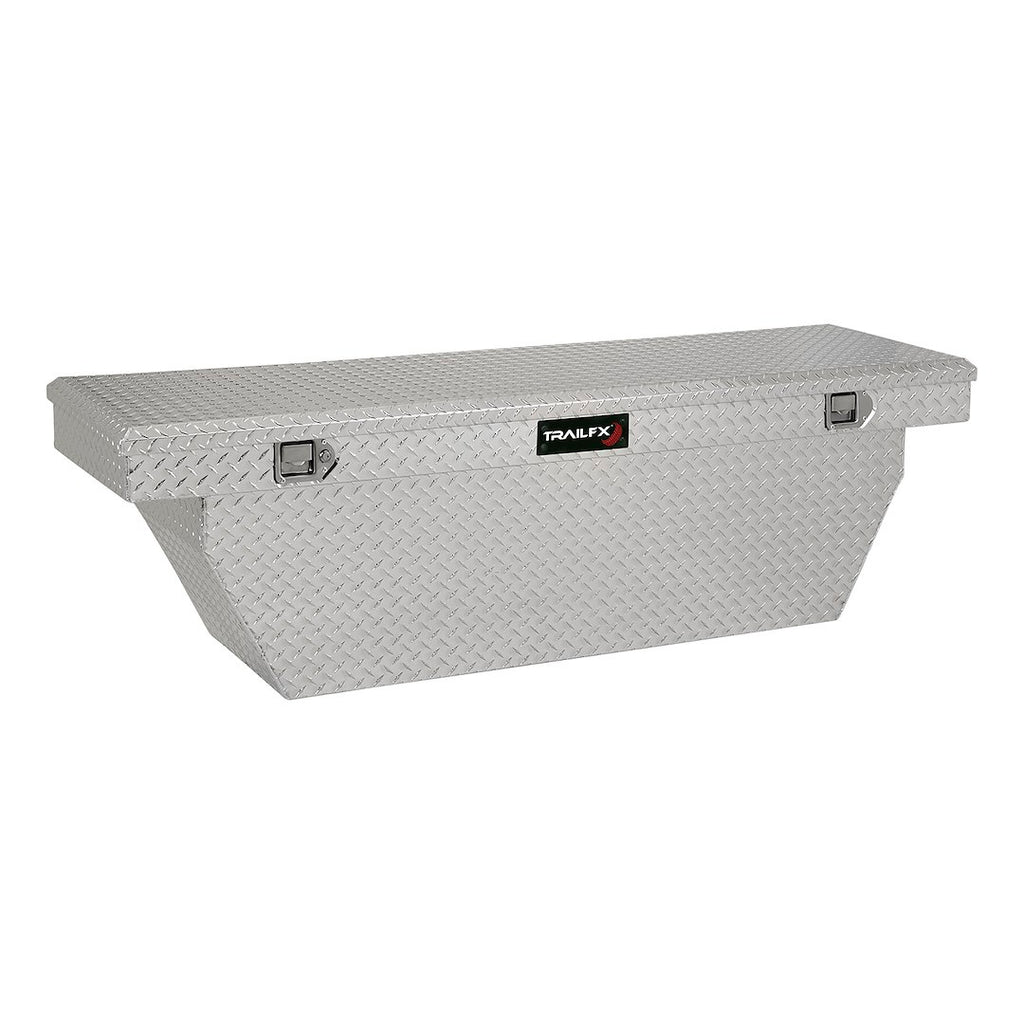

TrailFX Crossover Deep Angled Tool Box (MPN: 111701)

Durable aluminum construction with ample storage and secure locking system.

The TrailFX Crossover Deep Angled Tool Box is designed for strength and durability, constructed from bright, polished 16 gauge aluminum. With dimensions of 19-1/4 inches in length, 69 inches in width, and 19-1/2 inches in height, this tool box offers a generous 12.4 cubic foot capacity, making it suitable for a variety of storage needs. The diamond tread surface design not only enhances its aesthetic appeal but also provides added grip and resistance to wear.

This tool box features a single lid equipped with struts for easy one-hand operation, thanks to a self-opening shock mechanism. The lid is reinforced with two layers of aluminum and a higher density foam fill, ensuring maximum protection for your tools and equipment. A high-quality stainless steel latch system guarantees lasting durability and convenience, while double-bitted steel keys facilitate easy locking and unlocking, even in harsh environments.

The patented up-and-over rod design keeps the working space clear and prolongs the life of the latching system. This semi-universal tool box is ideal for various applications and includes a plastic tray for organized storage. Installation is straightforward, requiring drilling and estimated to take about one hour, with all necessary mounting hardware included.

Features

• Strong And Durable
• Up To 10.5 Cubic Foot Of Storage
• Lid Has Two Layers Of Aluminum And A Higher Density Foam Fill Than Any Of The Competitive Boxes On The Market
• Latching System Features A High-Quality Stainless Steel Latch For Lasting Durability And Convenience
• Patented Up-And-Over Rod Does Not Encumber The Working Space Of The Box And Keeps The Rod Out Of Harm’s Way, Prolonging The Life Of The Latching System
• Double-Bitted Steel Keys Make Locking And Unlocking The Box Easy, Even In The Harshest Of Environment
• One-Hand Opening Of Our Aluminum Boxes Is A Breeze, Thanks To The Use Of A Self-Opening Shock

Specifications

• Manufacturer: TrailFX
• Manufacturer Part Number: 111701
• Type: Crossover
• Surface Design: Diamond Tread
• Number Of Lids/Storage Box Doors: 1 Lid
• Lockable Lid: Yes
• Color/ Finish: Silver Polished
• Material: Aluminum
• Length (IN): 19-1/4 Inch
• Width (IN): 69 Inch
• Height (IN): 19-1/2 Inch
• Volume (CU FT): 12.4 Cubic Feet
• Universality: Semi-Universal
• Style: Deep
• With Rails: No
• With Aluminum Bed Upfit Kit: No
• Handle Type: Paddle
• With Lid Shocks: Yes
• With Tray: Yes
• Drilling Required: Yes
• Height (Bed Rail Down): 15-1/2 Inch
• Width (Bed Width): 58 Inch
• Estimated Install Time (Hours): 1
• With Mounting Hardware: Yes

Compatibility / Fit

• 1985-1986 Chevrolet C10
• 1988-1999 Chevrolet C1500
• 1985-1986 Chevrolet C20
• 1988-2000 Chevrolet C2500
• 1985-1986 Chevrolet C30
• 1988-2000 Chevrolet C3500
• 1985-1986 Chevrolet K10
• 1988-1999 Chevrolet K1500
• 1985-1986 Chevrolet K20
• 1988-2000 Chevrolet K2500
• 1985-1986 Chevrolet K30
• 1988-2000 Chevrolet K3500
• 1987-1987 Chevrolet R10
• 1987-1988 Chevrolet R20
• 1989-1989 Chevrolet R2500
• 1987-1988 Chevrolet R30
• 1989-1991 Chevrolet R3500
• 1999-2018 Chevrolet Silverado 1500
• 2020-2021 Chevrolet Silverado 1500
• 2023-2026 Chevrolet Silverado 1500
• 2007-2007 Chevrolet Silverado 1500 Classic
• 2001-2003 Chevrolet Silverado 1500 HD
• 2005-2006 Chevrolet Silverado 1500 HD
• 2007-2007 Chevrolet Silverado 1500 HD Classic
• 2022-2022 Chevrolet Silverado 1500 LTD- Old Model
• 2019-2019 Chevrolet Silverado 1500- New Model
• 2022-2022 Chevrolet Silverado 1500- New Model
• 1999-2004 Chevrolet Silverado 2500
• 2001-2026 Chevrolet Silverado 2500 HD
• 2007-2007 Chevrolet Silverado 2500 HD Classic
• 2001-2006 Chevrolet Silverado 3500
• 2007-2007 Chevrolet Silverado 3500 Classic
• 2007-2026 Chevrolet Silverado 3500 HD
• 1987-1987 Chevrolet V10
• 1987-1987 Chevrolet V20
• 1987-1988 Chevrolet V30
• 1989-1991 Chevrolet V3500
• 1986-1989 Dodge D100
• 1985-1993 Dodge D150
• 1985-1985 Dodge D350
• 1994-1995 Dodge Ram 1500
• 2009-2010 Dodge Ram 1500
• 1986-1989 Dodge W100
• 1985-1993 Dodge W150
• 1987-2026 Ford F-150
• 2004-2004 Ford F-150 Heritage
• 1987-1999 Ford F-250
• 1997-1997 Ford F-250 HD
• 1987-1997 Ford F-350
• 1985-1986 GMC C1500
• 1988-1999 GMC C1500
• 1985-1986 GMC C2500
• 1988-2000 GMC C2500
• 1985-1986 GMC C3500
• 1988-2000 GMC C3500
• 1985-1986 GMC K1500
• 1988-1999 GMC K1500
• 1985-1986 GMC K2500
• 1988-2000 GMC K2500
• 1985-1986 GMC K3500
• 1988-2000 GMC K3500
• 1987-1987 GMC R1500
• 1987-1989 GMC R2500
• 1987-1991 GMC R3500
• 1999-2018 GMC Sierra 1500
• 2020-2021 GMC Sierra 1500
• 2023-2026 GMC Sierra 1500
• 2007-2007 GMC Sierra 1500 Classic
• 2001-2003 GMC Sierra 1500 HD
• 2005-2006 GMC Sierra 1500 HD
• 2007-2007 GMC Sierra 1500 HD Classic
• 2022-2022 GMC Sierra 1500 Limited- Old Model
• 2019-2019 GMC Sierra 1500- New Model
• 2022-2022 GMC Sierra 1500- New Model
• 1999-2004 GMC Sierra 2500
• 2001-2026 GMC Sierra 2500 HD
• 2007-2007 GMC Sierra 2500 HD Classic
• 2001-2006 GMC Sierra 3500
• 2007-2007 GMC Sierra 3500 Classic
• 2007-2026 GMC Sierra 3500 HD
• 1987-1987 GMC V1500
• 1987-1987 GMC V2500
• 1987-1991 GMC V3500
• 2004-2015 Nissan Titan
• 2011-2018 Ram 1500
• 2024-2026 Ram 1500
• 2024-2024 Ram 1500 Classic
• 2019-2023 Ram 1500 Classic- Old Model
• 2019-2023 Ram 1500- New Model
• 1993-1998 Toyota T100
• 2007-2015 Toyota Tundra

Technical Documents

• T8EA_TFX_INS_Aluminum_Corssover_Box_03-17-16.pdf
