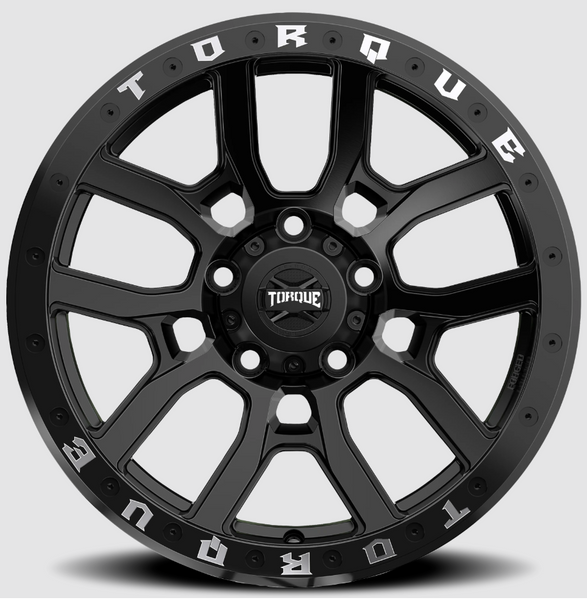

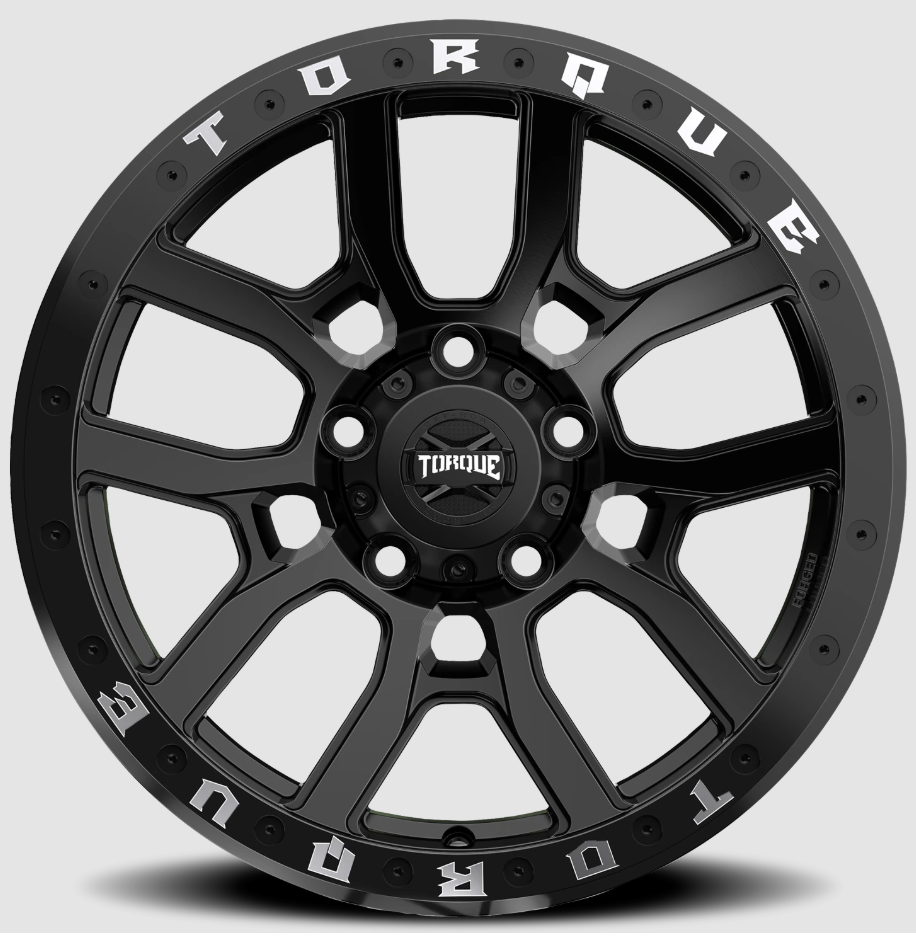

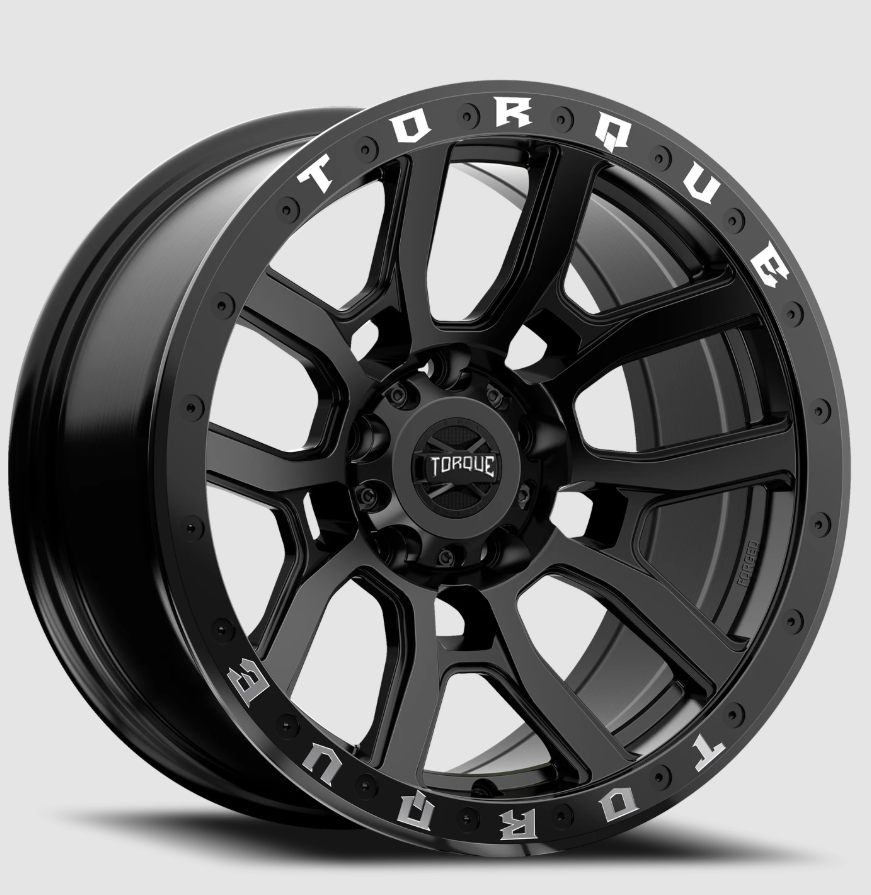

Torque Wheels Baja Canyon 17 Inch Wheel (MPN: TW301AF-17857304-12)

High-performance forged aluminum wheel with sleek design and durability.

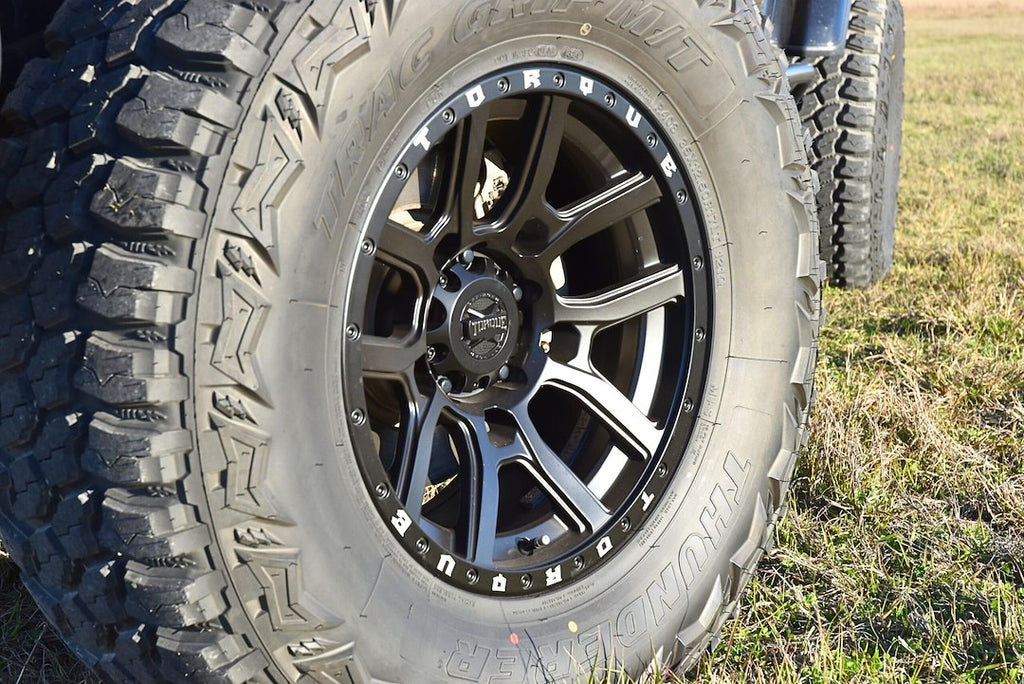

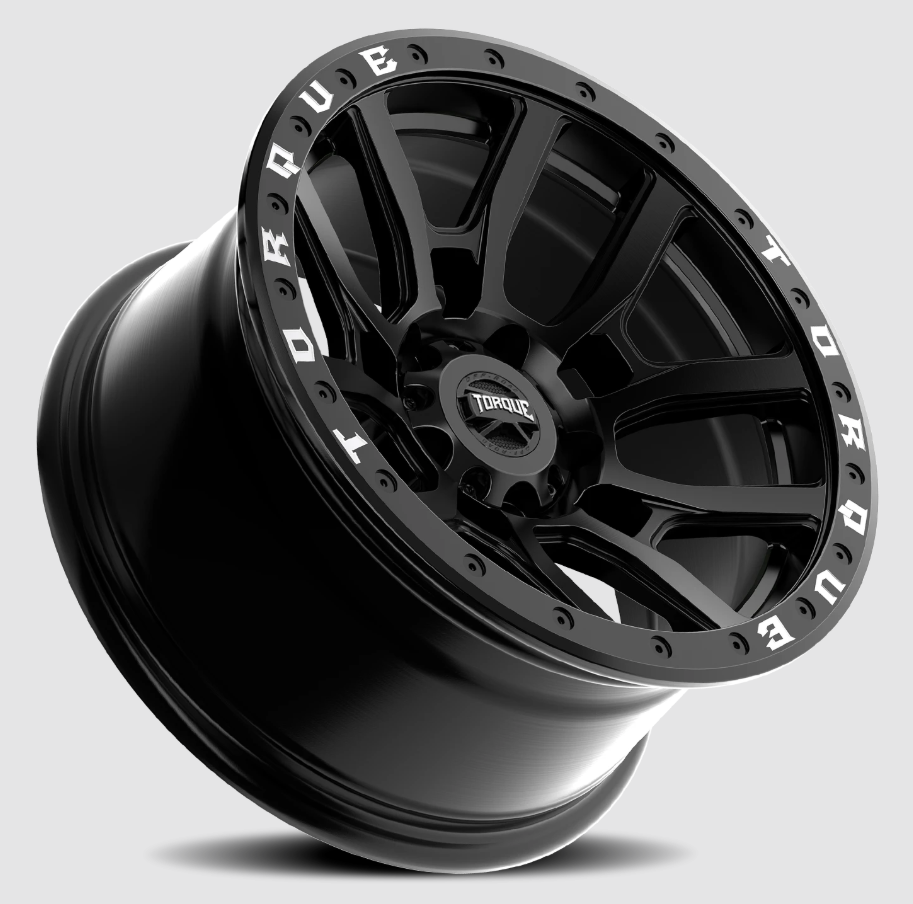

The Torque Wheels Baja Canyon is a 17 inch diameter wheel designed for performance and style. With an 8.5 inch width and a -12 millimeter offset, this wheel is engineered to enhance vehicle handling and aesthetics. The 5 split spoke design, finished in satin black, provides a sporty yet luxurious appearance, making it suitable for various vehicles. Constructed from one piece forged aluminum, it offers a robust load capacity of 2200 pounds, ensuring reliability under demanding conditions.

This wheel features a 5 x 127 millimeter bolt pattern and is compatible with Tire Pressure Monitoring Systems (TPMS), allowing for easy integration with modern vehicles. The 60 degree conical seat lug nut design ensures a secure fit, while the 71.50 millimeter center bore accommodates a wide range of applications. With a maximum tire diameter of 40 inches, the Baja Canyon wheel is versatile enough for various tire options, enhancing both performance and visual appeal.

Features

• Design Is More Classy, Simple, Sporty, And Luxurious
• Satin Black Finish
• Compatible With TPMS (Tire Pressure Monitoring System)
• Easy To Install

Specifications

• Manufacturer: Torque Wheels
• Manufacturer Part Number: TW301AF-17857304-12
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 17
• Width: 8.5
• Offset: -12
• Backspacing: 4.25
• Finish: Satin
• Color: Black
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 71.50
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 5 Split Spoke
• With Inserts: No
• Load Capacity: 2200
• Size: 17x8.5
• Max Tire Diameter: 40
• Center Cap Design: Torque Logo
• Finish Warranty: 3 Years
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Forged
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1959-1964 Buick Electra
• 1988-1992 Cadillac Brougham
• 1970-1974 Cadillac DeVille
• 1980-1990 Chevrolet Caprice
• 1970-1974 Chrysler Imperial
• 1967-1974 GMC C15/C1500 Pickup
• 1987-1987 GMC R1500
• 2020-2025 Jeep Gladiator JT
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL

Technical Documents

• Torque_warranty.pdf
