High-performance wheel designed for durability and style.

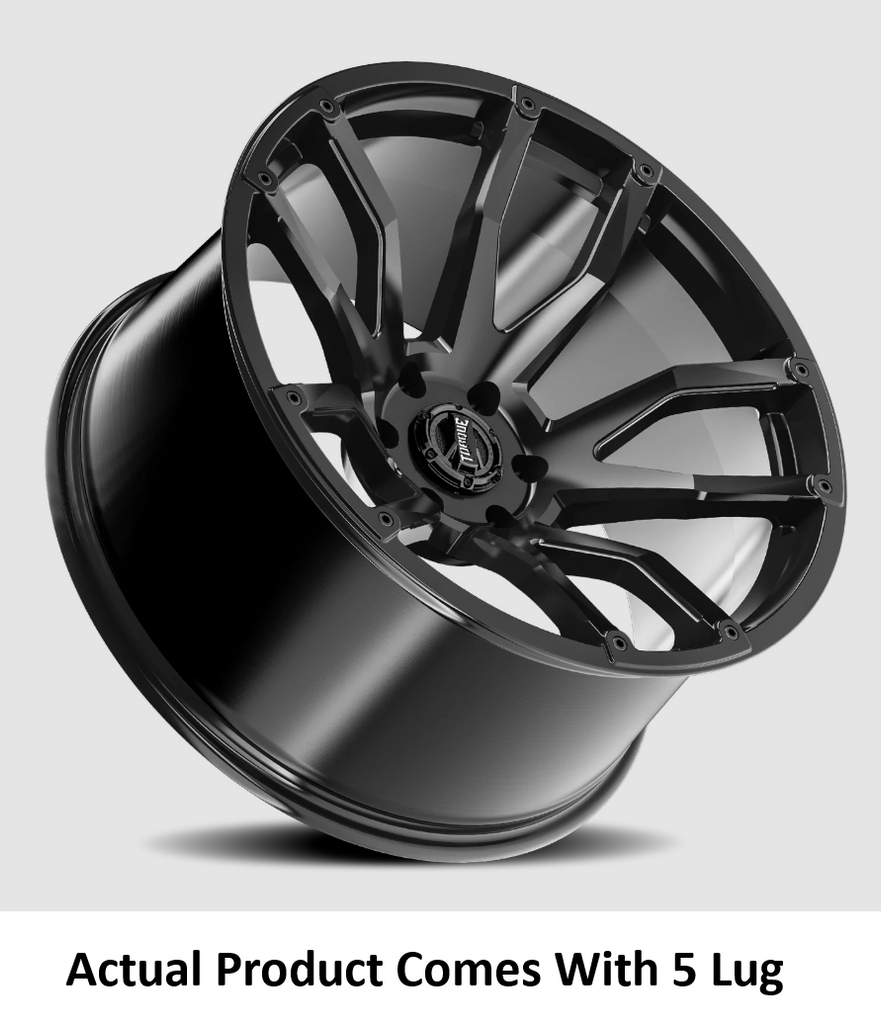

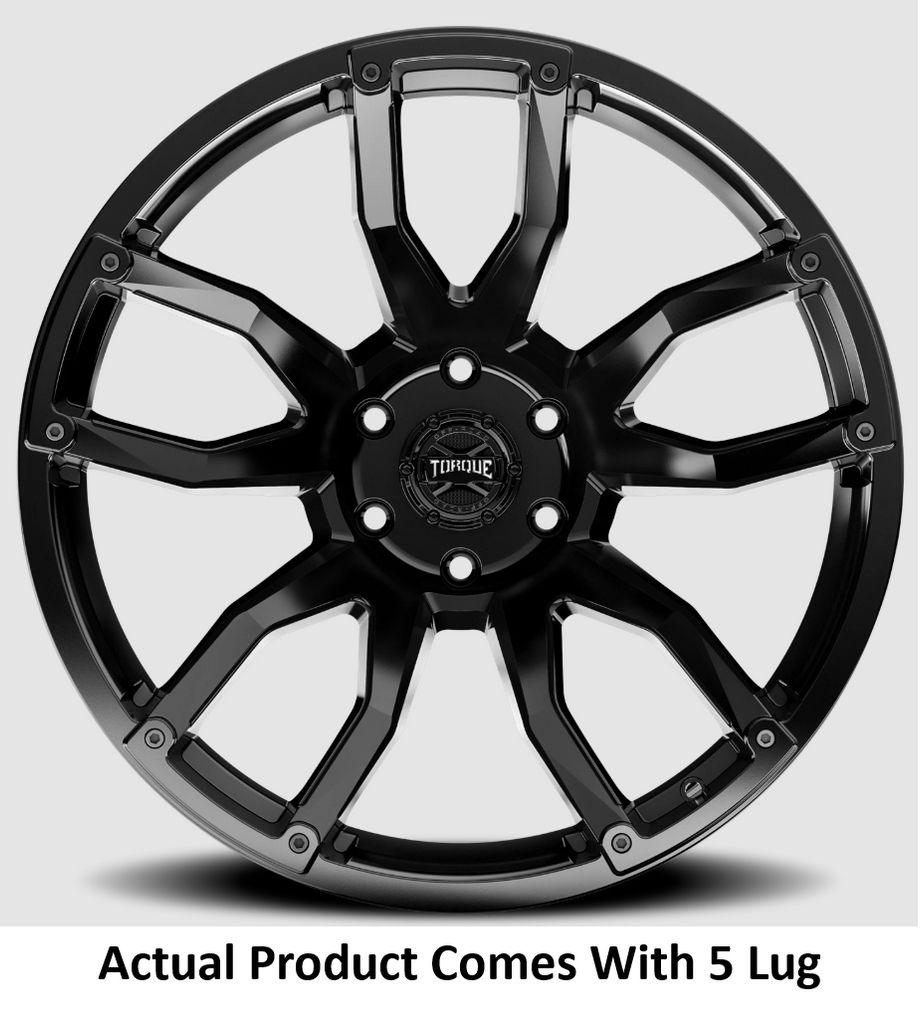

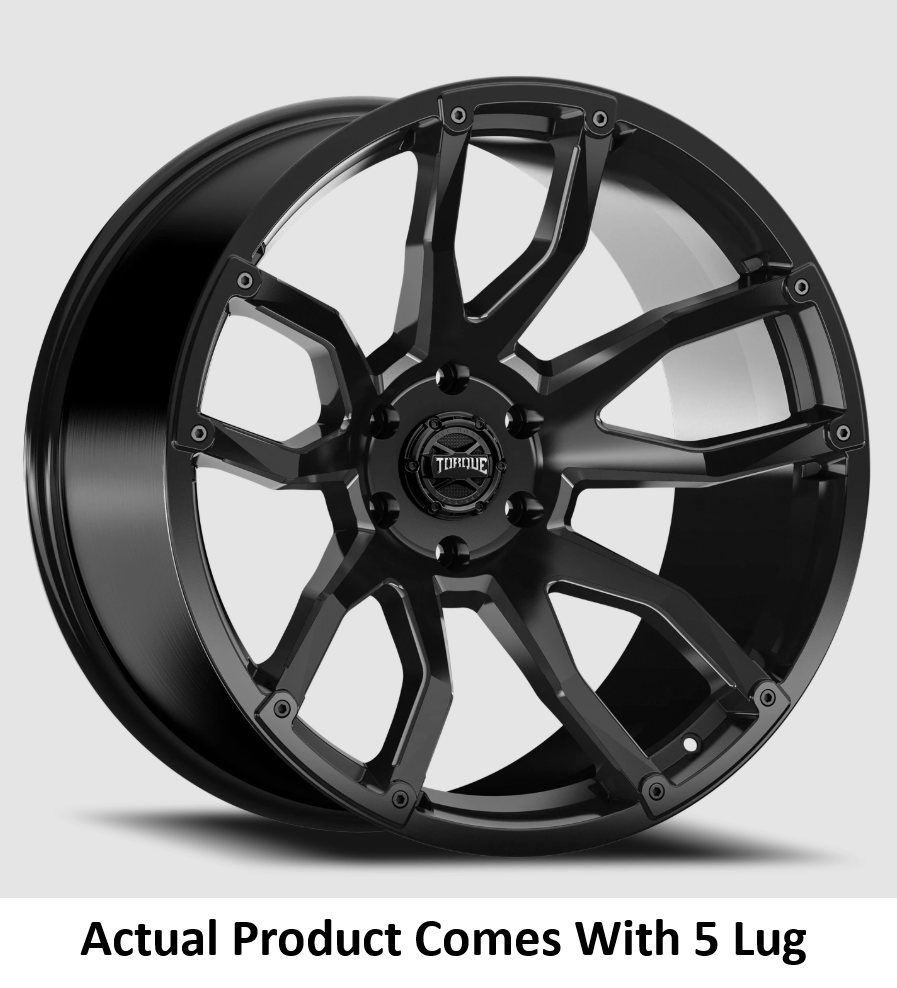

The Torque Wheels TW403C Impact Wheel features a robust 20 inch diameter and 10 inch width, designed to enhance both performance and aesthetics. Constructed from one piece cast aluminum, this wheel offers a satin black finish that combines a sporty and luxurious appearance. With a load capacity of 2650 pounds, it is engineered to support a maximum tire diameter of 40 inches, making it suitable for a variety of vehicles.
This wheel is designed with a 5 x 127 millimeter bolt pattern and a -18 millimeter offset, ensuring compatibility with a wide range of applications. The 60 degree conical seat lug nut design provides secure fastening, while the 71.50 millimeter center bore allows for a precise fit. Additionally, the wheel is compatible with Tire Pressure Monitoring Systems (TPMS), enhancing safety and performance.
Torque Wheels emphasizes quality and precision in every product, and the TW403C is no exception. The easy installation process and included Torque logo center cap further enhance the user experience. With a structural warranty for life and a finish warranty of three years, this wheel is built to last.
Features
- Design Is More Classy, Simple, Sporty, And Luxurious
- Satin Black Finish
- Compatible With TPMS (Tire Pressure Monitoring System)
- Easy To Install
Specifications
- Manufacturer: Torque Wheels
- Manufacturer Part Number: TW403C-20107304-18
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: Not Applicable
- Diameter: 20
- Width: 10
- Offset: -18
- Backspacing: 4.76
- Finish: Satin
- Color: Black
- Material: Aluminum
- Bolt Pattern Inch: 5x5.00
- Bolt Pattern Inch: Not Applicable
- Bolt Pattern Millimeter: 5x127
- Bolt Pattern Millimeter: Not Applicable
- Lug Nut Seat Type: 60 Degree Conical
- Center Caps Included: Yes
- Center Bore: 71.50
- Lug Nut Design: Acorn
- Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
- Basic Design: 5 Split Spoke
- With Inserts: No
- Load Capacity: 2650
- Size: 20x10
- Max Tire Diameter: 40
- Center Cap Design: Torque Logo
- Finish Warranty: 3 Years
- Structural Warranty: Lifetime
- Quantity: Single
- Construction: One Piece Cast
- With Hub Centric Ring: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 1987-1987 GMC R1500
- 2020-2025 Jeep Gladiator JT
- 2007-2018 Jeep Wrangler JK
- 2018-2025 Jeep Wrangler JL
