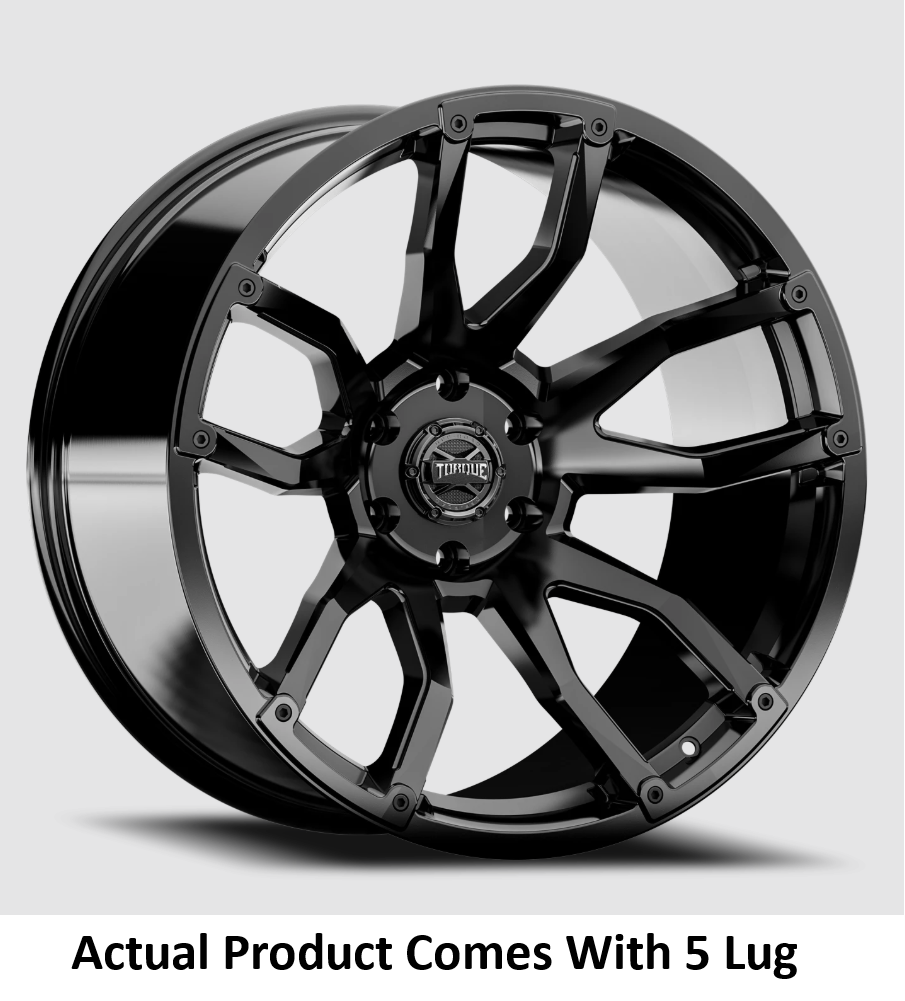

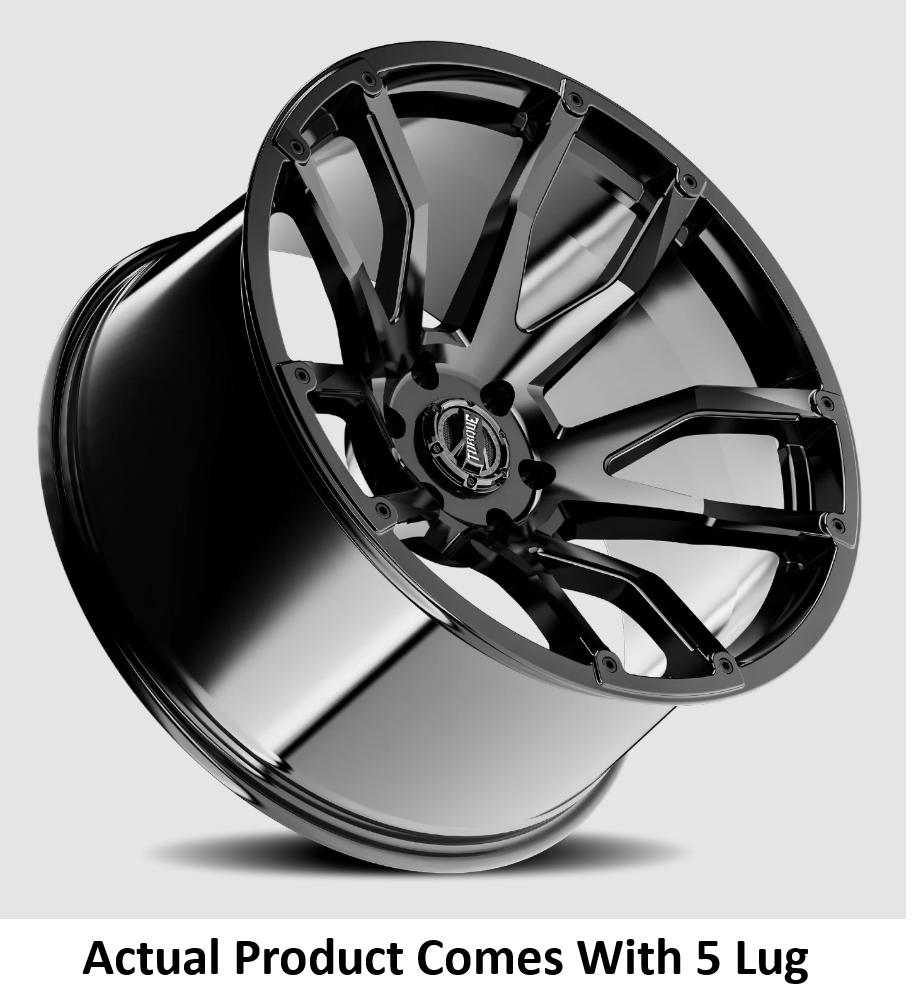

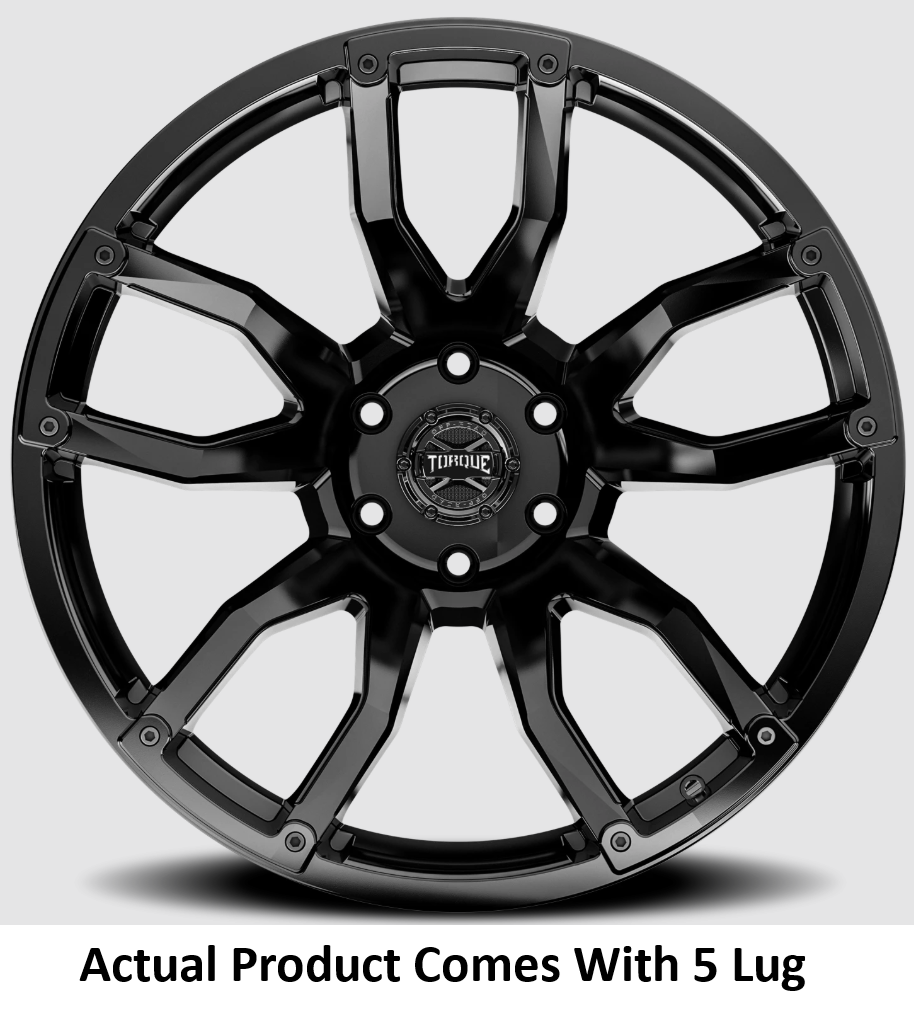

Torque Wheels 20 Inch Impact Wheel (MPN: TW403C-20107305-18)

High-performance wheel with sleek design and robust construction.

The Torque Wheels TW403C Impact Wheel features a 20 inch diameter and a 10 inch width, designed for durability and performance. Constructed from one piece cast aluminum, this wheel offers a load capacity of 2650 pounds, making it suitable for various applications. The gloss black finish enhances its aesthetic appeal while providing resistance to wear and tear. With a 5 x 127 millimeter bolt pattern and a 60 degree conical seat lug, installation is straightforward and compatible with standard tire pressure monitoring systems. This wheel accommodates a maximum tire diameter of 40 inches, ensuring versatility for different vehicle types.

Features

• Design Is More Classy, Simple, Sporty, And Luxurious
• Gloss Black Finish
• Compatible With TPMS (Tire Pressure Monitoring System)
• Easy To Install

Specifications

• Manufacturer: Torque Wheels
• Manufacturer Part Number: TW403C-20107305-18
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 20
• Width: 10
• Offset: -18
• Backspacing: 4.75
• Finish: Gloss
• Color: Black
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 71.50
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 5 Split Spoke
• With Inserts: No
• Load Capacity: 2650
• Size: 20x10
• Max Tire Diameter: 40
• Center Cap Design: Torque Logo
• Finish Warranty: 3 Years
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1987-1987 GMC R1500
• 2020-2025 Jeep Gladiator JT
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL

Technical Documents

• Torque_warranty.pdf
