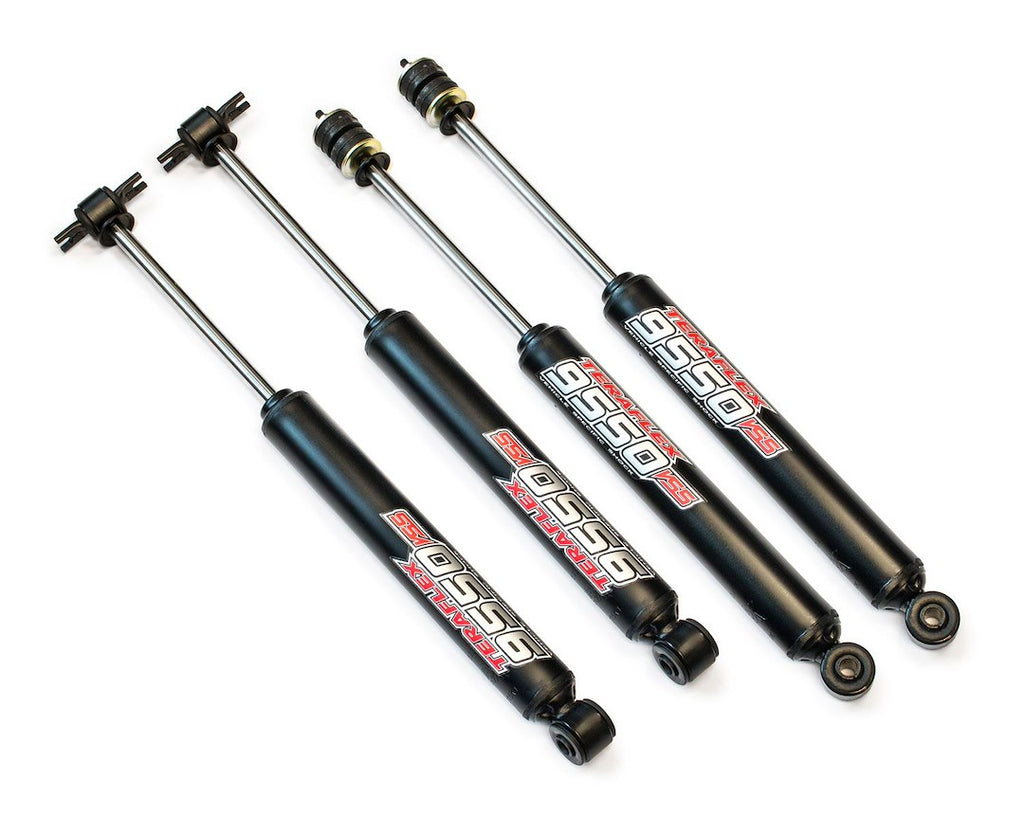

Teraflex Shock Absorber 9550 VSS (MPN: 1545100)

Engineered for extreme off-road performance and durability in Jeep vehicles.

The Teraflex Shock Absorber 9550 VSS is a nitrogen gas charged twin tube shock designed specifically for Jeep vehicles. This shock absorber features a robust twin tube design that enhances durability and performance, making it suitable for heavy-duty off-road conditions. The outer tube protects the inner tube from damage, ensuring functionality even if the outer tube is dented. With longer stroke travel and a velocity valve tuned for optimal performance with TeraFlex suspensions, this shock absorber provides a smooth ride on both rugged terrains and highways.

Constructed with premium-quality rubber bushings and Jeep specific bar pins, the Teraflex Shock Absorber is built to withstand extreme off-road abuse. The large diameter piston helps lower internal operating temperatures, while the travel limiter minimizes the impact of over-compression. Additionally, the oil block and seal keep all internal fluids contained, ensuring consistent performance. The shock absorber comes in a resistant black finish, further enhancing its durability and aesthetic appeal.

Features

• Twin Tube Design Is A More Robust And Rugged Design Geared Toward Heavy Duty Off-Road Abuse
• The Outer Tube Protects The Inner Tube From Damage, So If You Dent The Outer Tube, The Shock Will Still Function
• Longer Stroke Travel With Twin Tube Design
• Velocity Valve Tuned To React Perfectly With TeraFlex Suspensions
• Large Diameter Piston Lowers Internal Operating Temperatures
• Travel Limiter Minimizes The Impact Of Over-Compression
• Oil Block And Seal Keep All Internal Fluids Contained And Sealed, Induction-Hardened, Triple-Chrome Plated Rod Provides Strength

Specifications

• Manufacturer: Teraflex
• Manufacturer Part Number: 1545100
• Type: Nitrogen Gas Charged
• With Coil Spring: No
• Extended Length (IN): 25.65 Inch Front/ 25 Inch Rear
• Compressed Length (IN): 16.15 Inch Front/ 15.65 Inch Rear
• Upper Mounting Style: Stud
• Lower Mounting Style: Eyelet
• Adjustable Valving: No
• Quantity: Set Of 4
• Universality: Vehicle Specific
• Internal Design: Twin Tube
• Body Color: Black
• Valving Type: Application Specific Valving
• Rod Material: Steel
• With Reservoir: No
• Includes Dust Shield: No
• Includes Hardware: No
• Includes Boot: No
• Estimated Install Time (Hours): 2

Compatibility / Fit

• 2007-2018 Jeep Wrangler JK

Technical Documents

• 1545100_ins.pdf
