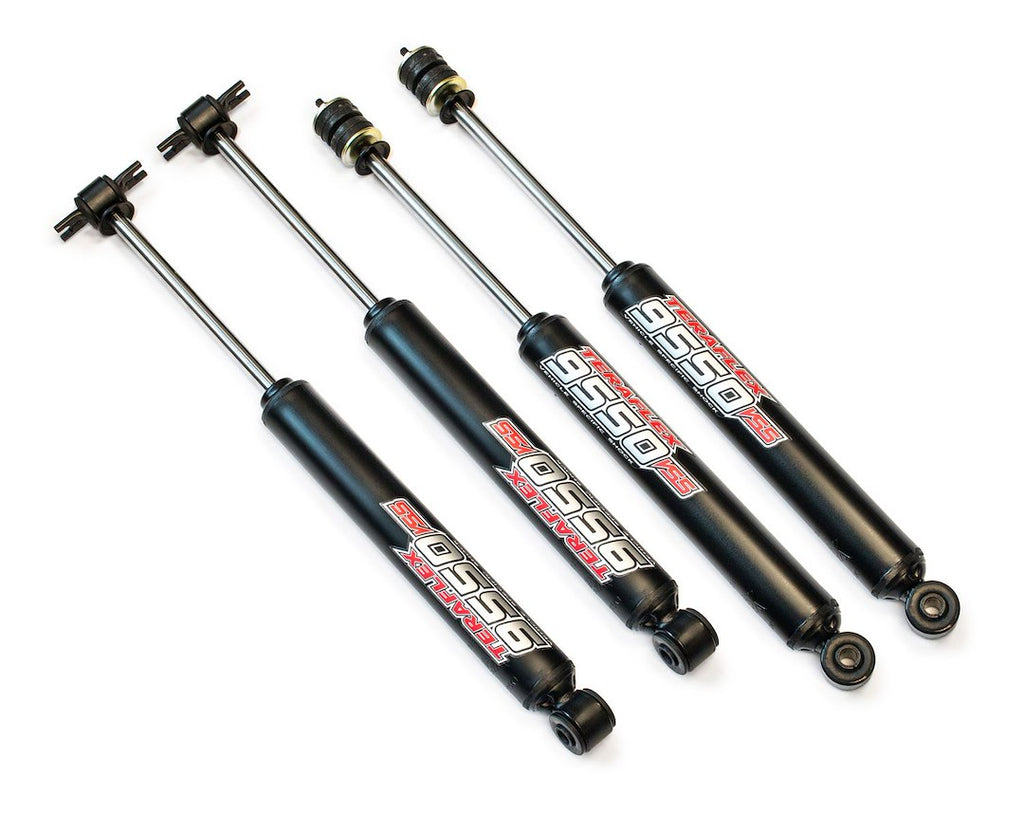

Teraflex Shock Absorber (MPN: 1545200)

Engineered for extreme off-road performance and durability.

The Teraflex Shock Absorber is a nitrogen gas charged twin tube shock designed specifically for Jeep vehicles. This shock absorber features a robust twin tube design that enhances durability and performance during heavy-duty off-road use. The outer tube provides protection to the inner tube, ensuring functionality even if the outer tube is damaged. With longer stroke travel and a velocity valve tuned for optimal performance with TeraFlex suspensions, this shock absorber is engineered to deliver superior handling and comfort on both rugged terrains and highways.

Constructed with premium-quality rubber bushings and Jeep specific bar pins, the Teraflex Shock Absorber is built to withstand extreme conditions. The large diameter piston helps to lower internal operating temperatures, while the travel limiter minimizes the impact of over-compression. Additionally, the oil block and seal ensure that all internal fluids are contained and sealed, contributing to the shock's longevity. The induction-hardened, triple-chrome plated rod adds strength and resilience, making this shock absorber a reliable choice for off-road enthusiasts.

Features

• Twin Tube Design Is A More Robust And Rugged Design Geared Toward Heavy Duty Off-Road Abuse
• The Outer Tube Protects The Inner Tube From Damage, So If You Dent The Outer Tube, The Shock Will Still Function
• Longer Stroke Travel With Twin Tube Design
• Velocity Valve Tuned To React Perfectly With TeraFlex Suspensions
• Large Diameter Piston Lowers Internal Operating Temperatures
• Travel Limiter Minimizes The Impact Of Over-Compression
• Oil Block And Seal Keep All Internal Fluids Contained And Sealed, Induction-Hardened, Triple-Chrome Plated Rod Provides Strength

Specifications

• Manufacturer: Teraflex
• Manufacturer Part Number: 1545200
• Type: Nitrogen Gas Charged
• With Coil Spring: No
• Extended Length (IN): 27.65 Inch Front/ 28.1 Inch Rear
• Compressed Length (IN): 17-1/4 Inch
• Upper Mounting Style: Stud
• Lower Mounting Style: Eyelet
• Adjustable Valving: No
• Quantity: Set Of 4
• Universality: Vehicle Specific
• Internal Design: Twin Tube
• Body Color: Black
• Valving Type: Application Specific Valving
• Rod Material: Steel
• With Reservoir: No
• Includes Dust Shield: No
• Includes Hardware: No
• Includes Boot: No
• Estimated Install Time (Hours): 2

Compatibility / Fit

• 2007-2018 Jeep Wrangler JK

Technical Documents

• 1545200_ins.pdf
