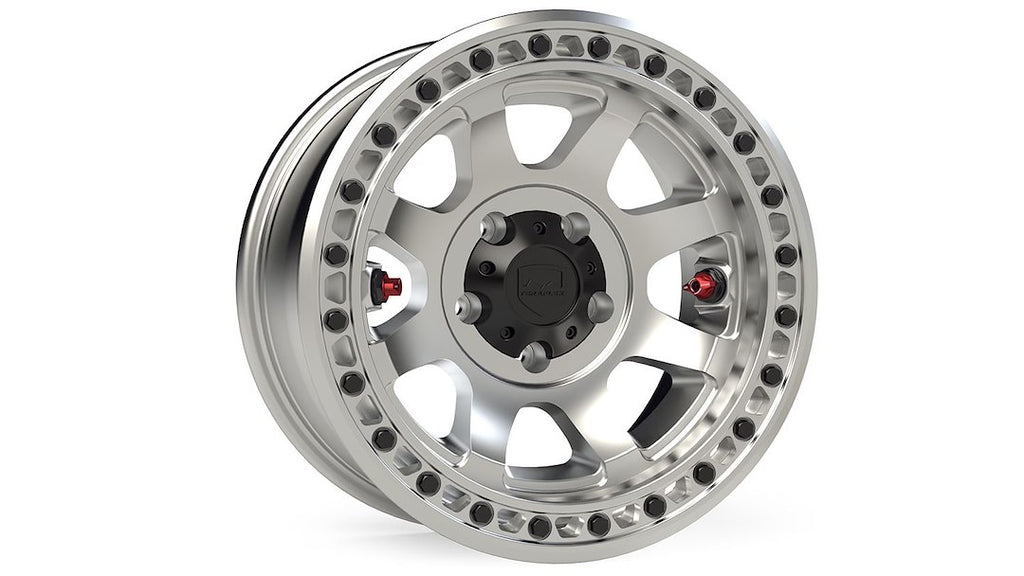

Teraflex Olympus Beadlock Off-Road Wheel (MPN: 1059359)

Durable 17 Inch Cast Aluminum Wheel with Beadlock Technology

The Teraflex Olympus Beadlock Off-Road Wheel is engineered for strength and performance, featuring a robust 1 piece cast aluminum construction. With a diameter of 17 inches and a width of 9 inches, this wheel is designed to accommodate larger tires, making it suitable for off-road applications. The unique eight-spoke design not only enhances aesthetics but also ensures structural integrity under demanding conditions.

This wheel includes a 60 degree conical seat for lug nuts and is compatible with Tire Pressure Monitoring Systems (TPMS), providing added convenience for monitoring tire health. The innovative Modular Plug System allows for the integration of a proprietary Air Deflator Valve, enabling users to easily adjust tire pressure to a preset level as low as 10 PSI, which is essential for off-road traction.

The Teraflex Olympus wheel features a machined finish that is easy to clean and maintain, while the dual-stage clear powder coat with UV inhibitors protects against environmental damage. Additionally, the locking bead seat knurling allows for safe operation at lower air pressures, enhancing off-road performance without compromising safety.

Features

• Machined Finish
• 1 Piece Cast Aluminum Construction
• Compatible With TPMS
• With Teraflex Logo Center Cap
• Strong Enough To Handle 40 Inch Tires
• Locking Beads Seat Knurling Allows For Safely Running Lower Air Pressure
• Lack Of “water Troughs” Prevents Water Pooling
• Dual-Stage Clear Powder Coat With UV Inhibitors
• Easy To Clean Finish

Specifications

• Manufacturer: Teraflex
• Manufacturer Part Number: 1059359
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 17
• Width: 9
• Offset: -12
• Backspacing: 4.50
• Finish: Machined
• Color: Natural
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 71.50
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 8 Spoke
• With Inserts: No
• Size: 17x9
• Center Cap Design: Teraflex Logo Center Cap
• Quantity: Single
• Construction: One Piece Cast
• With Hub Centric Ring: No
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1959-1964 Buick Electra
• 1988-1992 Cadillac Brougham
• 1970-1974 Cadillac DeVille
• 1980-1990 Chevrolet Caprice
• 1967-1974 GMC C15/C1500 Pickup
• 1987-1987 GMC R1500
• 2020-2025 Jeep Gladiator JT
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL
