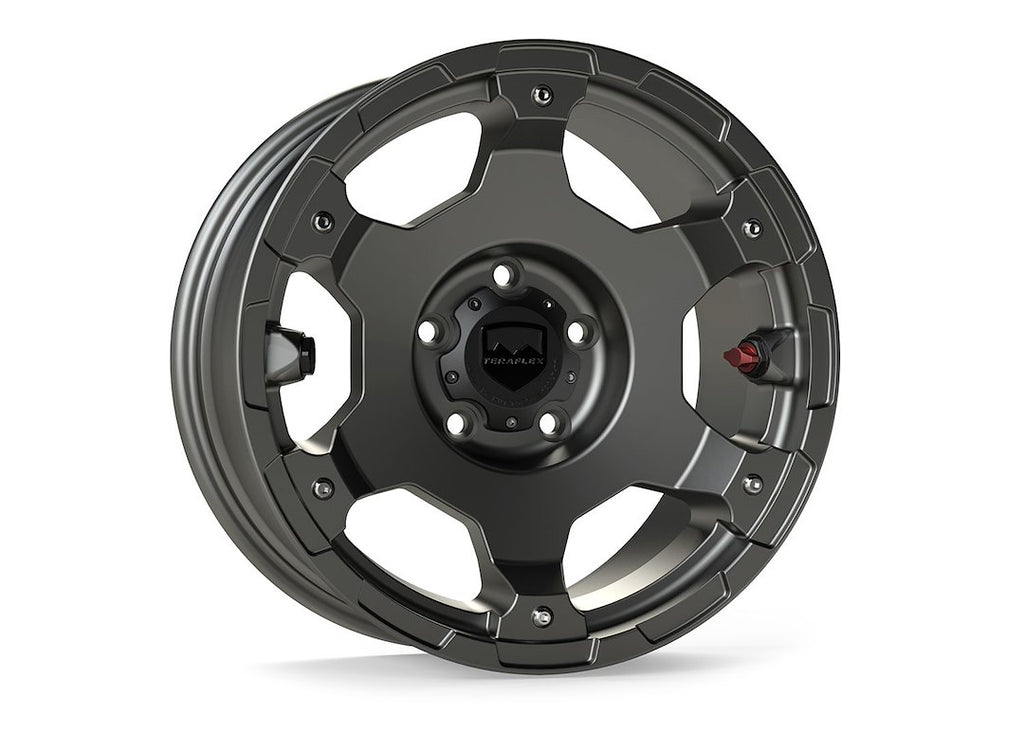

Teraflex Nomad Off-Road Wheel (MPN: 1056150)

Durable 17 Inch Cast Aluminum Wheel for Off-Road Performance

The Teraflex Nomad Off-Road Wheel is engineered for rugged performance and durability, featuring a 17 inch diameter and 8.5 inch width. Constructed from heat treated A356-T6 aluminum, this wheel is designed to handle tires up to 40 inches in diameter, making it suitable for serious off-road applications. The innovative locking bead seat knurling allows for safe operation at lower air pressures, enhancing traction on challenging terrains.

This wheel showcases a modern reinterpretation of the classic six-hole design, emphasizing a technical aesthetic that aligns with its functional capabilities. The modular plug system is a standout feature, allowing compatibility with the proprietary Air Deflator Valve for quick tire pressure adjustments down to 10 PSI. Additionally, the fully encapsulated Schrader valves protect against contaminants, ensuring reliable performance.

The Teraflex Nomad Off-Road Wheel is finished with a dual-stage clear powder coat that includes UV inhibitors, providing an easy-to-clean surface that resists the elements. With a 60 degree conical seat lug nut design and a Teraflex logo center cap, this wheel combines style and functionality for off-road enthusiasts.

Features

• Cast From Heat Treated A356-T6 Aluminum
• Strong Enough To Handle 40 Inch Tires
• Locking Beads Seat Knurling Allows For Safely Running Lower Air Pressure
• Lack Of Water Troughs" Prevents Water Pooling
• Dual-Stage Clear Powder Coat W/ UV Inhibitors
• Easy To Clean Finish
• Symmetrical Valve Holes For Balance
• Fully Encapsulated Schrader Valves To Keep Out Contaminants
• Modular Plug System Accepts Air Deflator, Schrader Valve, Or Plug

Specifications

• Manufacturer: Teraflex
• Manufacturer Part Number: 1056150
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 17
• Width: 8.5
• Offset: 0
• Backspacing: 4.75
• Finish: Matte
• Color: Titanium Gray
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 71.50
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 6 Spoke
• With Inserts: No
• Size: 17x8.5
• Max Tire Diameter: 40
• Center Cap Design: Teraflex Logo
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1959-1964 Buick Electra
• 1991-1996 Buick Roadmaster
• 1988-1992 Cadillac Brougham
• 1970-1974 Cadillac DeVille
• 1980-1990 Chevrolet Caprice
• 1970-1974 Chrysler Imperial
• 1967-1974 GMC C15/C1500 Pickup
• 1987-1987 GMC R1500
• 2020-2025 Jeep Gladiator JT
• 2026-2026 Jeep Wrangler
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL

Technical Documents

• Nomad_wheel_instructions.pdf
