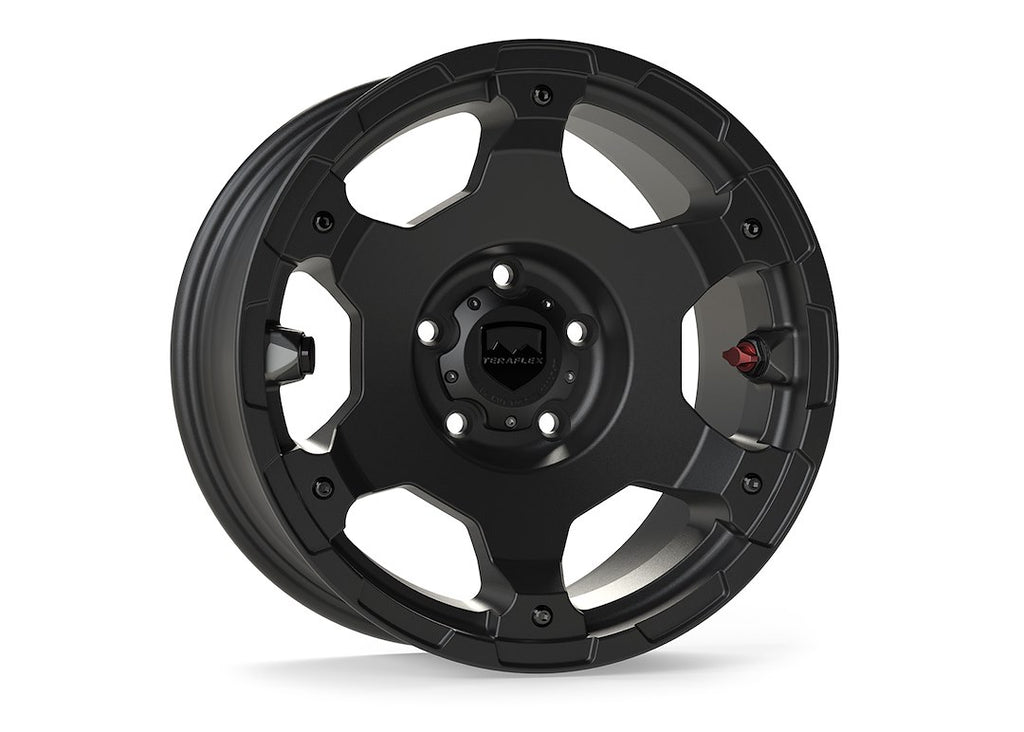

Teraflex Nomad Off-Road Wheel (MPN: 1056050)

Durable cast aluminum wheel designed for off-road performance and versatility.

The Teraflex Nomad Off-Road Wheel is engineered for rugged terrain and demanding conditions. With a diameter of 17 inches and a width of 8.5 inches, this wheel features a 5 x 127 millimeter bolt pattern and a 0 millimeter offset, making it suitable for a variety of off-road vehicles. Its one-piece cast aluminum construction ensures strength and durability, capable of handling tires up to 40 inches in diameter.

Designed with a six-spoke aesthetic, the Nomad Wheel incorporates a modular plug system that allows compatibility with the proprietary Air Deflator Valve, enabling quick tire pressure adjustments. The locking bead seat knurling provides safety for running lower air pressures, while the dual-stage clear powder coat finish with UV inhibitors enhances longevity and resistance to wear. Additionally, the wheel is compatible with Tire Pressure Monitoring Systems (TPMS) and includes a Teraflex logo center cap for a cohesive look.

This wheel's thoughtful design eliminates water pooling and features symmetrical valve holes for balanced performance. The Teraflex Nomad Off-Road Wheel is a reliable choice for off-road enthusiasts seeking a blend of functionality and style.

Features

• 1 Piece Cast Aluminum Construction
• Compatible With TPMS (Tire Pressure Monitoring System)
• With Teraflex Logo Center Cap
• Strong Enough To Handle 40 Inch Tires
• Locking Bead Seat Knurling Allows For Safely Running Lower Air Pressure
• Lack Of "Water Troughs" Prevents Water Pooling
• Dual-Stage Clear Powder Coat With UV Inhibiters And Symmetrical Valve Holes For Balance
• Modular Plug System Accepts Schrader Valve, Wheel Plug, Or Air Deflator And Easy To Clean Finish

Specifications

• Manufacturer: Teraflex
• Manufacturer Part Number: 1056050
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: Not Applicable
• Diameter: 17
• Width: 8.5
• Offset: 0
• Backspacing: 4.75
• Finish: Matte
• Color: Metallic Black
• Material: Aluminum
• Bolt Pattern Inch: 5x5.00
• Bolt Pattern Inch: Not Applicable
• Bolt Pattern Millimeter: 5x127
• Bolt Pattern Millimeter: Not Applicable
• Lug Nut Seat Type: 60 Degree Conical
• Center Caps Included: Yes
• Center Bore: 71.50
• Lug Nut Design: Acorn
• Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
• Basic Design: 6 Spoke
• With Inserts: No
• Size: 17x8.5
• Max Tire Diameter: 40
• Center Cap Design: Teraflex Logo
• Structural Warranty: Lifetime
• Quantity: Single
• Construction: One Piece Cast
• Estimated Install Time (Hours): 0.5

Compatibility / Fit

• 1959-1964 Buick Electra
• 1991-1996 Buick Roadmaster
• 1988-1992 Cadillac Brougham
• 1970-1974 Cadillac DeVille
• 1980-1990 Chevrolet Caprice
• 1970-1974 Chrysler Imperial
• 1967-1974 GMC C15/C1500 Pickup
• 1987-1987 GMC R1500
• 2020-2025 Jeep Gladiator JT
• 2026-2026 Jeep Wrangler
• 2007-2018 Jeep Wrangler JK
• 2018-2025 Jeep Wrangler JL

Technical Documents

• Nomad_wheel_instructions.pdf
