Engineered for extreme angles and enhanced torque transfer in lifted vehicles.

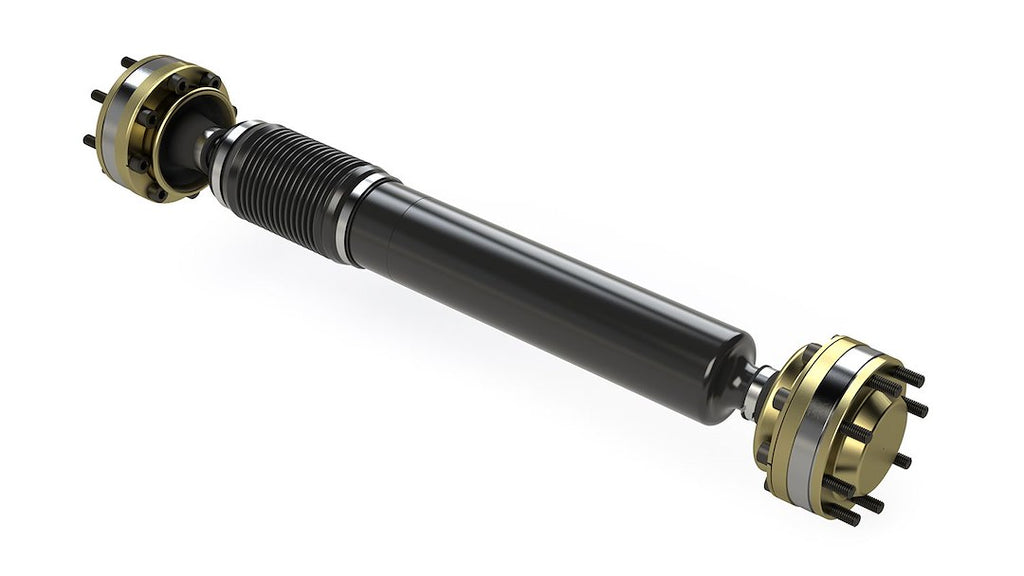

The Teraflex High-Angle Rzeppa CV Driveshaft is designed to accommodate the unique demands of vehicles with lift heights ranging from 3 to 6 inches. This driveshaft features a Rzeppa style joint that ensures smooth torque transfer regardless of the joint angle, making it suitable for high articulation without risking joint damage. Constructed from laser welded 2-3/8 inch carbon steel tubing, it offers superior strength and longevity, essential for off-road applications.
Precision engineering minimizes harmonic vibration, resulting in smoother performance at high RPMs. The driveshaft is zeroed out during final assembly, ensuring a true centric assembly that eliminates the need for balance weights. Additionally, the Rzeppa and sealed boot slip spline section provides years of maintenance-free operation, enhancing the overall reliability of the product.
With a black trivalent zinc chromate coating, this driveshaft is designed to resist corrosion, while the blue PA11 anti-friction coating on the splines ensures a consistent coating thickness for durability. The use of red line full synthetic high-temperature resistant CV grease further enhances performance across varying temperatures, making this driveshaft a robust choice for demanding environments.
Features
- Rzeppa Style Joint Allows For Smooth Torque Transfer Regardless Of Joint Angle
- High-Angle CV Housing Design Supports Larger Lift Heights And Maximum Articulation Without Joint Damage
- Laser Welded 2-3/8 Inch Carbon Steel Tubing For Superior Strength And Longevity
- Precision Construction Reduces Harmonic Vibration For Smoother High RPM Dynamics
- Torque And Fatigue Tests Are 3x Higher Than OE And Aftermarket Steel Driveshafts
- Rzeppa And Sealed Boot Slip Spline Section Provides Years Of Maintenance Free Operation
- Black Trivalent Zinc Chromate Coating For Improved Corrosion Resistance. Double Hobbed CNC Spline Surfaces Meet OEM Strict Tolerance Specs
- Blue PA11 Anti-Friction Coating Applied To Splines Ensuring 360-Degree Coating Thickness For Long Life And Low Maintenance
- Red Line Full Synthetic High-Temperature Resistant CV Grease Resists Liquefying For Consistent Performance Across All Temperatures
Specifications
- Manufacturer: Teraflex
- Manufacturer Part Number: 4612302
- Condition: New
- Style: Rzeppa CV
- Design: 2-Piece
- Material: Carbon Steel
- Diameter (IN): 2-3/8 Inch
- Transmission Joint Style: U-Joint
- Driveshaft Joint Style: U-Joint
- Includes Differential Yoke: No
- Includes Transmission Yoke: No
- Estimated Install Time (Hours): 0.5
Compatibility / Fit
- 2012-2018 Jeep Wrangler JK
