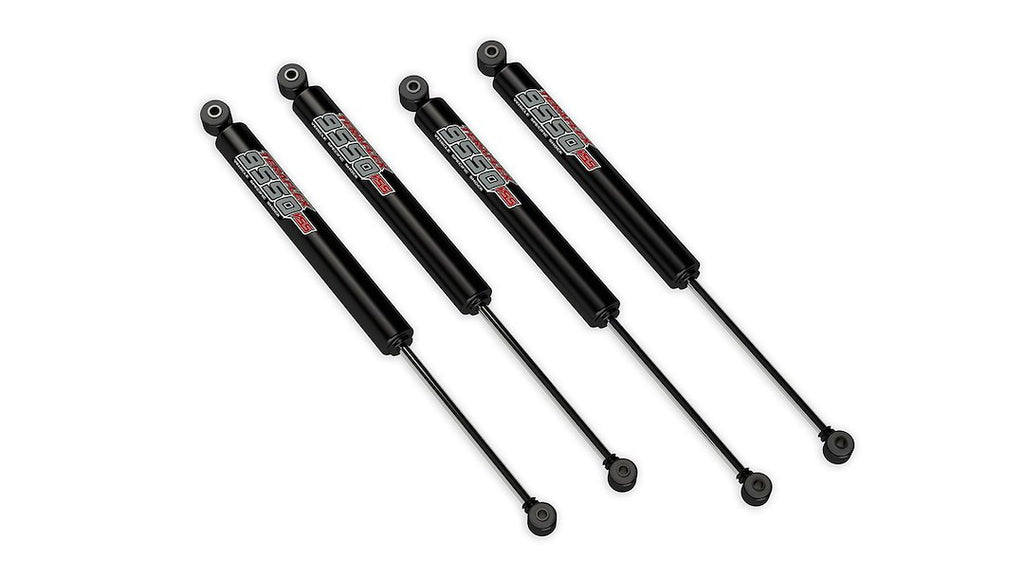

Teraflex 9550 VSS Twin-Tube Shock Absorber (MPN: 1545350)

Engineered for off-road performance with smooth highway handling.

The Teraflex 9550 VSS Twin-Tube Shock Absorber is designed to enhance off-road performance while maintaining comfort on highways. This shock absorber features a nitrogen gas charge and a robust twin-tube design, which is specifically tuned to work seamlessly with TeraFlex suspension systems. The oversized external tube, combined with a durable black e-dipped finish, ensures resistance against corrosive elements, making it suitable for harsh environments.

Key features include a large diameter piston that helps lower internal operating temperatures and double-welded shock eyelets for added support and reinforcement. The internal travel stop limiter minimizes the risk of over-compression, while premium quality rubber bushings contribute to the overall durability and performance of the shock. The design also includes an oil block and seal to keep internal fluids contained, ensuring reliable operation.

With a set of four shock absorbers, the Teraflex 9550 VSS is tailored for vehicle-specific applications, providing a robust solution for those seeking enhanced off-road capabilities. The shock canister offers strong protection from damage, and the twin-tube design allows for longer stroke travel, making it a practical choice for serious off-road enthusiasts.

Features

• Durable Black E-Dipped Finish Resists Salt And Other Corrosives
• Large Diameter Piston Lowers Internal Operating Temperatures
• Double-Welded Shock Eyelets For Support And Reinforcement
• Travel Limiter Minimizes The Impact Of Over-Compression
• Robust And Rugged Twin-Tube Design Is Geared Toward Hardcore Off-Road Abuse
• Premium Quality Rubber Bushings
• Outer Tube Protects Inner Tube From Damage – A Dent In The Outer Tube Won’t Affect The Shock’s Function
• Oil Block And Seal Keep All Internal Fluids Contained And Sealed
• HD Shock Canister Provides Strong Protection From Damage; Twin-Tube Design Provides Longer Stroke Travel

Specifications

• Manufacturer: Teraflex
• Manufacturer Part Number: 1545350
• Type: Nitrogen Gas Charged
• With Coil Spring: No
• Extended Length (IN): 28.8 Inch Front/ 30.8 Inch Rear
• Compressed Length (IN): 17-1/2 Inch Front/ 18.9 Inch Rear
• Upper Mounting Style: Eyelet
• Lower Mounting Style: Eyelet
• Adjustable Valving: No
• Quantity: Set Of 4
• Universality: Vehicle Specific
• Internal Design: Twin Tube
• Body Color: Black
• Valving Type: Non Adjustable Valving
• Rod Material: Steel
• With Reservoir: No
• Includes Dust Shield: No
• Includes Hardware: No
• Includes Boot: No
• Estimated Install Time (Hours): 2

Compatibility / Fit

• 2018-2025 Jeep Wrangler JL

Technical Documents

• 1545350_ins.pdf
