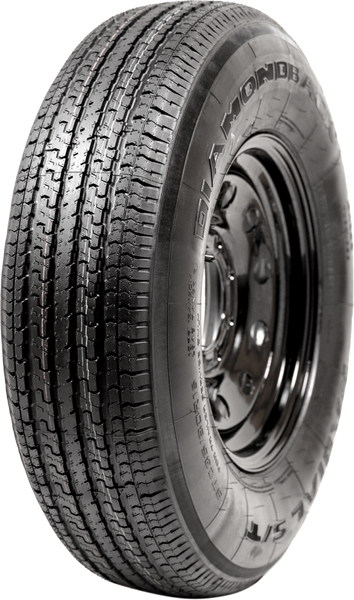

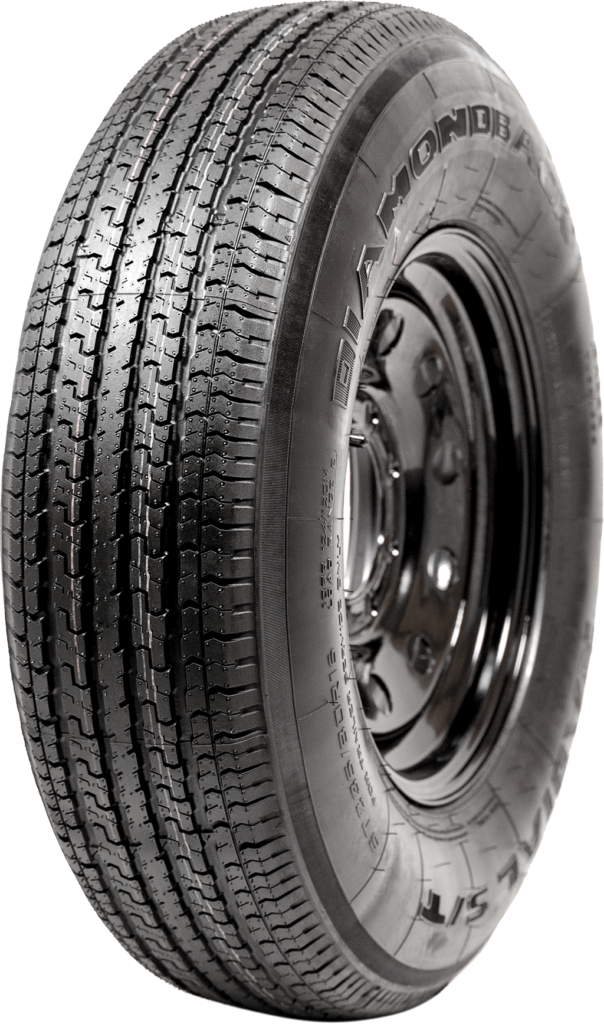

Taskmaster Tire Wheel Assembly (MPN: ADB235R477WD)

Durable 17.5 Inch Tire Wheel Assembly for Trailers

The Taskmaster Tire Wheel Assembly features a robust design with a diameter of 17.5 inches and a width of 6.75 inches, making it suitable for various trailer applications. Constructed from two-piece welded steel, this assembly ensures strength and durability under load. The assembly is equipped with a non-directional tread design and an 18 ply sidewall, providing enhanced shock absorption and stability on the road.

This tire assembly is rated for a maximum load capacity of 5675 pounds and is DOT street approved, ensuring compliance with safety standards. The radial construction and black sidewall design contribute to its performance and aesthetic appeal. With a bolt pattern of 8 x 165.1 millimeters and 8 x 6.50 inches, it is compatible with a wide range of trailer setups.

Taskmaster products are rigorously tested to meet automotive grade tolerances, ensuring reliability and performance. The assembly is M-speed rated for speeds up to 81 mph, making it suitable for highway use. Additionally, the low tire ash content and dual belt construction enhance the overall strength and durability of the tire, making it a dependable choice for trailer applications.

Features

• 0 Percent Tire Ash Content
• Dual Belt Construction Adds Strength
• 3rd Party Tested; Passes FMVSS 119
• M-Speed Rated 81 MPH
• Full Nylon Cap In Select Sizes Increases Durability; Optimized Tread And Rounded Shoulder Enhance Shock Absorption

Specifications

• Manufacturer: Taskmaster
• Manufacturer Part Number: ADB235R477WD
• Wheel Size: 17.5x6.75
• Bolt Pattern (Inch): 8x6.50
• Tire Size Metric: ST-235-75-17.5
• Wheel Material: Steel
• Tire Construction: Radial
• Color: White
• Finish: Painted
• Tire Load Capacity: 5675
• Wheel Diameter: 17.5
• Wheel Width: 6.75
• Bolt Pattern (Millimeter): 8x165.1
• Size Metric Display Size: ST 235 75 17.5
• Basic Wheel Design: Two Piece Welded
• Tire Size Non Metric: ST-31.50-9.50-17.5
• Tire Type: ST
• Tire Type Description: Trailer
• Wheel Load Capacity: 5675
• Section Width Metric Tire: 235
• Aspect Ratio Metric Tire: 75
• Size Non Metric Display Size: ST 31.50 9.50 17.5
• Tire Diameter Non Metric Tire: 31.50
• Section Width Non Metric Tire: 9.50
• Tire Sidewall Design: Black Sidewall
• Tire Sidewall Construction: 18 Ply
• DOT Compliant: DOT Approved
• Wheel Finish Warranty: 2 Years
• Wheel Structural Warranty: 5 Years
• Tread Wear Warranty: No Warranty
• Road Hazard Warranty: No Warranty
• Material Warranty: 5 Years Prorated
• Ride Quality Warranty: No Warranty
