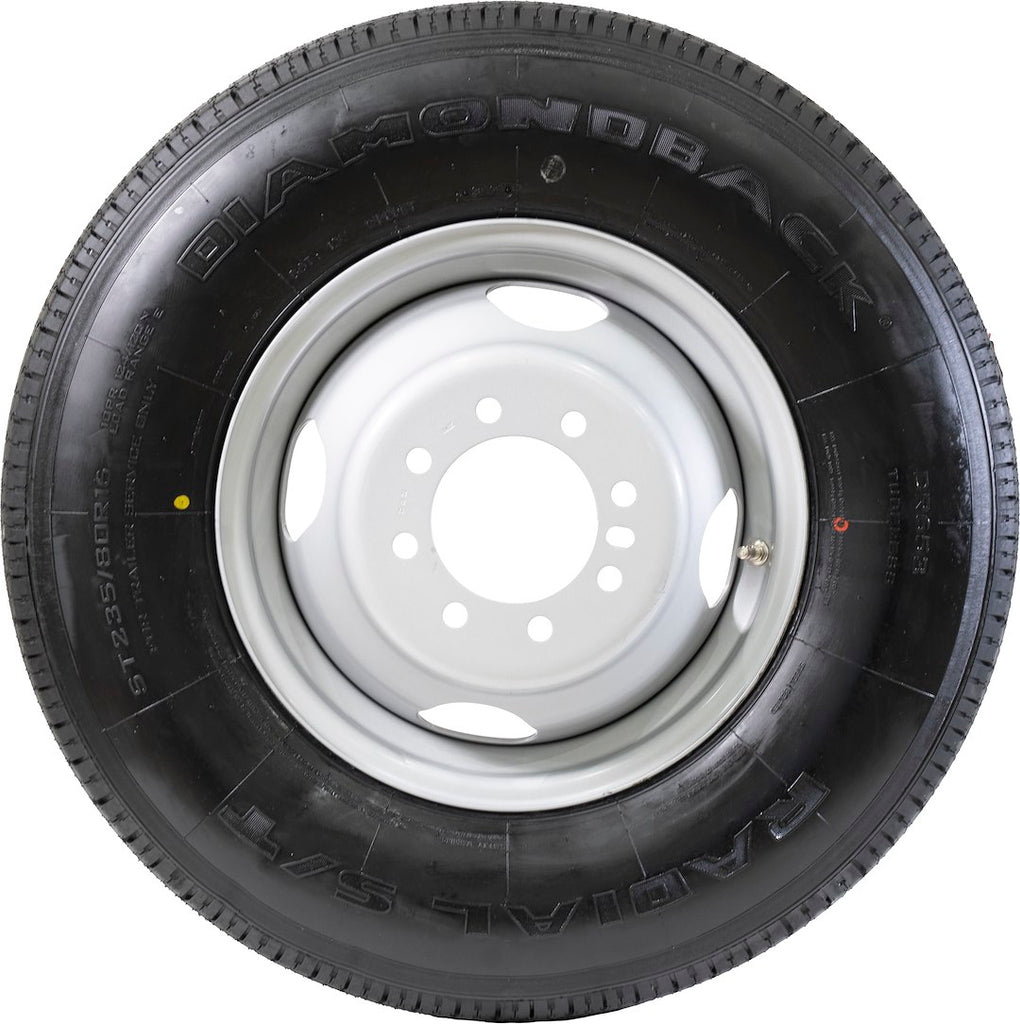

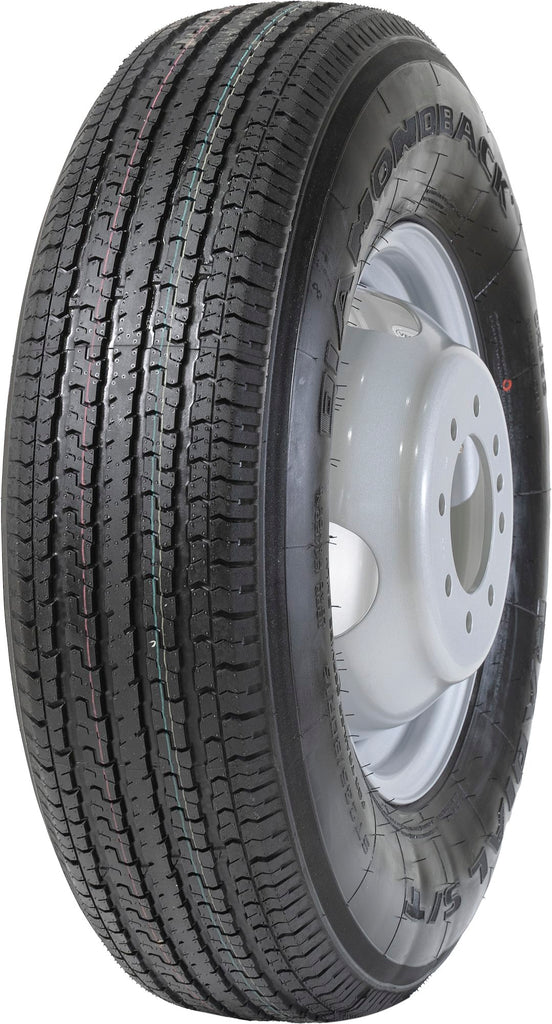

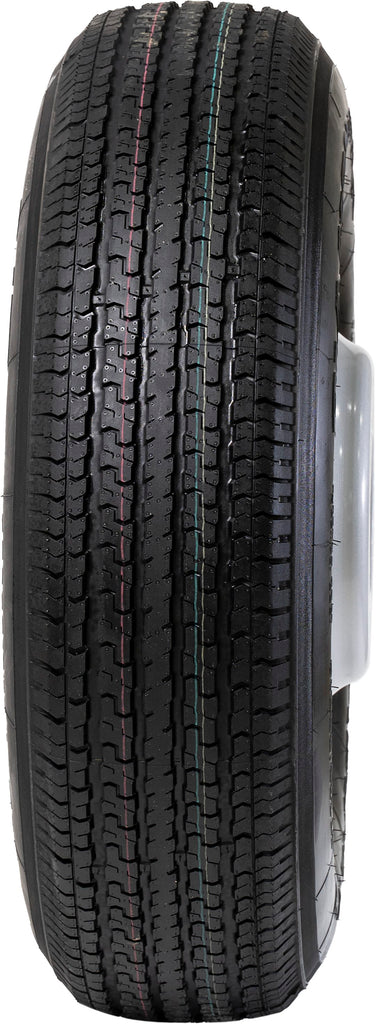

Durable 16 Inch Modular Steel Wheel with Radial Tire
The Taskmaster Tire Wheel Assembly features a robust 16 inch diameter and 6 inch width, designed for trailer applications. Constructed with a two-piece welded steel design, this assembly ensures exceptional strength and durability, making it suitable for demanding conditions. The radial tire, sized ST235 x 80R16, is engineered with a non-directional tread pattern that enhances traction and promotes even wear, contributing to a longer tread life.
This assembly is built to automotive grade standards and has been third-party tested to meet FMVSS 119 and FMVSS 139 regulations. With a load range E rating, it supports a maximum load capacity of 3520 pounds for single tires and 3080 pounds for dual tires, while maintaining a speed rating of 81 MPH. The assembly is DOT street approved, ensuring compliance with safety standards for road use.
The all-steel construction and enhanced tread compound provide incredible strength, while the dual belt construction adds further durability. The wide shoulders of the tire promote even wear and increase traction, making this assembly a reliable choice for various trailer applications. With a maximum pressure of 80 PSI, this tire wheel assembly is designed to perform under pressure and deliver consistent results.
Features
- All-Steel Construction Provides Incredible Strength And Durability
- Enhanced Tread Compound And Siping Improve Uniform Wear And Long Tread Life
- 0 Percent Tire Ash Content
- Wide Shoulders Promote Even Wear And Increase Traction
- 3rd Party Tested; Passes FMVSS 119
- M-Speed Rated 81 MPH
- PASSES FMVSS119 And Is DTAP Tested Based On FMVSS 139 Parameters
- Dual Belt Construction Adds Strength
- Full Nylon Cap In Select Sizes Increases Durability; Optimized Tread And Rounded Shoulder Enhance Shock Absorption
Specifications
- Manufacturer: Taskmaster
- Manufacturer Part Number: ADB16R477HDM
- Wheel Size: 16x6
- Bolt Pattern (Inch): 8x6.50
- Tire Size Metric: ST-235-80-16
- Wheel Material: Steel
- Tire Construction: Radial
- Color: Silver
- Finish: Painted
- Tire Load Capacity: 3520
- Wheel Diameter: 16
- Wheel Width: 6
- Bolt Pattern (Millimeter): 8x165.1
- Size Metric Display Size: ST 235 80 16
- Basic Wheel Design: Modular
- Tire Size Non Metric: ST-31-9-16
- Tire Type: ST
- Tire Type Description: Trailer
- Wheel Load Capacity: 3890
- Section Width Metric Tire: 235
- Aspect Ratio Metric Tire: 80
- Size Non Metric Display Size: ST 31 9 16
- Tire Diameter Non Metric Tire: 31
- Section Width Non Metric Tire: 9
- Tire Sidewall Design: Black Sidewall
- DOT Compliant: DOT Approved
- Wheel Finish Warranty: 2 Years
- Wheel Structural Warranty: 5 Years
- Tread Wear Warranty: No Warranty
- Road Hazard Warranty: No Warranty
- Material Warranty: 5 Years Prorated
- Ride Quality Warranty: No Warranty
Technical Documents
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
