Efficiently drains livewells with innovative design and durable materials.
T-H Marine has set the standard for overflow drain tubes in the boating industry with their innovative design that simplifies livewell plumbing. This overflow tube is constructed from marine-grade PVC, ensuring longevity and resistance to harsh marine environments. The 90-degree angle allows for effective drainage through the side wall, while the push-in design facilitates easy installation and removal without the need for additional tools.

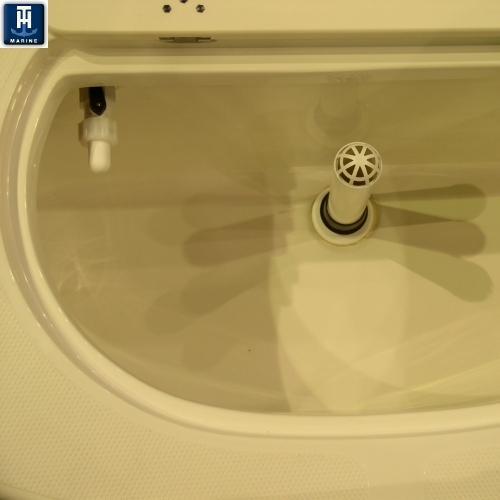

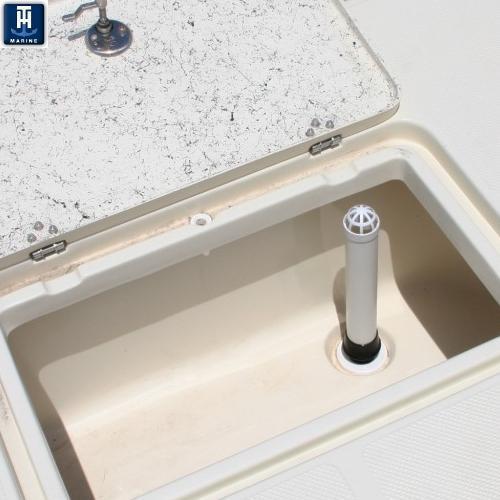

The overflow tube serves a dual purpose, functioning as both an overflow and a drain, which minimizes the number of holes required in the livewell. This design not only enhances the sealing of livewell and baitwell drains but also makes the draining process more convenient compared to traditional drain plugs. Users can easily pull the tube from the top to initiate drainage, keeping hands dry and simplifying the operation.
Available in a standard length of 12 inches and a diameter of 1-5/16 inches, this overflow tube is compatible with 1-1/8 inch thru hulls. T-H Marine also offers custom lengths for boat builders, ensuring that every livewell capacity can be accommodated. The aftermarket versions feature a screen that can be adjusted for optimal length, providing versatility for various applications.
Features
- Made Of All Marine Grade PVC Construction For Long Life
- Performs As A Functional And Economical Overflow Drain Tube
- 90 Degree Tubes Are Designed For Draining Through Side Wall
- Straight Tubes Are Designed For Draining Through Floor
- Sure Sealing Of Livewell And Baitwell Drain
- Makes Draining Livewell And Baitwell Easier Than A Plug
- Tubes Available For Multiple Size Fittings To Cover Every Size Of Livewell Drain
- Custom Lengths Of Tube Available For Boat Builders To Fit Your Livewell Capacity
- Aftermarket Versions Features With Screen Loose, So They Can Be Cut To Best Length
Specifications
- Manufacturer: T-H Marine
- Manufacturer Part Number: ODT-190-DP
- Compatibility: 1-1/8 Inch Thru Hull
- Type: Push-In
- Fitting Angle: 90 Degree
- Diameter: 1-5/16 Inch
- Length: 12 Inch
- Material: Plastic Polyvinyl Chloride
- With Glued Screen: No
- Quantity: Single
