Digital LED gauge for precise positioning of outboard motors.

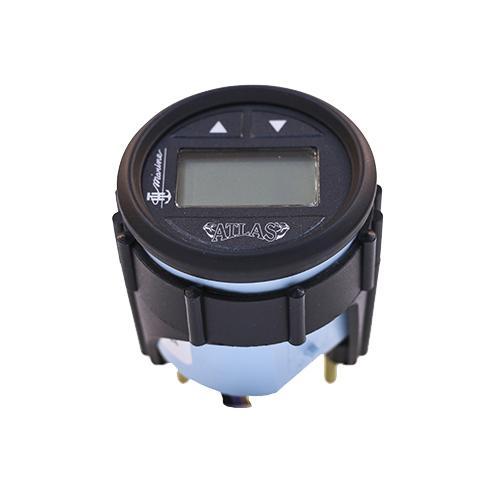

The T-H Marine Outboard Motor Jack Plate Position Gauge is designed for use with Atlas hydraulic jack plates, accommodating models ranging from 6 to 14 inches. This digital gauge features a clear LED display that provides a precise readout of motor position, with each increment representing a 1/4 inch rise. The gauge operates within a range of 0 to 20, ensuring accurate monitoring of motor height adjustments.

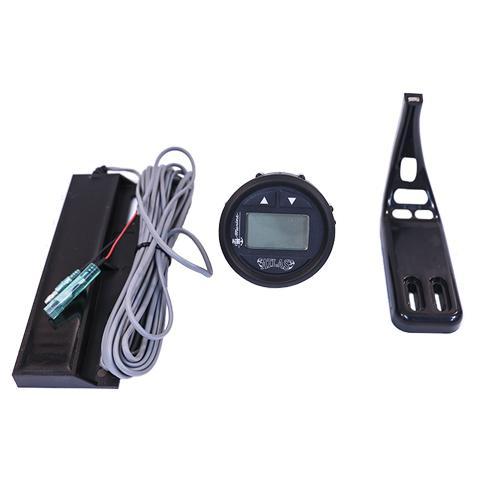

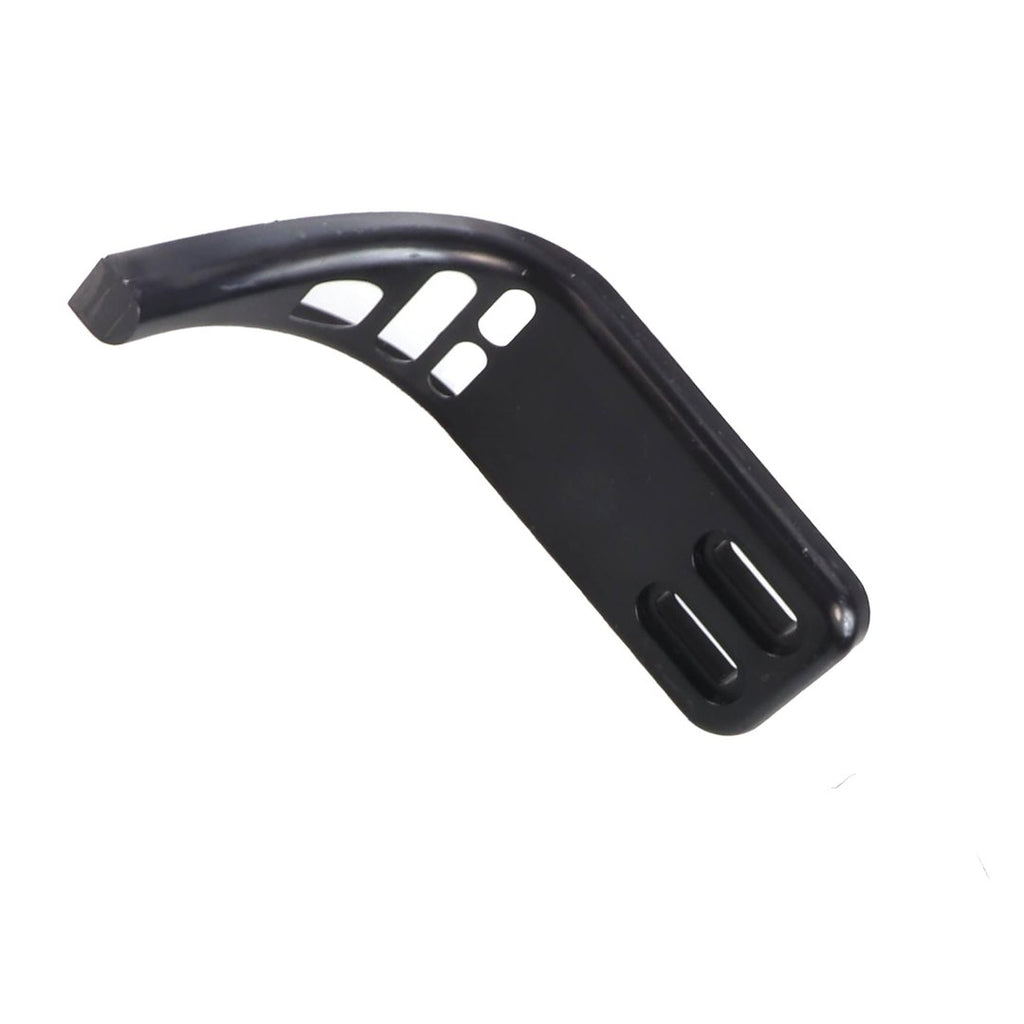

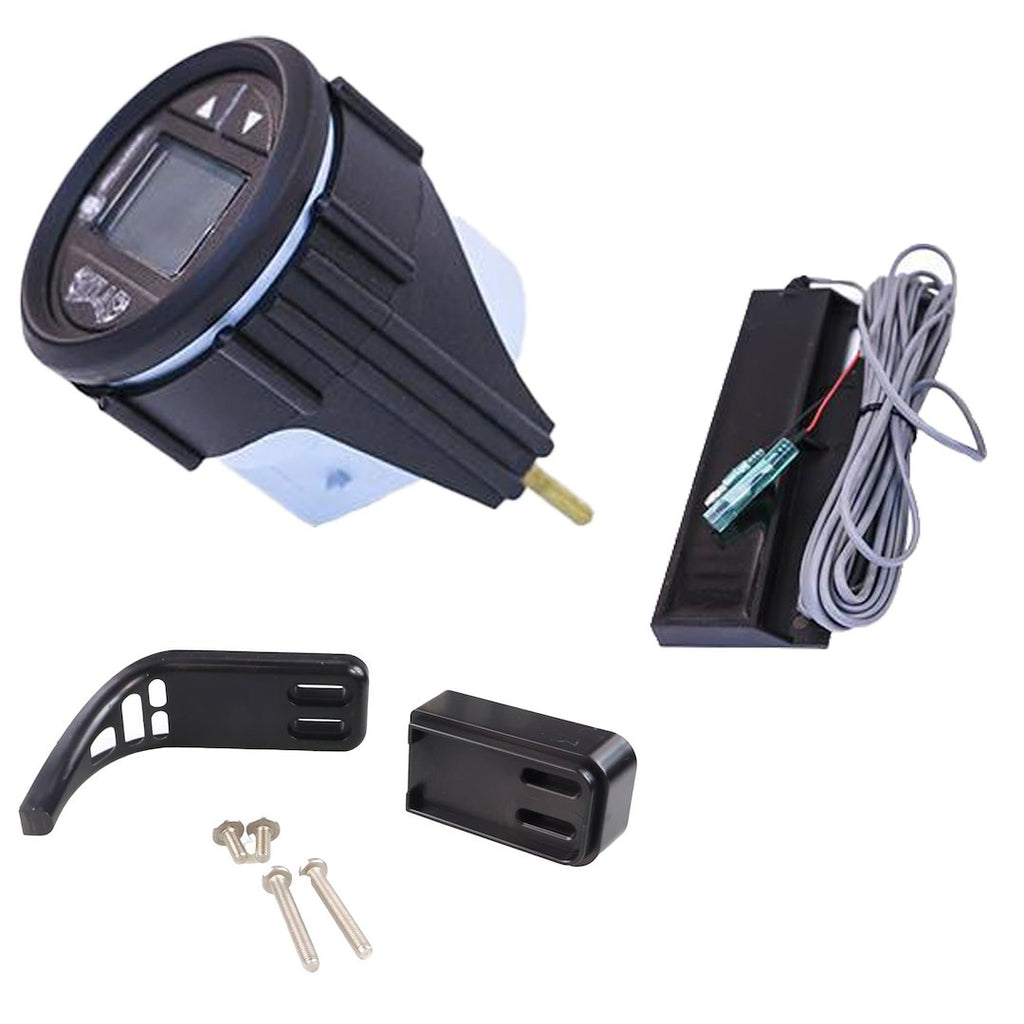

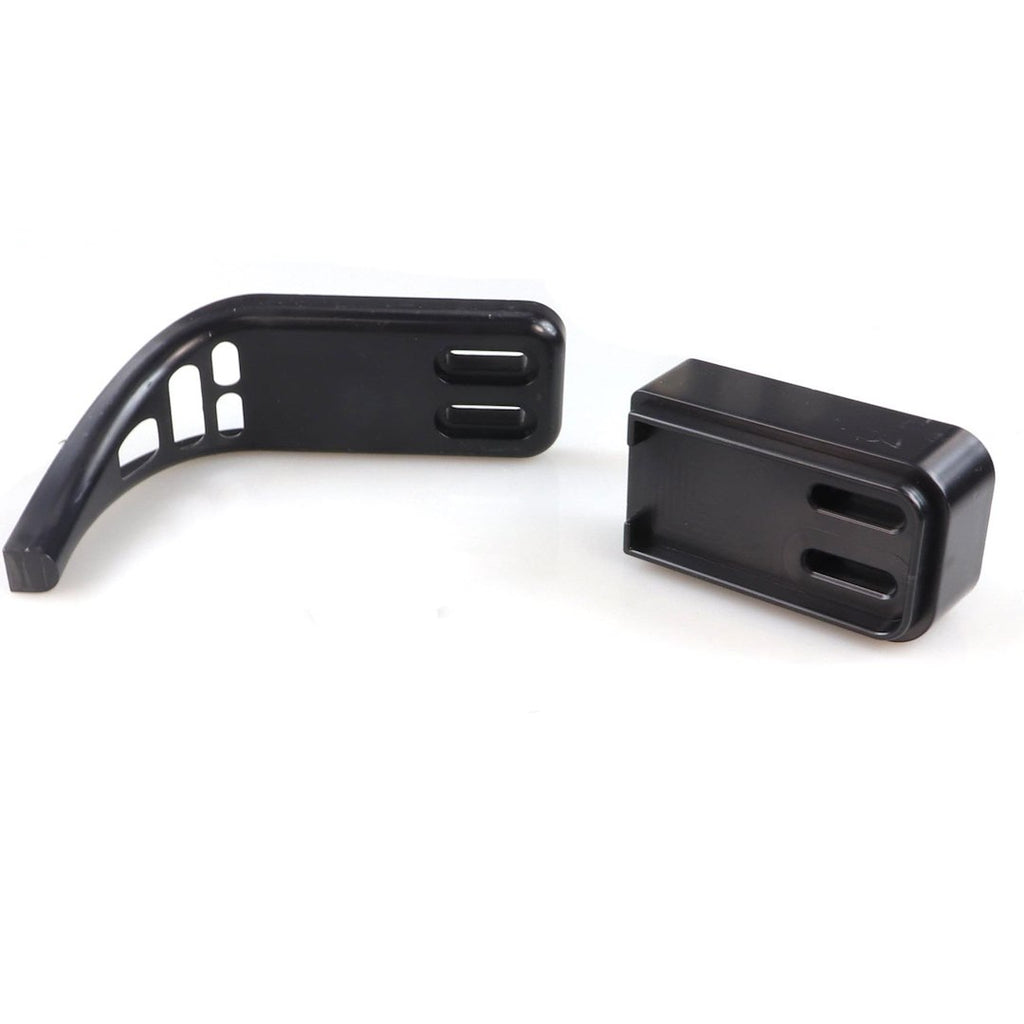

Constructed with a black face and polymer bezel, the gauge is built for durability and visibility. It includes a flat sensor unit with a 20-foot conductor cable, a 90-degree plastic magnet sensor bracket, and all necessary mounting hardware for easy installation. The gauge is pre-drilled to fit all Atlas jack plates, simplifying the setup process for users.
This product is essential for boaters seeking to optimize their outboard motor performance through precise height adjustments. The digital readout enhances usability, making it easier to achieve the desired motor position for various boating conditions.
Features
- All Digital Readout
- Each Number Indicates 1/4 Inch Rise
- Numbers From 0 To 20
- All ATLAS Jacks Are Pre-Drilled To Fit
Specifications
- Manufacturer: T-H Marine
- Manufacturer Part Number: FAGK-2-DP
- Compatibility: 6 Inch/ 10 Inch/ 12 Inch And 14 Inch Outboard Motor Jack Plate Models
- Range: 0 To 20
- Display: Digital
- Mounting: In-Dash
- Face Color: Black
- Bezel Color: Black
- Needle Color: Not Applicable
- Lighting: LED
- With Mounting Hardware: Yes
