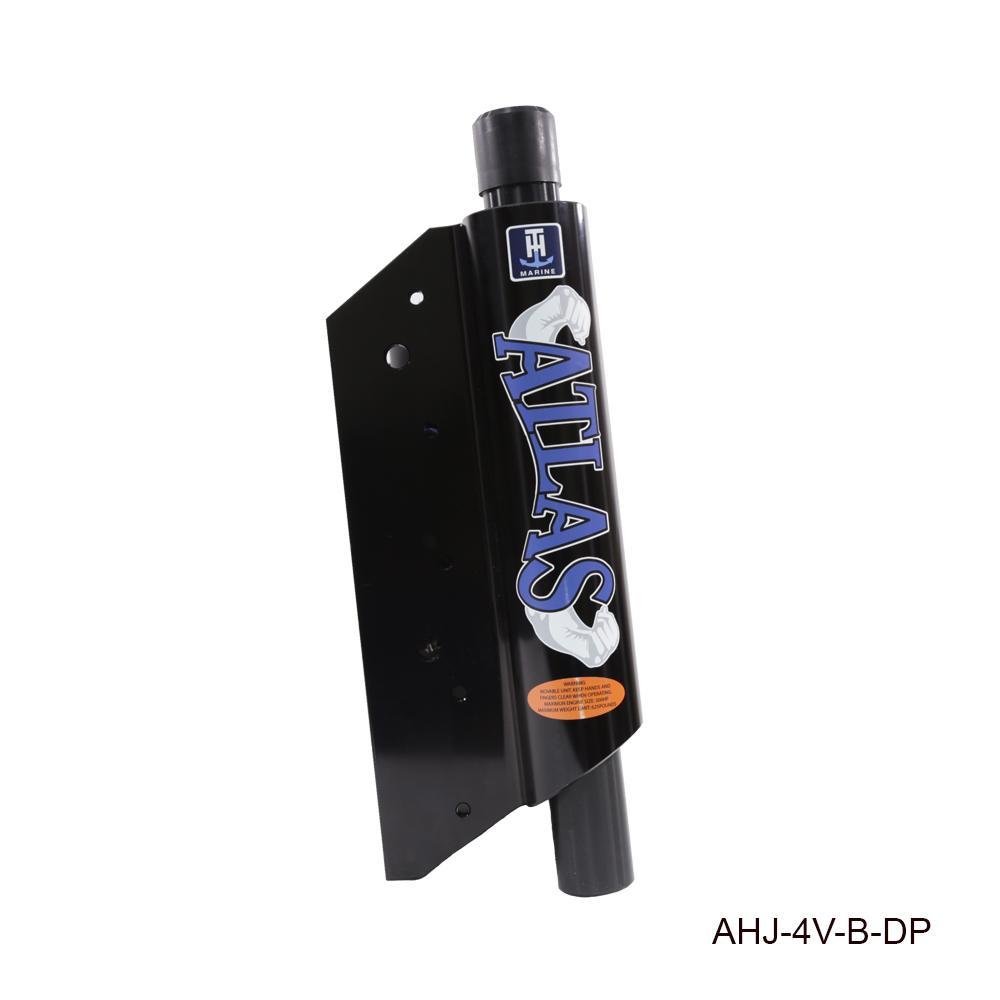

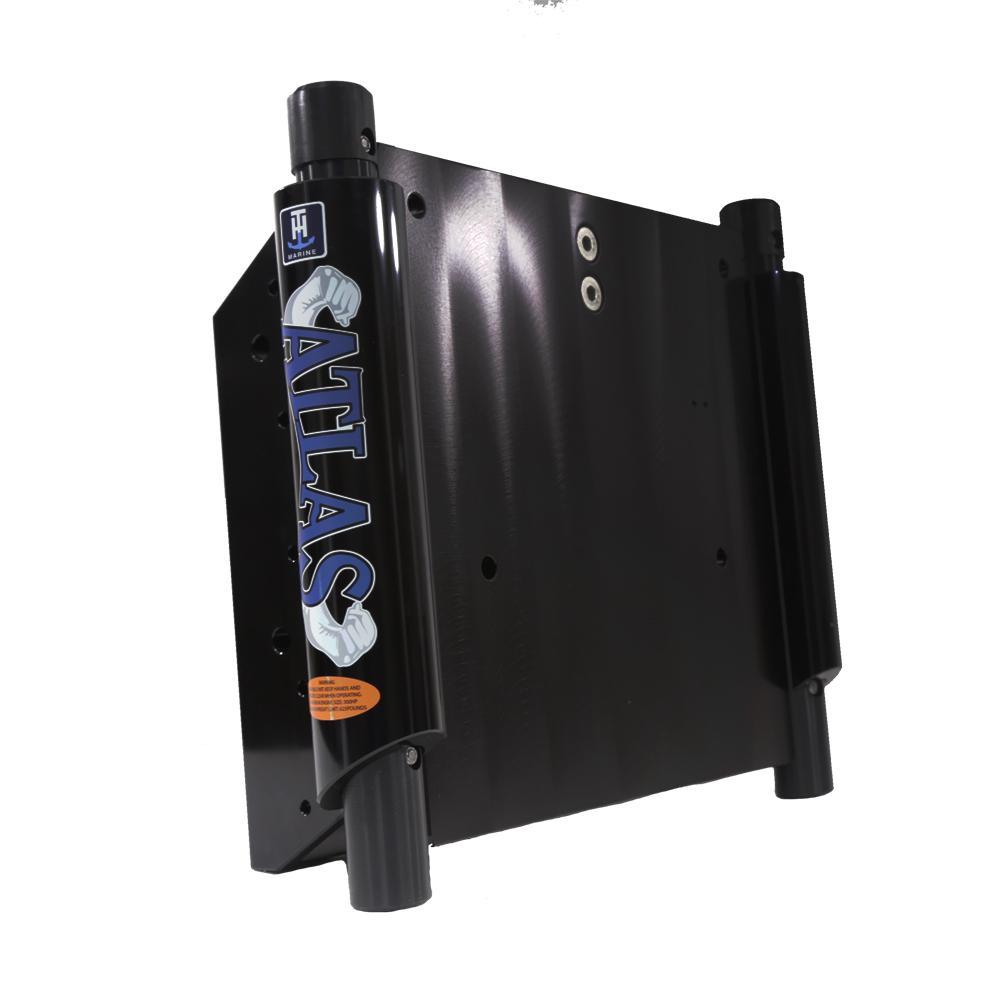

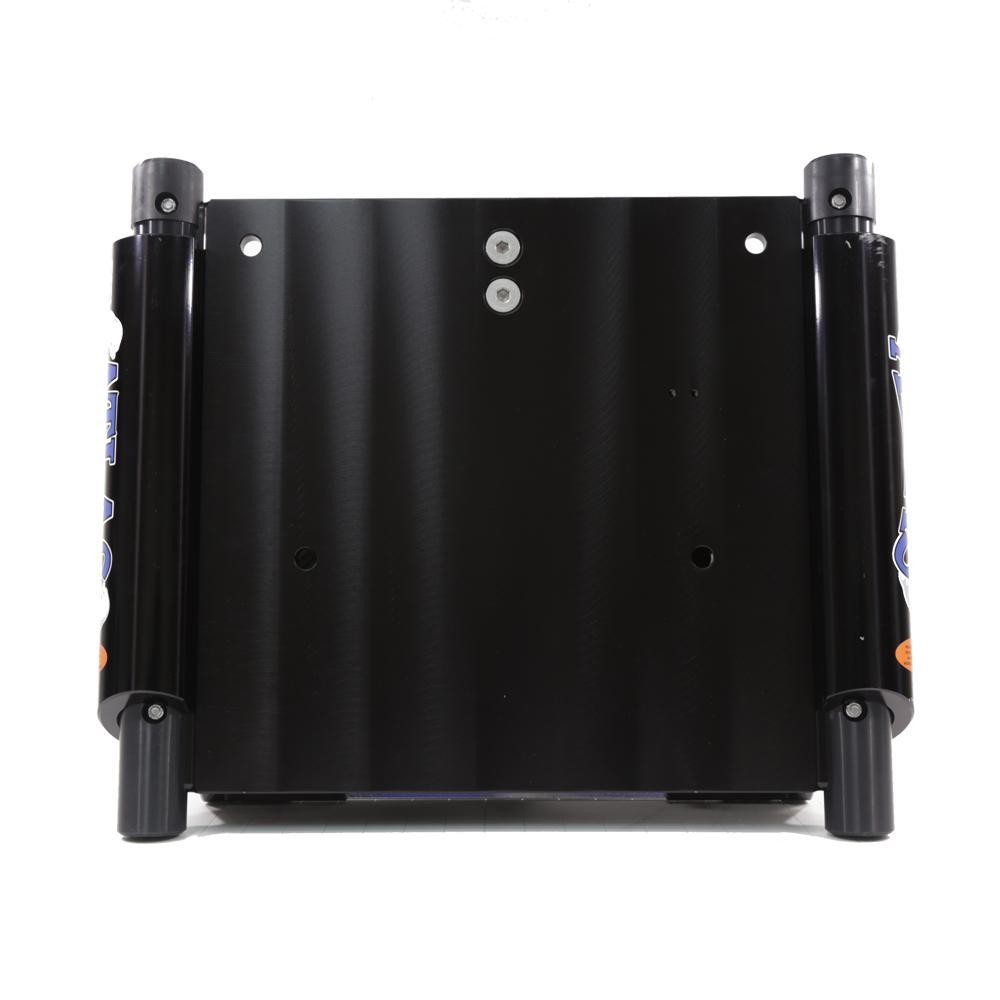

T-H Marine Outboard Motor Jack Plate (MPN: AHJ-4V-B-DP)

Advanced hydraulic technology for precise motor height adjustment.

The T-H Marine Outboard Motor Jack Plate is designed to enhance the performance of your boat by allowing for precise height adjustments of your outboard motor. With a 4 inch setback and a hydraulic rise of 5-3/4 inches, this jack plate provides a total rise of 8-1/4 inches to 9-3/4 inches, accommodating a maximum horsepower of 300. The innovative rod and slot lifting system ensures a quick rise time of just 8 seconds, making it efficient for varying water conditions.

Constructed from durable anodized aluminum, this jack plate is built to withstand the stresses of heavy and powerful outboards. The one-piece design simplifies installation and operation, eliminating the need for additional pumps and reservoirs inside the transom. The included rocker switch and relay harness facilitate easy control, ensuring that adjustments can be made effortlessly while on the water.

This jack plate not only enhances the functionality of your outboard motor but also contributes to the overall performance of your boat. Its robust construction and advanced hydraulic features make it a reliable choice for boaters seeking to optimize their vessel's capabilities.

Features

• One Piece Design
• Featuring The Innovative Rod And Slot Lifting System
• 300 Maximum Horsepower
• Will Handle The Stresses From The Heaviest And Most Powerful Outboards

Specifications

• Manufacturer: T-H Marine
• Manufacturer Part Number: AHJ-4V-B-DP
• Adjustment Type: Hydraulic
• Setback: 4 Inch
• Adjustment Rise: 5-3/4 Inch
• Total Rise: 8-1/4 Inch To 9-3/4 Inch
• Maximum Horsepower: 300 Horsepower
• Weight Capacity: 625 Pound
• Rise Time: 8 Seconds
• Mounting Position Adjustment: Not Applicable
• Finish: Anodized
• Color: Black
• Material: Aluminum
• With Rocker Switch: Yes
• With Relay Harness: Yes
