Efficient hydraulic jack plate for small outboards with quick lift capabilities.

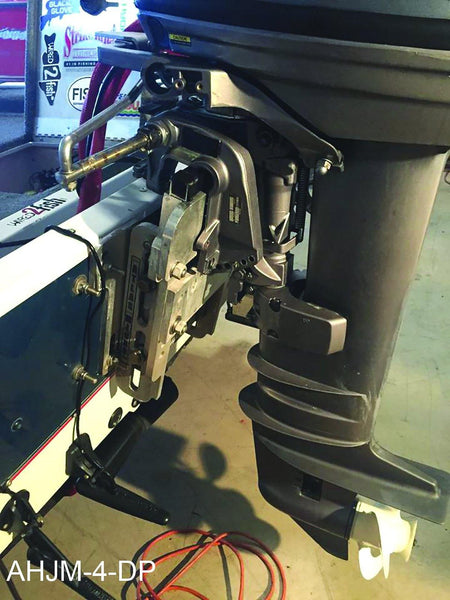

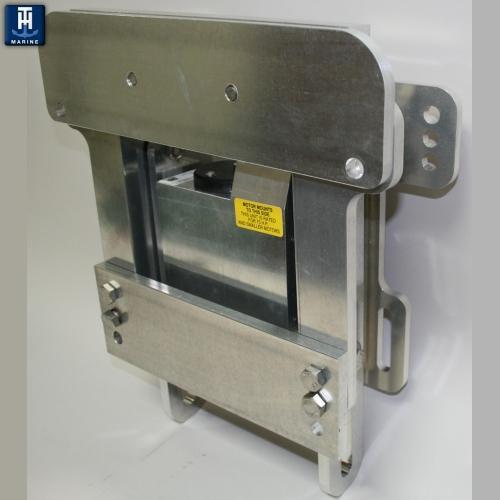

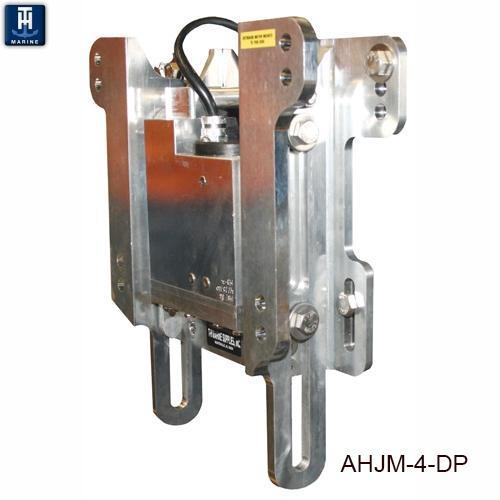

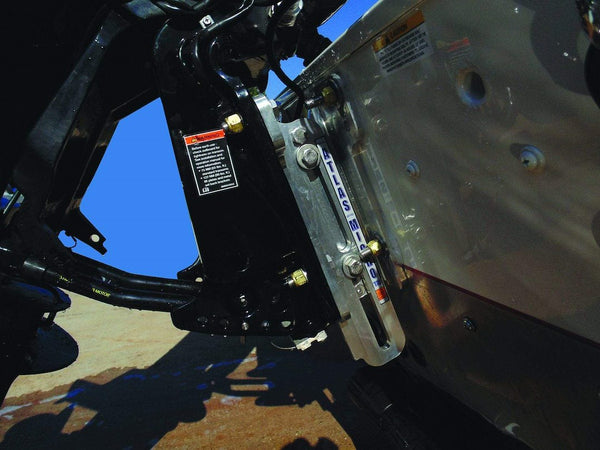

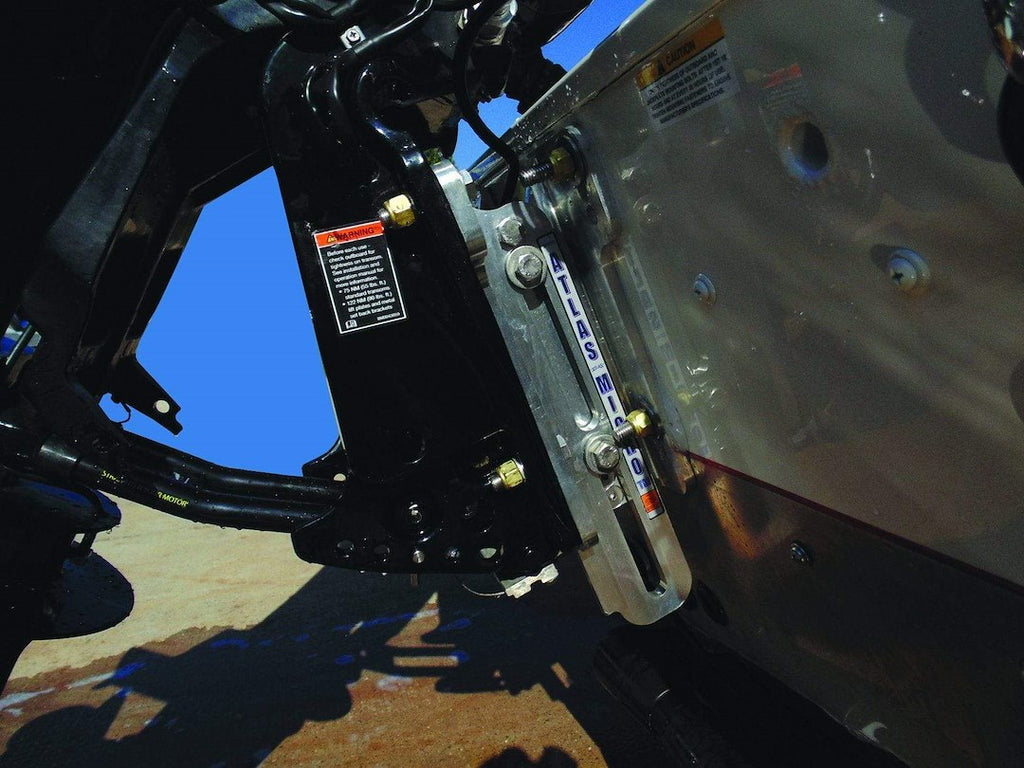

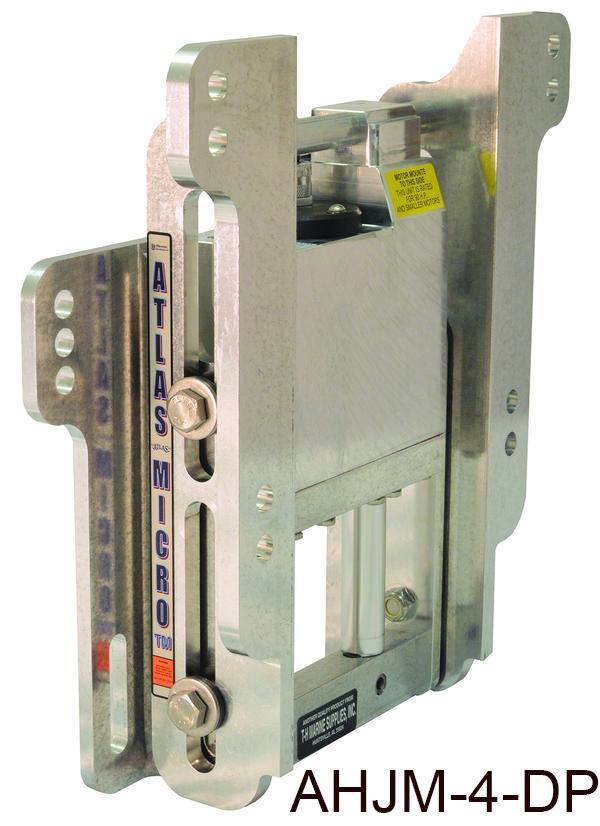

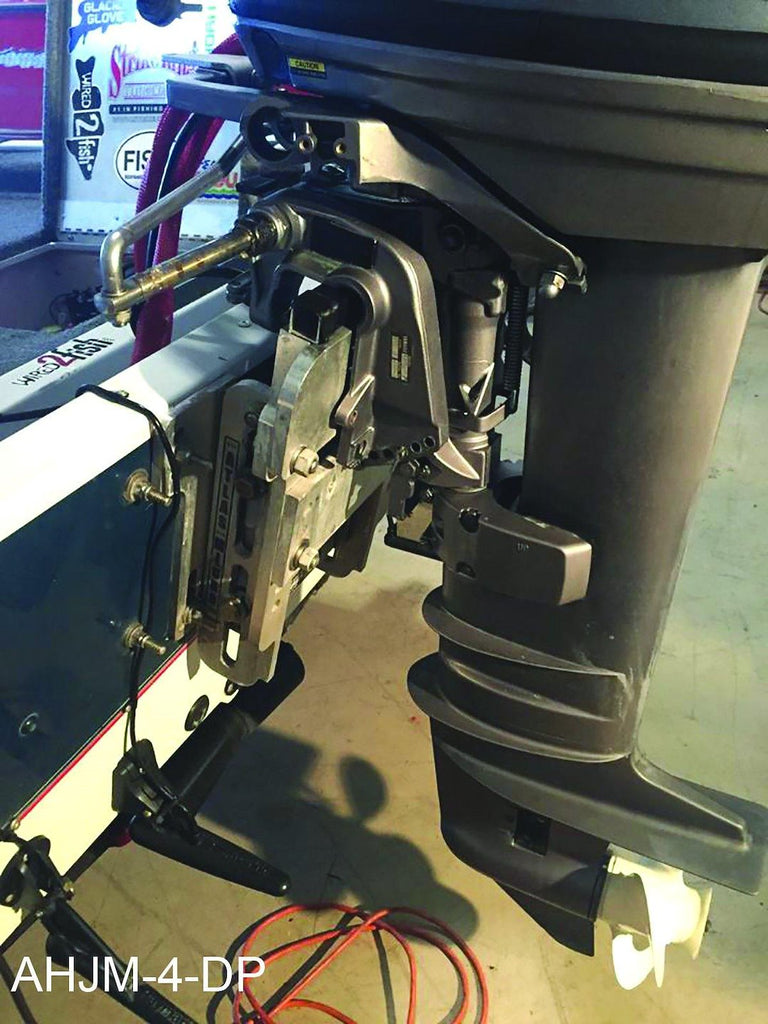

The T-H Marine Atlas Micro Jacker is designed specifically for small outboard motors, providing a reliable solution for boats that require a lightweight and efficient jack plate. With a 4 inch setback and a hydraulic rise of 5 inches, this jack plate allows for a total height adjustment of 8-1/2 inches, making it suitable for shallow water applications such as gheenoes, river runners, jon boats, and skiffs. The unit features self-contained hydraulics and a clamp-on motor adapter, enabling easy installation for smaller engines that do not conform to standard mounting patterns.
Weighing only 23 pounds, the Atlas Micro Jacker is engineered to lift up to 425 pounds and supports outboards with a maximum horsepower of 115. It is important to note that this jack plate is not compatible with Honda's 115 horsepower outboard due to weight restrictions. The hydraulic lift mechanism operates swiftly, achieving full rise in just 8 seconds, allowing users to navigate shallow waters with confidence and efficiency.
Constructed from polished aluminum, the Atlas Micro Jacker combines durability with a sleek finish. Its design emphasizes functionality and ease of use, making it an essential component for enhancing the performance of small outboard motors in various boating conditions.
Features
- For Small Outboards: Max Weight 425 Pound And Max Horsepower 115 Horsepower
- Great For Shallow Water Boats: Gheenoes, River Runners, Jon Boats, Skiffs
- Get Out Of Trouble Fast: Lifts In 8 Second
- Lightweight: Only 23 Pound Fish "Skinny Water" With Confidence
- Self Contained Hydraulics
- Clamp-On Motor Adapter Allows You To Mount Smaller Engines With Clamp-On Brackets To The ATLAS Micro Jacker, Since They Do Not Mount With Bolts On The Standard BIA Engine Hole Pattern
Specifications
- Manufacturer: T-H Marine
- Manufacturer Part Number: AHJM-4-DP
- Adjustment Type: Hydraulic
- Setback: 4 Inch
- Adjustment Rise: 5 Inch
- Total Rise: 8-1/2 Inch
- Maximum Horsepower: 115 Horsepower
- Weight Capacity: 425 Pound
- Rise Time: 8 Seconds
- Mounting Position Adjustment: 3-1/2 Inch Vertical
- Finish: Polished
- Color: Silver
- Material: Aluminum
- With Rocker Switch: No
- With Relay Harness: No
