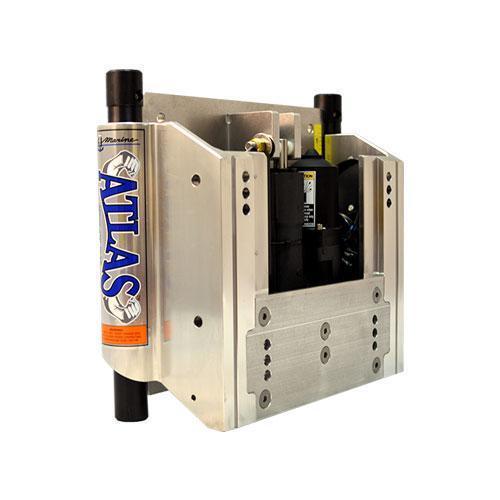

T-H Marine Atlas Hydraulic Jack Plate (MPN: AHJ-4V-DP)

Advanced hydraulic jack plate for powerful outboard engines with quick adjustments.

The T-H Marine Atlas Hydraulic Jack Plate represents a significant advancement in jack plate technology, designed specifically for high-performance outboard motors. This unit accommodates engines with a maximum horsepower of 300, making it suitable for the most demanding applications. Its innovative rod and slot lifting design allows for a rise time of less than 8 seconds, ensuring efficient and reliable operation.

Constructed from polished aluminum, the jack plate is both durable and lightweight, providing a weight capacity of up to 625 pounds. The self-contained hydraulic system simplifies installation and operation, while the included relay harness and rocker switch enhance user convenience. The adjustable setback of 4 inches and total rise range of 8-1/4 inches to 9-3/4 inches allows for precise positioning of the outboard motor, optimizing performance and handling.

With its high-tech engineered polymer components, the T-H Marine Atlas Hydraulic Jack Plate ensures trouble-free lifting action, making it a dependable choice for boaters seeking enhanced control and performance on the water.

Features

• Bottom To Top In Less Than 8 Seconds Rod And Slot Lifting Design
• Trouble Free Lifting Action Hi-Tech Engineered Polymer Rods
• Speed And Self-Contained Lifting Action
• Comes With Relay Harness And Rocker Switch

Specifications

• Manufacturer: T-H Marine
• Manufacturer Part Number: AHJ-4V-DP
• Adjustment Type: Hydraulic
• Setback: 4 Inch
• Adjustment Rise: 5-3/4 Inch
• Total Rise: 8-1/4 Inch To 9-3/4 Inch
• Maximum Horsepower: 300 Horsepower
• Weight Capacity: 625 Pound
• Rise Time: 8 Seconds
• Mounting Position Adjustment: Not Applicable
• Finish: Polished
• Color: Silver
• Material: Aluminum
• With Rocker Switch: Yes
• With Relay Harness: Yes
