Advanced hydraulic jack plate for powerful outboard engines with quick adjustment features.

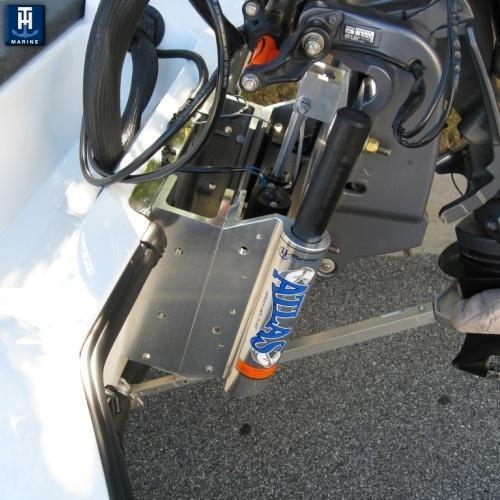

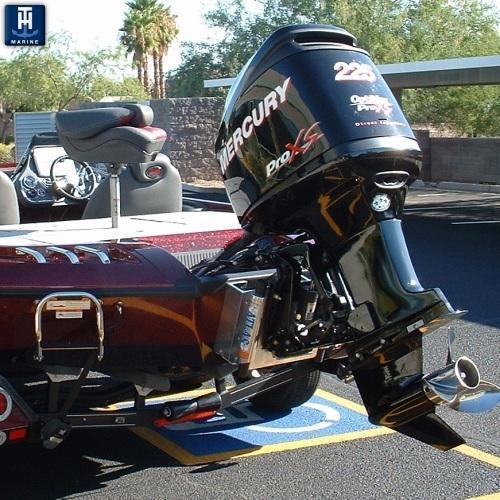

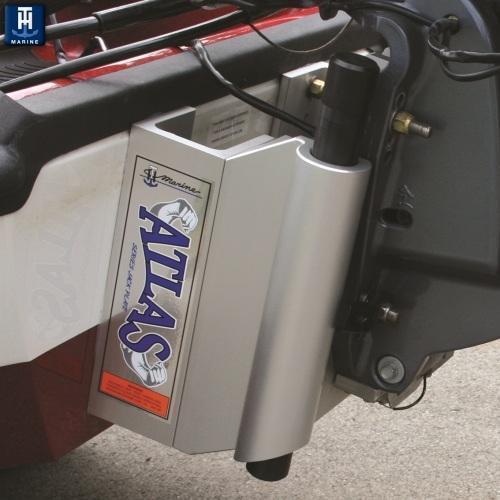

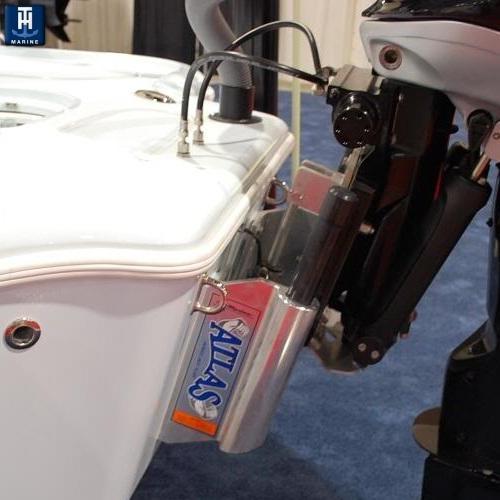

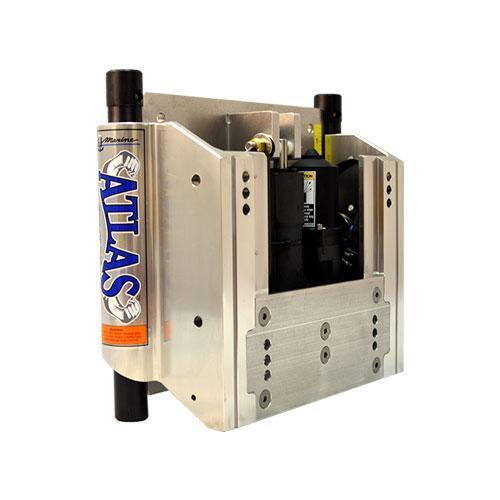

The T-H Marine Atlas Hydraulic Jack Plate is engineered for high-performance outboard motors, accommodating up to 300 horsepower. This innovative design features a robust aluminum construction with a polished finish, ensuring durability and resistance to corrosion. The jack plate utilizes a cutting-edge rod and slot lifting mechanism, allowing for a rise time of less than 8 seconds, which enhances the efficiency of engine adjustments on the water.
With a 12-inch setback and a hydraulic rise capability of 5-3/4 inches, the Atlas Jack Plate provides versatile mounting options for various boat configurations. The self-contained hydraulic system simplifies installation and operation, while the included relay harness and rocker switch facilitate easy control from the helm. This product is designed to meet the demands of both recreational and professional marine applications, ensuring reliable performance under heavy loads.
Features
- Bottom To Top In Less Than 8 Seconds Rod And Slot Lifting Design
- Trouble Free Lifting Action Hi-Tech Engineered Polymer Rods
- Speed And Self-Contained Lifting Action
- Comes With Relay Harness And Rocker Switch
Specifications
- Manufacturer: T-H Marine
- Manufacturer Part Number: AHJ-12V-DP
- Adjustment Type: Hydraulic
- Setback: 12 Inch
- Adjustment Rise: 5-3/4 Inch
- Total Rise: 8-1/4 Inch To 9-3/4 Inch
- Maximum Horsepower: 300 Horsepower
- Weight Capacity: 625 Pound
- Rise Time: 8 Seconds
- Mounting Position Adjustment: Not Applicable
- Finish: Polished
- Color: Silver
- Material: Aluminum
- With Rocker Switch: Yes
- With Relay Harness: Yes
