Advanced hydraulic design for powerful outboard engines with quick adjustments.

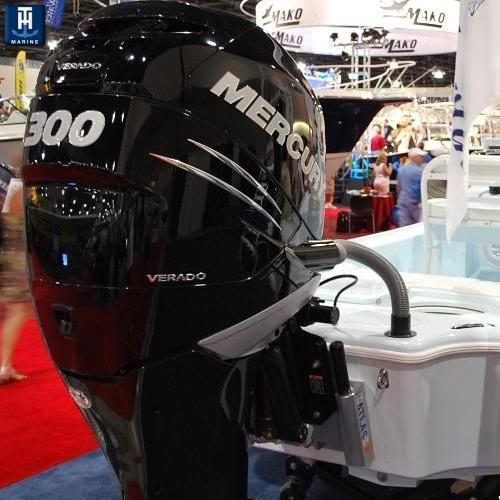

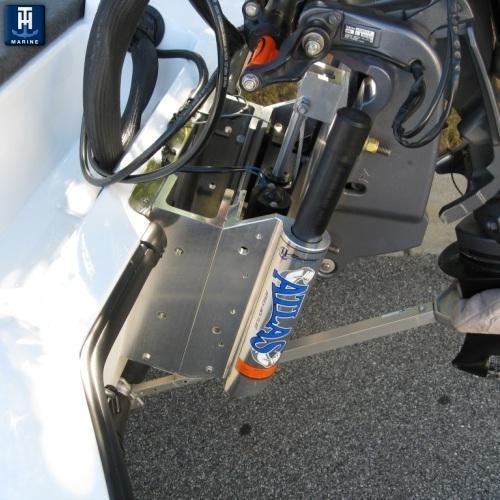

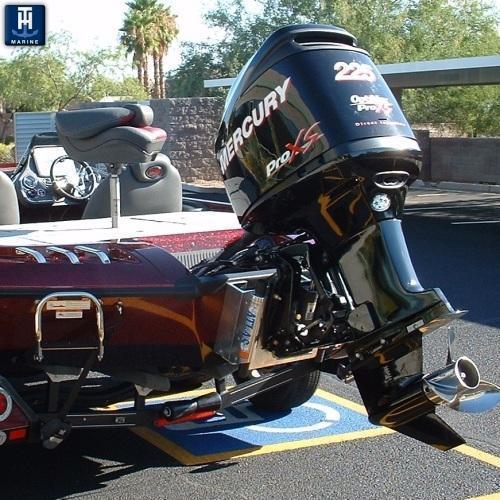

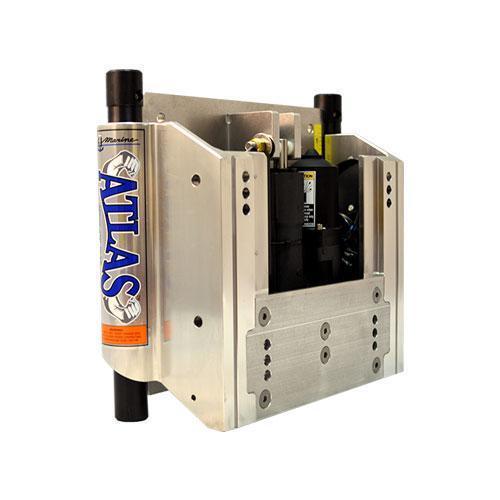

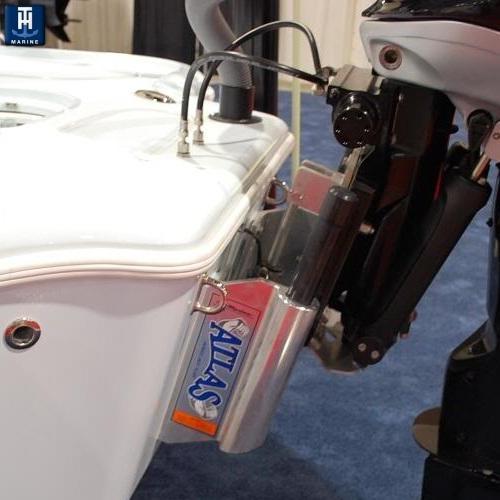

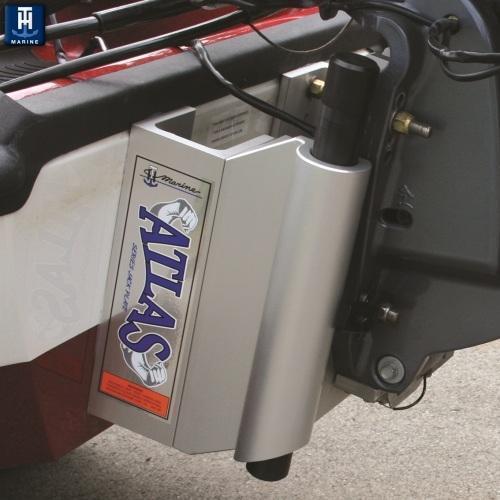

The T-H Marine Atlas Hydraulic Jack Plate represents a significant advancement in jack plate technology, designed specifically for high-performance outboard motors. With a 10-inch setback and a hydraulic rise capability of 5-3/4 inches, this jack plate accommodates a total rise of 8-1/4 inches to 9-3/4 inches, making it suitable for a wide range of applications. Engineered with a unique rod and slot lifting mechanism, it ensures reliable and efficient operation, allowing for adjustments in less than 8 seconds.
Constructed from polished aluminum, the jack plate is not only durable but also lightweight, supporting outboard engines with a maximum horsepower of 300. The innovative design incorporates high-tech engineered polymer rods that provide a trouble-free lifting action, enhancing the overall performance of your boat. Additionally, the unit comes equipped with a relay harness and rocker switch for easy control, ensuring seamless integration with your existing setup.
This hydraulic jack plate is built to withstand the demands of heavy-duty use, making it an essential component for serious boating enthusiasts. Its robust construction and advanced features contribute to improved handling and performance on the water, allowing for precise adjustments to optimize your boat's performance.
Features
- Bottom To Top In Less Than 8 Seconds Rod And Slot Lifting Design
- Trouble Free Lifting Action Hi-Tech Engineered Polymer Rods
- Speed And Self-Contained Lifting Action
- Comes With Relay Harness And Rocker Switch
Specifications
- Manufacturer: T-H Marine
- Manufacturer Part Number: AHJ-10V-DP
- Adjustment Type: Hydraulic
- Setback: 10 Inch
- Adjustment Rise: 5-3/4 Inch
- Total Rise: 8-1/4 Inch To 9-3/4 Inch
- Maximum Horsepower: 300 Horsepower
- Weight Capacity: 625 Pound
- Rise Time: 8 Seconds
- Mounting Position Adjustment: Not Applicable
- Finish: Polished
- Color: Silver
- Material: Aluminum
- With Rocker Switch: Yes
- With Relay Harness: Yes
