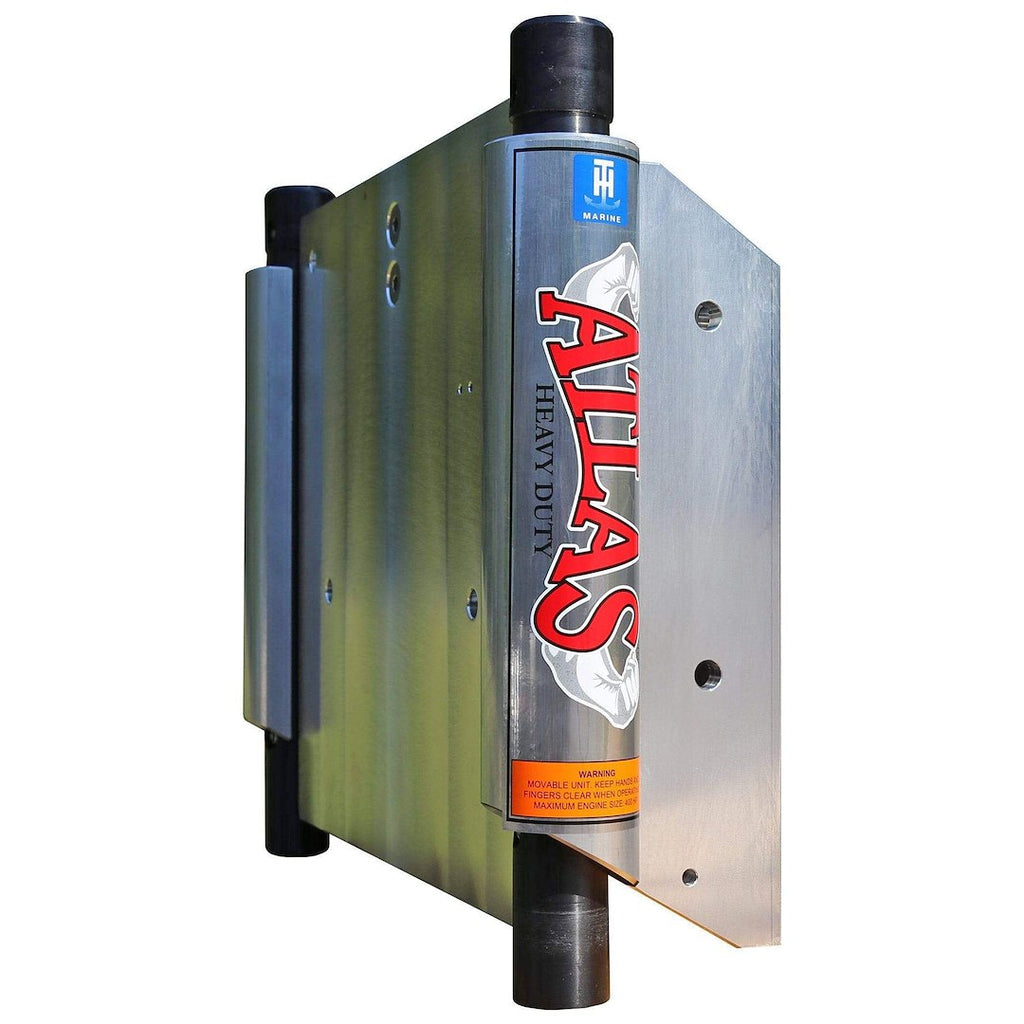

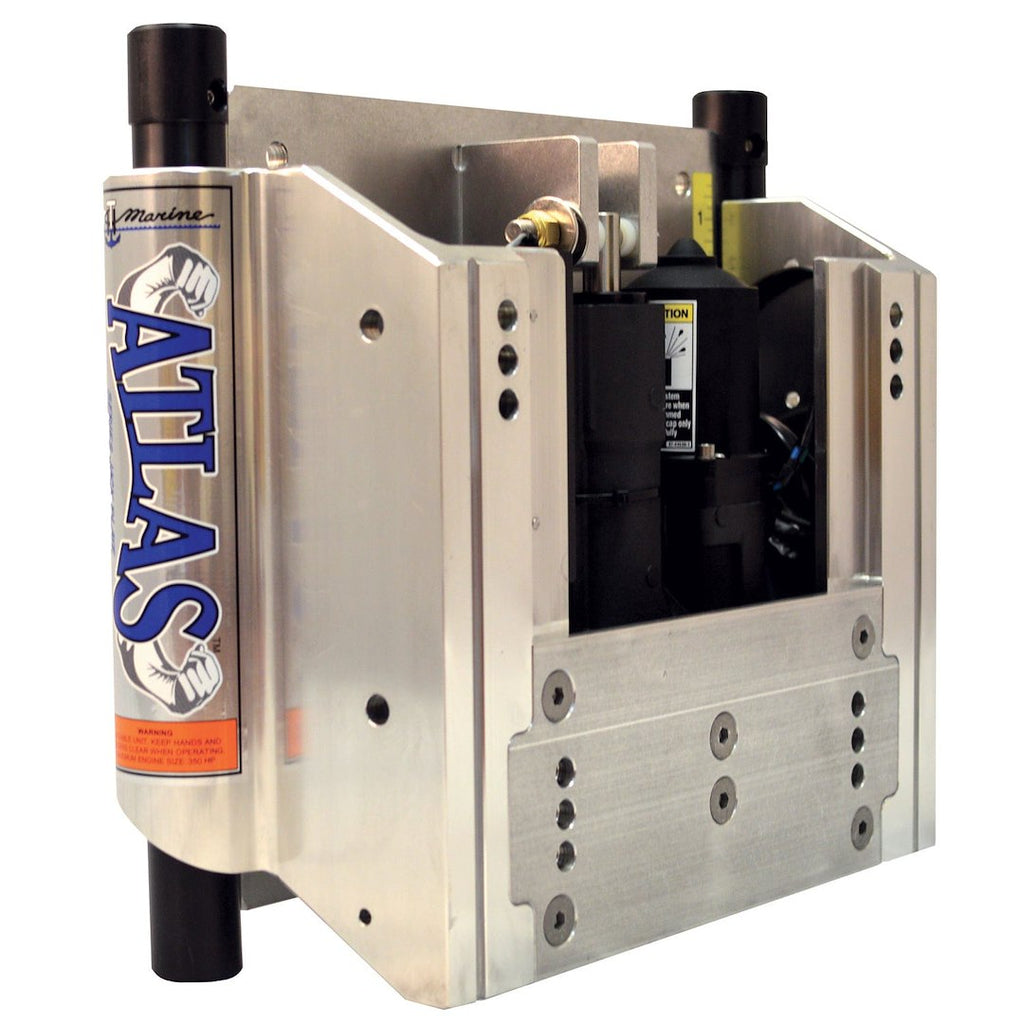

T-H Marine Atlas Heavy Duty Jack Plate (MPN: AHJ-10VHD-DP)

Engineered for high performance with robust hydraulic capabilities.

The T-H Marine Atlas Heavy Duty Jack Plate is designed to enhance the performance of larger outboard motors, accommodating engines up to 400 horsepower. This hydraulic jack plate features a 10 inch setback and offers a rise adjustment of 5-3/4 inches, with a total rise range from 8-1/4 inches to 9-3/4 inches. Constructed from polished aluminum, it combines durability with a lightweight design, making it suitable for various boating applications.

Recognized as the number one selling jack plate globally, the Atlas Heavy Duty is favored by professional fishermen and boat manufacturers alike. Its factory-installed design ensures compatibility with a wide range of boats, while the simple actuator replacement allows for easy maintenance in the field. The jack plate is made in the USA, reflecting a commitment to quality and performance.

With a weight capacity of 625 pounds and a rise time of just 8 seconds, the Atlas Heavy Duty Jack Plate provides efficient and reliable operation. It includes a rocker switch and relay harness for convenient control, making it an essential component for serious boating enthusiasts looking to optimize their vessel's performance.

Features

• Factory Installed By More Boat Manufacturers Than Any Other Plate
• Used By More Professional Fisherman Than Any Other Hydraulic Jack Plate
• Simple Actuator Replacement In The Field
• Made In USA

Specifications

• Manufacturer: T-H Marine
• Manufacturer Part Number: AHJ-10VHD-DP
• Adjustment Type: Hydraulic
• Setback: 10 Inch
• Adjustment Rise: 5-3/4 Inch
• Total Rise: 8-1/4 Inch To 9-3/4 Inch
• Maximum Horsepower: 450 Horsepower
• Weight Capacity: 625 Pound
• Rise Time: 8 Seconds
• Mounting Position Adjustment: Not Applicable
• Finish: Polished
• Color: Silver
• Material: Aluminum
• With Rocker Switch: Yes
• With Relay Harness: Yes
