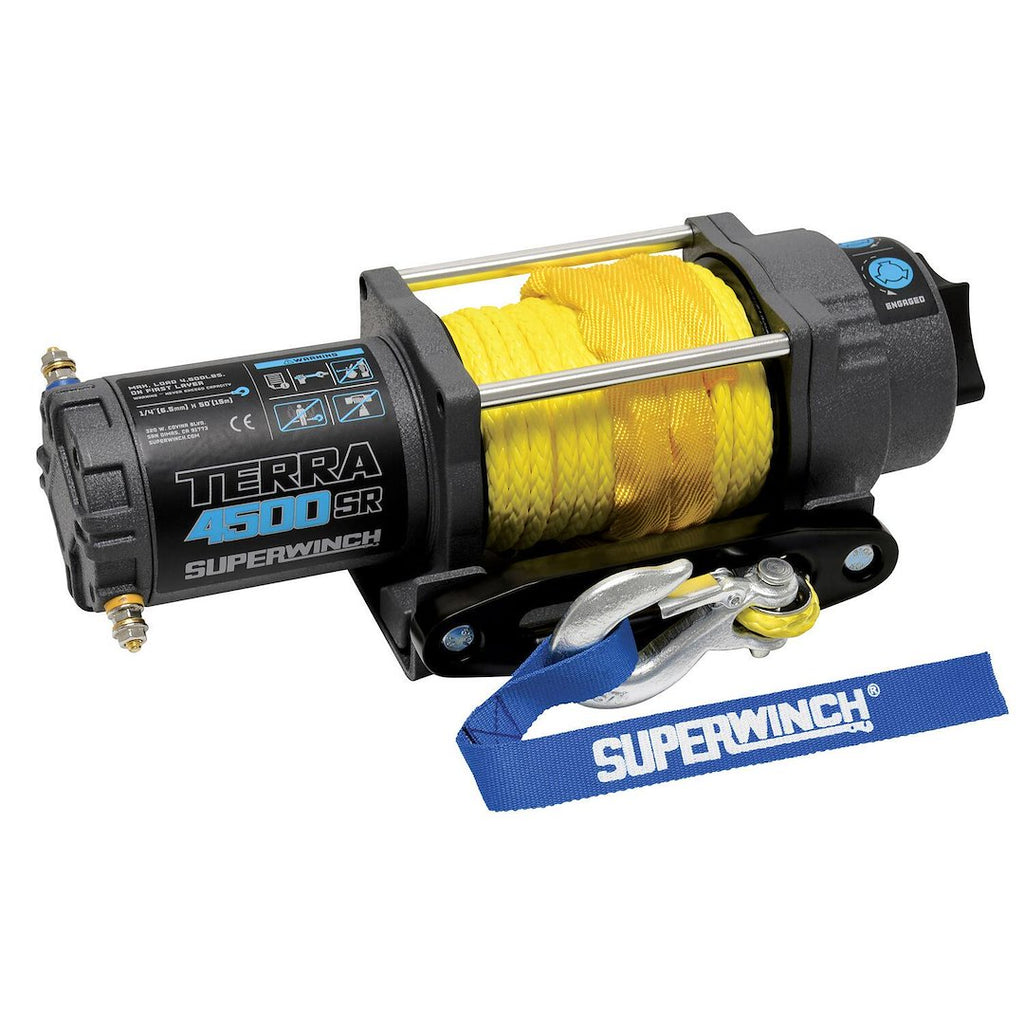

Superwinch Terra Vehicle Mounted Winch (MPN: 1145270)

High-performance winch for ATV and UTV applications with advanced sealing technology.

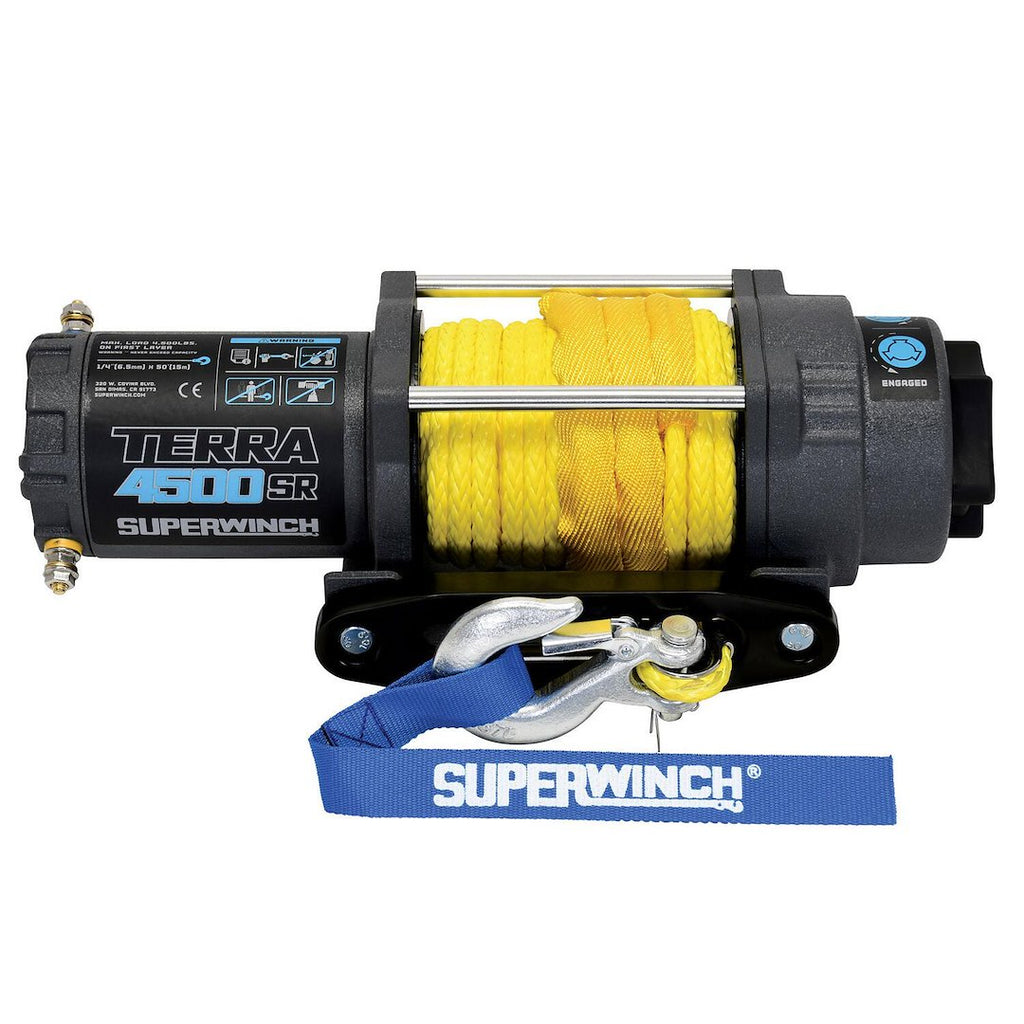

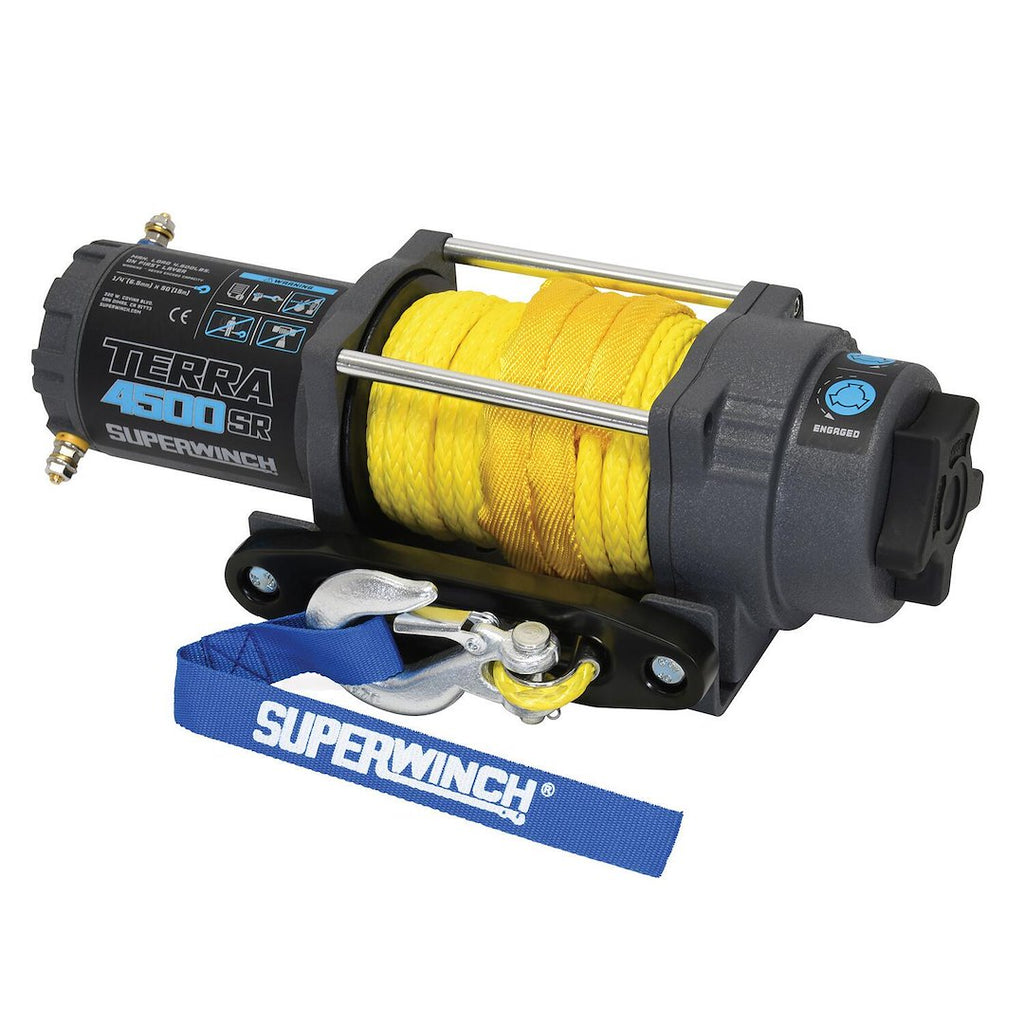

The Superwinch Terra 4500SR is engineered for optimal performance in ATV and UTV winching applications. With a rated line pull capacity of 4500 pounds, this electric winch is powered by a 1.8 horsepower permanent magnetic motor and features a robust 3-stage planetary gearing system with a 198:1 gear ratio. The winch is designed with durability in mind, utilizing a heavy-duty synthetic rope and a black aluminum hawse fairlead to enhance its longevity and reliability in challenging environments.

One of the standout features of the Terra 4500SR is its fully sealed construction, which meets the IP67 rating. This ensures that all components, including the motor, solenoid, and remote control, are protected from water, mud, snow, and dust. The ergonomic free spool control knob and cam style clutch control provide ease of use, while the included 10-foot rugged handheld remote and handlebar mounted rocker switch allow for convenient operation from a distance.

This winch is designed for fixed mounting and operates on a 12-volt electrical system, making it a versatile choice for various vehicles. The wide drum design increases rope capacity, ensuring that users can tackle demanding tasks with confidence. The Superwinch Terra 4500SR is a reliable solution for those seeking a powerful and durable winching system for their ATV or UTV.

Features

• Rated Line Pull Of 4,500 Pound

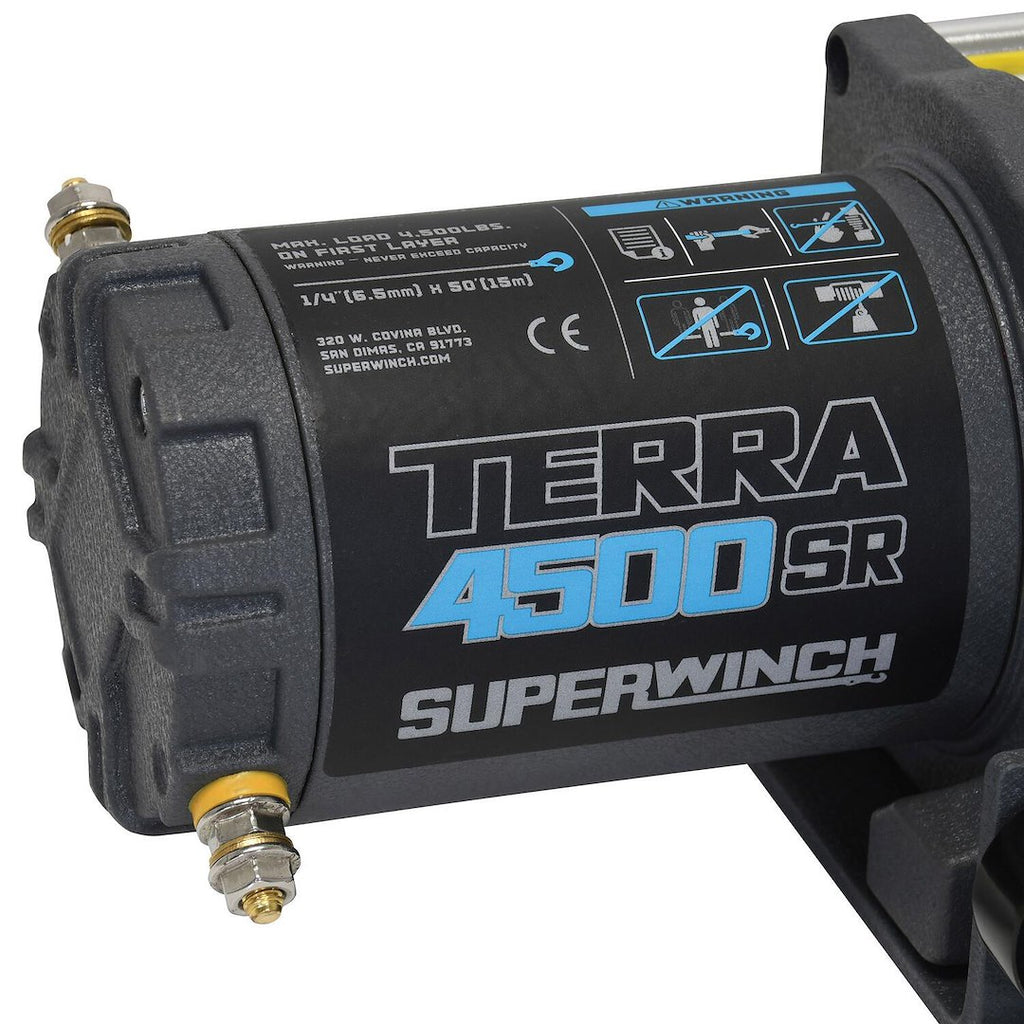

• 1.8 Horse Power Permanent Magnetic Motor
• 3-Stage Planetary Gearing With 198:1 Ratio
• Sealed Solenoid With Circuit Breaker

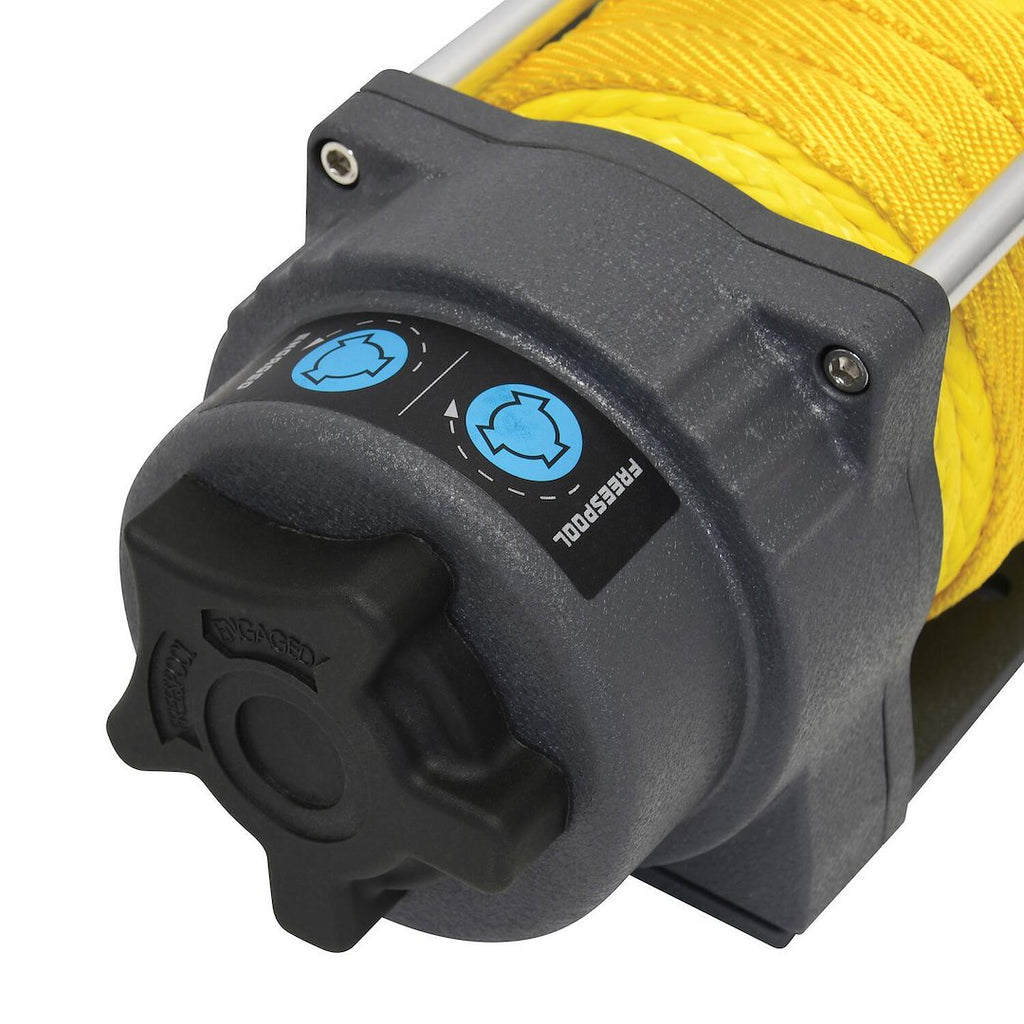

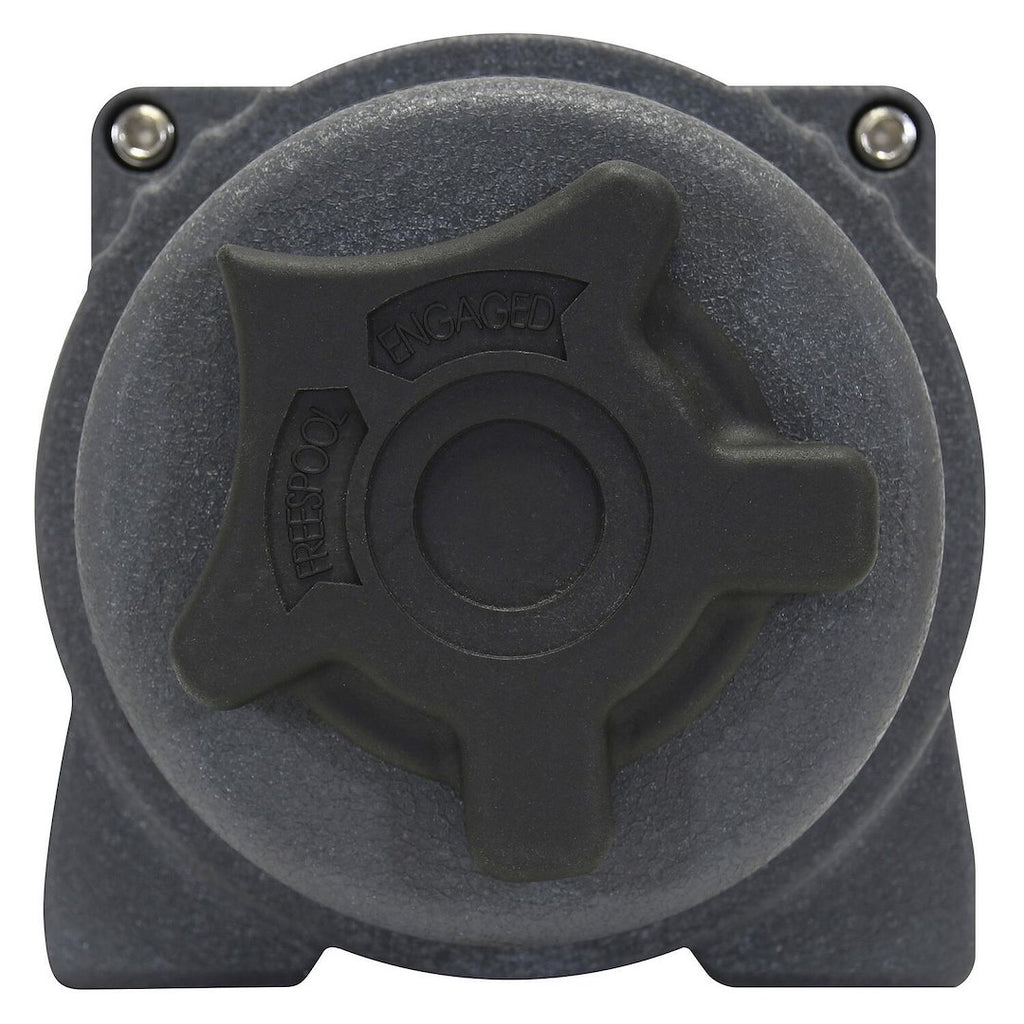

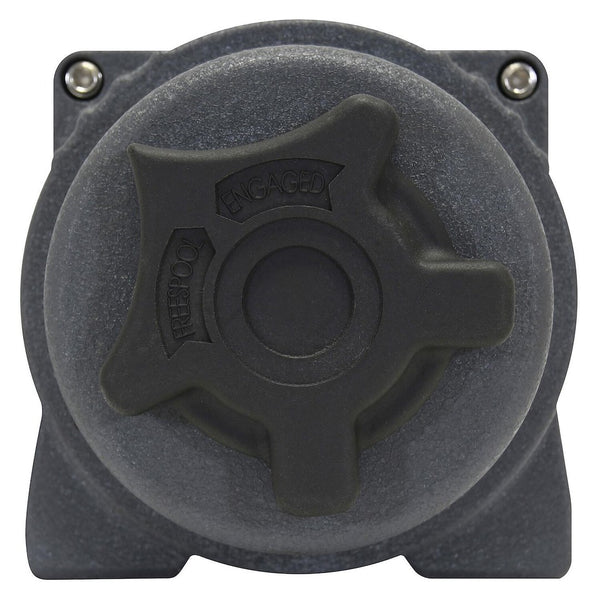

• Cam Style Clutch Control Knob
• Heavy-Duty, Clevis Pinned, Latched Hook
• Black Aluminum Hawse Fairlead

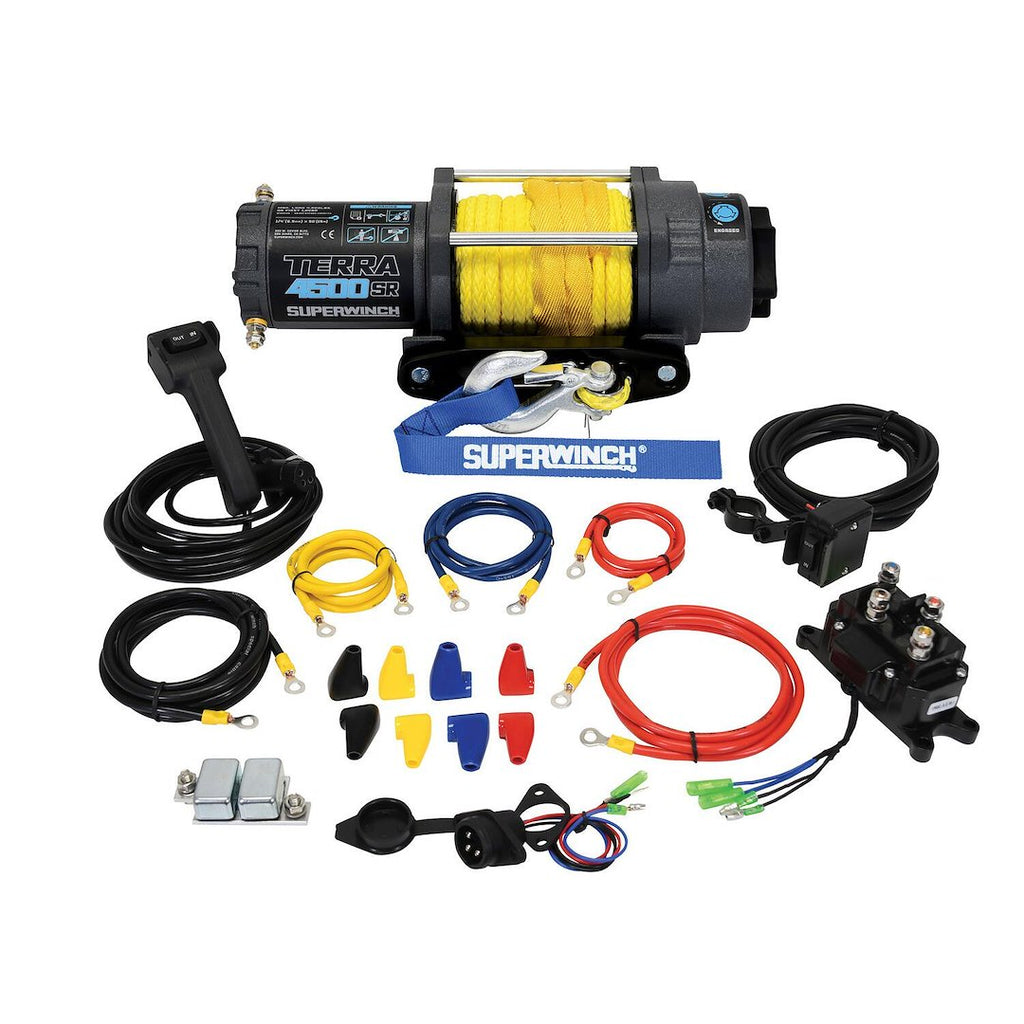

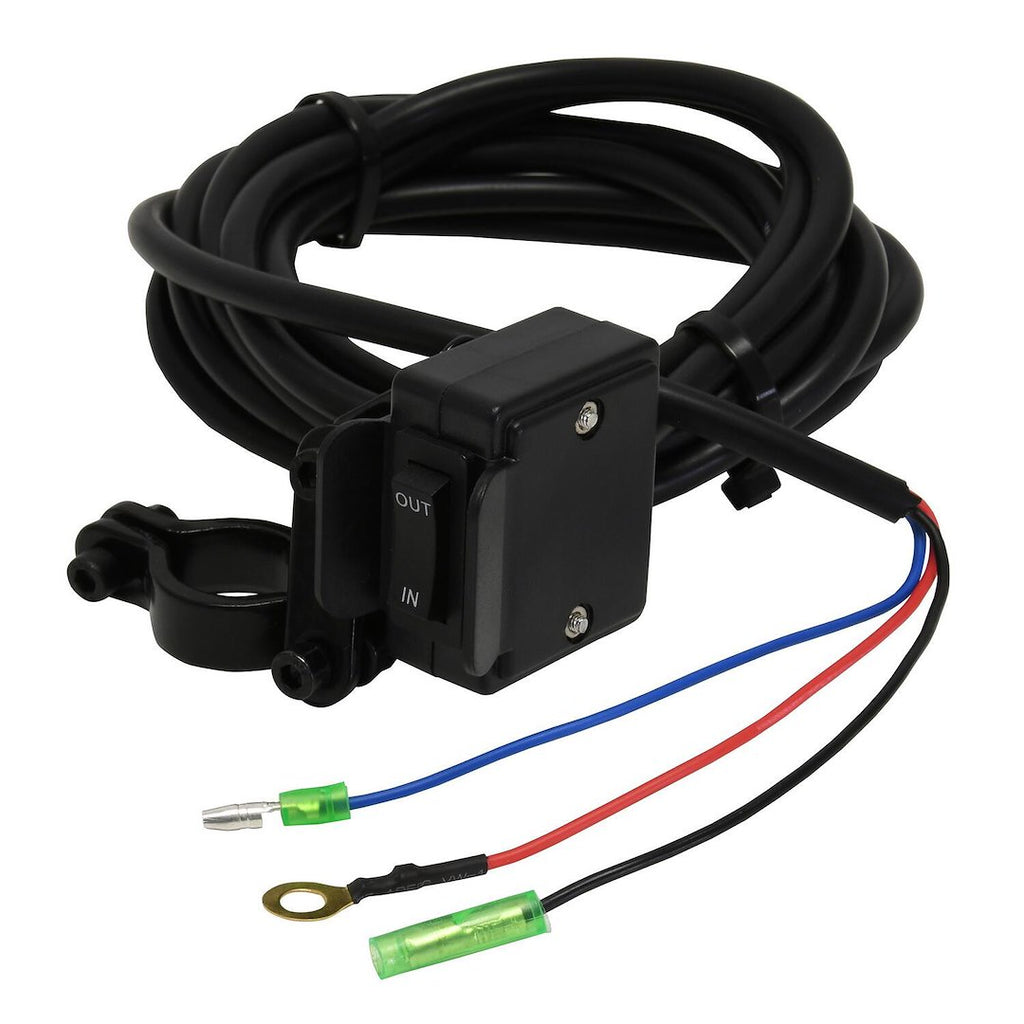

• 10 Feet Rugged Handheld Remote Control With Handlebar Mounted Rocker Switch

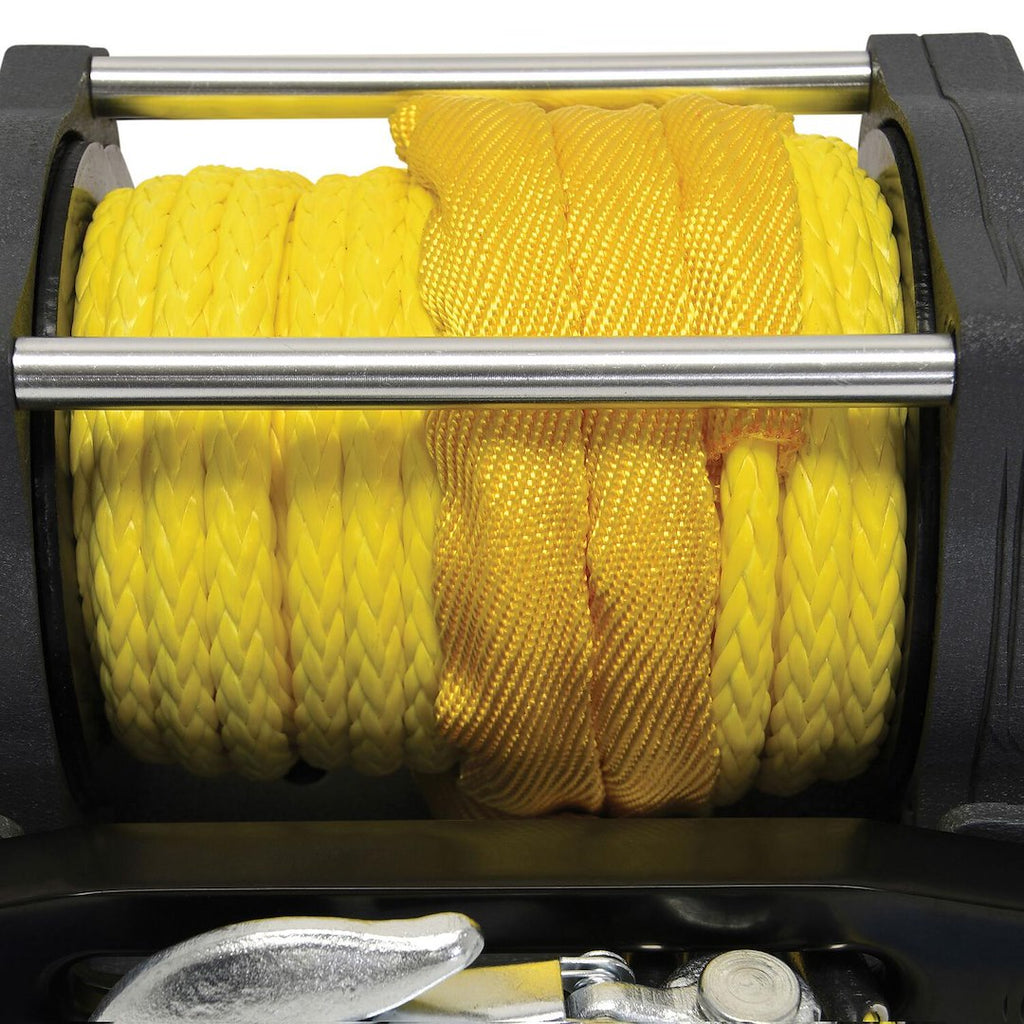

• Wide Drum Adds Rope Capacity

Specifications

• Manufacturer: Superwinch
• Manufacturer Part Number: 1145270
• Winch Rating: 4500 Pound
• Recommended Use: ATV/ UTV
• Operation Type: Electric
• Mount Type: Fixed Mount
• Voltage: 12 Volt
• Free Spooling: Yes
• Line Length (FT): 50 Feet
• Line Material: Synthetic
• Remote Type: Wired
• Universality: Fully Universal
• Includes Mounting Hardware: No
• Thermal Shutoff: No
• Fairlead Type: Hawse
• Electrical Control Type: Solenoid
• Drive Gear Type: Planetary
• Estimated Install Time (Hours): 2

Technical Documents

• 75-1125260-RevA.pdf
• 75-1125260-RevA.pdf
• Terra_Series_Winch_Service_Parts_RevB.pdf
• Terra_Series_Winch_Service_Parts_RevB.pdf
