High performance winch with 4500 pound capacity and advanced features.

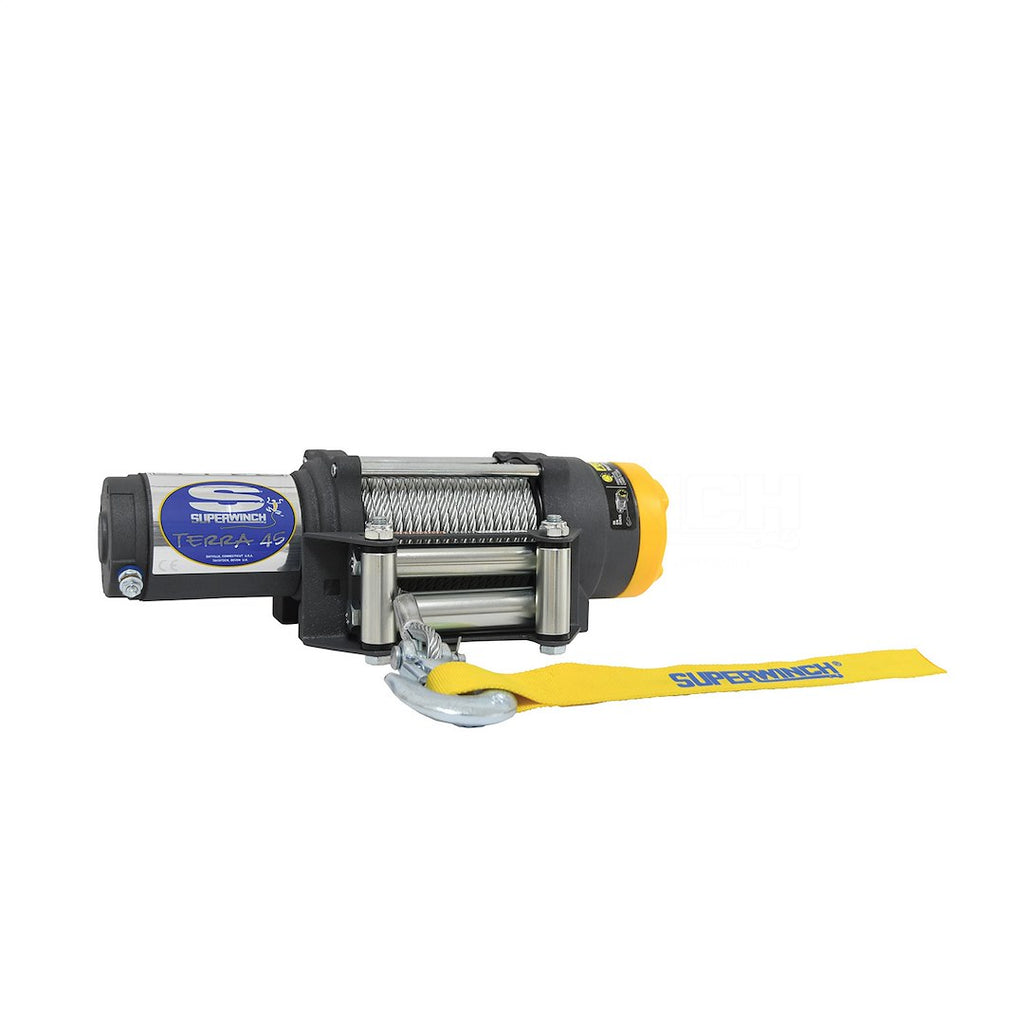

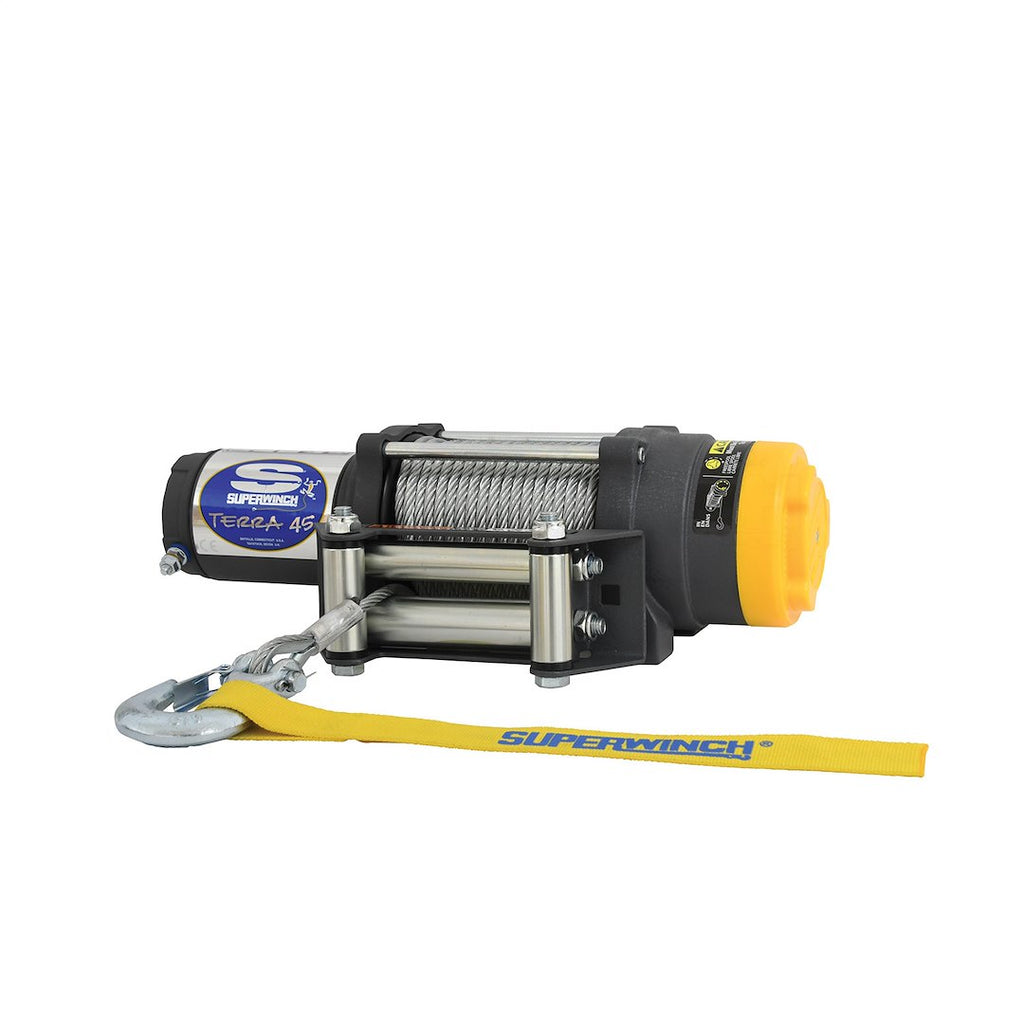

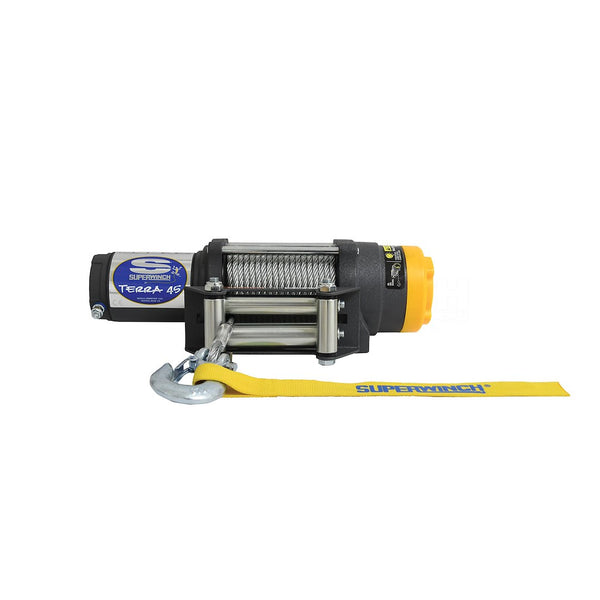

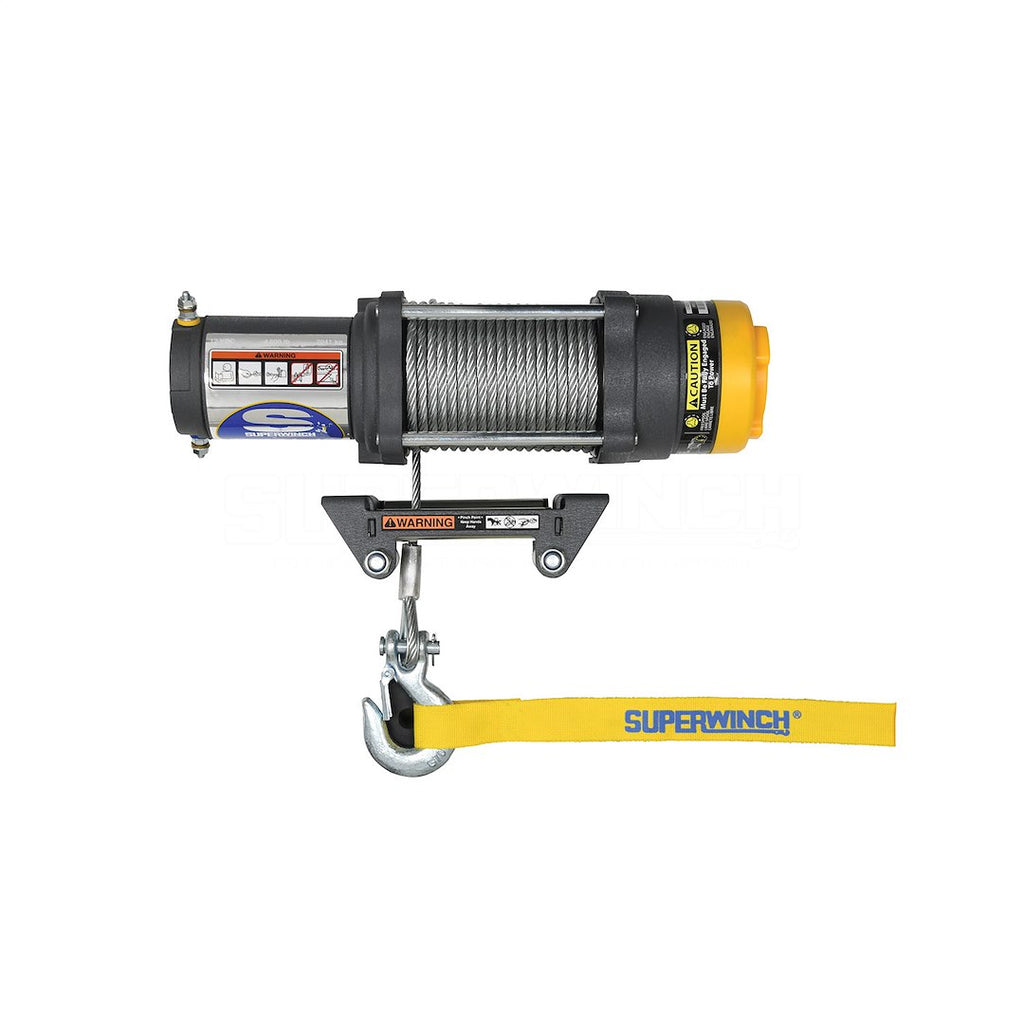

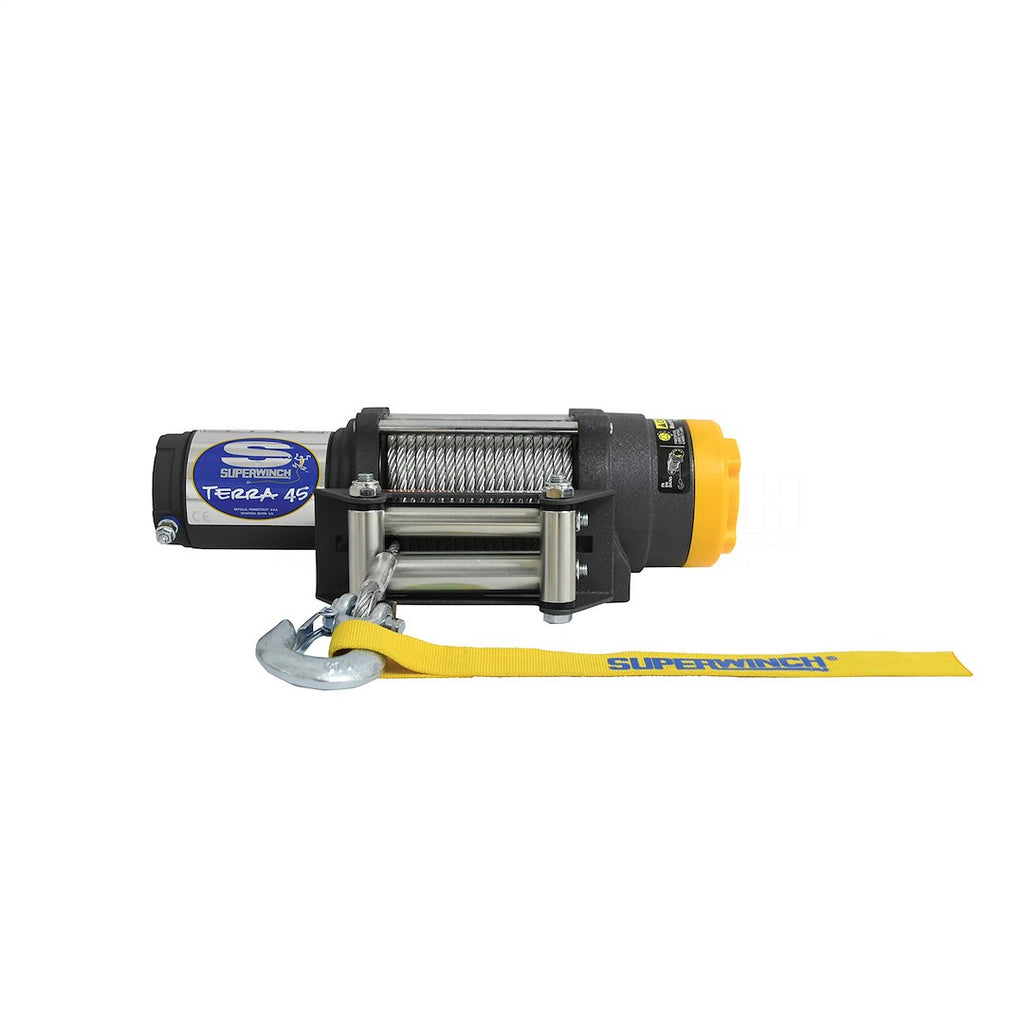

The Superwinch Terra is a robust vehicle mounted winch designed for ATV and UTV applications. Engineered in the USA, it combines exceptional value with high performance, featuring a powerful 12 Volt electric motor that delivers the highest horsepower and torque in its class. With a line pull capacity of 4500 pounds and a 55 foot steel wire rope, this winch is built to handle demanding conditions, including deep mud and water, while minimizing battery drain.
This winch is equipped with a sealed solenoid and circuit breaker protection, ensuring reliable operation in various environments. The ergonomic control clutch allows for free-spooling, making it easy to deploy the winch line. Additionally, the automatic load holding brake enhances safety during operation, while the heavy-duty clevis pinned latch hook provides secure attachment to loads.
The Superwinch Terra features a rugged planetary gear drive system, which is designed for durability and efficiency. With gears that are twice as wide as competitors, it offers superior torque and longevity. The winch also includes a 10 foot sealed hand-held remote for convenient control. Overall, the Superwinch Terra is a versatile and powerful tool for off-road enthusiasts.
Features
- The Highest Horsepower/Torque And Lowest Amperage Draw In The Industry, Pulls More Weight Longer And Faster In Deep Mud And Water, And Puts The Least Amount Of Drain On The Battery

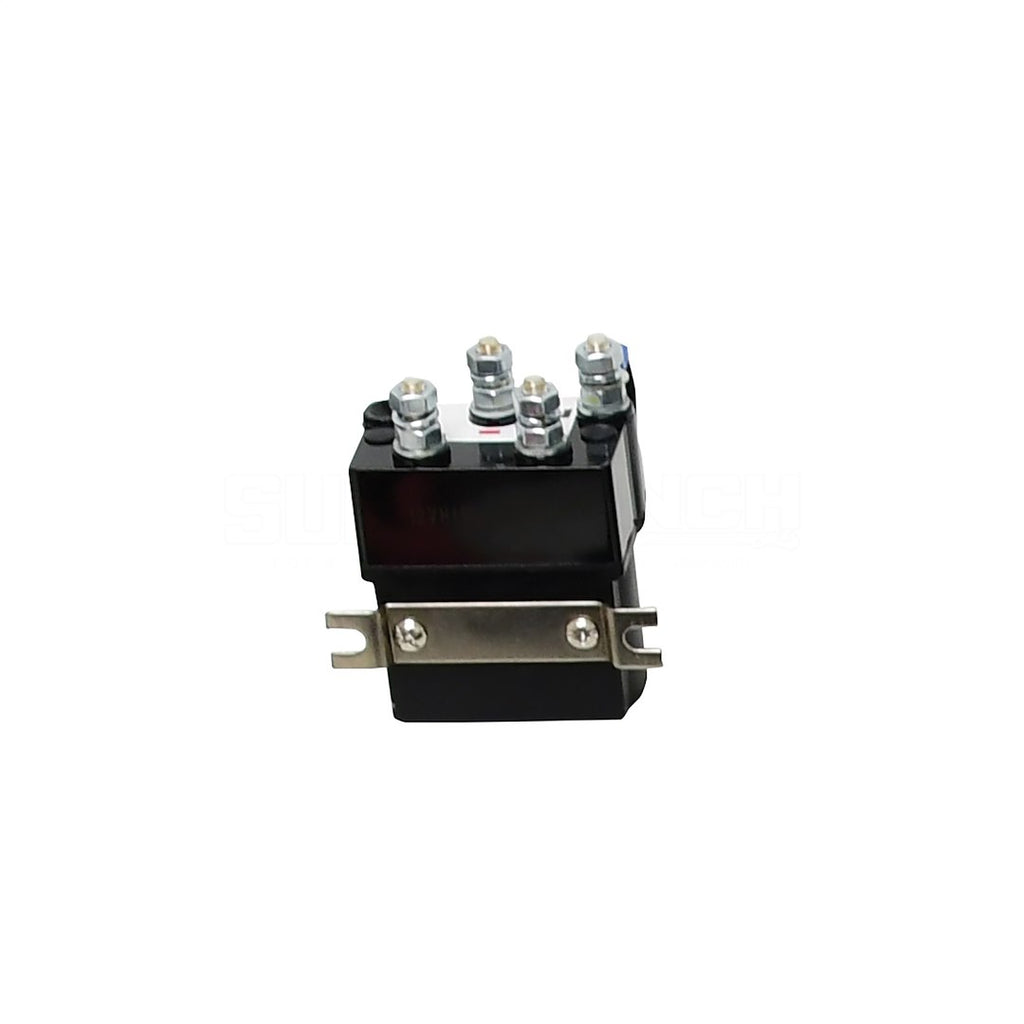

- Sealed And Circuit Breaker Protected Solenoid

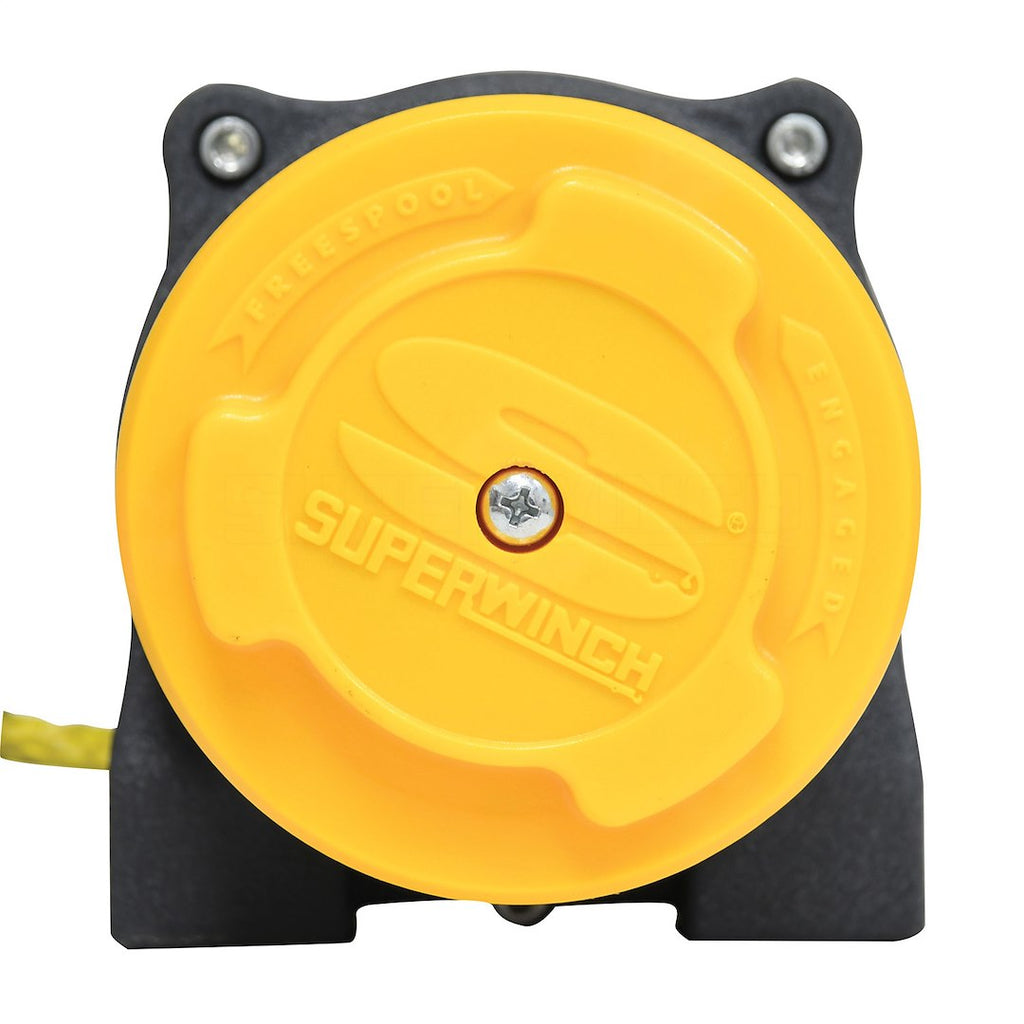

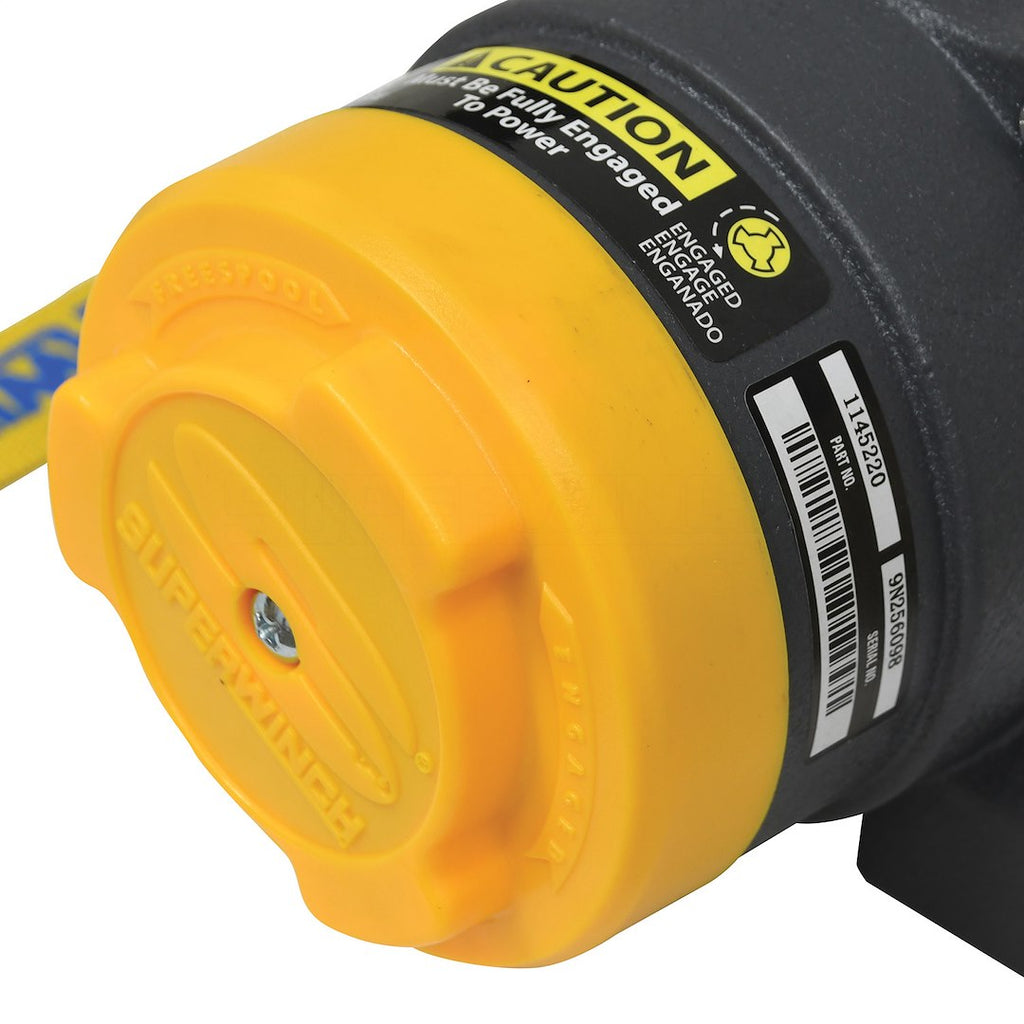

- Free-Spooling, Ergonomic Control Clutch
- Automatic 100 Percent Load Holding Brake
- Heavy-Duty, Clevis Pinned Latch Hook

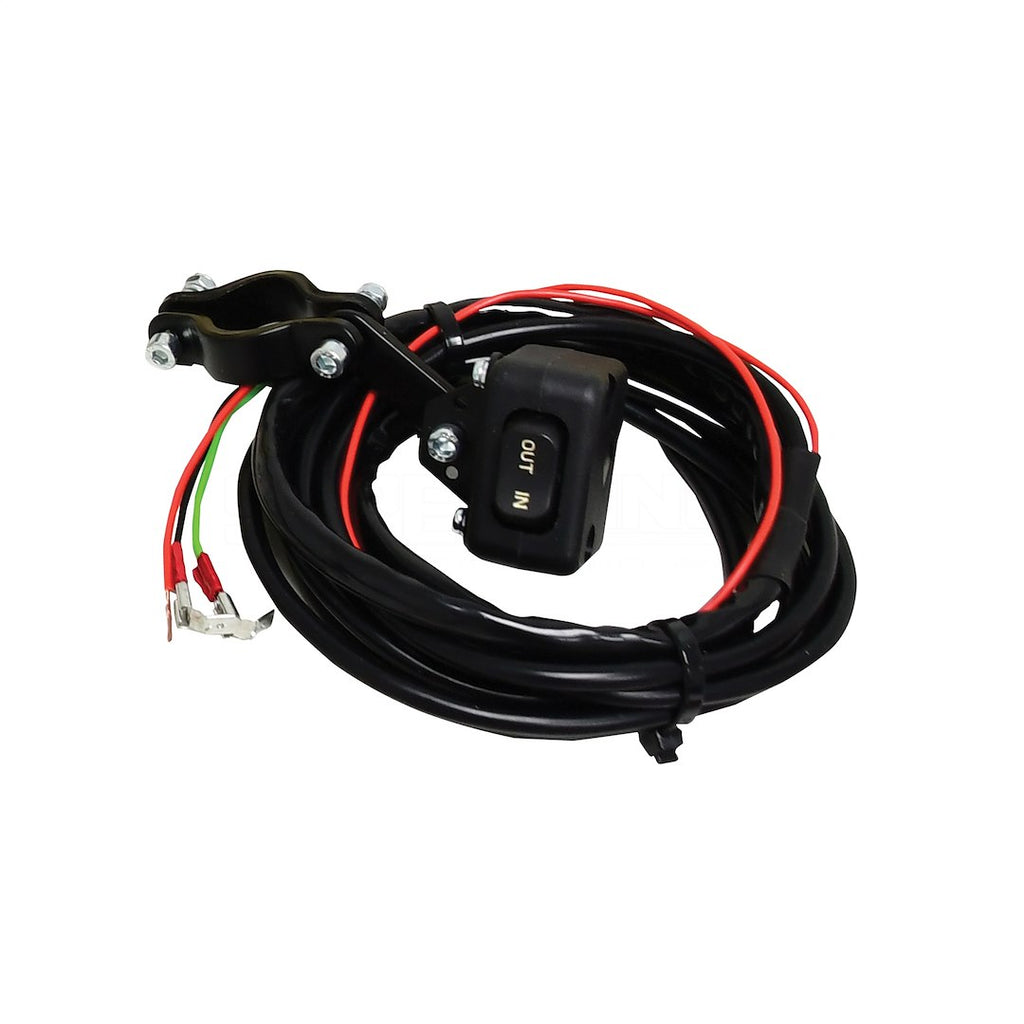

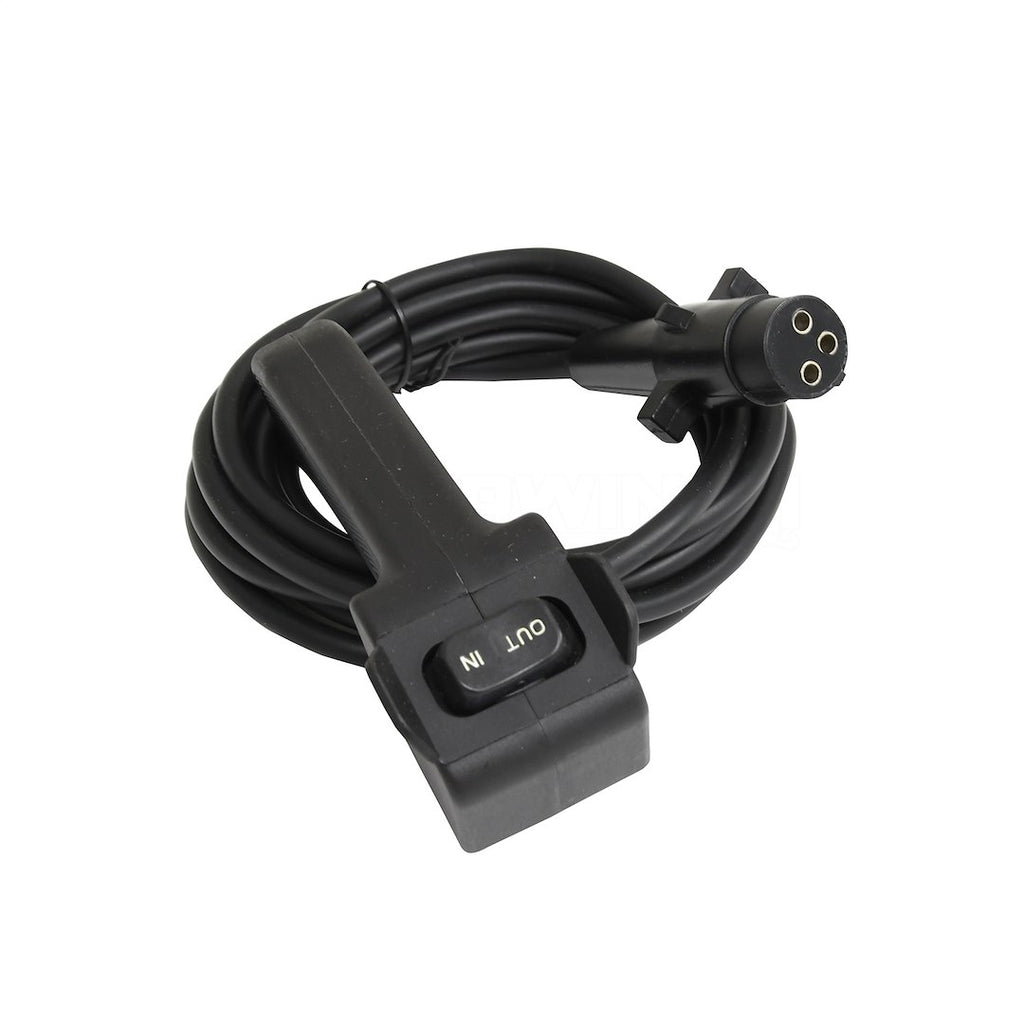

- 10 Foot Sealed Hand-Held Remote
Specifications
- Manufacturer: Superwinch
- Manufacturer Part Number: 1145220
- Winch Rating: 4500 Pound
- Recommended Use: ATV/ UTV
- Operation Type: Electric
- Mount Type: Fixed Mount
- Voltage: 12 Volt
- Free Spooling: Yes

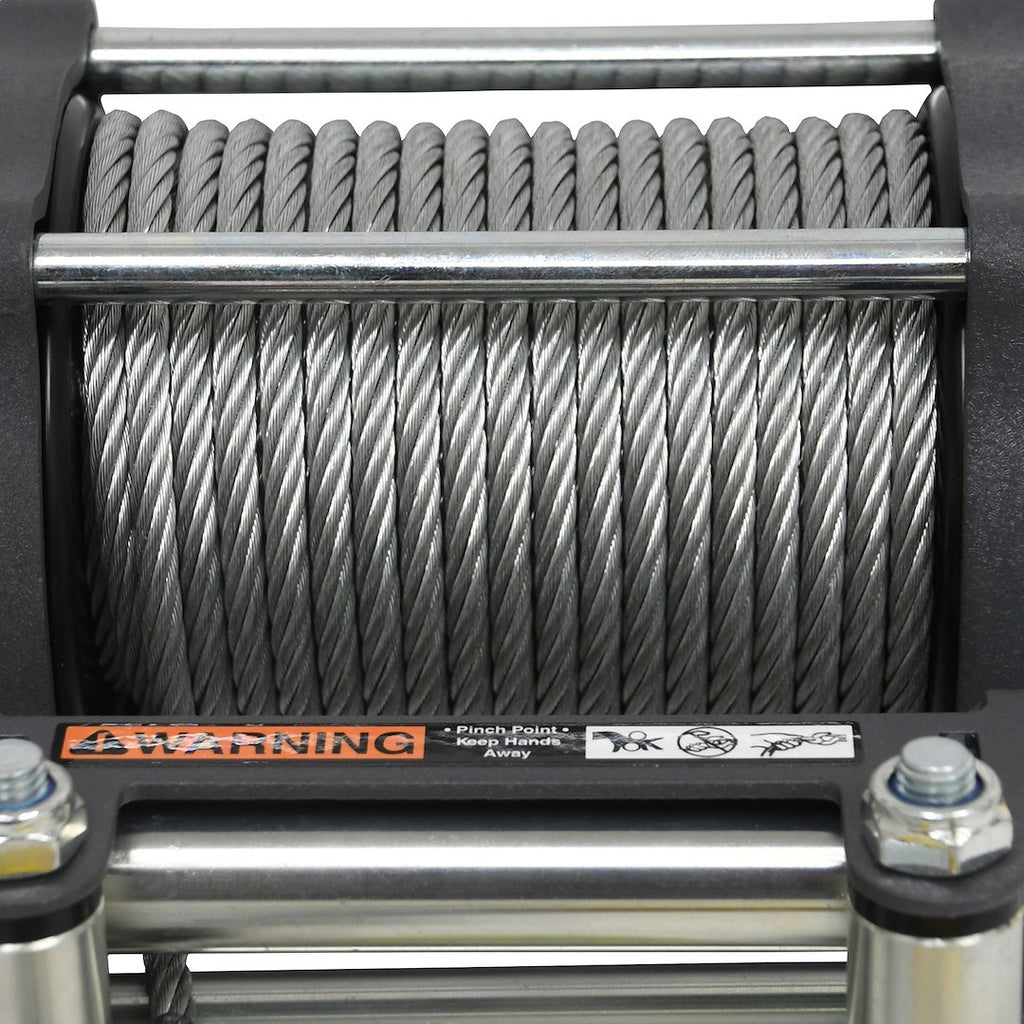

- Line Length (FT): 55 Feet
- Line Material: Steel
- Remote Type: Wired
- Universality: Fully Universal
- Mounting Pattern Size: 6.6 Inch Length X 3 Inch Width
- Brake Type: Dynamic
- Max Amp Draw: 178 Amp Draw At 4500 Pound
- Gear Reduction Ratio: 191:1

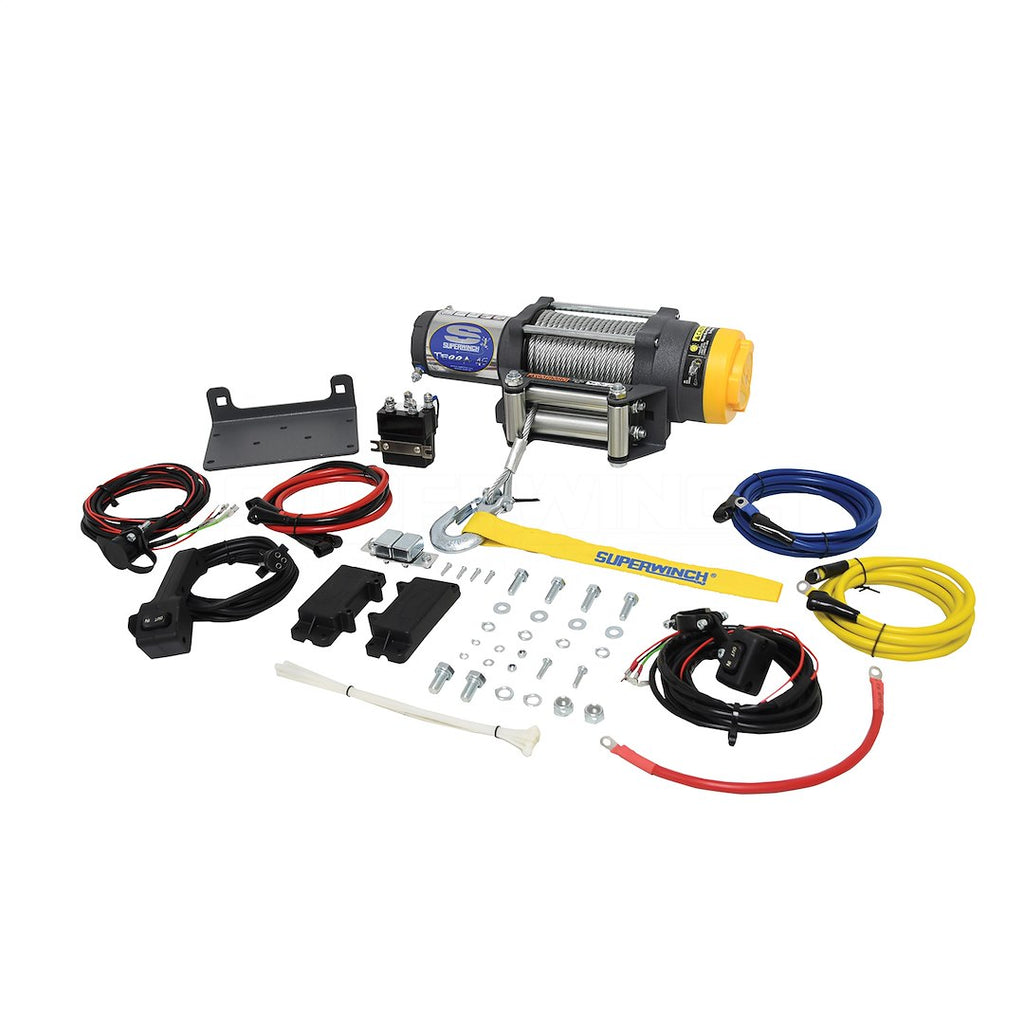

- Includes Mounting Hardware: Yes
- Thermal Shutoff: No
- Color: Gray
- Motor Horsepower: 1.6 Horsepower
- Fairlead Type: Roller
- Line Speed At Max Pull: 4.5 Feet Per Minute At 4500 Pound
- Electrical Control Type: Solenoid With Circuit Breaker Protection

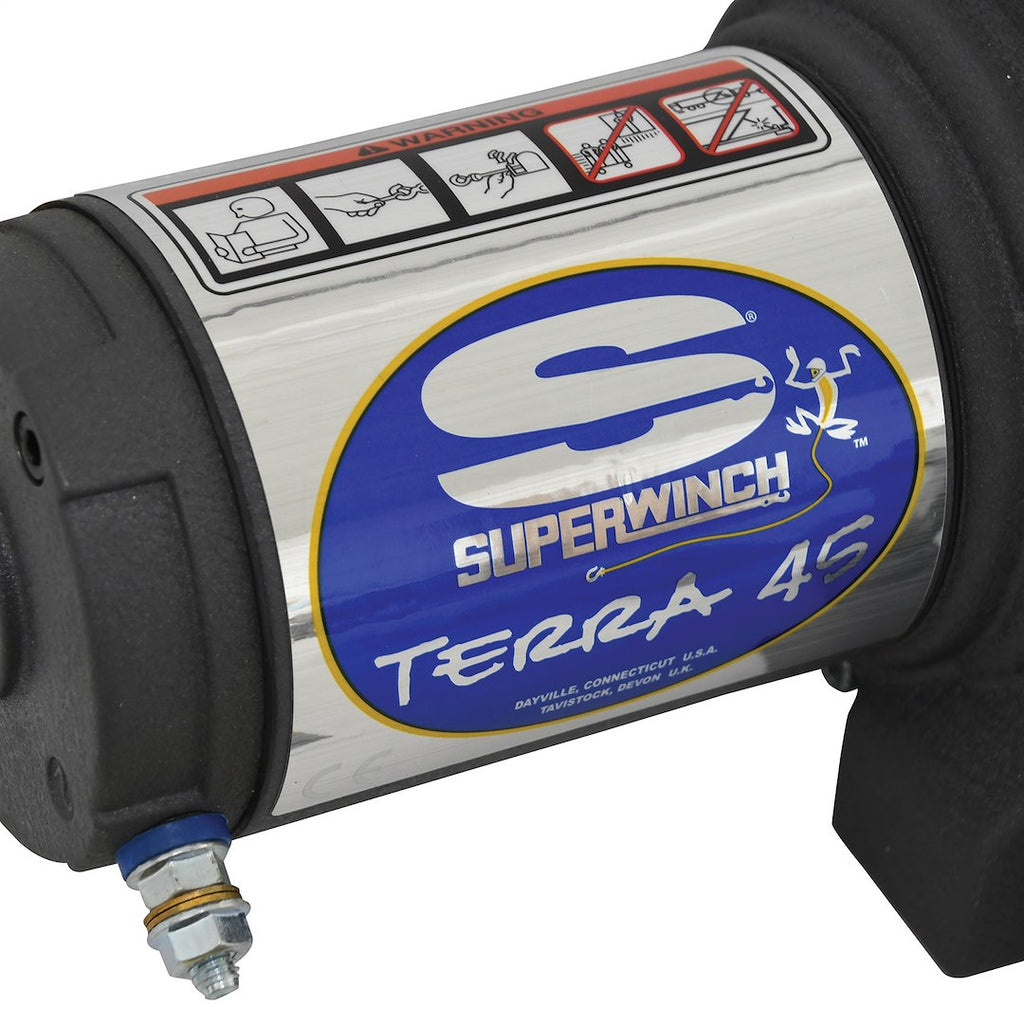

- Motor Type: Permanent Magnet
- Drive Gear Type: Planetary
- Line Diameter (IN): 1/4 Inch
- Mounting Hole Quantity: 4
- Drum Material: Steel
- Estimated Install Time (Hours): 2
