Robust 1000 Pound Capacity Electric Winch for Industrial Use

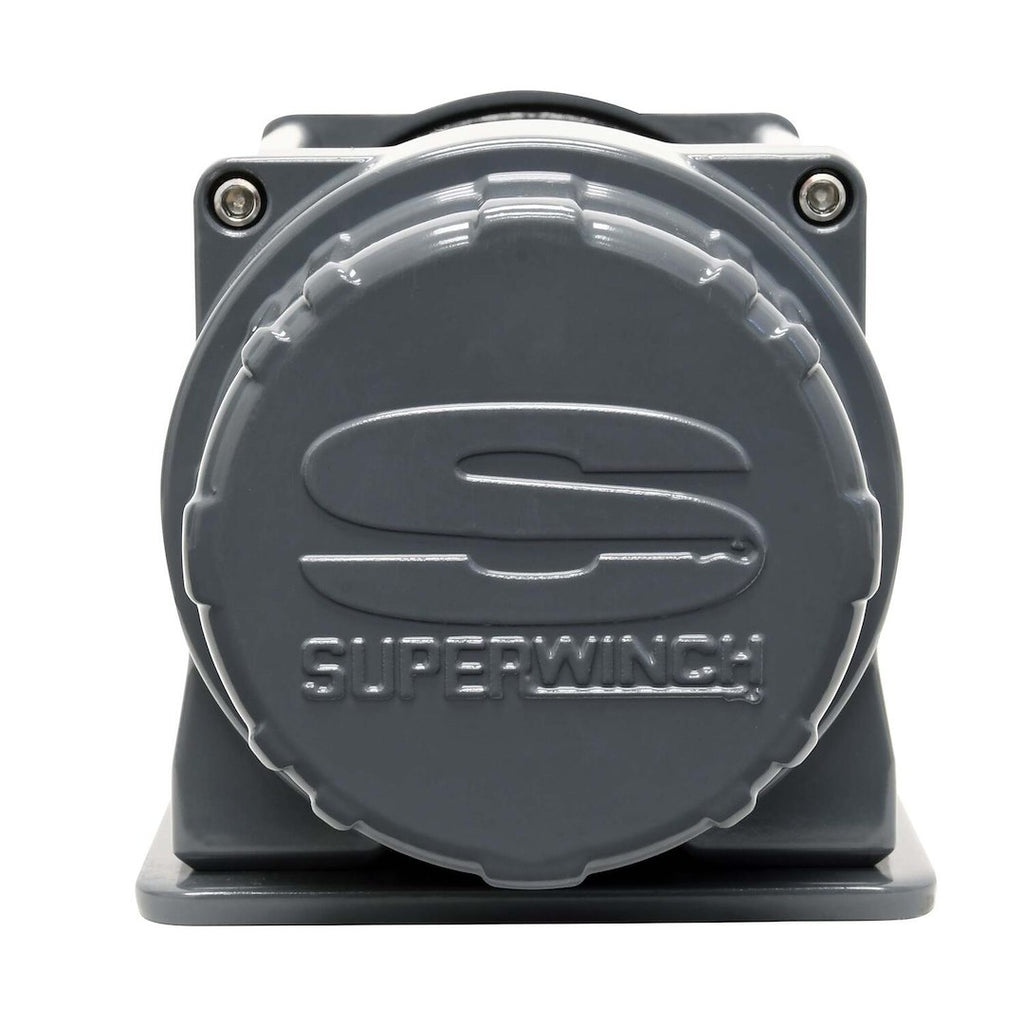

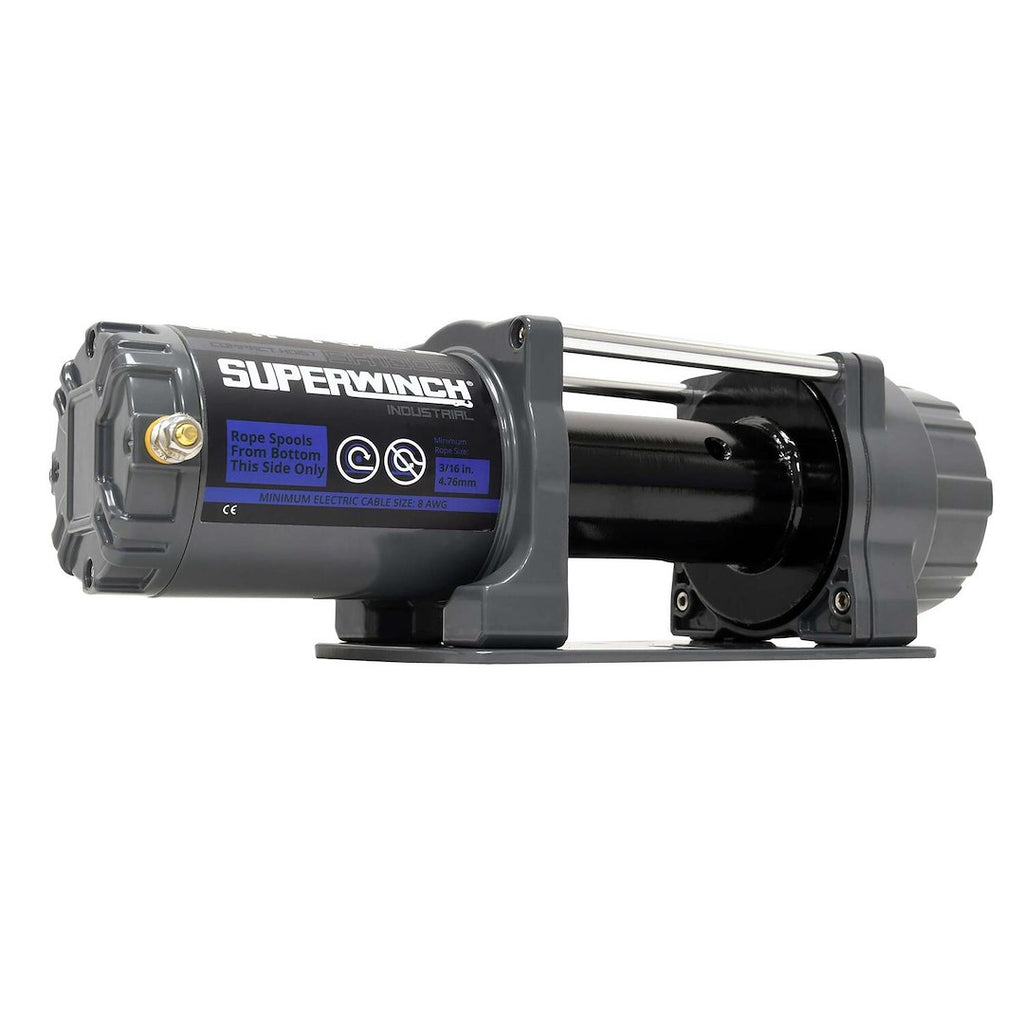

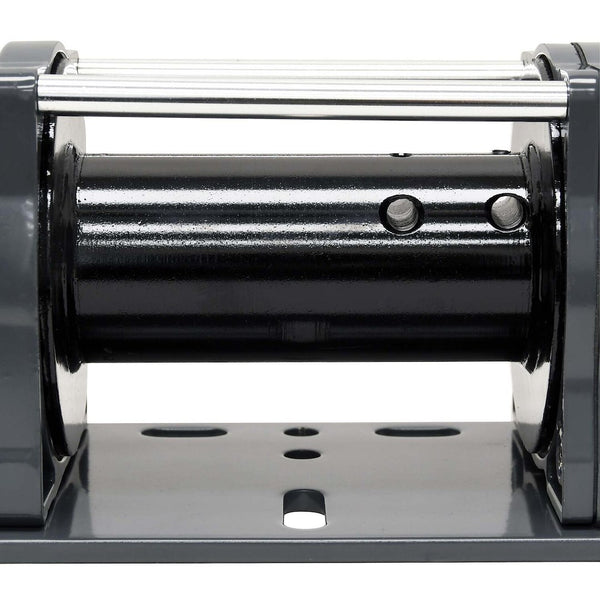

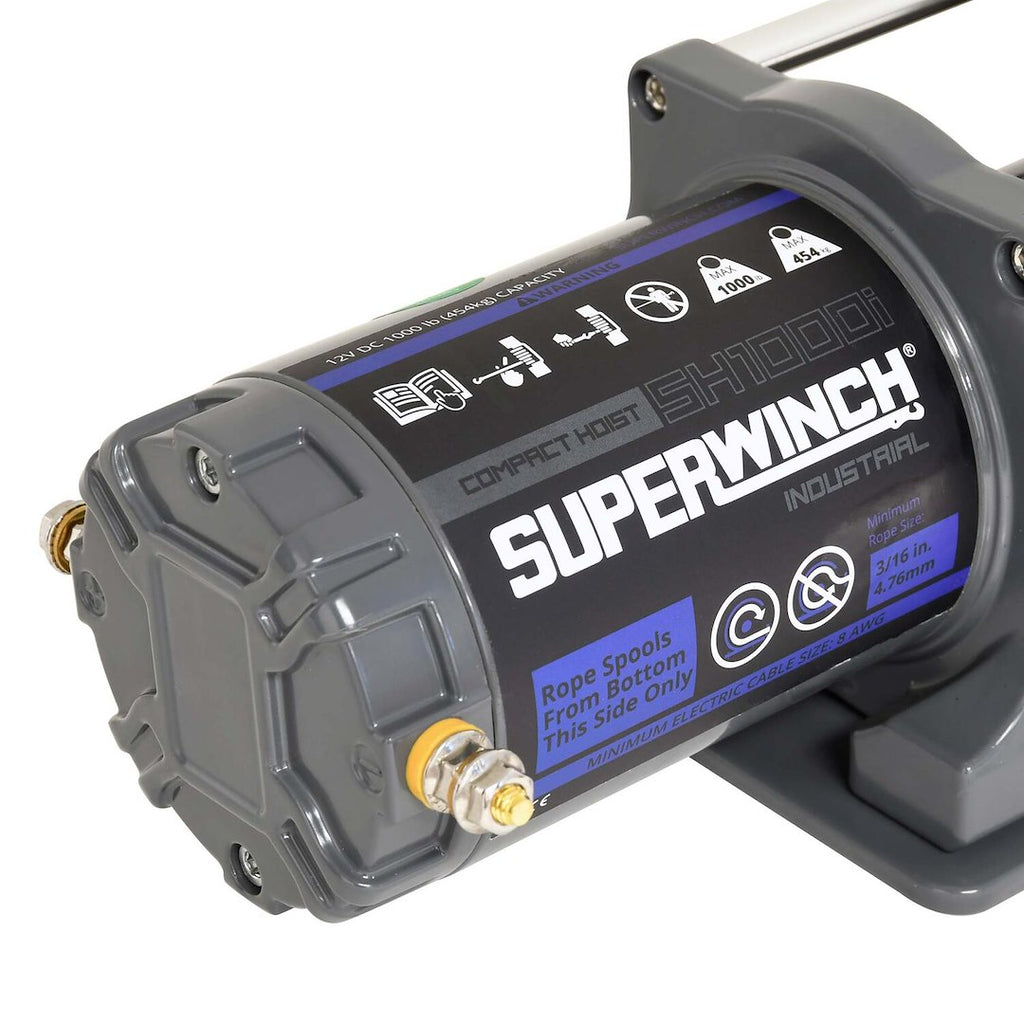

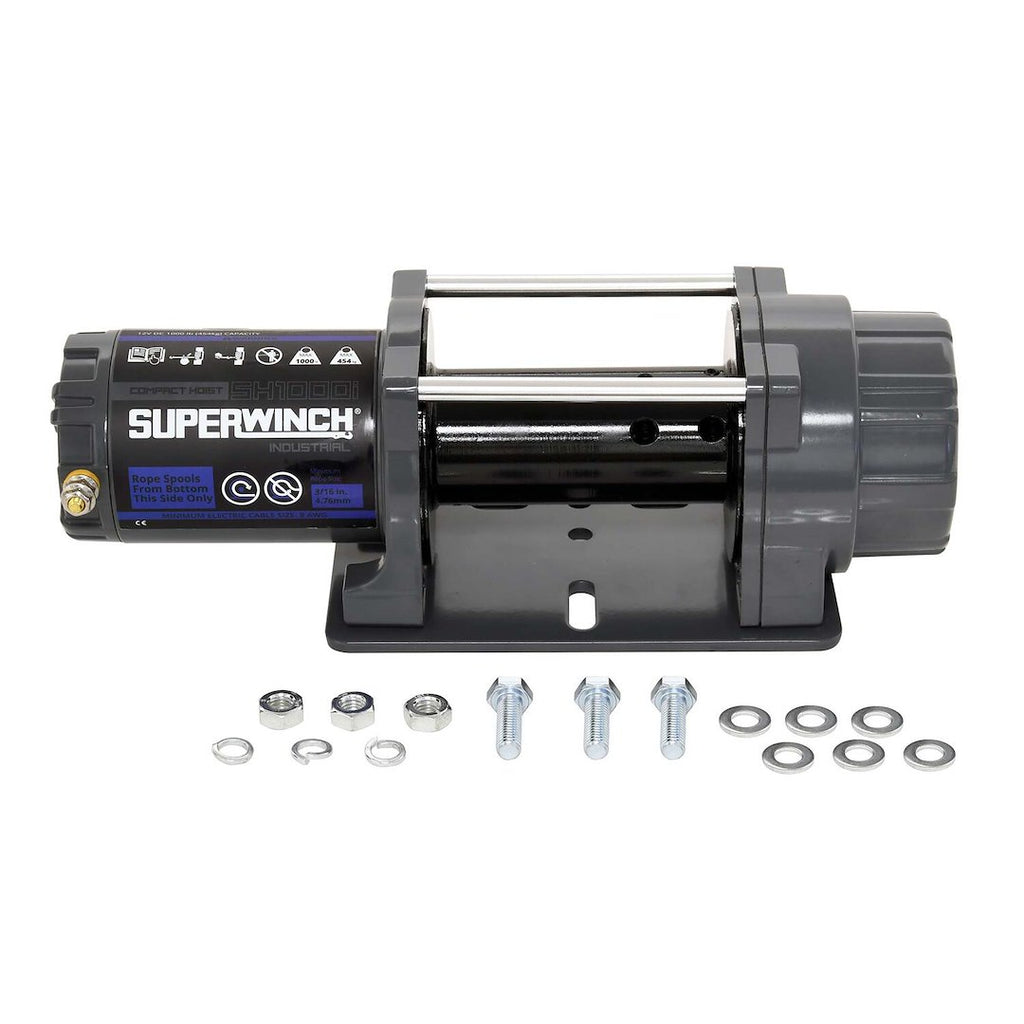

The Superwinch Electric Hoist SH1000i is engineered for industrial applications, providing a reliable solution for lifting and holding loads up to 1000 pounds. This winch operates on a 12 Volt DC power source, making it versatile for various settings where a battery is available. The unit features a powerful 1.8 horsepower motor and a 3-stage planetary gearing system with a 138:1 gear reduction ratio, ensuring efficient operation and control during lifting tasks.
Designed with durability in mind, the SH1000i is constructed from steel and finished with a powder coating in gray, offering protection against wear and environmental factors. The winch includes a standard drum and a 4:1 safety factor, providing peace of mind during operation. With an IP66 rating, it is protected against dust and water ingress, making it suitable for challenging work environments.
The Superwinch Electric Hoist is equipped with a permanent magnetic motor that provides dynamic braking, enhancing safety during use. It features a fixed mount with a 2-hole mounting bolt pattern for easy installation. This winch is fully universal, making it adaptable for a wide range of applications, from DIY projects to professional construction tasks.
Features
- 1,000 Pound Capacity
- Permanent Magnetic Motor Provides Dynamic Breaking
- 3-Stage Planetary Gearing With 138:1 Ratio

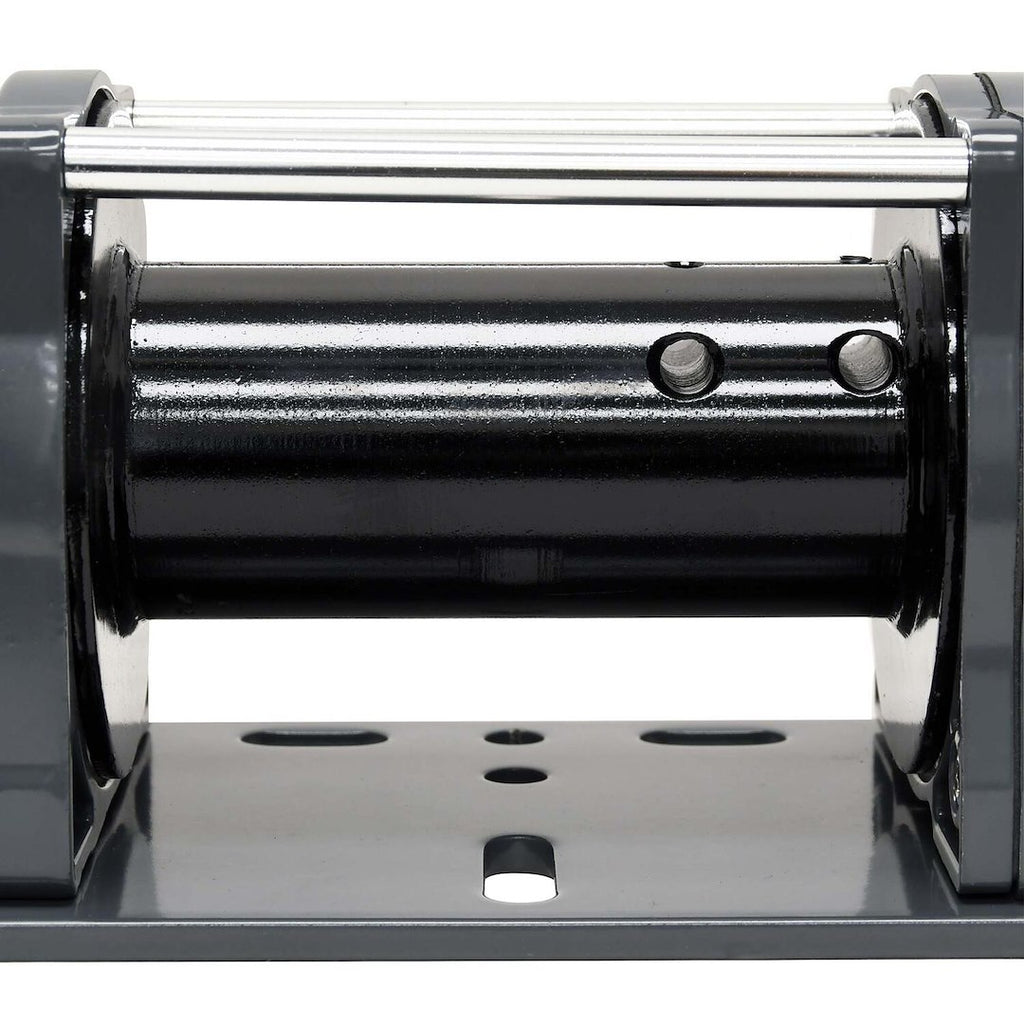

- Standard Drum
- 4:1 Safety Factor
- IP66 Protection From Water And Dust

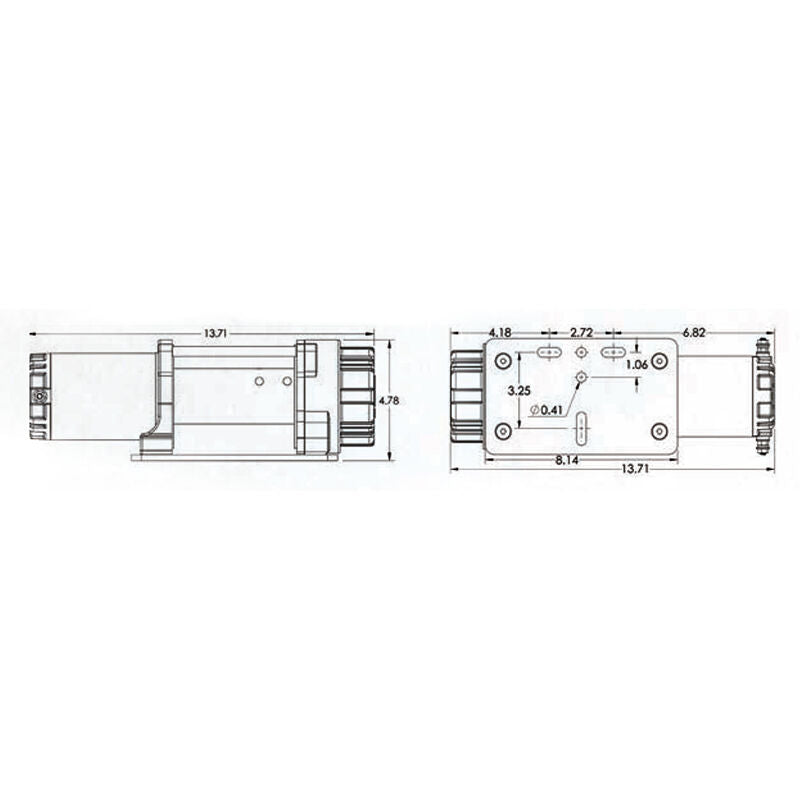

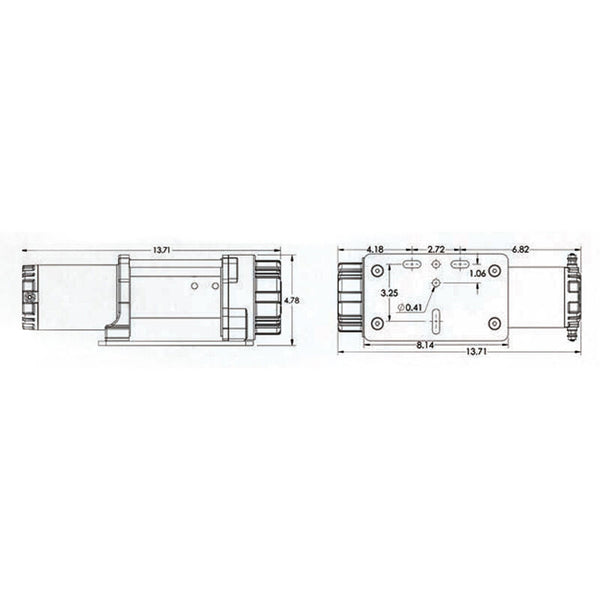

- 2-Hole Mounting Bolt Pattern 3.1 Inch On Center
Specifications
- Manufacturer: Superwinch
- Manufacturer Part Number: S104103
- Winch Rating: 1000 Pound
- Recommended Use: Industrial
- Operation Type: Electric
- Mount Type: Fixed Mount
- Voltage: 12 Volt
- Free Spooling: No
- Line Length (FT): Without Rope
- Line Material: Without Rope
- Remote Type: Without Remote
- Universality: Fully Universal
- Brake Type: Automatic Disc

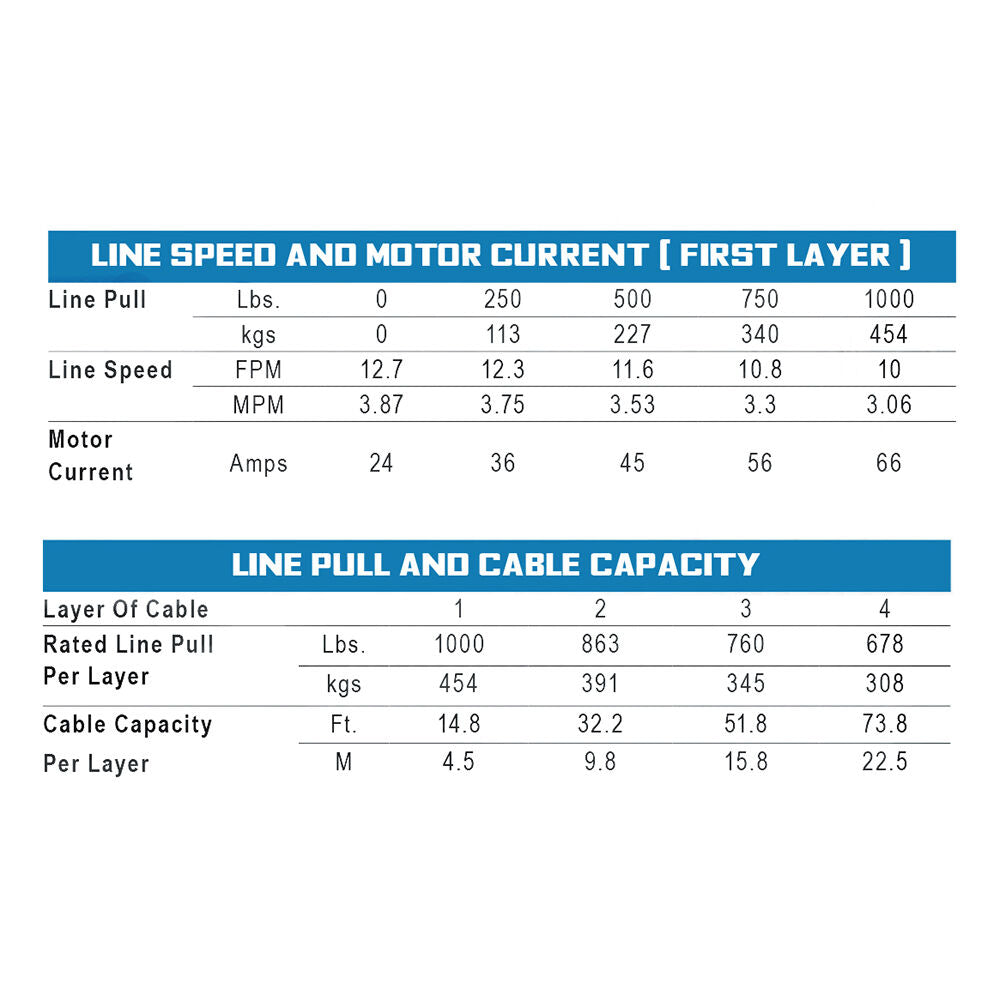

- Max Amp Draw: 66 Amp Draw At 1000 Pound
- Gear Reduction Ratio: 198:1

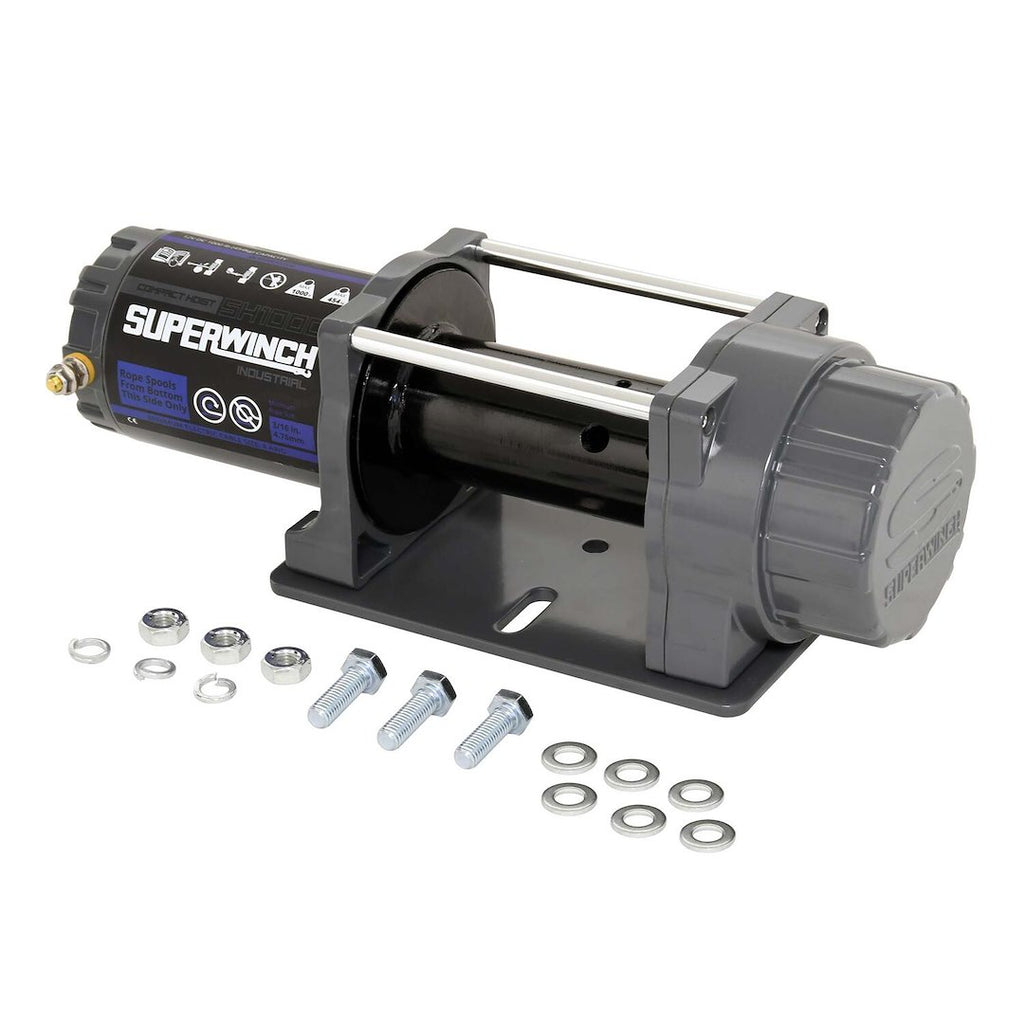

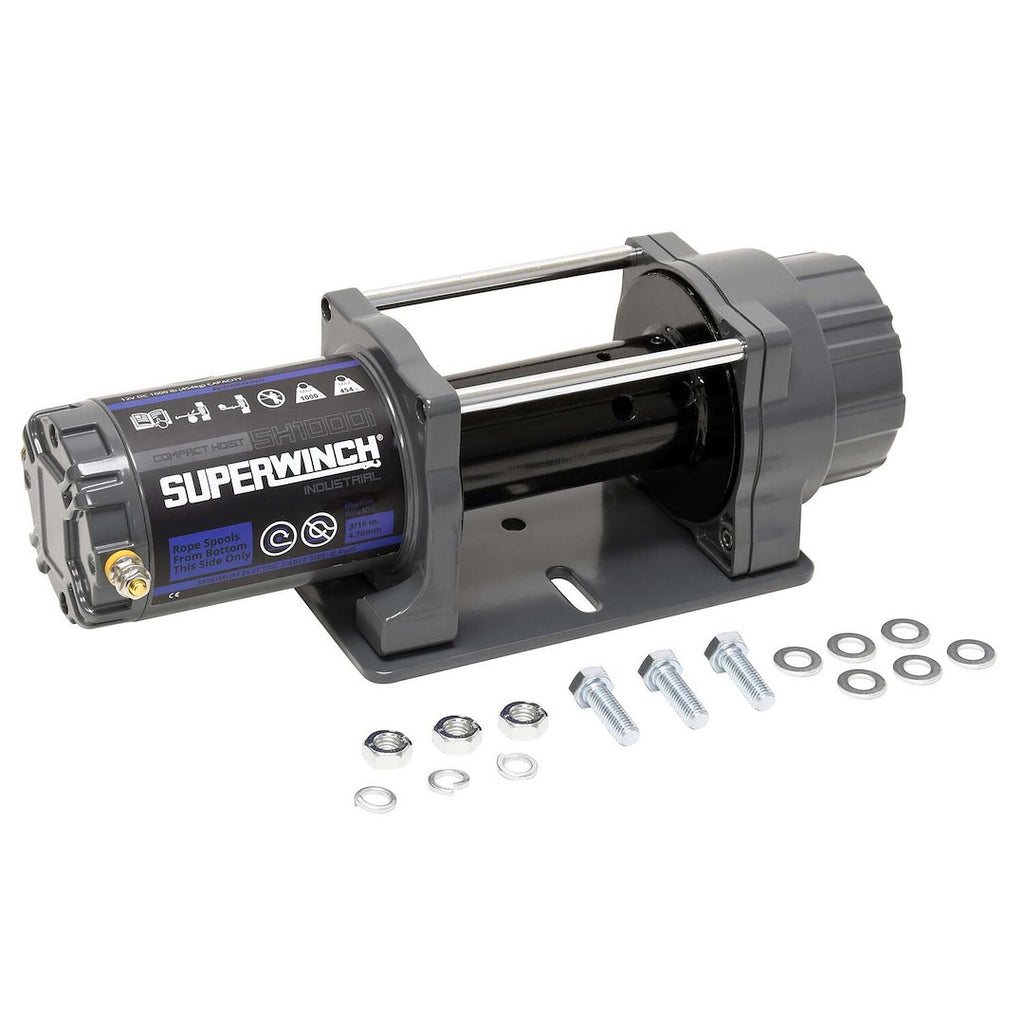

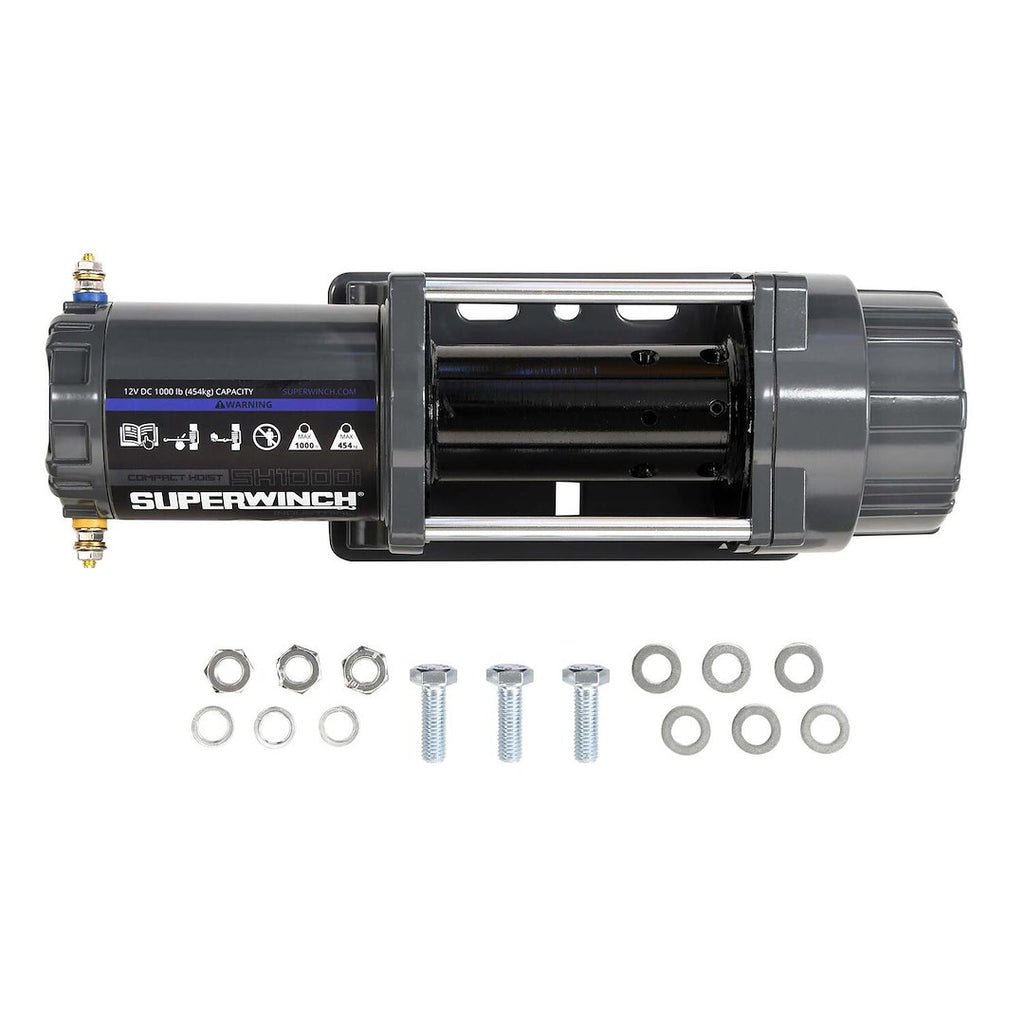

- Includes Mounting Hardware: Yes
- Thermal Shutoff: No
- Color: Black
- Motor Horsepower: 1.8 Horsepower
- Fairlead Type: Roller
- Line Speed At Max Pull: 10 Feet Per Minute At 1000 Pound
- Motor Type: Permanent Magnet
- Drive Gear Type: Planetary
- Line Diameter (IN): Without Rope
- Estimated Install Time (Hours): 2
