Superlift Lift Kit Suspension (MPN: 3800B)

Enhance your vehicle's performance with a 3.5 inch lift kit featuring durable components.

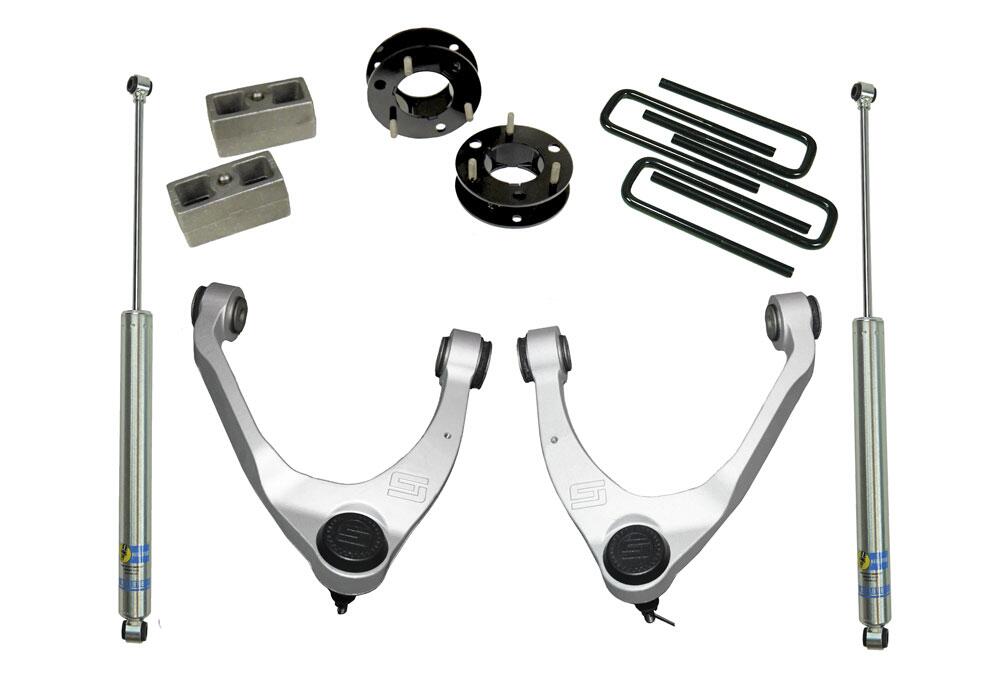

The Superlift Lift Kit Suspension offers a comprehensive solution for elevating your vehicle by 3.5 inches in both the front and rear. This kit is designed with high-quality materials to ensure durability and performance, featuring heavy-duty upper control arms made from die-formed high tensile solid steel for superior strength. The innovative design allows for zero cutting or trimming of the crossmembers, maintaining factory alignment specifications while enabling the use of factory wheels without the need for wheel spacers.

Included in the kit are CNC machined differential drop brackets that help maintain proper CV axle angles, along with a CNC formed belly skid pan that protects the differential from various hazards encountered on and off-road. The installation process is straightforward, requiring no modifications to the stock exhaust and allowing for a simple bolt-on setup. Additionally, the front OE splash shield can be retained, providing clearance for larger 33-inch diameter tires without the need for fender trimming.

This lift kit is equipped with Bilstein 1500 rear shock absorbers, ensuring optimal performance and ride quality. The combination of strut spacers and rear lift blocks with U-bolts provides a balanced lift, enhancing both aesthetics and functionality. The Superlift Lift Kit is engineered to meet the demands of off-road enthusiasts while maintaining the integrity of the vehicle's original design.

Features

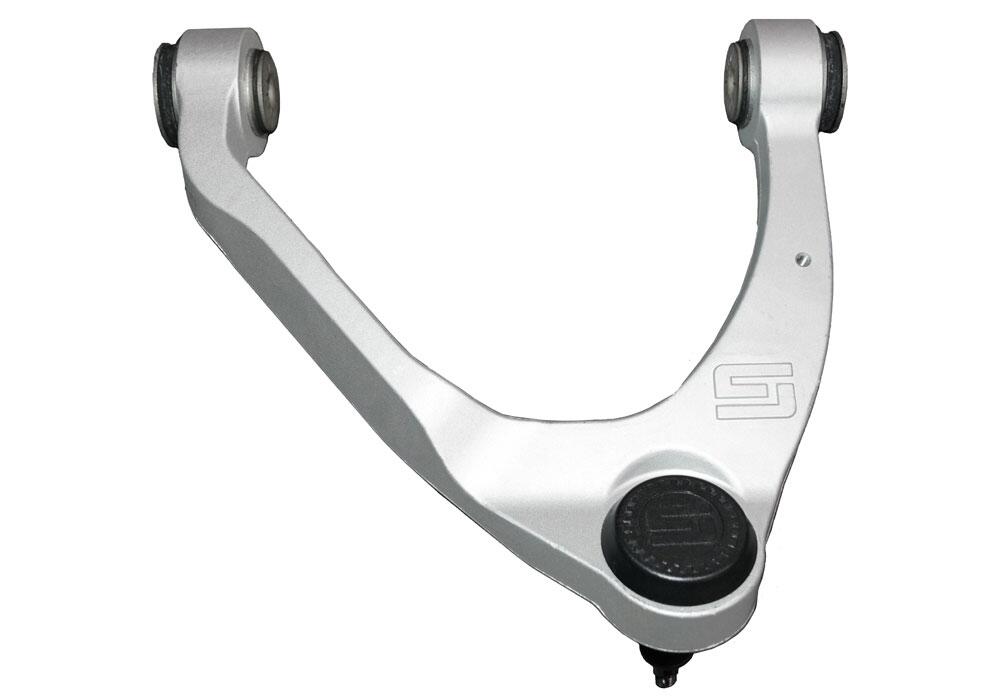

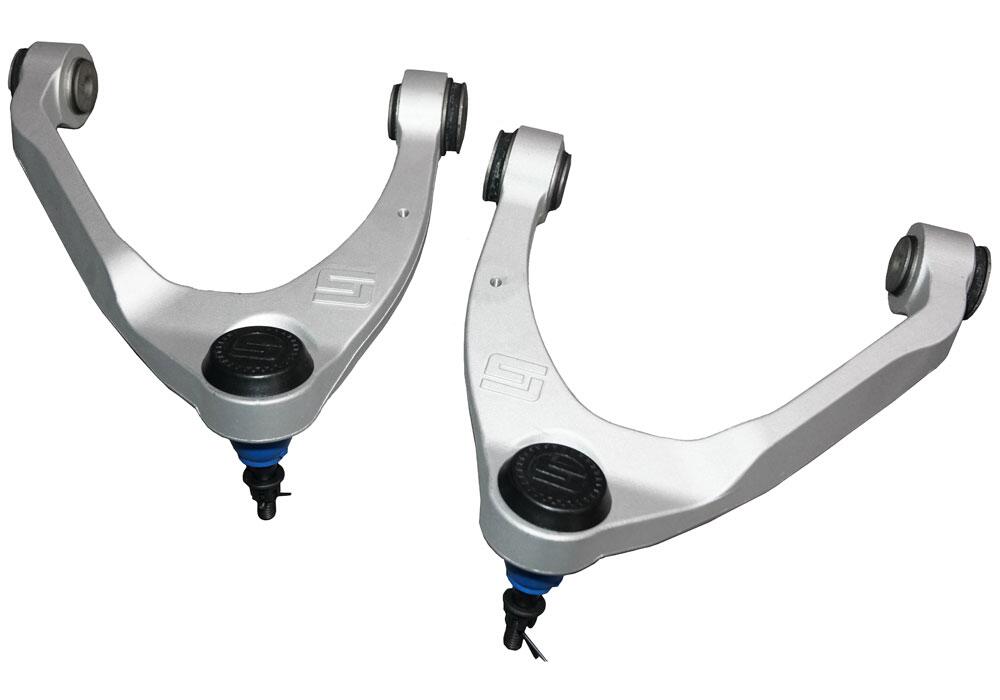

• Superlift's Heavy-Duty Upper Control Arms (uca) Are Engineered For Superior Strength And Durability With Die-Formed High Tensile Solid Steel Rod Material For Precision Fitment
• Uca Solid Rod Design Is Reinforced With Gussets At The Bump-Stop Position And At The Sturdy Ball Joint Cup
• Cnc Machined Ball Joint Socket And Bushing Eye Ring For A Precise Fit, Zero Cutting Of The Rear Crossmember
• Cnc Machined Billet Aluminum Differential Drop Brackets To Maintain Proper Cv Axle Angles (2wd Models Do Not Utilize The Differential Components)
• Cnc Formed Belly Skid Pan Protects The Differential From On And Off-Road Hazards
• Laser Cut & Precision Conformed Top Strut Mount Strut Spacers Add Lift Height
• Rear Lift Is Achieved With Block & U-Bolt Kit
• Requires No Modification To The Stock Exhaust And A Simple And Super-Ez Bolt-On Installation
• Front Oe "splash Shield" Is Able To Be Maintained And Adds Clearance For 33 Inch Diameter Tires Without Fender Trimming

Specifications

• Manufacturer: Superlift
• Manufacturer Part Number: 3800B
• Front Lift Amount (IN): 3-1/2 Inch
• Rear Lift Amount (IN): 3-1/2 Inch
• Maximum Tire Size: 33 x 18
• Front Lift Type: Strut Assembly Spacer
• Rear Lift Type: Blocks
• Shock Type: Gas Charged
• Minimum Wheel Diameter: 18
• Shocks: With Bilstein 1500 Rear Shock Absorbers In Kit - Front Shock Change Not Necessary
• Color: Black Components/ Silver Shocks

Compatibility / Fit

• 2014-2018 Chevrolet Silverado 1500
• 2019-2019 Chevrolet Silverado 1500 LD- Old Model
• 2014-2018 GMC Sierra 1500
• 2019-2019 GMC Sierra 1500 Limited- Old Model
