Superlift Lift Kit Suspension (MPN: 3600B)

Enhance your vehicle's performance with a 3.5 inch lift kit.

The Superlift Lift Kit Suspension offers a comprehensive solution for those looking to elevate their vehicle's height and performance. This kit provides a 3.5 inch lift in both the front and rear, utilizing high-quality components designed for durability and strength. Notably, the installation process requires no cutting or trimming of the crossmembers, allowing for a straightforward bolt-on installation that retains factory specifications for caster and camber alignment.

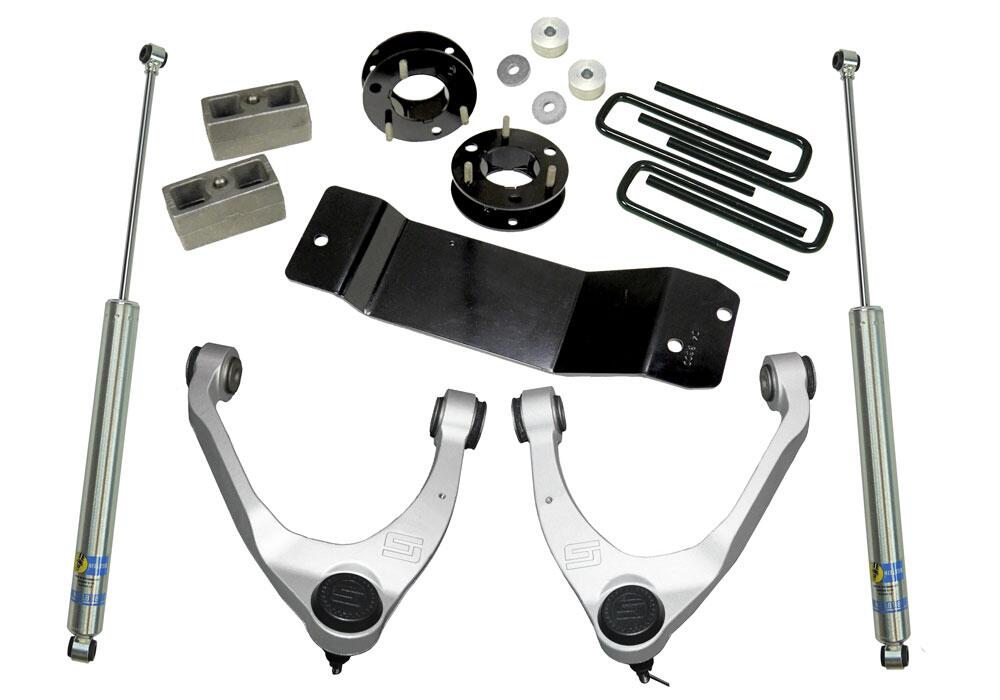

Included in the kit are heavy-duty upper control arms made from die-formed high tensile solid steel, ensuring a precise fit and superior strength. The CNC machined ball joint socket and bushing eye ring contribute to a secure fit, while the differential drop brackets maintain proper CV axle angles. The kit also features a CNC formed belly skid pan that protects the differential from potential hazards encountered on and off-road.

With the ability to maintain the factory splash shield and accommodate 33 inch diameter tires without the need for fender trimming, this lift kit is engineered for both functionality and performance. The rear lift is achieved through a block and U-bolt kit, and the inclusion of Bilstein 1500 rear shock absorbers ensures optimal ride quality without the need for front shock changes.

Features

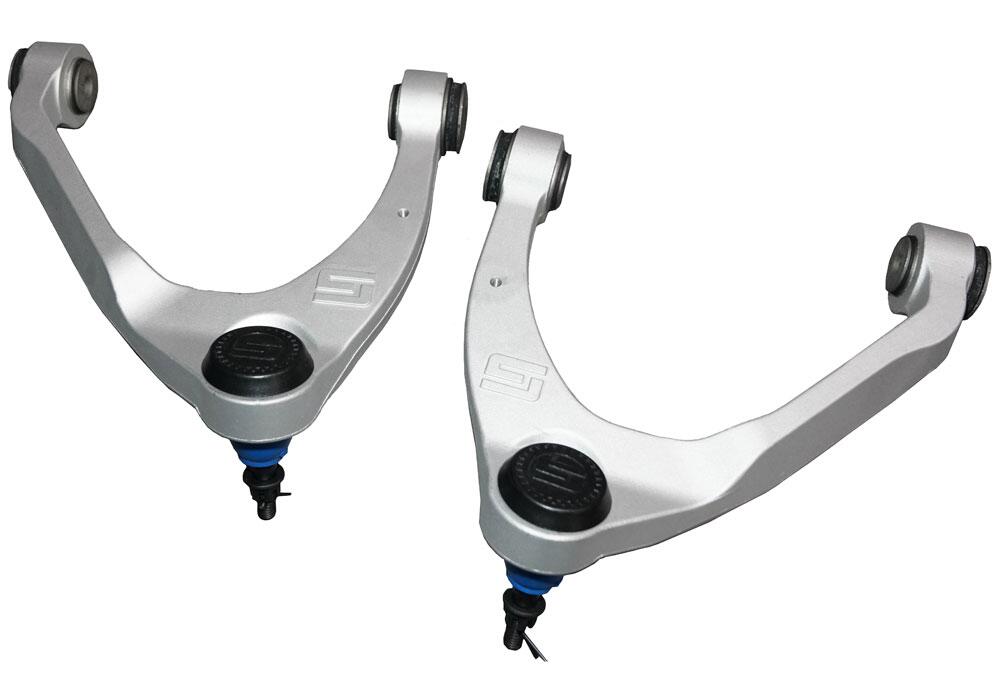

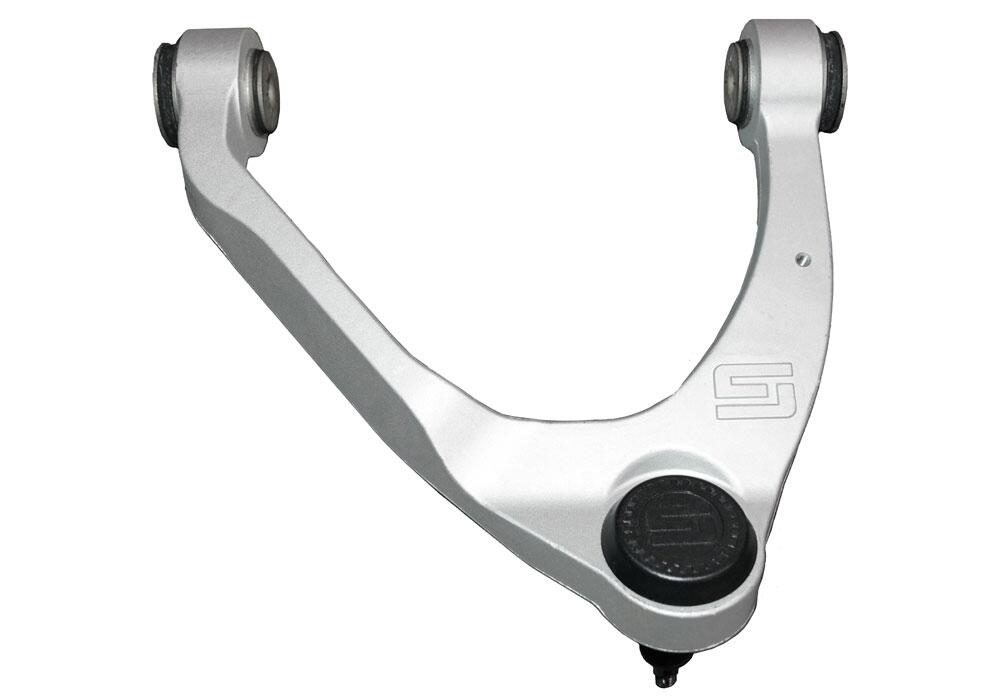

• Superlift's Heavy-Duty Upper Control Arms (uca) Are Engineered For Superior Strength And Durability With Die-Formed High Tensile Solid Steel Rod Material For Precision Fitment
• Uca Solid Rod Design Is Reinforced With Gussets At The Bump-Stop Position And At The Sturdy Ball Joint Cup
• Cnc Machined Ball Joint Socket And Bushing Eye Ring For A Precise Fit, Zero Cutting Of The Rear Crossmember
• Cnc Machined Billet Aluminum Differential Drop Brackets To Maintain Proper Cv Axle Angles (2wd Models Do Not Utilize The Differential Components)
• Cnc Formed Belly Skid Pan Protects The Differential From On And Off-Road Hazards
• Laser Cut & Precision Conformed Top Strut Mount Strut Spacers Add Lift Height
• Rear Lift Is Achieved With Block & U-Bolt Kit
• Requires No Modification To The Stock Exhaust And A Simple And Super-Ez Bolt-On Installation
• Front Oe "splash Shield" Is Able To Be Maintained And Adds Clearance For 33 Inch Diameter Tires Without Fender Trimming

Specifications

• Manufacturer: Superlift
• Manufacturer Part Number: 3600B
• Front Lift Amount (IN): 3-1/2 Inch
• Rear Lift Amount (IN): 3-1/2 Inch
• Maximum Tire Size: 33 x 18
• Front Lift Type: Strut Assembly Spacer
• Rear Lift Type: Blocks
• Shock Type: Gas Charged
• Minimum Wheel Diameter: 18
• Shocks: With Bilstein 1500 Rear Shock Absorbers In Kit - Front Shock Change Not Necessary
• Color: Black Components/ Silver Shocks

Compatibility / Fit

• 2014-2018 Chevrolet Silverado 1500
• 2019-2019 Chevrolet Silverado 1500 LD- Old Model
• 2014-2018 GMC Sierra 1500
• 2019-2019 GMC Sierra 1500 Limited- Old Model

Technical Documents

• 3600_Updated.pdf
