Suburban Water Heater (MPN: 5242A)

Durable and efficient water heater for RV applications

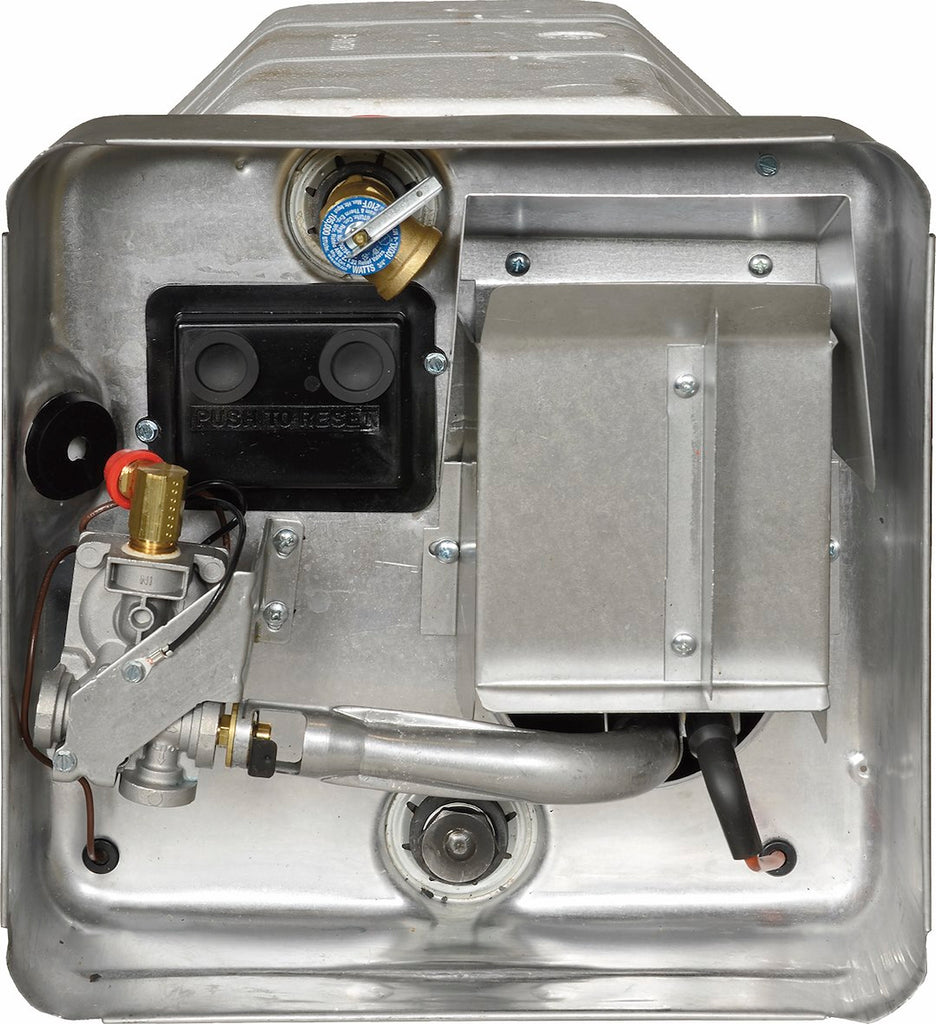

The Suburban Water Heater Model SW10D is designed for RV use, featuring a 10-gallon capacity and direct spark ignition for reliable operation. This water heater is constructed with a porcelain-lined steel tank, ensuring longevity and resistance to corrosion. The unit boasts a fast recovery rate, providing ample hot water while minimizing cool water cycles, which enhances user convenience during travel.

With dimensions of 16-7/32 inches in height and width, and a depth of 20-1/2 inches, this non-portable water heater is compact yet powerful, operating at 12000 BTU. The exterior gas line connection simplifies installation, while the one-piece, die-formed metal control housing protects the internal controls from environmental elements.

Additionally, the copolymer insulation jacket is specifically fitted to the tank, optimizing heat retention for efficient performance. The replaceable anode rod further extends the life of the water heater by providing additional corrosion protection, making it a reliable choice for RV enthusiasts.

Features

• Porcelain-Lined Steel Tank For Long Life
• Replaceable Anode Rod Provides Further Corrosion Protection
• FAST Recovery Rate: Fast Recovery Means More Hot Water And Fewer Cool Water Cycles
• Convenient Exterior Gas Line Connection
• One-Piece, Die-Formed Metal Control Housing Protects Controls From The Weather
• Copolymer Insulation Jacket Specially Fitted To The Tank To Retain Heat

Specifications

• Manufacturer: Suburban Mfg
• Manufacturer Part Number: 5242A
• Capacity: 10 Gallon
• Type: LP Gas
• Model: SW10D
• Ignition Type: Direct Spark Ignition
• Wattage Rating: Not Applicable
• BTU Level: 12000 BTU
• Width: 16-7/32 Inch
• Height: 16-7/32 Inch
• Depth: 20-1/2 Inch
• With Insulation: No
• With Switch: No
• With Access Door: No
• With Indicator Light: No
• With Mounting Hardware: No

Technical Documents

• AXL-SUB_Tank_WH_SS_kw03012023.pdf
