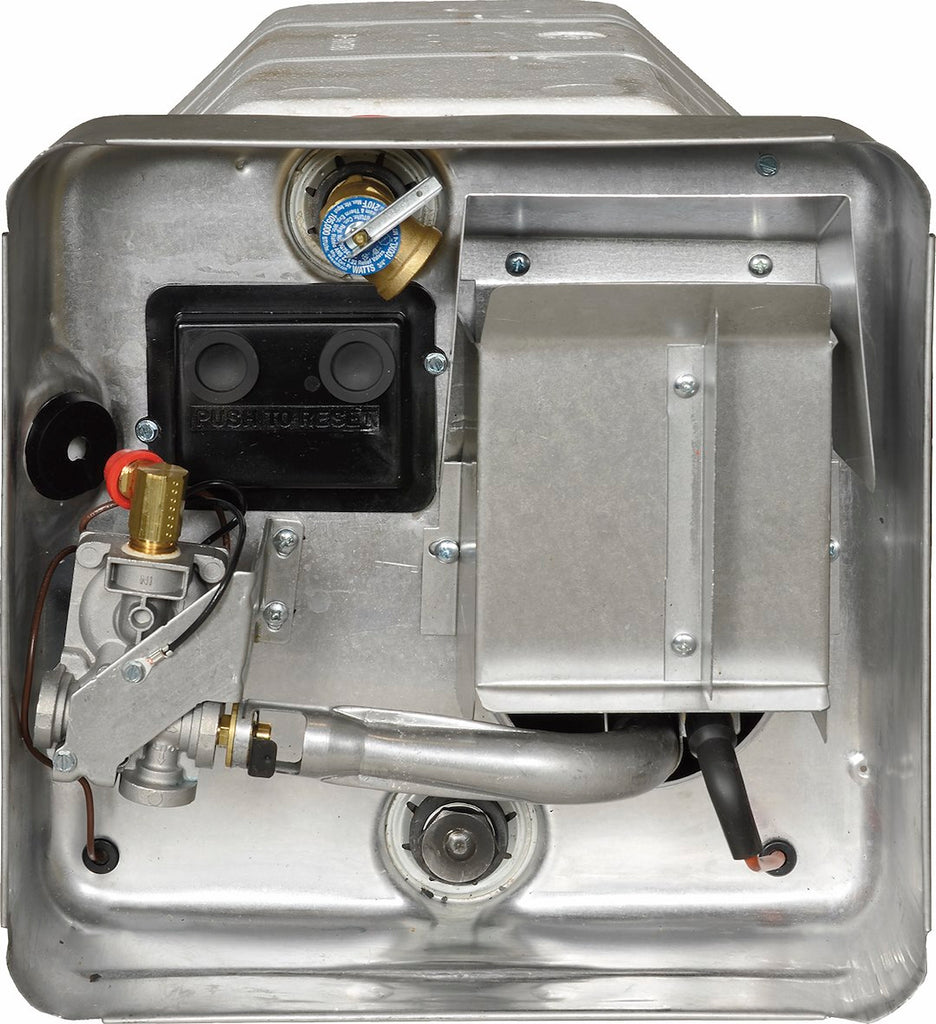

Suburban Water Heater (MPN: 5135A)

Durable 4 Gallon Water Heater with Direct Spark Ignition

The Suburban Water Heater Model SW4D is designed for efficient water heating in RV applications. With a capacity of 4 gallons, this unit features a porcelain-lined steel tank that ensures longevity and resistance to corrosion. The direct spark ignition system provides reliable operation, making it a dependable choice for users.

This water heater includes an indoor mounted switch for easy control of ignition and operation. Its fast recovery rate allows for quick heating, while the convenient exterior LP gas line connection simplifies installation. The one-piece, die-formed metal control housing protects the internal components from harsh weather conditions.

Additionally, the copolymer insulation jacket is specially fitted to the tank, enhancing heat retention and improving energy efficiency. The replaceable anode rod further extends the life of the water heater by providing additional corrosion protection.

Features

• Features An Indoor Mounted Switch Which Controls The Water Heater Ignition And Operation
• Porcelain-Lined Steel Tank For Long Life
• Replaceable Anode Rod Provides Further Corrosion Protection
• Fast Recovery Rate
• Convenient Exterior LP Gas Line Connection
• One-Piece, Die-Formed Metal Control Housing Protects Controls From The Weather
• Copolymer Insulation Jacket Specially Fitted To The Tank To Retain Heat

Specifications

• Manufacturer: Suburban Mfg
• Manufacturer Part Number: 5135A
• Capacity: 4 Gallon
• Type: LP Gas
• Model: SW4D
• Ignition Type: Direct Spark Ignition
• Wattage Rating: Not Applicable
• BTU Level: 9000 BTU
• Width: 12-11/16 Inch
• Height: 12-11/16 Inch
• Depth: 16-3/16 Inch
• With Access Door: No
• With Indicator Light: No
• With Mounting Hardware: No
