Efficiently transfer brake fluids with minimal leakage and optimal flow.

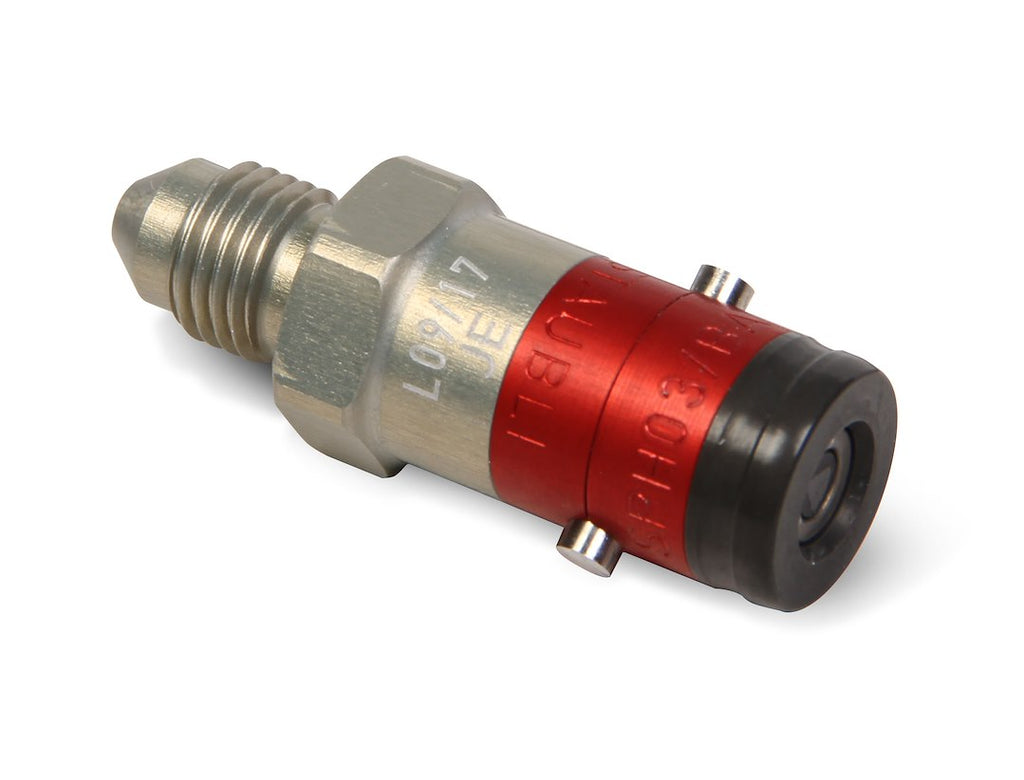

The Staubli Brake Line Quick Disconnect is engineered for the effective transfer of brake fluids, engine fuels, and engine oils. This coupling features a male half design in a -3 AN size, capable of withstanding a maximum pressure of 2900 pounds per square inch. The aluminum construction combined with an EPDM seal ensures durability and reliability across a temperature range of -4 to 302 degrees Fahrenheit.
Designed with user convenience in mind, the quick twist bayonet locking mechanism securely connects the coupler, minimizing the risk of accidental disconnection. The SPH flush face design significantly reduces fluid leakage and air inclusion, thanks to its double shut-off ends, which also eliminate the need for system purging. This internal design allows for optimal flow while maintaining a compact outside diameter.
The Staubli couplers are versatile, accommodating various applications with different seal options. The Ethylene-Propylene seals are specifically formulated for compatibility with all glycol-based brake fluids, ensuring safe and efficient operation. This product is an essential component for any system requiring reliable fluid transfer without compromising performance.
Features
- Staubli SPH Aluminum Dry Break Couplings Are Available To Transfer Brake Fluids, Engine Fuels And Engine Oils
- The Quick Twist Of The Bayonet Locks The Coupler Together
- Available In Standard And Panel Mount Body Styles In Three Different Flow Sizes
- SPH Flush Face Break Couplers Have A Minimum Loss Of Fluid Leakage Or Air Inclusion With Double Shut Off Ends Which Eliminates The Need To Purge The System
- Internal Design With Large Inside Diameter Provides Optimal Flow Within The Minimum Outside Diameter
- Staubli SPH Couplers That Use Fluorocarbon FPM Seals Are For Use With Oils, Fuels Non-Ethanol, Mineral Greases And Nitrogen
- Ethylene-Propylene Seals Are Designed To Work With All Glycol Base Brake Fluids
Specifications
- Manufacturer: Earl's Plumbing
- Manufacturer Part Number: JE270103ERL
- Use With: Transfer Brake Fluids
- Type: Male Half
- Size: 3/16 Inch (-3 AN)
- Maximum Pressure Rating (PSI): 2900 Pounds Per Square Inch
- Temperature Range (Deg F): -4 To 302 Degree Fahrenheit
- Includes Coupling: Yes
- Includes Seal: Yes

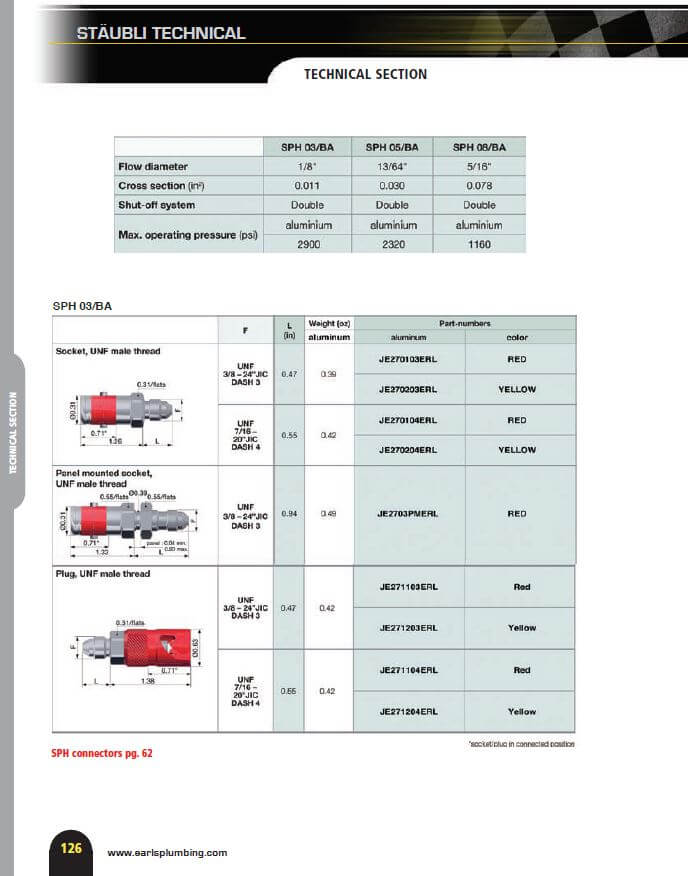

Technical Documents
