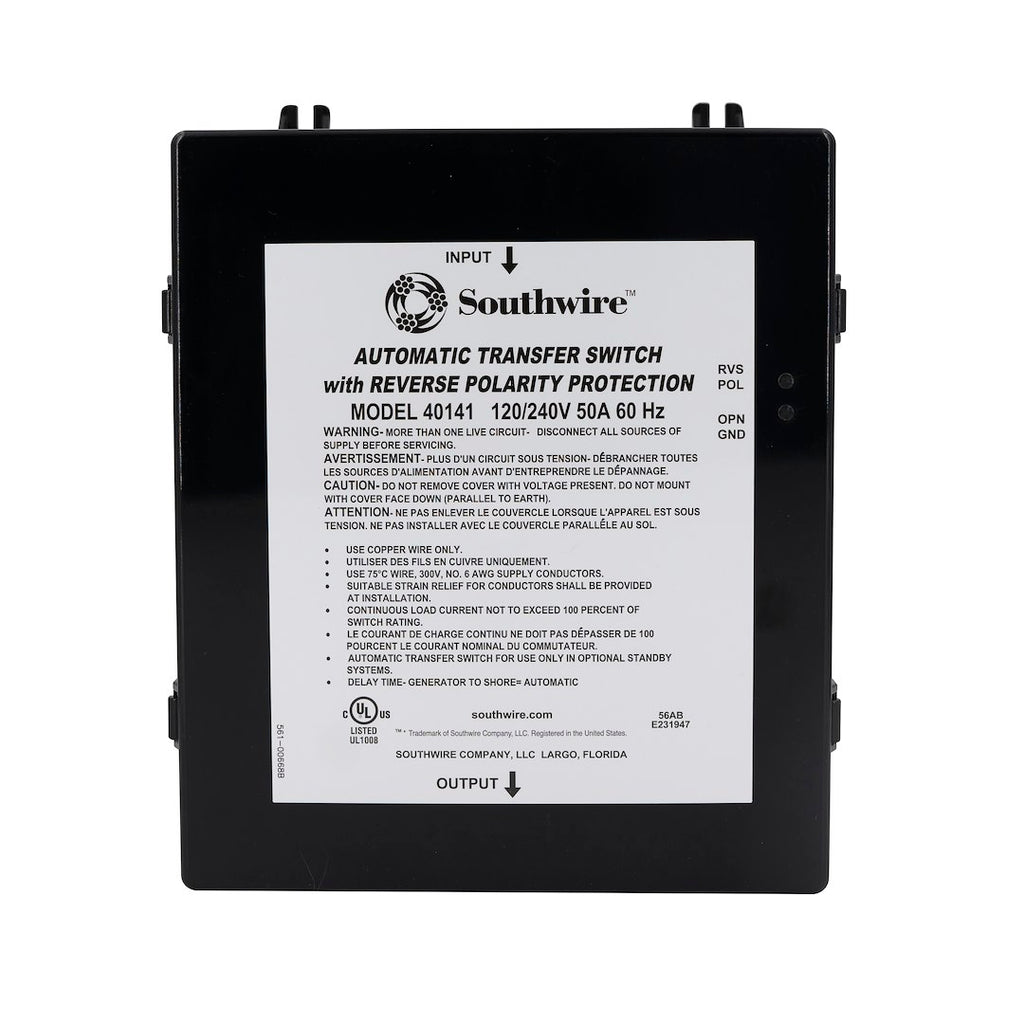

SouthWire Power Transfer Switch (MPN: 40141-001)

Seamless power transfer between shore and RV generator with safety features.

The SouthWire Power Transfer Switch is designed to facilitate the automatic transfer of power between shore power and an RV generator. This unit operates at 120/240 volts and supports a maximum current of 50 amps, ensuring reliable performance for various applications. The switch features dual 50A rated Chint contactors that provide essential reverse polarity and open ground protection, enhancing safety during operation.

Constructed with a rugged plastic enclosure, this transfer switch mitigates risks associated with corrosion and sharp edges that can occur with metal boxes. The mechanical interlock design ensures that both contactors cannot engage simultaneously, further safeguarding the system. An LED indicator is included to alert users to any reverse polarity or open ground issues, promoting proactive maintenance and safety.

With a time delay feature at power up and a generator dominant mode that automatically transfers to generator power after a 30-second delay, this transfer switch is engineered for efficiency and reliability. The SouthWire Power Transfer Switch is UL-listed, confirming its compliance with safety standards and making it a dependable choice for RV power management.

Features

• Generator Dominant And Transfers To Generator Power Automatically When Energized After 30 Second Delay
• Time Delay At Power Up
• Featured With LED Indicator For Reverse Polarity And Open Ground Protection
• UL-Listed While Capable Of Up To 50A

Specifications

• Manufacturer: SouthWire Corp.
• Manufacturer Part Number: 40141-001
• Type: Automatic
• Voltage: 120/ 240 Volt
• Ampere Rating: 50 Amp
• Length (IN): 5.19 Inch
• Width (IN): 8.48 Inch
• Height (IN): 10-3/4 Inch
• Color: Black
• Mounting Type: Wall Mount

Technical Documents

• 40141-001.pdf
