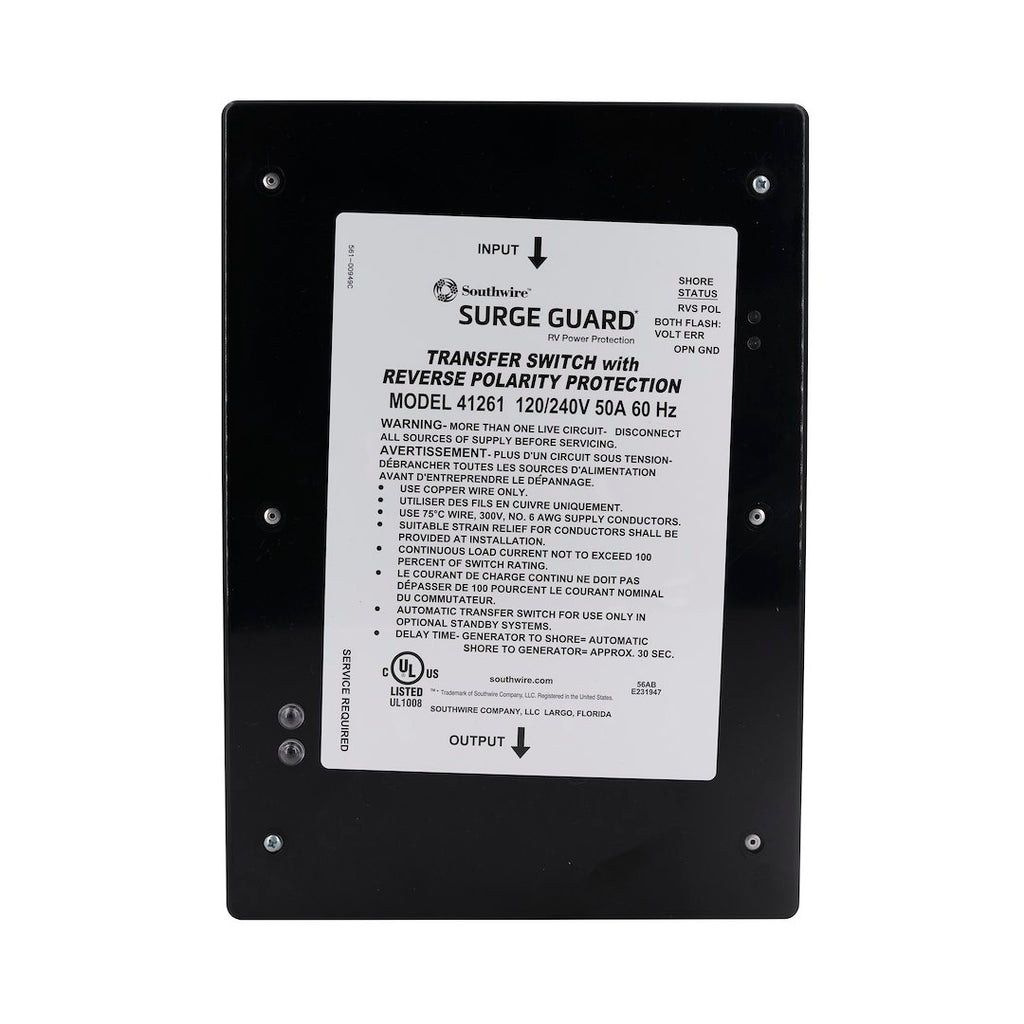

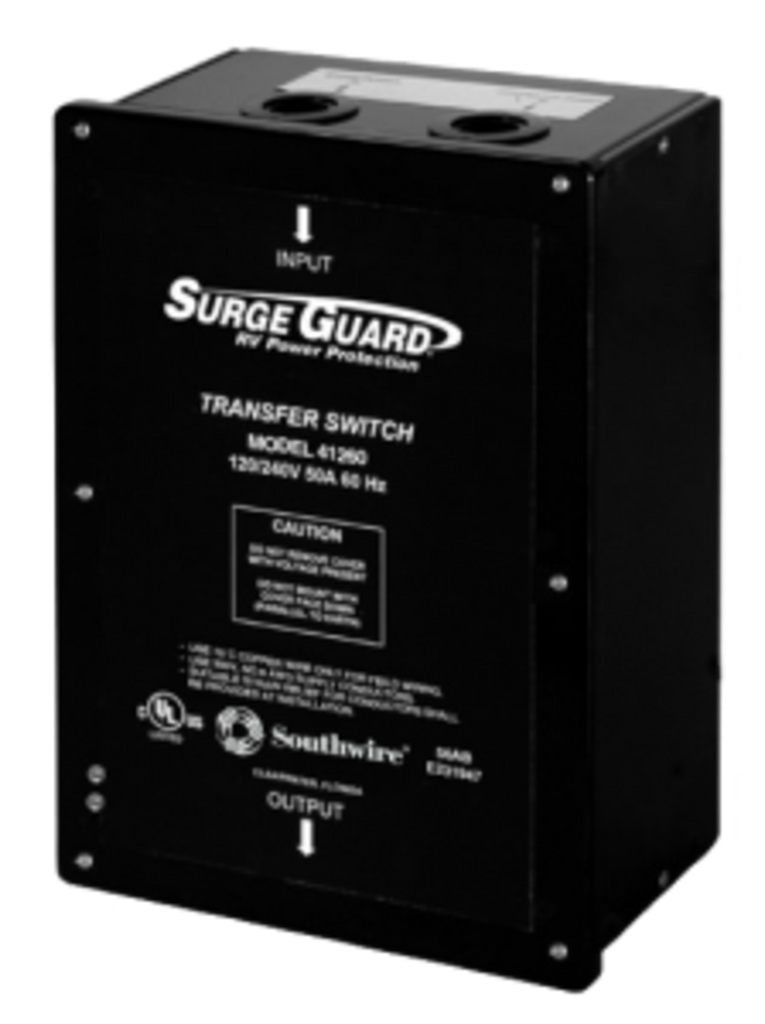

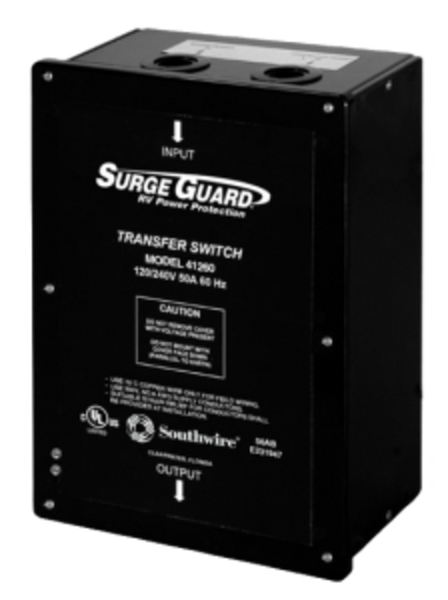

Southwire Automatic Power Transfer Switch (MPN: 41261-011)
Southwire Automatic Power Transfer Switch (MPN: 41261-011)
Southwire Automatic Power Transfer Switch (MPN: 41261-011)

Southwire Automatic Power Transfer Switch (MPN: 41261-011)

  • Sale
  • $404.84
Accepted Credit Cards

Seamless power transfer between shore and RV generator with full protection features.

The Southwire Automatic Power Transfer Switch is engineered to facilitate the seamless transfer of power between shore power and an RV generator. This device operates at 120/240 volts and supports up to 50 amps, ensuring reliable power management for various applications. The automatic functionality allows for generator dominance, transferring to generator power automatically after a 30-second delay, which enhances operational efficiency.

Designed with safety in mind, the transfer switch incorporates dual 80A Chint contactors with a mechanical interlock that prevents simultaneous engagement, thereby ensuring safe operation. The rugged plastic enclosure mitigates risks associated with corrosion and sharp edges, providing a secure environment for the electrical components. Additionally, the unit features LED indicators for reverse polarity and open ground protection, enhancing user awareness of the system's status.

This UL-listed transfer switch is capable of protecting against miswired pedestals, power surges, and voltage anomalies, making it a reliable choice for RV owners. With its compact dimensions of 8.84 inches in width, 13.5 inches in height, and 5.21 inches in depth, it is designed for wall mounting, optimizing space while ensuring accessibility.

Features

  • Generator Dominant And Transfers To Generator Power Automatically When Energized After 30 Second Delay
  • Time Delay At Power Up
  • Featured With LED Indicator For Reverse Polarity And Open Ground Protection
  • UL-Listed While Capable Of Up To 50A
  • Protects Against Miswired Pedestal, Power Surge And Voltage Anomalies

Specifications

  • Manufacturer: SouthWire Corp.
  • Manufacturer Part Number: 41261-011
  • Type: Automatic
  • Voltage: 120/ 240 Volt
  • Ampere Rating: 50 Amp
  • Length (IN): 5.21 Inch
  • Width (IN): 8.84 Inch
  • Height (IN): 13-1/2 Inch
  • Color: Black
  • Mounting Type: Wall Mount
