Skyjacker Suspensions Lift Kit (MPN: F2145BKB)

Enhance your F150's performance with a robust 4-1/2 inch lift kit.

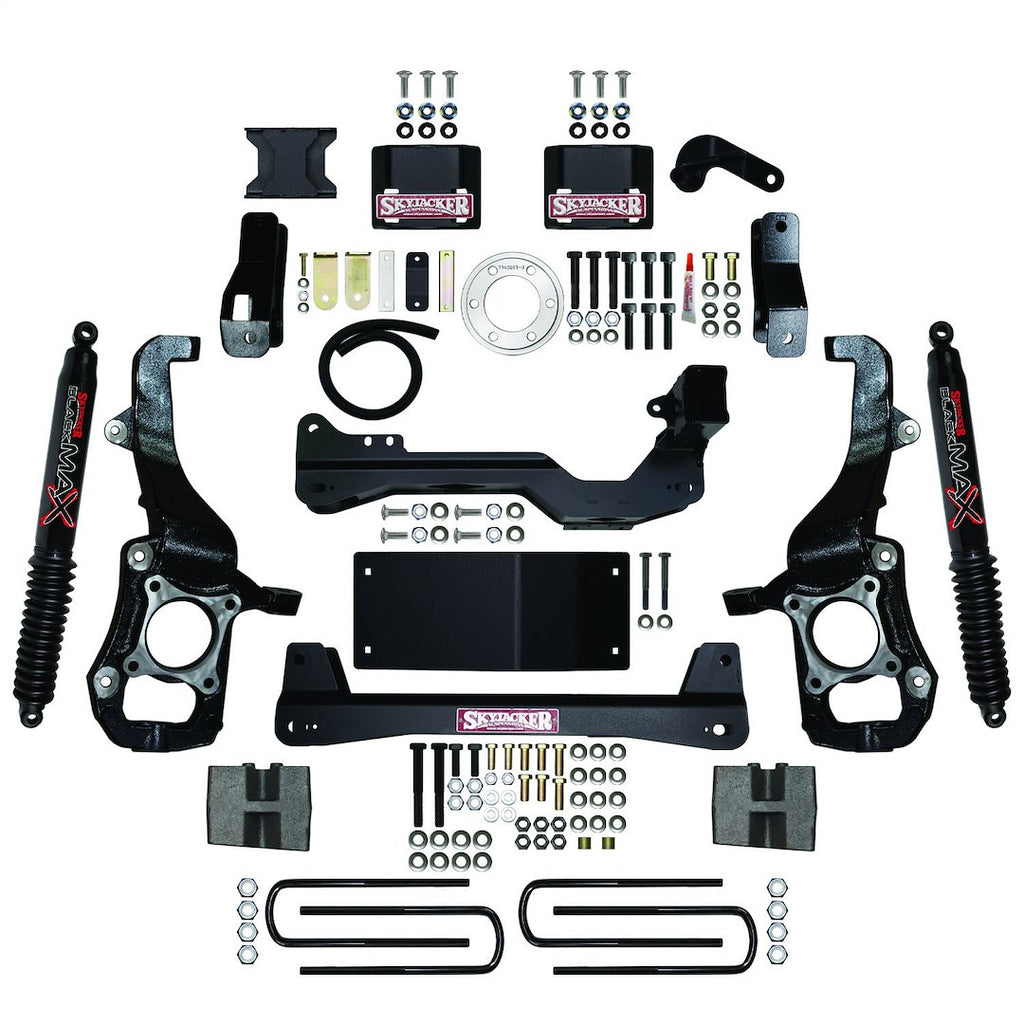

The Skyjacker Suspensions Lift Kit is designed to elevate your F150 by 4-1/2 inches in both the front and rear, providing the necessary clearance for larger tires up to 35x12.5 inches. This comprehensive kit includes essential components such as front strut assembly spacers, rear lift blocks, and U-bolts, ensuring a complete suspension upgrade without the need for front shock changes. The unique rear crossmember design incorporates a driver side sway bar drop bracket, enhancing strength and stability while maintaining optimal sway bar angles for improved handling.

Engineered for performance, the kit features CNC machined ductile iron replacement steering knuckles that preserve the OEM track width and maintain proper steering geometry throughout the suspension travel cycle. The inclusion of front and rear brake line relocation brackets, along with a differential vent tube extension, ensures compatibility with the vehicle's systems. Additionally, the kit aligns to OEM specifications and integrates seamlessly with the Electric Stability Control system, providing a reliable and safe driving experience.

With a focus on durability, the kit includes a CNC machined 6061-T6 aluminum front driveshaft spacer and a rear driveshaft carrier bearing lowering kit, all designed to withstand rigorous driving conditions. The ADX 2.0 shocks feature a race-inspired full-displaced valving system, ensuring quick shock reaction times for enhanced ride quality. This lift kit not only improves ground clearance but also enhances the overall performance and capability of your F150.

Features

• Provide Unparalleled Performance With Uncompromised Strength And Maximum Clearance
• Skyjacker's Unique Rear Crossmember Incorporates The Driver Side Sway Bar Drop Bracket For Strength And Stability
• Pair Of Sturdy Front And Rear Crossmembers Provides A Solid Mounting Point For The OEM Lower Control Arms
• Precise Engineered 1-Piece Strut Spacers Have A Specific 'Pitch And Index' Offset To Preserve CV Extension And To Prevent CV Axle Overextension Within The OEM Tolerances
• Exacting Engineered CNC Machined Ductile Iron Replacement Steering Knuckles Preserve The OEM Track Width And Maintain Proper Steering Geometry Through The Travel Cycle
• Aligns To OEM Specifications And Works Properly With Electric Stability Control System
• CNC Machined 6061-T6 Aluminum Front Driveshaft Spacer, Rear Driveshaft Carrier Bearing Lowering Kit, Cast Ductile Iron Rear Blocks With Longer Grade 8 U-Bolts And Lock Nuts
• ADX 2.0 Has A Race-Inspired Full-Displaced Valving System: Nitrogen Charged With Internal Floating Piston Technology Is Quickest Shock Reaction Time Ever

Specifications

• Manufacturer: Skyjacker Suspensions
• Manufacturer Part Number: F2145BKB
• Front Lift Amount (IN): 4-1/2 Inch
• Rear Lift Amount (IN): 4-1/2 Inch
• Maximum Tire Size: 35×12.5
• Front Lift Type: Strut Assembly Spacers
• Rear Lift Type: Lift Blocks And U-Bolts
• Shock Type: Twin Tube
• Wheel Backspacing (IN): 5
• Minimum Wheel Diameter: 18
• Shocks: With Shocks In Kit
• Color: Black Components/ Black Shock Absorbers

Compatibility / Fit

• 2021-2022 Ford F-150

Technical Documents

• I-F2146SP.pdf
