Skyjacker Lift Kit Suspension (MPN: JL40BPBLT)

Enhance your Jeep Wrangler JL with superior lift and control.

Skyjacker's lift kit suspension for the Jeep Wrangler JL and Rubicon is engineered to provide a 3.5 to 4 inch lift, enhancing both on-road comfort and off-road capability. This system features dual rate-long travel coil springs that are specifically designed to improve ride quality while maintaining optimal tire contact during articulation. The kit includes front and rear Black Max shock absorbers, which are tailored for maximum extension and articulation, ensuring stability and control in various driving conditions.

The lift kit also incorporates an adjustable front track bar, eliminating the need for a pitman arm and ensuring proper steering geometry and axle centering. With extended sway bar end links and bump stop extensions, the suspension system is designed to clear tires during full droop and heavy off-road movement. This comprehensive package includes all necessary installation hardware, making it a complete solution for enhancing your Jeep's suspension performance.

Skyjacker's lift kit is compatible with maximum tire sizes of 38 x 13.50, allowing for a more aggressive stance and improved ground clearance. The black components provide a sleek aesthetic while ensuring durability and performance. This lift kit is an essential upgrade for those looking to improve their Jeep Wrangler JL's off-road capabilities without sacrificing on-road comfort.

Features

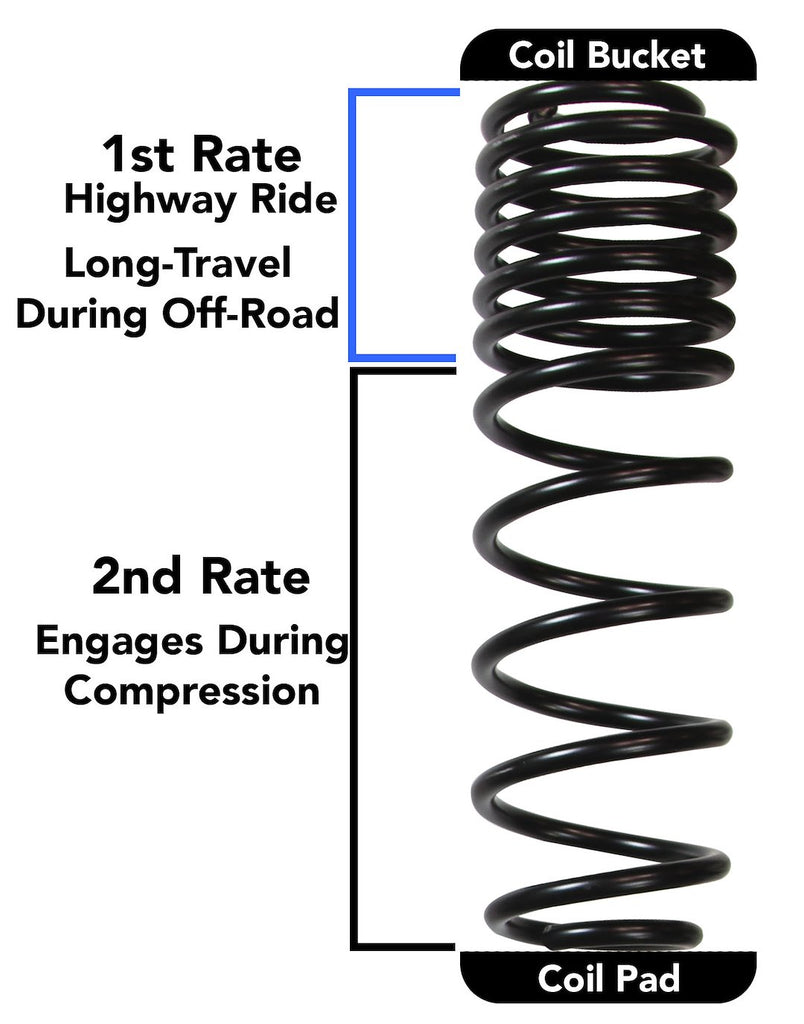

• The DUAL RATE-LONG TRAVEL Coil Springs Offers The Best Of Both Worlds From The Street To The Trail! The 1st Spring Rate Offers An Exceptional Highway Ride
• The Coils Will Expand When Off-Roading During Articulation As The Suspension Droops To Keep The Tires In Contact With The Ground Much Longer Than A Single Rate Coil
• This Results In A Smoother Ride While Maintaining The Coil In The Upper Coil Bucket Even At Full Droop
• The 2nd Rate (Lower Coils) Only Engage After Compression Past The 1st Rate, This Second Rate Allows Consistent Control And Stability During Body Roll And Heavy Off-Road Suspension Movement
• Systems Feature Extended Sway Bar End Links Which Allow For Full Droop And Long Travel As Well As Bump Stop Extensions To Make Sure The Suspension Clears The Tires At Bump
• Long Travel Front And Rear Shocks Are Length Fitted To Offer The Maximum Extension Allowable For Full Articulation To Complete This Total Package

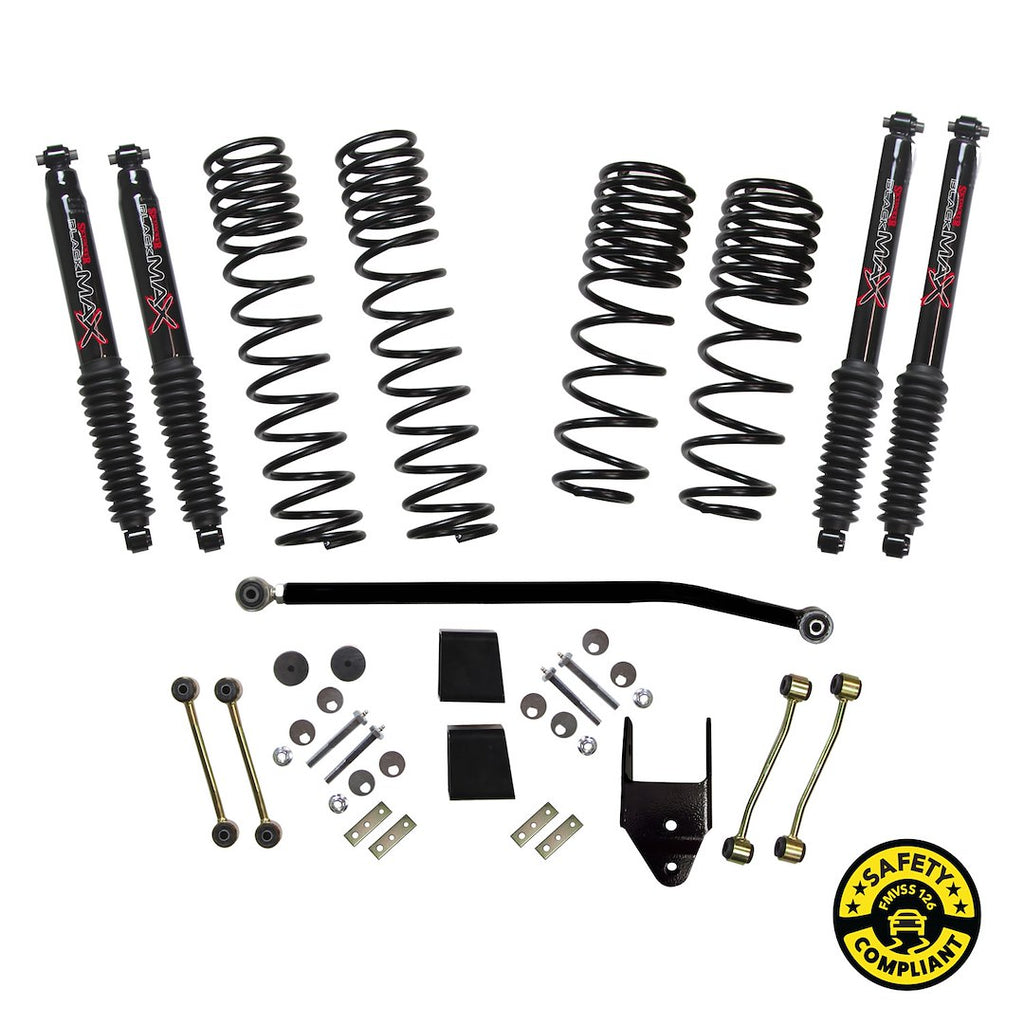

• Lift Kit Suspension Include: Front And Rear Dual Rate, Long Travel Coil Springs; Adjustable And High-Angle Front Track Bar
• Lift Kit Suspension Include: Rear Track Bar Extension Bracket; Front And Rear Eccentric Cam Bolts; Front And Rear Extended Sway Bar End Links; Front And Rear Bump Stop Extensions
• Lift Kit Suspension Include: Front And Rear Black MAX Or M95 Monotube Long Travel Shocks ;Grade 8 Mounting Hardware

Specifications

• Manufacturer: Skyjacker Suspensions
• Manufacturer Part Number: JL40BPBLT
• Front Lift Amount (IN): 3-1/2 To 4 Inch
• Rear Lift Amount (IN): 3-1/2 To 4 Inch
• Maximum Tire Size: 38 X 13.50
• Front Lift Type: Coil Springs
• Rear Lift Type: Coil Spring
• Shock Type: Twin Tube
• Shocks: With Shocks In Kit
• Color: Black Components

Compatibility / Fit

• 2018-2025 Jeep Wrangler JL

Technical Documents

• I-JL3540BP-REV7.pdf
