Skyjacker Lift Kit Suspension (MPN: G350PELT)

Enhance your Jeep Gladiator JT with advanced suspension technology.

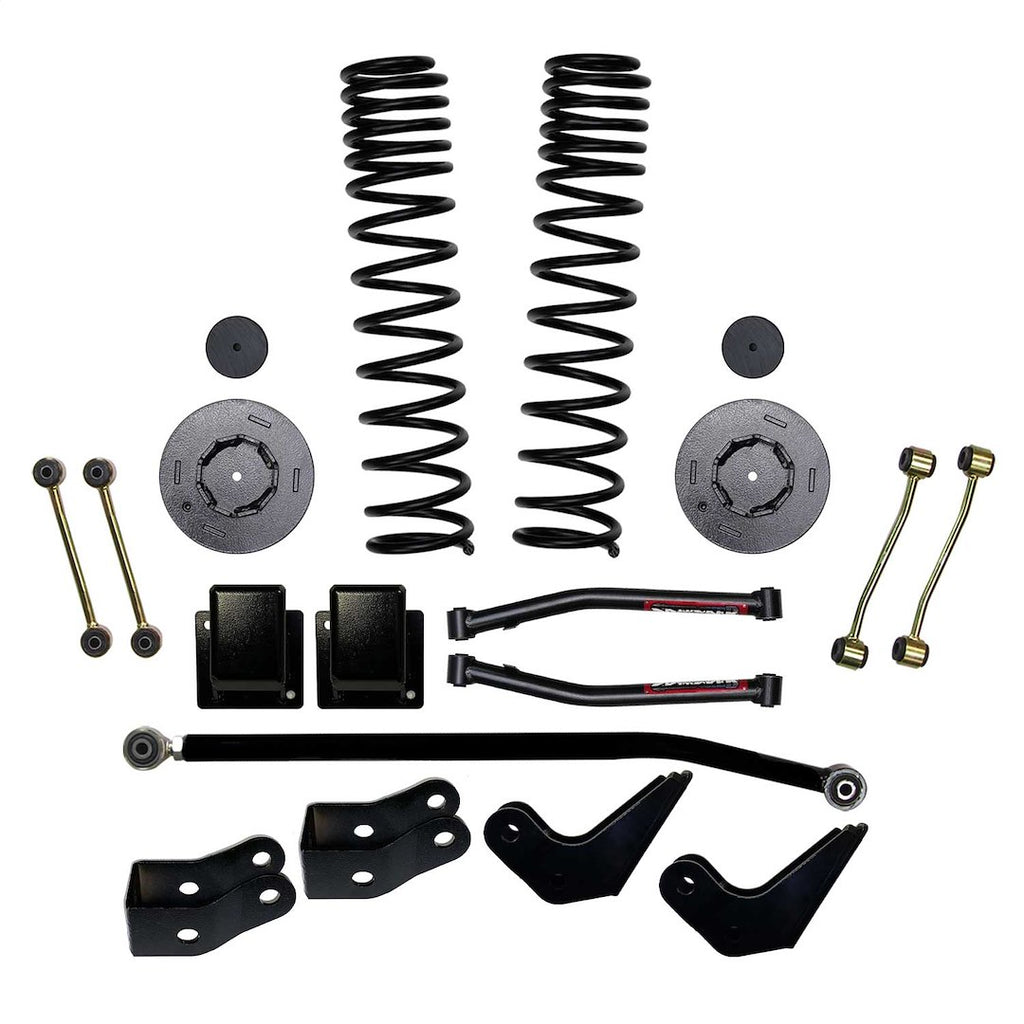

The Skyjacker Lift Kit Suspension is designed to elevate the performance of your Jeep Gladiator JT with a 3-1/2 inch front lift and a 2 inch rear lift. This kit includes essential components such as front dual rate coil springs, rear coil spring spacers, and shock extensions, allowing for improved off-road capabilities without the need for shock absorber changes. The innovative dual rate coil springs provide a comfortable ride while maintaining tire contact with the terrain during articulation.

This suspension system enhances approach, break-over, and departure angles, enabling the use of larger 37 inch tires for a more aggressive stance. The kit features strong interlocked rear coil spring spacers that raise the rear for a level stance, and longer front lower control arms that improve tire clearance. Additionally, the adjustable track bar and bump stop spacers ensure proper alignment and limit compression stroke effectively.

Skyjacker's engineering focuses on maintaining the integrity and performance of your vehicle while providing the necessary upgrades for serious off-road enthusiasts. The components are finished in black for a sleek appearance, and the installation hardware is included for a straightforward setup.

Features

• The 1st Flex Rate Stage Delivers A Comfortable Ride That Expands During Full Articulation And Keeps The Tires In Contact With The Terrain
• The 2nd Ride Rate Stage Only Engages After Compression Past The Flex Rate
• The Strong Tab And Slot Interlocked Integrity Of The Rear 1-Piece Coil Spring Spacers Raises The Rear 2 Inches To Gain A More Level Stance
• The Longer Replacement Front Lower Control Link Arms Comes With Skyjacker Installed Pressed-In HD OEM Style Rubber Bushings
• The Front Lower Arms Are Formed Inward To Improve Tire Clearance
• The Replacement Front Adjustable Track Bar Comes With Skyjacker Installed Pressed-In HD OEM Style Rubber Bushing At The Frame Mount
• The Adjustable Axle Mount End Is A 3/4 Inch Heavy-Duty Rod End, Jam Nut And Alignment Bushings
• Front And Rear Shock Extension Relocation Brackets Reposition Your Factory Shocks
• Front 2 Inch Bump Stop Spacers Bolt Onto The Axle Bump Pad To Properly Limit The Compression Stroke

Specifications

• Manufacturer: Skyjacker Suspensions
• Manufacturer Part Number: G350PELT
• Front Lift Amount (IN): 3-1/2 Inch
• Rear Lift Amount (IN): 2 Inch
• Maximum Tire Size: 37 x 12.50
• Front Lift Type: Coil Springs
• Rear Lift Type: Coil Spring
• Shock Type: Without Shocks
• Wheel Backspacing (IN): 4.5
• Minimum Wheel Diameter: 17
• Wheel Offset (MM): -12.7
• Shocks: Without Shock Absorbers In Kit - Shock Change Not Necessary
• Color: Black

Compatibility / Fit

• 2020-2024 Jeep Gladiator JT

Technical Documents

• I-G351.pdf
• I-G350_REV5.pdf
