Skyjacker Lift Kit Suspension (MPN: G250RPELT)

Enhance your Jeep Gladiator JT Rubicon with improved lift and stability.

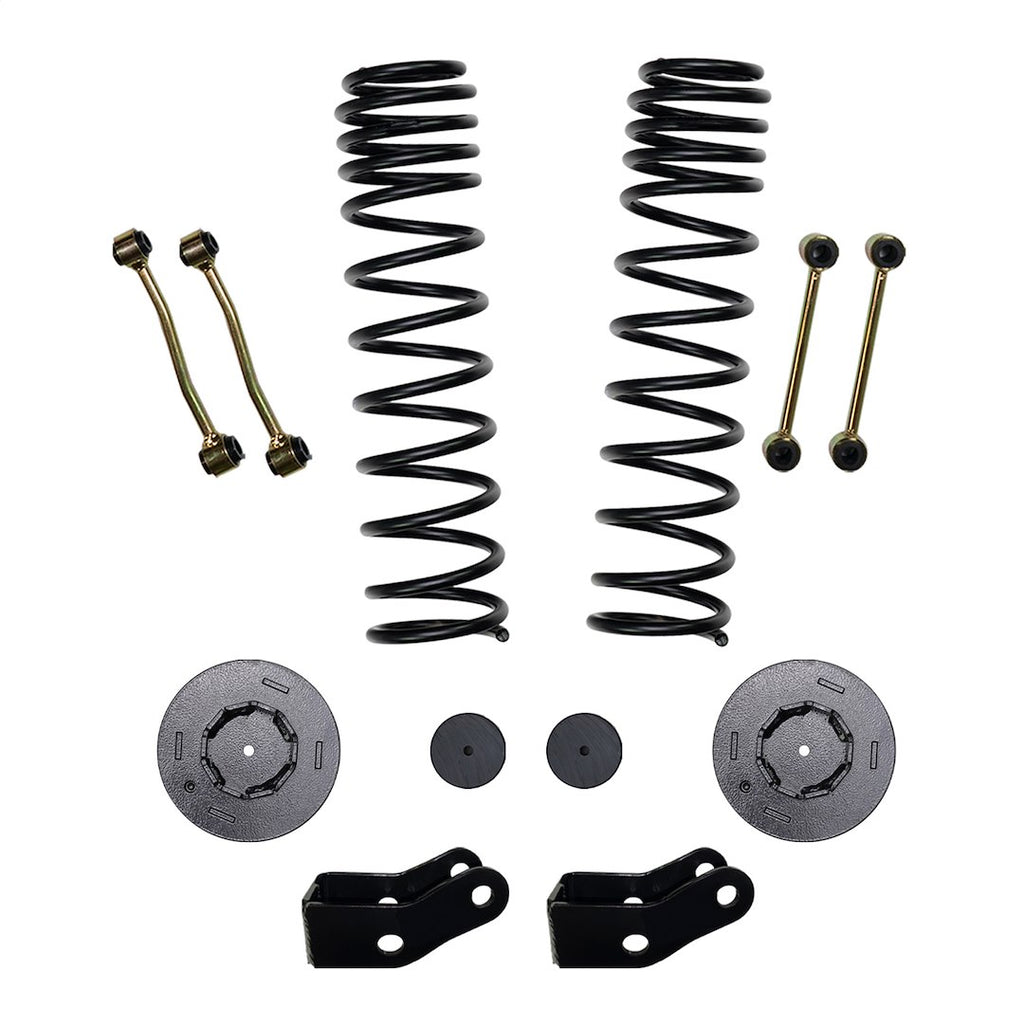

The Skyjacker Lift Kit Suspension is designed specifically for the Jeep Gladiator JT Rubicon, providing a 2-1/2 inch front lift and a 1 inch rear lift without the need for shock absorbers. This kit includes front dual rate coil springs and rear coil spring spacers, ensuring a balanced lift that maintains a stock-like ride quality. The progressive variable rate coil springs are engineered to deliver a comfortable ride while allowing for increased articulation during off-road conditions.

With this lift kit, drivers can achieve better approach, break-over, and departure angles, making it easier to navigate challenging terrains. The first flex rate stage of the coil springs provides a smooth ride, while the second ride rate stage engages for optimal performance during compression, enhancing stability during aggressive maneuvers. The kit also features bump stop extensions and shock relocation brackets to ensure proper fitment and functionality.

Installation is straightforward with included hardware, making it accessible for those looking to enhance their vehicle's capabilities. The black components of the kit not only provide a sleek appearance but also ensure durability and longevity under various driving conditions. This lift kit is compatible with maximum tire sizes of 37 x 12.50, allowing for a more aggressive stance and improved off-road performance.

Features

• The 1st Flex Rate Stage Of The Coil Spring Delivers A Comfortable Ride With The Ability To Flex For Increased Articulation
• The Coil Spring Flex Rate Expands During Full Articulation As The Suspension Drops
• This Keeps The Coils Spring Seated In The Upper Coil Mount/Bucket And The Tires In Contact With The Terrain
• The 2nd Ride Rate Stage Only Engages After Compression Past The Flex Rate
• 2nd Ride Rate Gives Optimal Performance And Consistent Controlled Stability During Body Roll And Aggressive Off-Road Suspension Movement
• The Strong Tab And Slot Interlocked Integrity Of The Rear 1-Piece Coil Spring Spacers Raises The Rear 1 Inch To Gain A More Level Stance
• Front 2 Inch Bump Stop Spacers Bolt Onto The Axle Bump Pad To Properly Limit The Compression Stroke
• Well-Built Front Shock Extension Relocation Brackets Reposition Your Factory Shocks
• Extended Length Sway Bar End Links Allow Full Articulation As The Suspension Drops

Specifications

• Manufacturer: Skyjacker Suspensions
• Manufacturer Part Number: G250RPELT
• Front Lift Amount (IN): 2-1/2 Inch
• Rear Lift Amount (IN): 1 Inch
• Maximum Tire Size: 37 x 12.50
• Front Lift Type: Coil Springs
• Rear Lift Type: Coil Spring
• Shock Type: Without Shocks
• Wheel Backspacing (IN): 4.5
• Minimum Wheel Diameter: 17
• Wheel Offset (MM): -12.7
• Shocks: Without Shock Absorbers In Kit - Shock Change Not Necessary
• Color: Black

Compatibility / Fit

• 2020-2024 Jeep Gladiator JT

Technical Documents

• I-G251.pdf
• I-G250_REV5.pdf
