Skyjacker Lift Kit Suspension (MPN: G250PELT)

Enhance your Jeep Gladiator JT with improved lift and stability.

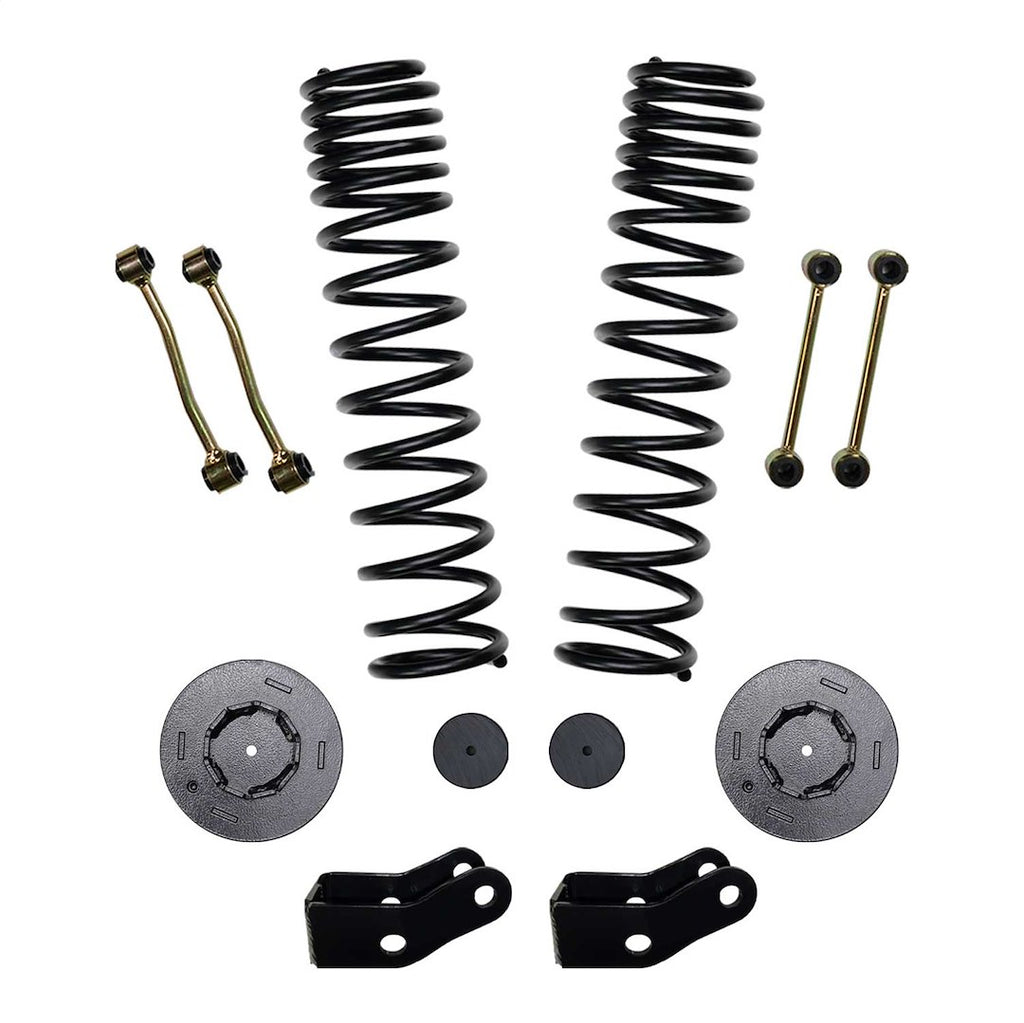

The Skyjacker Lift Kit Suspension is designed specifically for the Jeep Gladiator JT, providing a 2-1/2 inch front lift and a 1 inch rear lift without the need for shock absorbers. This kit includes front dual rate coil springs and rear coil spring spacers, ensuring a balanced lift that enhances approach, break-over, and departure angles for off-road adventures. The progressive variable rate coil springs are engineered to deliver a comfortable ride while allowing for increased articulation during suspension travel.

The kit features a strong tab and slot interlocked design for the rear coil spring spacers, which raises the rear by 1 inch to achieve a more level stance. Additionally, front bump stop spacers are included to limit compression stroke effectively, while shock extension relocation brackets ensure proper positioning of factory shocks. Extended length sway bar end links allow for full articulation as the suspension drops, maintaining optimal performance during aggressive off-road maneuvers.

Constructed with durability in mind, the components are zinc plated for corrosion protection, and the end links come with high-quality bushings for enhanced stability. This lift kit is a cost-effective solution for Jeep Gladiator JT owners looking to improve their vehicle's off-road capabilities while maintaining a stock-like ride quality.

Features

• The 2nd Ride Rate Stage Only Engages After Compression Past The Flex Rate
• 2nd Ride Rate Gives Optimal Performance And Consistent Controlled Stability During Body Roll And Aggressive Off-Road Suspension Movement
• The Strong Tab And Slot Interlocked Integrity Of The Rear 1-Piece Coil Spring Spacers Raises The Rear 1 Inch To Gain A More Level Stance
• Front 2 Inch Bump Stop Spacers Bolt Onto The Axle Bump Pad To Properly Limit The Compression Stroke
• Well-Built Front Shock Extension Relocation Brackets Reposition Your Factory Shocks
• Extended Length Sway Bar End Links Allow Full Articulation As The Suspension Drops
• The Front End Links Comes With Skyjacker Installed Pressed-In HD OEM Style Rubber Bushings
• Zinc Plated For Corrosion Protection
• The Rear End Links Come With Press-In Poly Bushings

Specifications

• Manufacturer: Skyjacker Suspensions
• Manufacturer Part Number: G250PELT
• Front Lift Amount (IN): 2-1/2 Inch
• Rear Lift Amount (IN): 1 Inch
• Maximum Tire Size: 35 x 12.50
• Front Lift Type: Coil Springs
• Rear Lift Type: Coil Spring
• Shock Type: Without Shocks
• Wheel Backspacing (IN): 4.5
• Minimum Wheel Diameter: 17
• Wheel Offset (MM): -12.7
• Shocks: Without Shock Absorbers In Kit - Shock Change Not Necessary
• Color: Black

Compatibility / Fit

• 2020-2024 Jeep Gladiator JT

Technical Documents

• I-G251.pdf
• I-G250_REV5.pdf
